Product Description
Built for demanding excavation work, this 2016 Sany SY215C-8S delivers reliable performance across construction and earthmoving applications. Operating at 21 tons with a 0.93 m³ backhoe bucket, this machine tackles digging, grading, and material handling with proven efficiency. The Mitsubishi 6D34-TL engine generates 114 kW at 2050 rpm, providing consistent power for extended job site operations.
Engineered for versatility, this excavator reaches a maximum digging depth of 6,630 mm and extends to a 9,885 mm digging radius, making it suitable for foundation work, trenching, and site preparation. With 138 kN bucket digging force and 100 kN arm digging force, it cuts through compacted soil and challenging ground conditions. The dual hydraulic pumps deliver 2 x 210 l/min flow for responsive control during precision tasks.
- Water-cooled 5.861L displacement engine for sustained performance
- 70% climbing ability handles sloped terrain effectively
- Compact 2,750 mm rear turning radius for confined spaces
- Currently located in Jinan, Shandong—ready for immediate deployment
| Specifications | Value |
|---|---|
| No. | 1005726 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

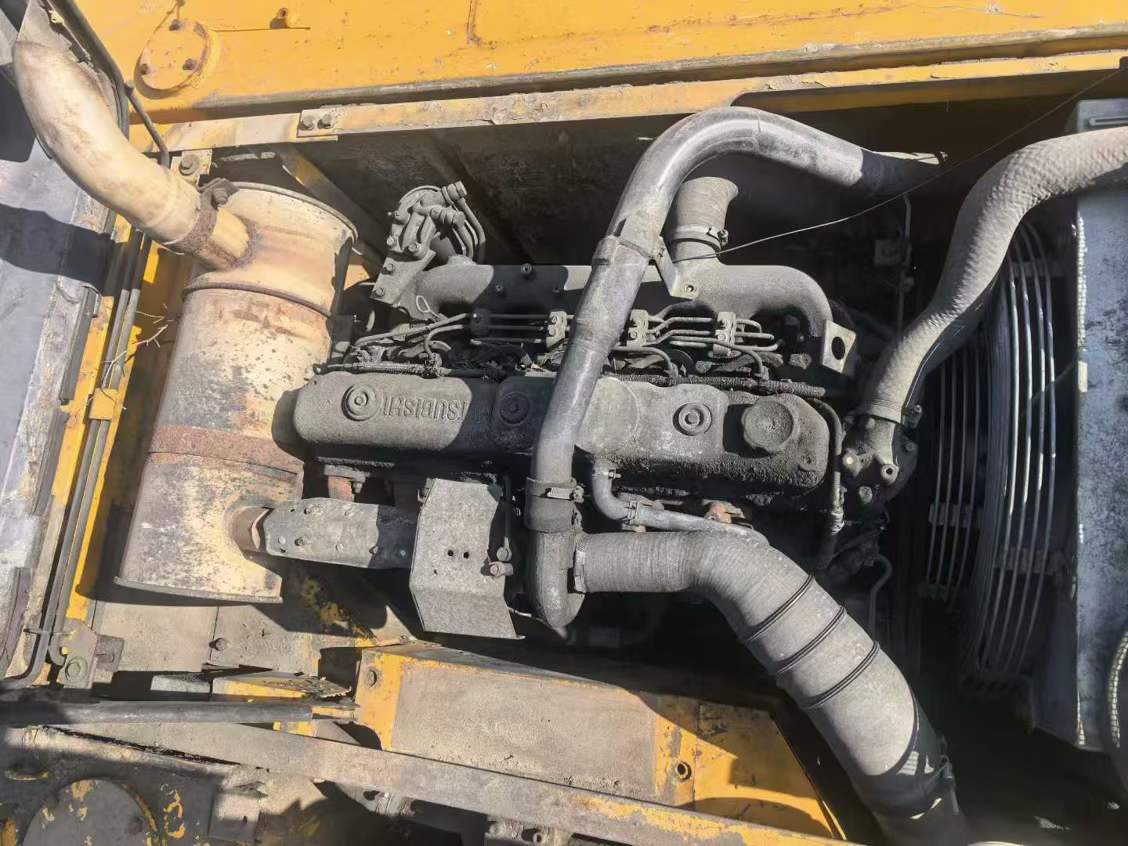

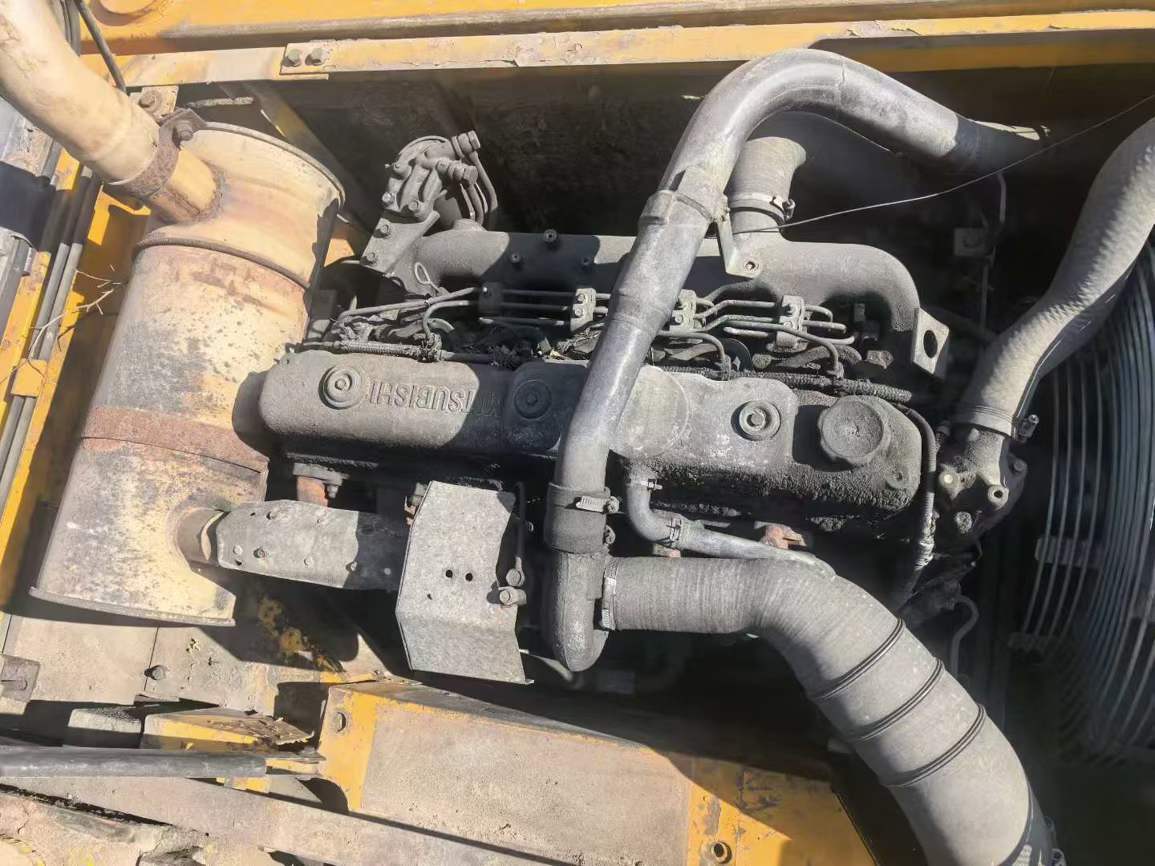

| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.861 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 100 |
| Travel speed (km/h) | 5.5/3.2 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9395 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3630 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
