Product Description

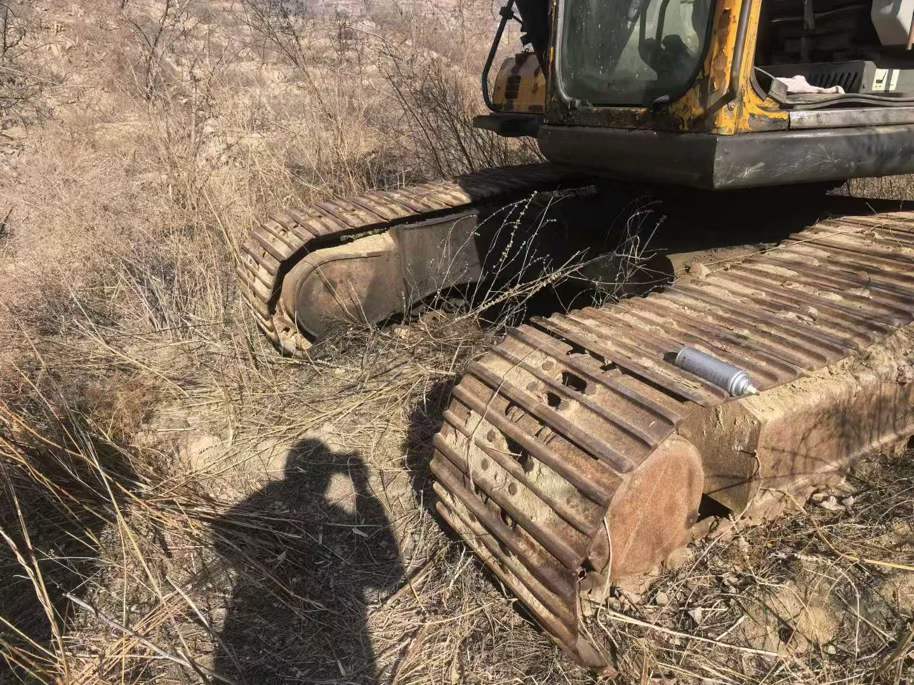

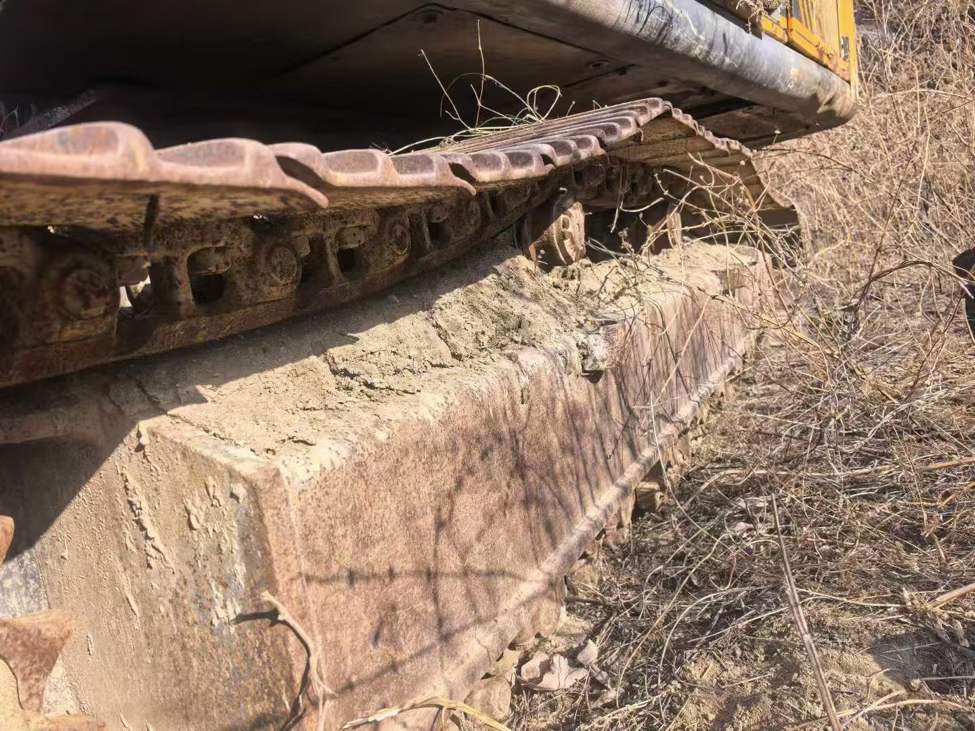

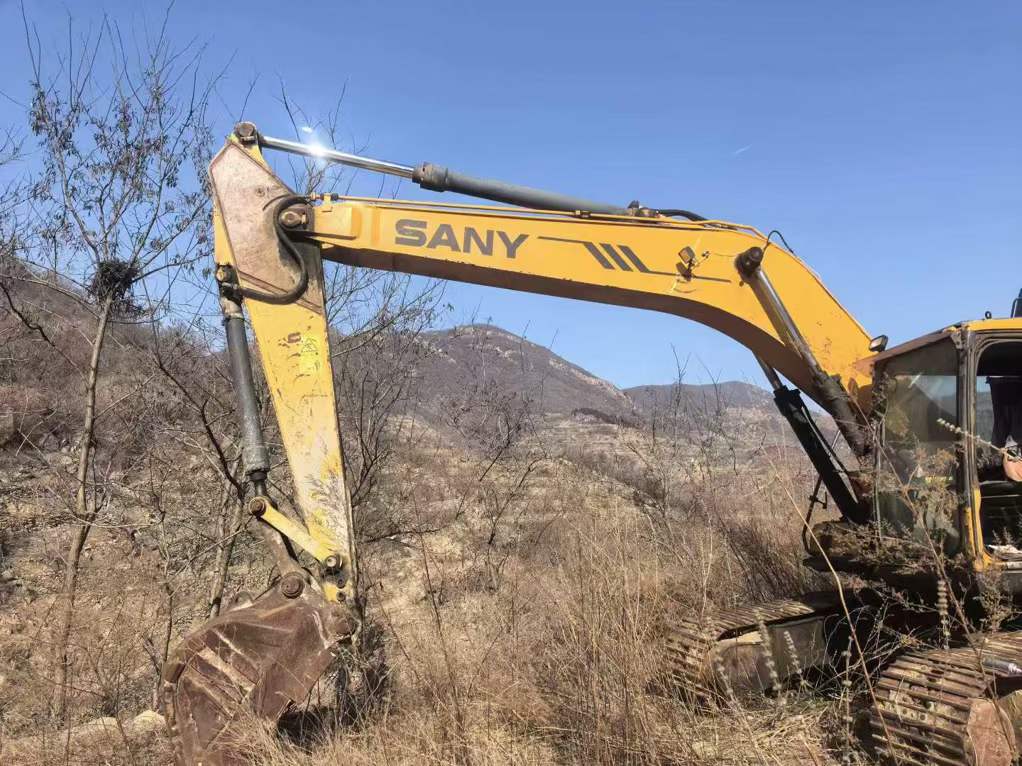

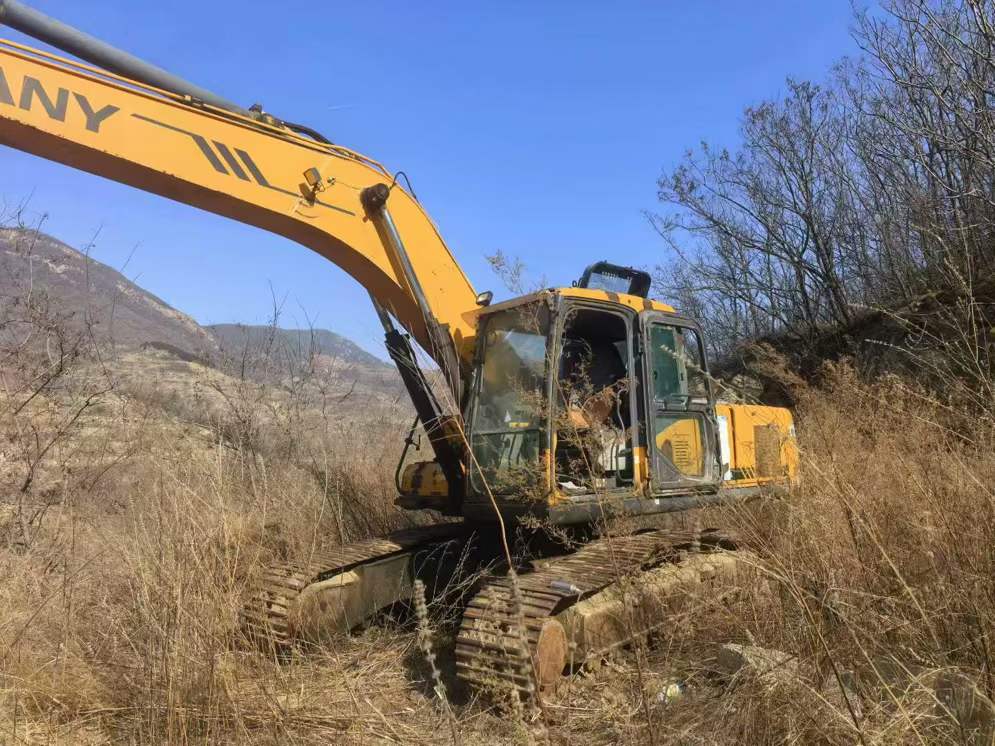

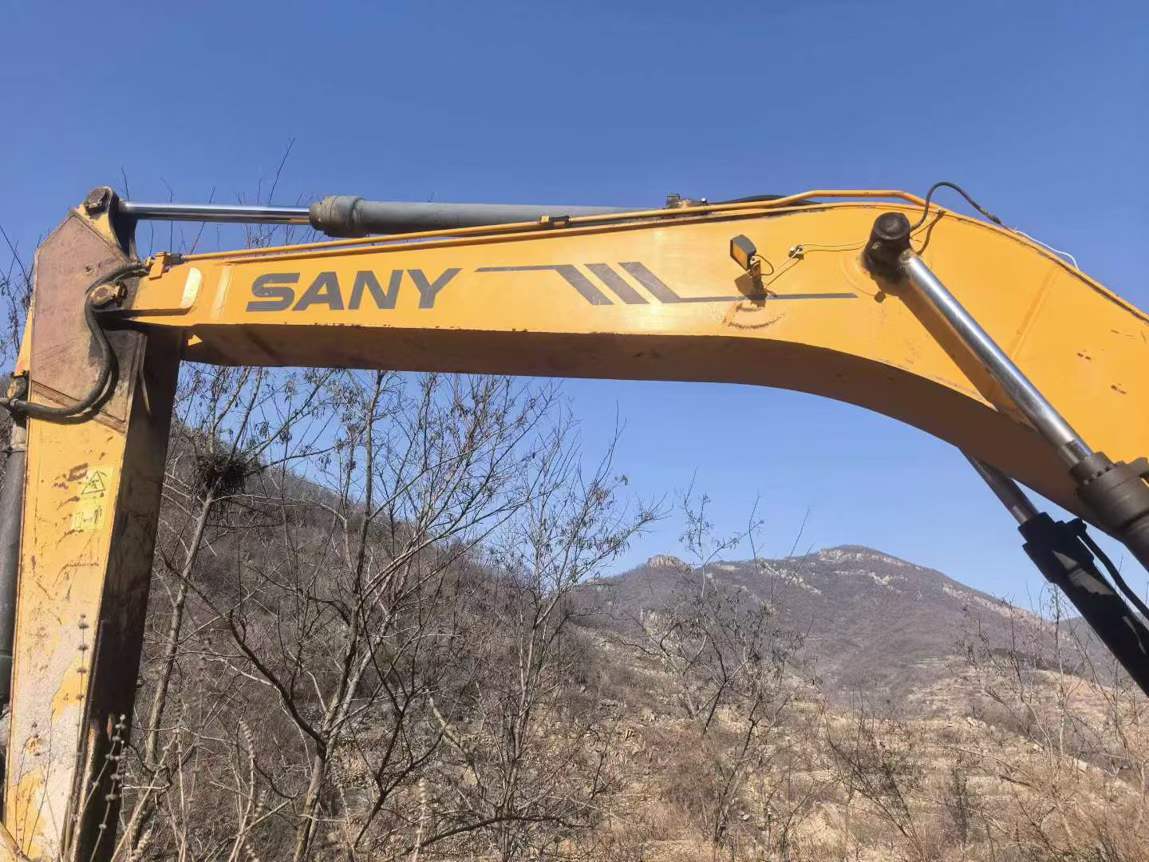

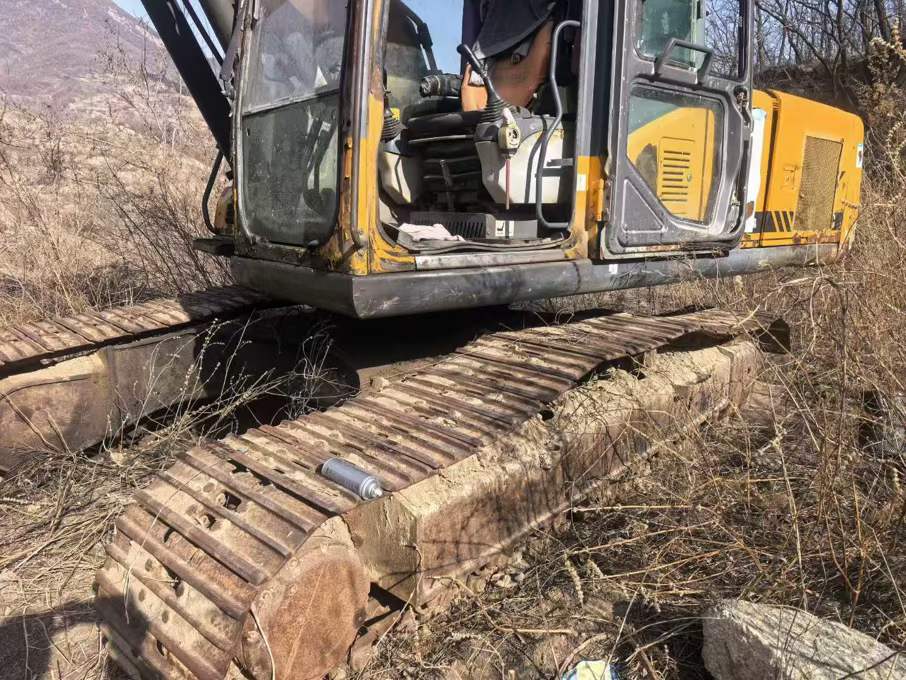

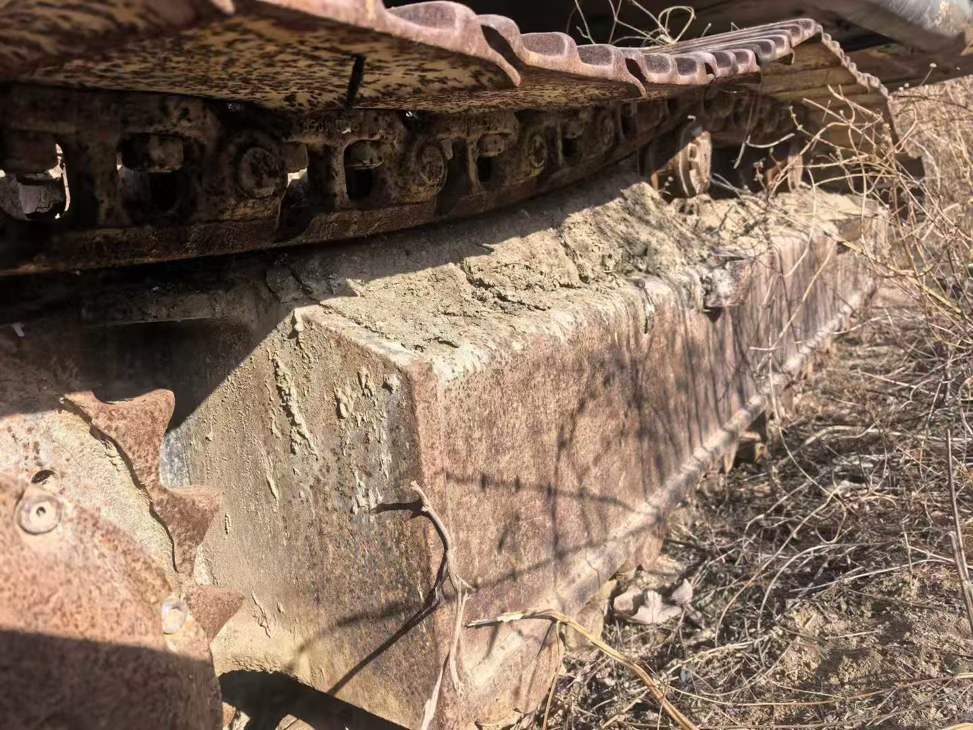

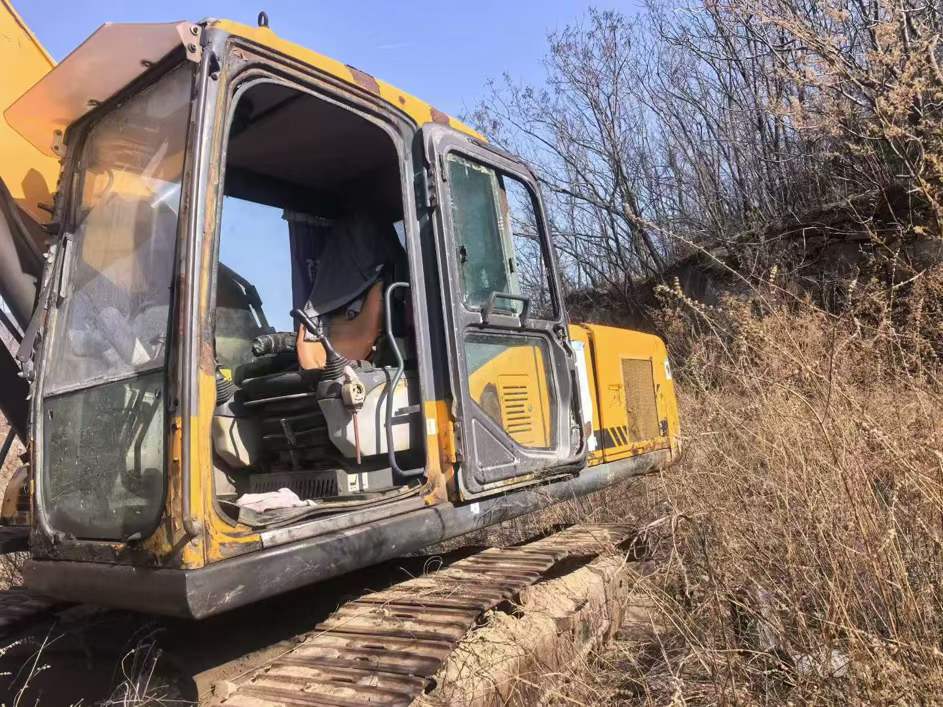

Maximize your equipment budget with this 2016 Sany SY215C-8S excavator, currently available in Jinan, Shandong. Delivering 21-ton performance at a fraction of new equipment costs, this machine represents a strategic acquisition for contractors seeking proven reliability without premium pricing. Powered by a robust Mitsubishi 6D34-TL engine generating 114kW at 2050rpm, it provides consistent output for demanding excavation projects.
Key specifications include:
- Operating weight: 20,900kg with 0.93m³ bucket capacity
- Maximum digging reach: 9,885mm with 6,630mm depth capability
- Bucket digging force: 138kN; stick digging force: 100kN
- Dual hydraulic pumps: 2×210 L/min flow rate
- Water-cooled 5.861L displacement engine for extended durability
- 70% gradeability (35°) for challenging terrain
Manufactured in Kunshan, Jiangsu Province, this backhoe excavator combines Japanese engine technology with Chinese engineering efficiency. With proper maintenance history verification, mid-life excavators like this unit offer 5-7 additional productive years while preserving capital for fleet expansion or project diversification. Contact us for detailed inspection reports and cu
| Specifications | Value |
|---|---|
| No. | 1005728 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.861 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 100 |
| Travel speed (km/h) | 5.5/3.2 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9395 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3630 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
