Product Description

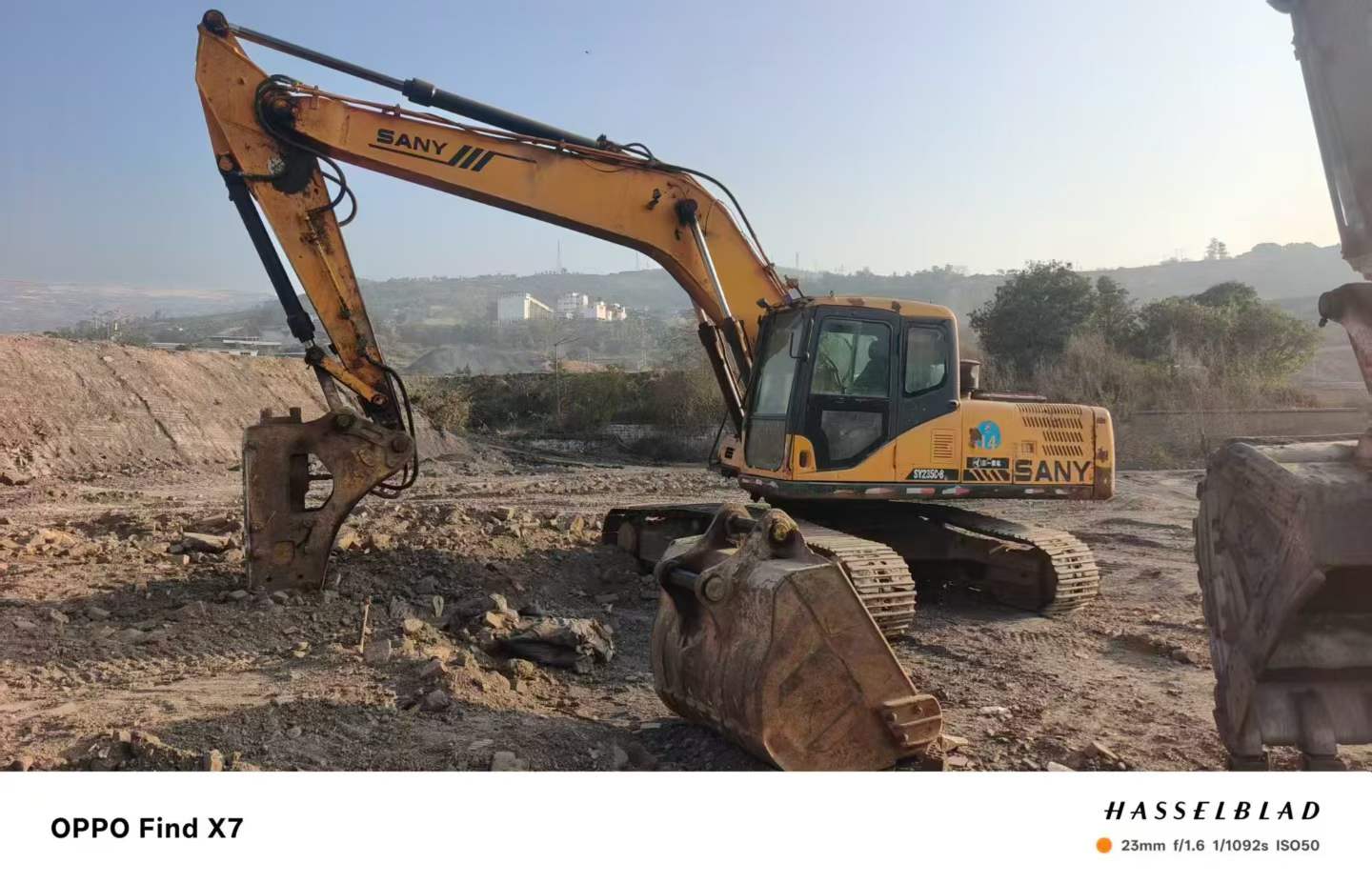

With a working weight of 20,900 kg and a bucket capacity of 0.93 m³, this 2016 Sany SY215C-8S excavator from Kunshan in Jiangsu Province is built to last. Powered by a Mitsubishi 6D34-TL engine, it delivers 114 kW at 2050 rpm, ensuring robust performance. Designed for durability, it boasts a maximum digging force of 138 kN and a rod digging force of 100 kN, making it a proven workhorse on any construction site.
- Maximum travel speed: 5.5/3.2 km/h
- Ground specific pressure: 45 Kpa
- Hydraulic system: Main overflow set pressure 34.3 Mpa, Maximum flow of main pump 2 x 210 l/min
- Dimensions: Total transport length 9395 mm, width 2980 mm, height 2955 mm
- Engine: Water-cooled, 5.861 L displacement
| Specifications | Value |
|---|---|
| No. | 1016251 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.861 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 100 |
| Travel speed (km/h) | 5.5/3.2 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9395 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3630 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
