Product Description

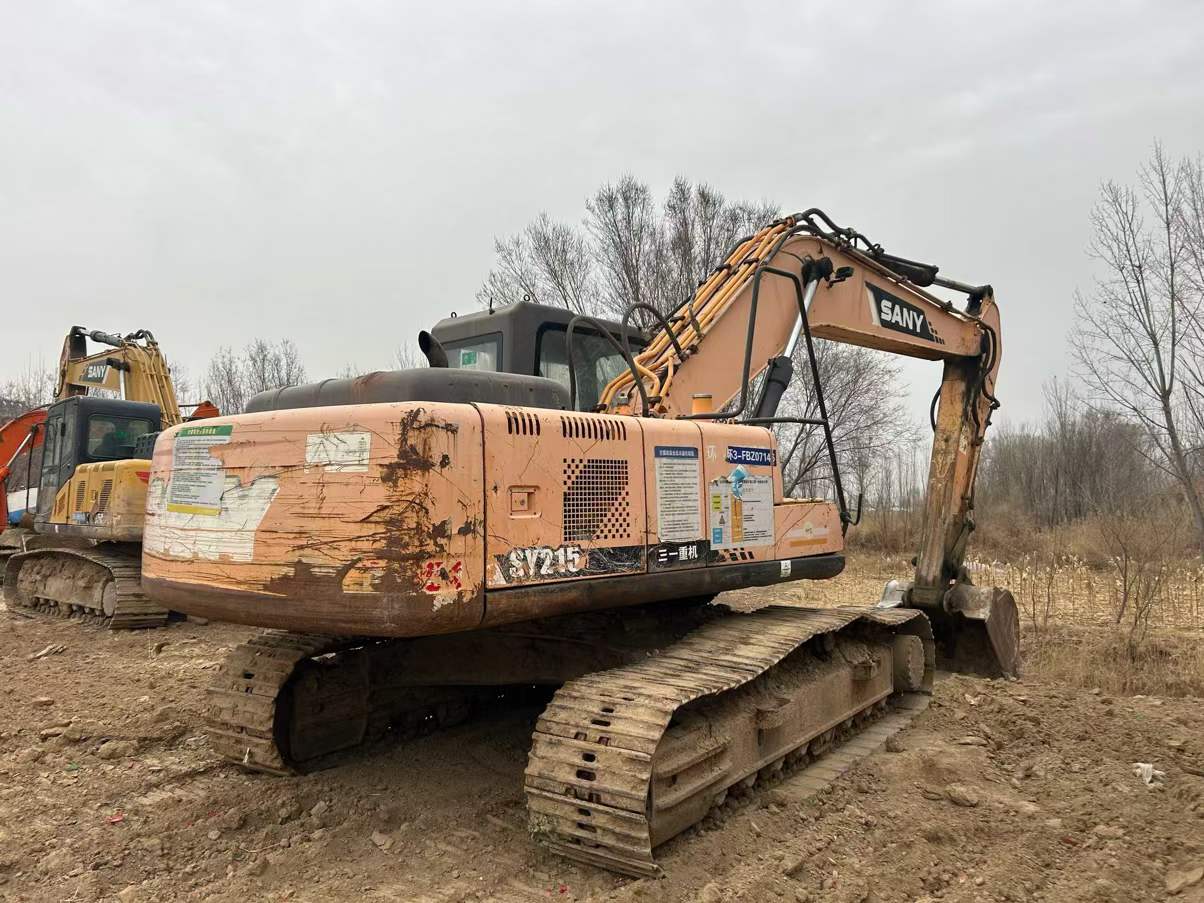

Built for high-output earthmoving and excavation projects, this 2014 Sany SY215C-9 delivers 21 tons of working weight and 114 kW of water-cooled power to handle demanding site conditions. Equipped with a 0.93 m³ backhoe bucket (expandable to 1.2 m³), it reaches a maximum digging depth of 6,600 mm and a digging radius of 9,950 mm—ideal for trenching, foundation work, and material loading operations.
Key performance specifications include:
- Bucket digging force: 138 kN for tough soil and compacted ground
- Dual hydraulic pumps: 2 × 210 L/min flow for responsive multi-function operation
- Travel speed: 5.4 km/h (high) / 3.3 km/h (low) for efficient site mobility
- Climbing ability: 70% (35°) grade capability for uneven terrain
- 360° rotation speed: 11 rpm for fast cycle times
Currently located in Dezhou, Shandong, this machine is site-ready and priced for immediate deployment on grading, demolition, or utility installation projects.
| Specifications | Value |
|---|---|
| No. | 1014284 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
