Product Description

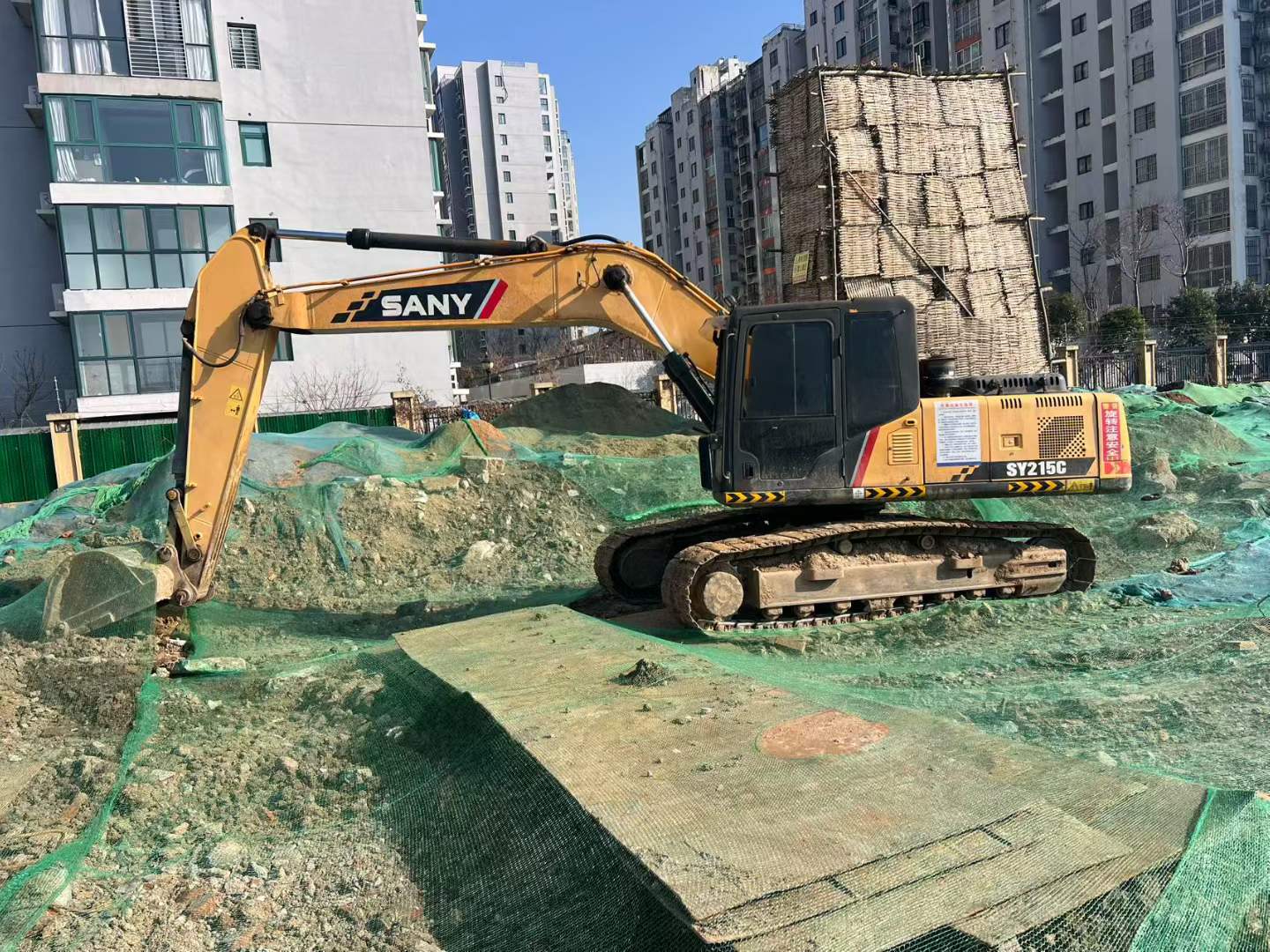

Engineered with precision in Shanghai, this 2016 Sany SY215C-9 delivers robust performance through advanced hydraulic architecture and proven mechanical design. Powered by a 114kW engine at 2050 rpm, the machine operates with dual main pumps supplying 2×210 l/min flow capacity, ensuring responsive control across all functions. The hydraulic system maintains optimal pressure distribution: 34.3 MPa for main and travel circuits, 25.5 MPa for rotation, and 3.9 MPa for precision control operations.
Operating at 21 tons with a 21,800 kg working weight, this excavator combines substantial digging force—138 kN bucket force and 103 kN arm force—with a versatile 0.93 m³ bucket capacity (adjustable 0.8-1.2 m³). The water-cooled system ensures thermal stability during extended operations, while the 70% (35°) climbing ability and 46.5 kPa ground pressure provide excellent mobility across varied terrain.
- Maximum digging reach: 9,950 mm with 6,600 mm depth capability
- Compact transport dimensions: 9,680×2,980×3,440 mm
- 11 rpm rotation speed for efficient cycle times
- Currently located in Maoming, Guangdong
| Specifications | Value |
|---|---|
| No. | 1007313 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
