Product Description

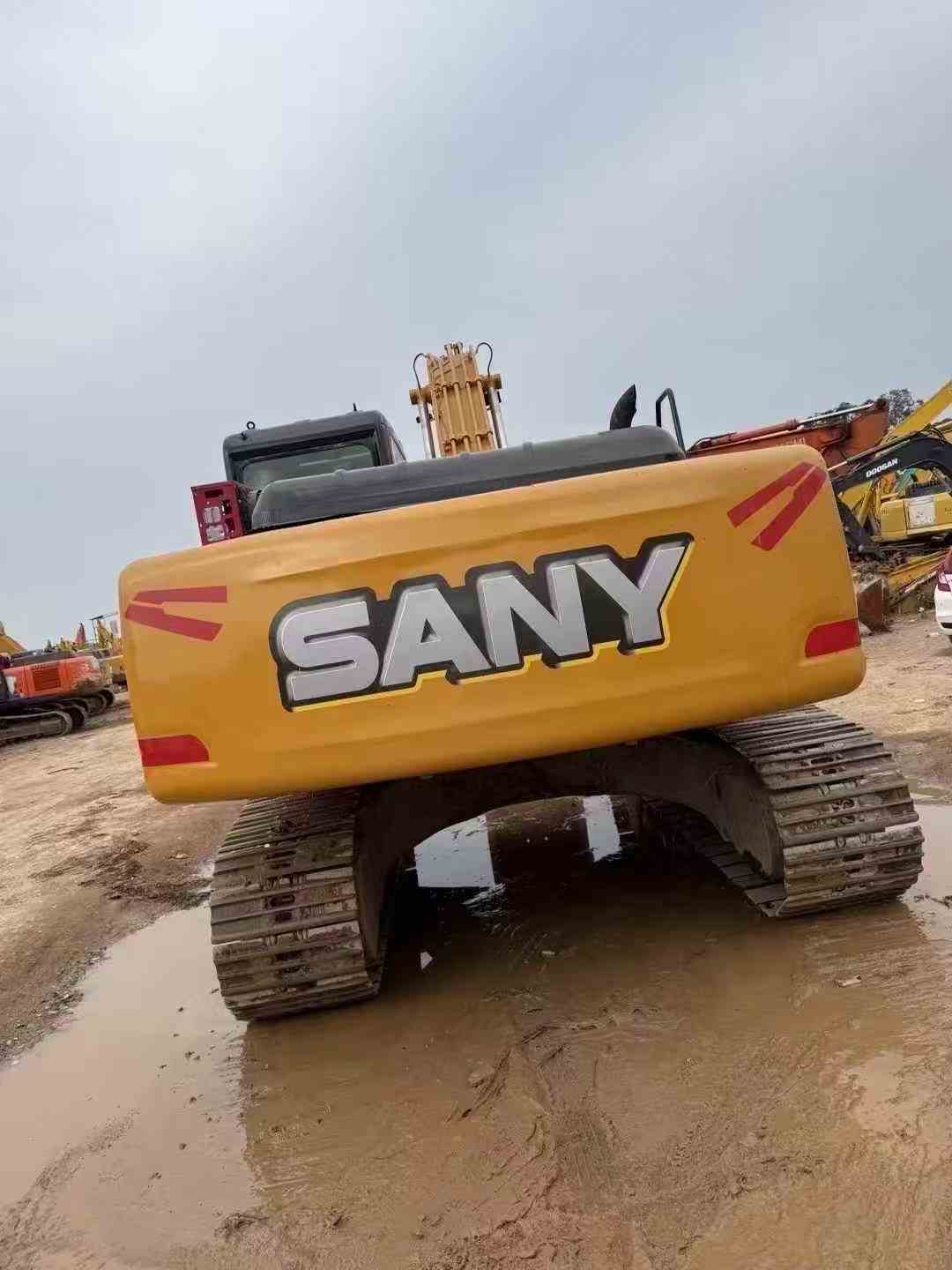

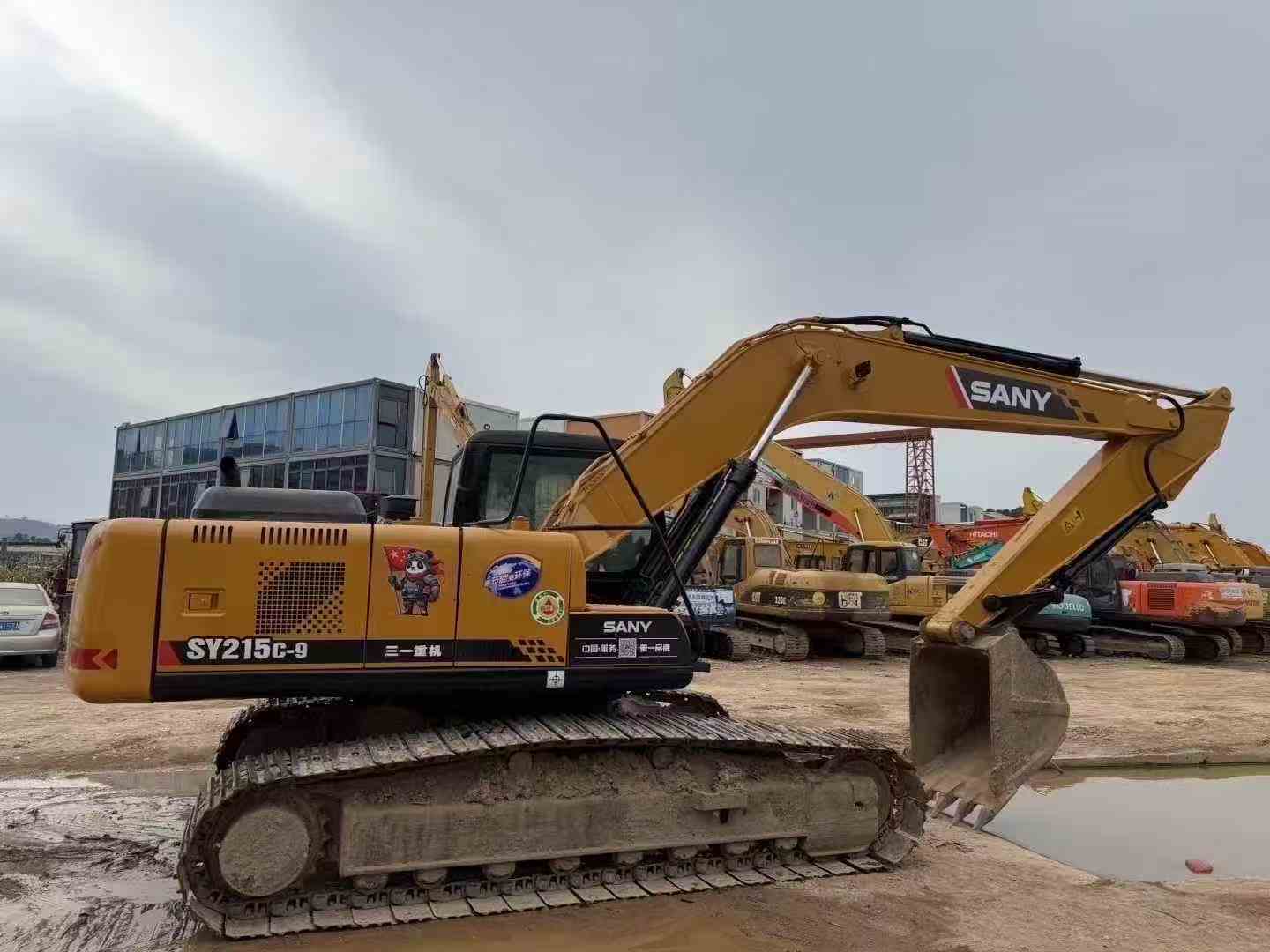

Built for demanding excavation work, this 2016 Sany SY215C8M delivers reliable performance in a 21-ton platform. Operating from揭阳, Guangdong, this mid-size excavator combines proven hydraulic systems with operator-centered design principles that prioritize daily productivity and control precision.
Powered by a 114kW engine at 2050 rpm, the machine provides 138kN of bucket digging force through its dual 210 l/min hydraulic pumps. The water-cooled system maintains consistent performance during extended operations, while the 12.5 rpm rotation speed enables smooth positioning around the work area.
- Spacious cab design with enhanced visibility across the 9885mm maximum digging radius
- Stable 2750mm rear turning radius minimizes repositioning on confined sites
- 440mm ground clearance and 70% climbing ability handle varied terrain conditions
- Dual-speed travel system (3.2/5.5 km/h) balances precision and site mobility
- Low ground pressure at 45kPa reduces surface impact on sensitive ground
Standard backhoe configuration with 0.93m³ bucket capacity suits general earthmoving applications. The 2980mm transport width facilitates standard trailer logistics throughout regional p
| Specifications | Value |
|---|---|
| No. | 1010189 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
