Product Description

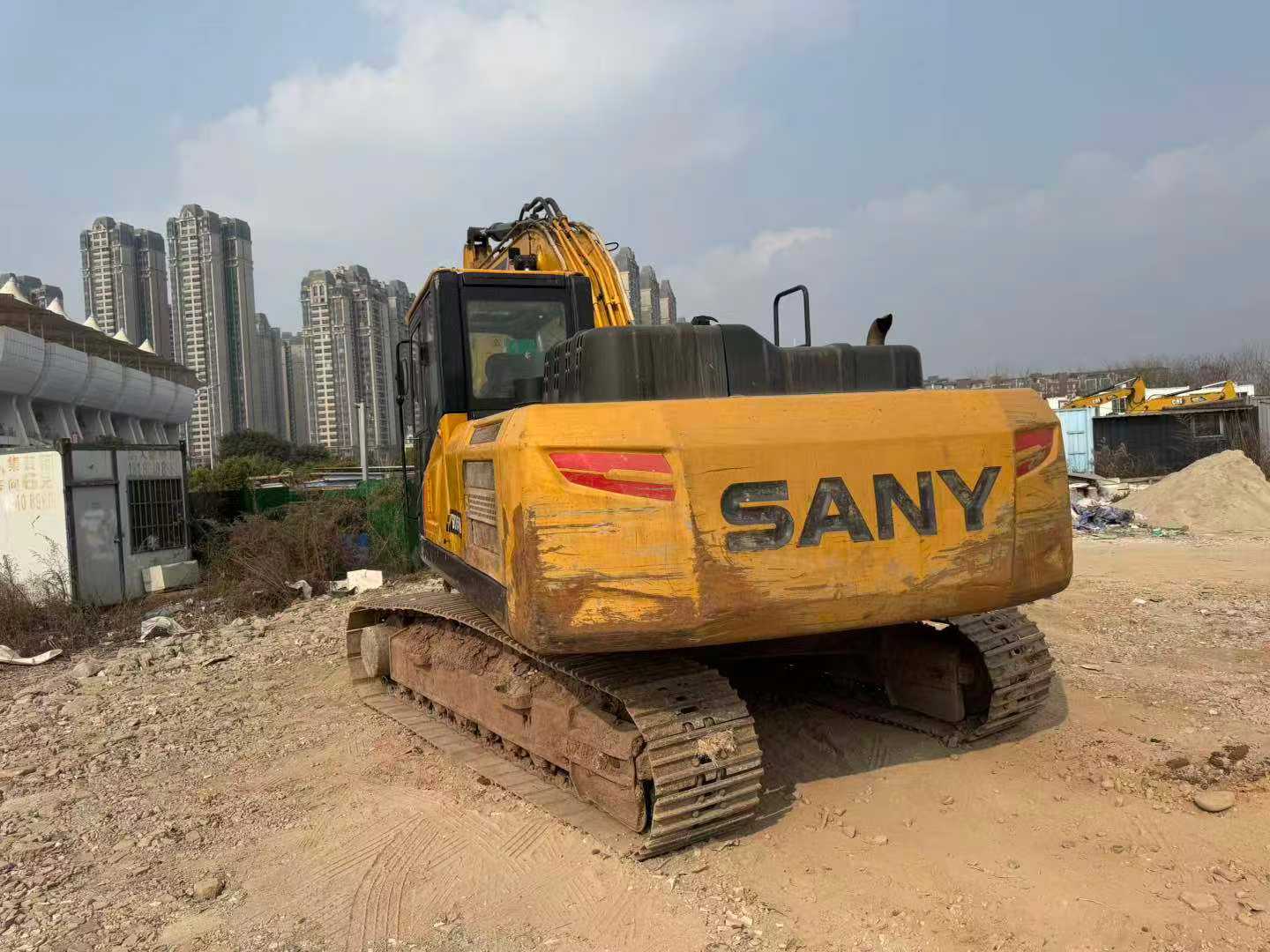

Built for demanding jobsites, this 2020 Sany SY215H delivers 22-ton performance with proven Isuzu 4HK1 power. Rated at 133kW and generating 657 N·m of torque, this excavator tackles digging, grading, and demolition tasks without hesitation. The 1.1-1.15 m³ backhoe bucket provides optimal capacity for material handling, while 138 kN bucket digging force and 107 kN arm force cut through tough ground conditions efficiently.
Operational specifications include a maximum digging reach of 9,745mm and depth capability of 6,450mm, enabling versatile site coverage. Water-cooled reliability and 11.4 rpm rotation speed maintain productivity throughout extended shifts. Currently located in Huizhou, Guangdong, this machine arrives ready for immediate deployment.
- Working weight: 22,800 kg with stable platform
- Maximum tractive force: 211 kN for challenging terrain
- Travel speeds: 5.4/3.4 km/h for efficient repositioning
- Maximum excavation height: 9,470mm for loading operations
- Traditional power system with proven durability
No downtime, no delays—this SY215H is engineered to start working the day it arrives on your site.
| Specifications | Value |
|---|---|
| No. | 1008775 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22800 |
| Bucket capacity (m³) | 1.1-1.15 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

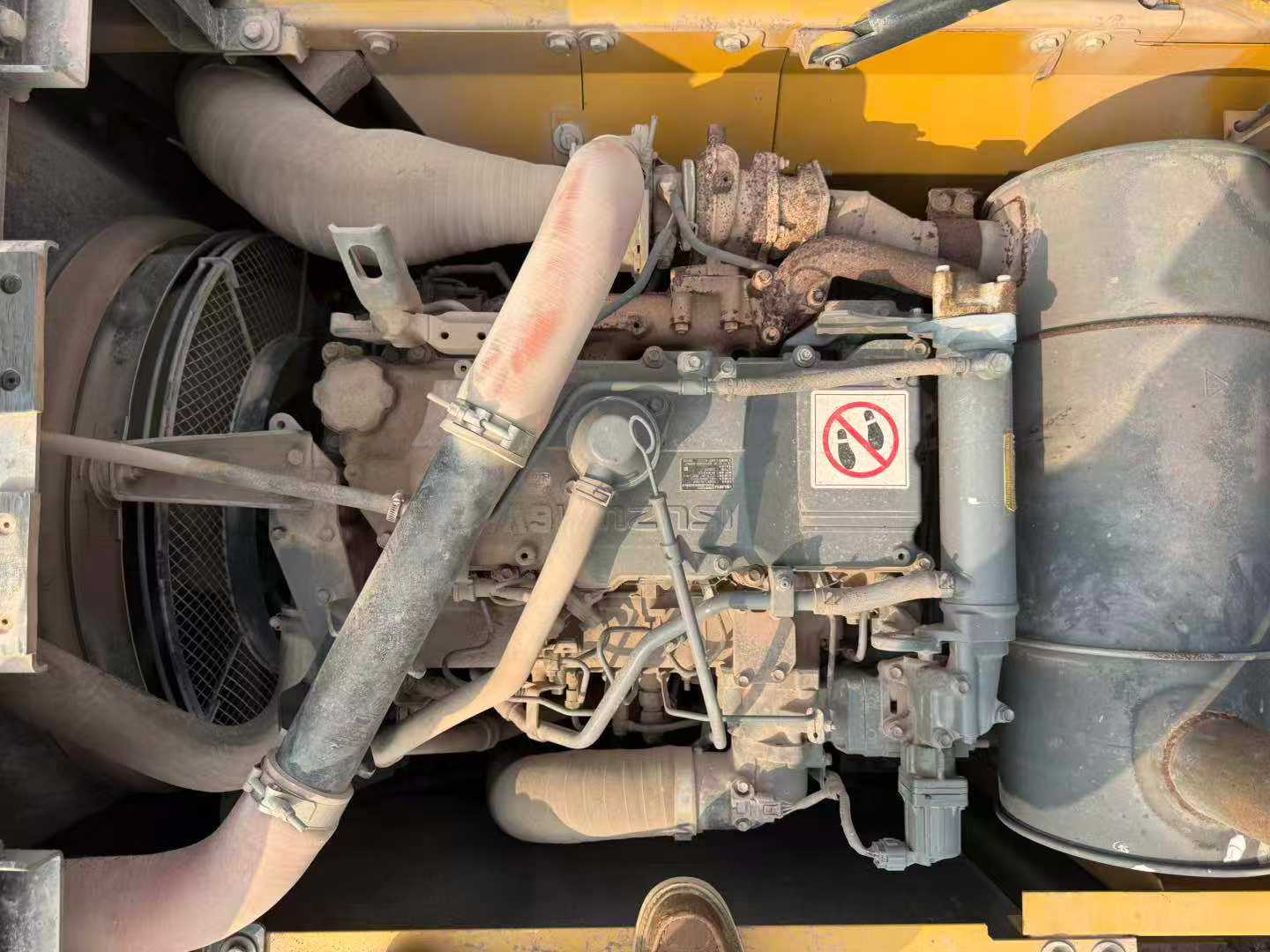

| Engine type | Isuzu 4HK1 |
| Rated power (kw/rpm) | 133/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 657/1500 |
| Displacement (L) | 5.193 |
| Working form | Vertical, 4-stroke, water-cooled diesel engine |
| Rotation speed (rpm) | 11.4 |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 211 |
| Travel speed (km/h) | 5.4/3.4 |
| Maximum digging radius (mm) | 9745 |
| Maximum digging depth (mm) | 6450 |
| Maximum excavation height (mm) | 9470 |
