Product Description
Built for precision and control, this 2020 Sany SY215H delivers reliable performance across demanding jobsites. Operating at 22 tons with a robust Isuzu 4HK1 engine generating 133 kW at 2000 rpm, this excavator combines power with operator-focused engineering. The spacious cabin provides exceptional visibility across all working angles, while intuitive controls reduce fatigue during extended shifts. Hydraulic responsiveness ensures smooth bucket transitions, backed by 138 kN of digging force and a 9,745 mm maximum reach.

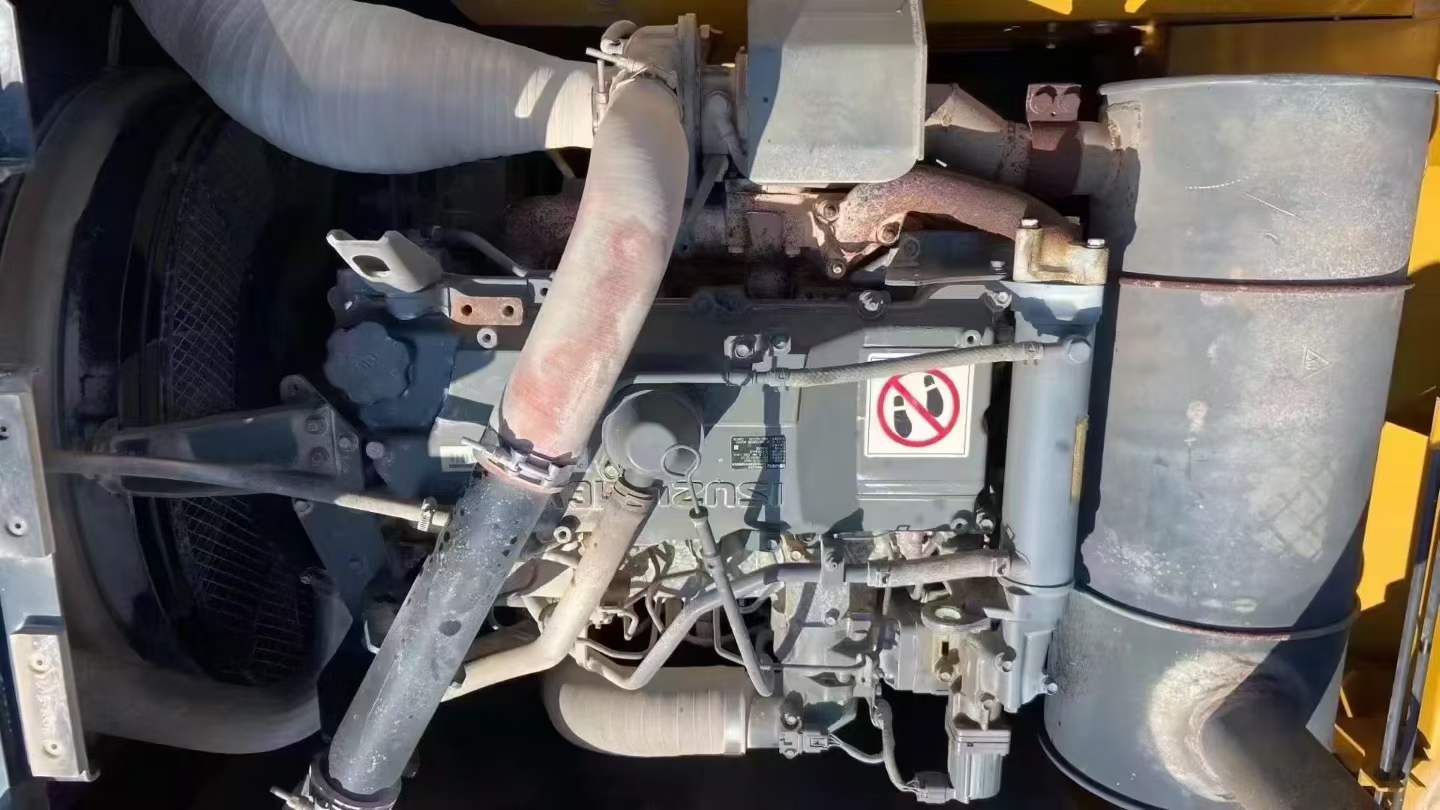

- Engine: Isuzu 4HK1, water-cooled, 133 kW @ 2000 rpm
- Operating Weight: 22,800 kg
- Bucket Capacity: 1.1–1.15 m³
- Max Digging Depth: 6,450 mm
- Swing Speed: 11.4 rpm for efficient positioning
- Travel Speed: 5.4/3.4 km/h
- Location: Hubei, China
Stable undercarriage design minimizes ground pressure while maintaining traction on uneven terrain. Ideal for operators prioritizing comfort, control, and consistent output in excavation and material handling applications.
| Specifications | Value |
|---|---|
| No. | 1029146 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22800 |
| Bucket capacity (m³) | 1.1-1.15 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4HK1 |
| Rated power (kw/rpm) | 133/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 657/1500 |
| Displacement (L) | 5.193 |
| Working form | Vertical, 4-stroke, water-cooled diesel engine |
| Rotation speed (rpm) | 11.4 |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 211 |
| Travel speed (km/h) | 5.4/3.4 |
| Maximum digging radius (mm) | 9745 |
| Maximum digging depth (mm) | 6450 |
| Maximum excavation height (mm) | 9470 |
