Product Description

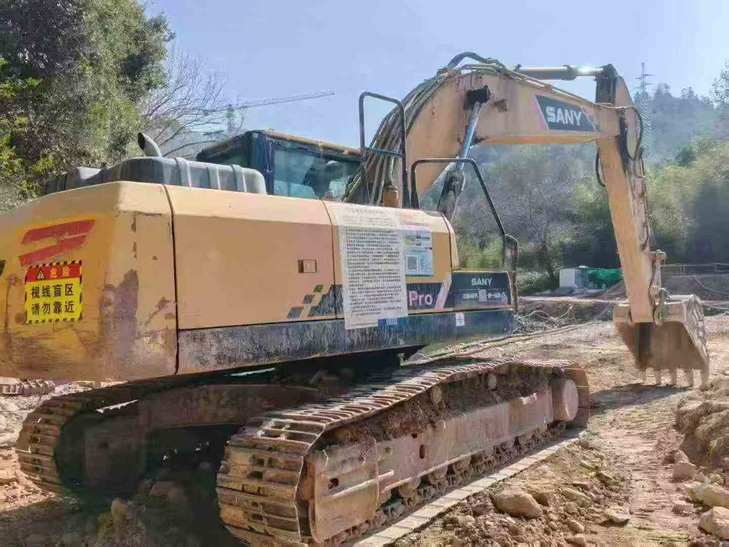

With a working weight of 22,800 kg and a bucket capacity ranging from 1.1 to 1.15 m³, this 2021 Sany SY215H excavator is a proven workhorse. Built to last, it features an Isuzu 4HK1 engine, delivering 133 kW at 2000 rpm and a maximum torque of 657 N.m at 1500 rpm. Equipped with a water-cooling system, the 4-stroke, vertical, water-cooled diesel engine ensures reliable performance. The SY215H boasts a maximum digging radius of 9745 mm and a maximum digging depth of 6450 mm, making it ideal for a variety of heavy-duty tasks. Its robust design and durable construction have been tested and trusted, providing a solid foundation for your projects.
- Working weight: 22,800 kg
- Bucket capacity: 1.1-1.15 m³
- Engine: Isuzu 4HK1, 133 kW/2000 rpm
- Maximum digging radius: 9745 mm
- Maximum digging depth: 6450 mm
| Specifications | Value |
|---|---|
| No. | 1020617 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22800 |
| Bucket capacity (m³) | 1.1-1.15 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4HK1 |
| Rated power (kw/rpm) | 133/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 657/1500 |
| Displacement (L) | 5.193 |
| Working form | Vertical, 4-stroke, water-cooled diesel engine |
| Rotation speed (rpm) | 11.4 |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 211 |
| Travel speed (km/h) | 5.4/3.4 |
| Maximum digging radius (mm) | 9745 |
| Maximum digging depth (mm) | 6450 |
| Maximum excavation height (mm) | 9470 |
