Product Description

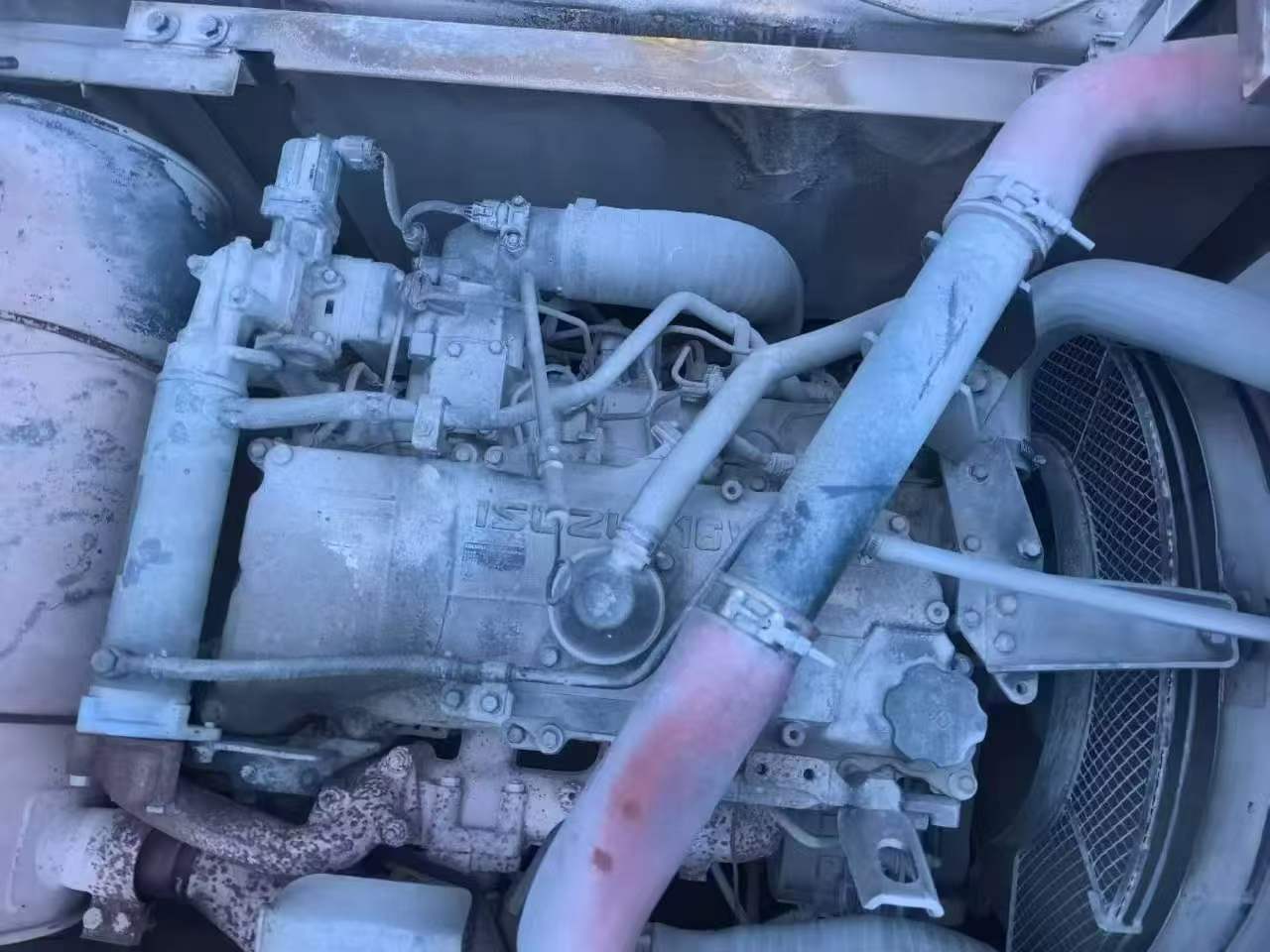

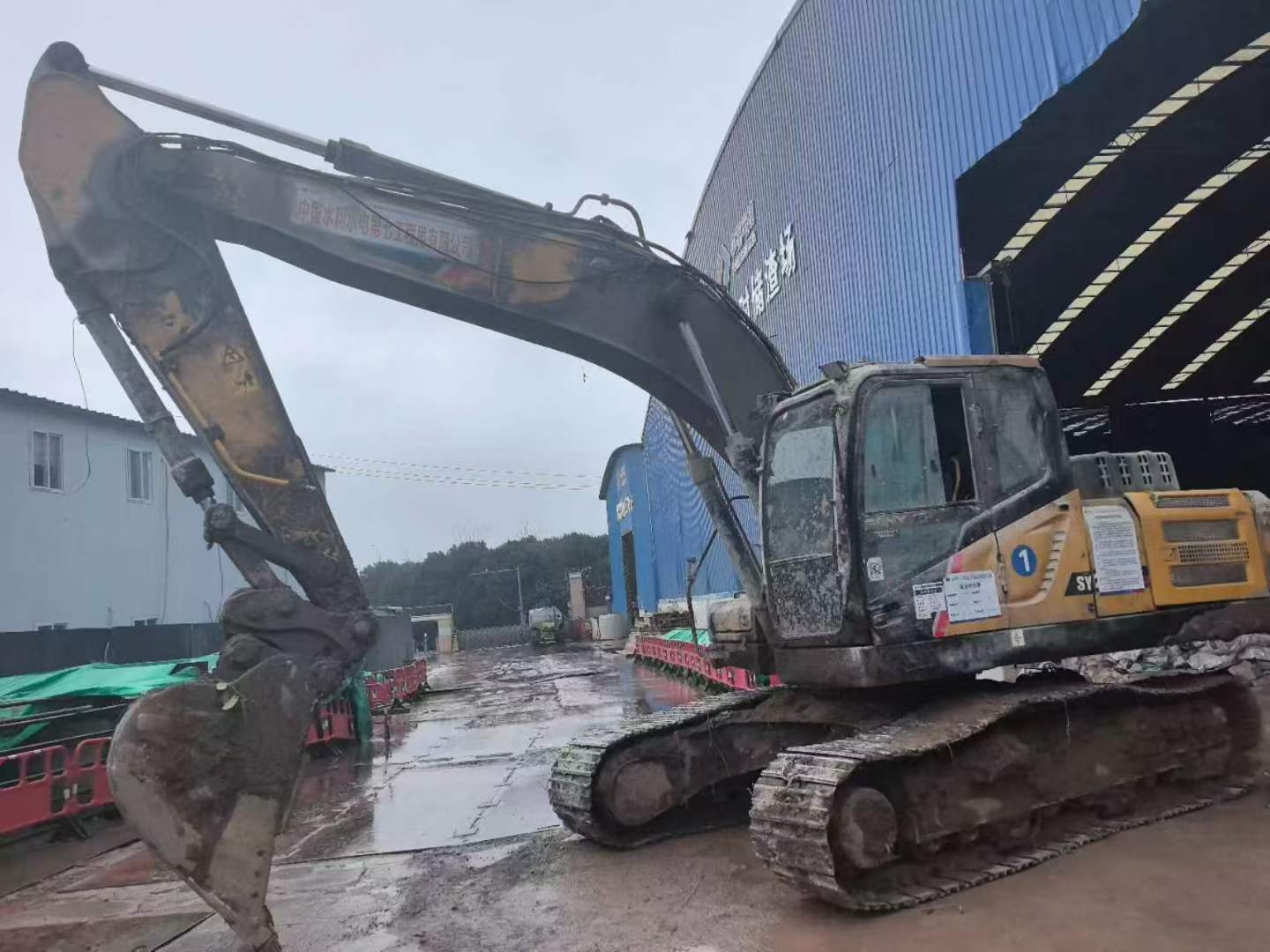

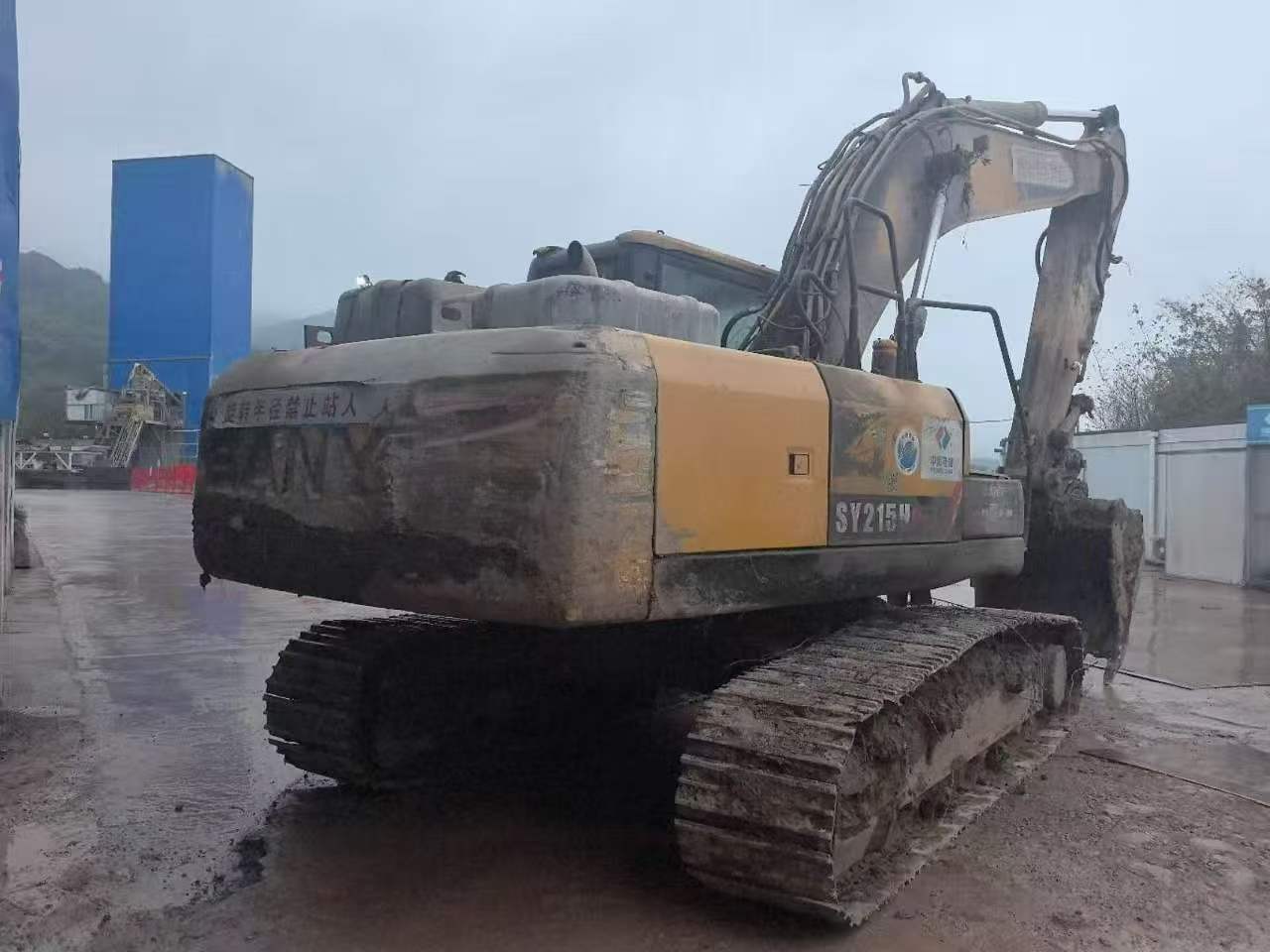

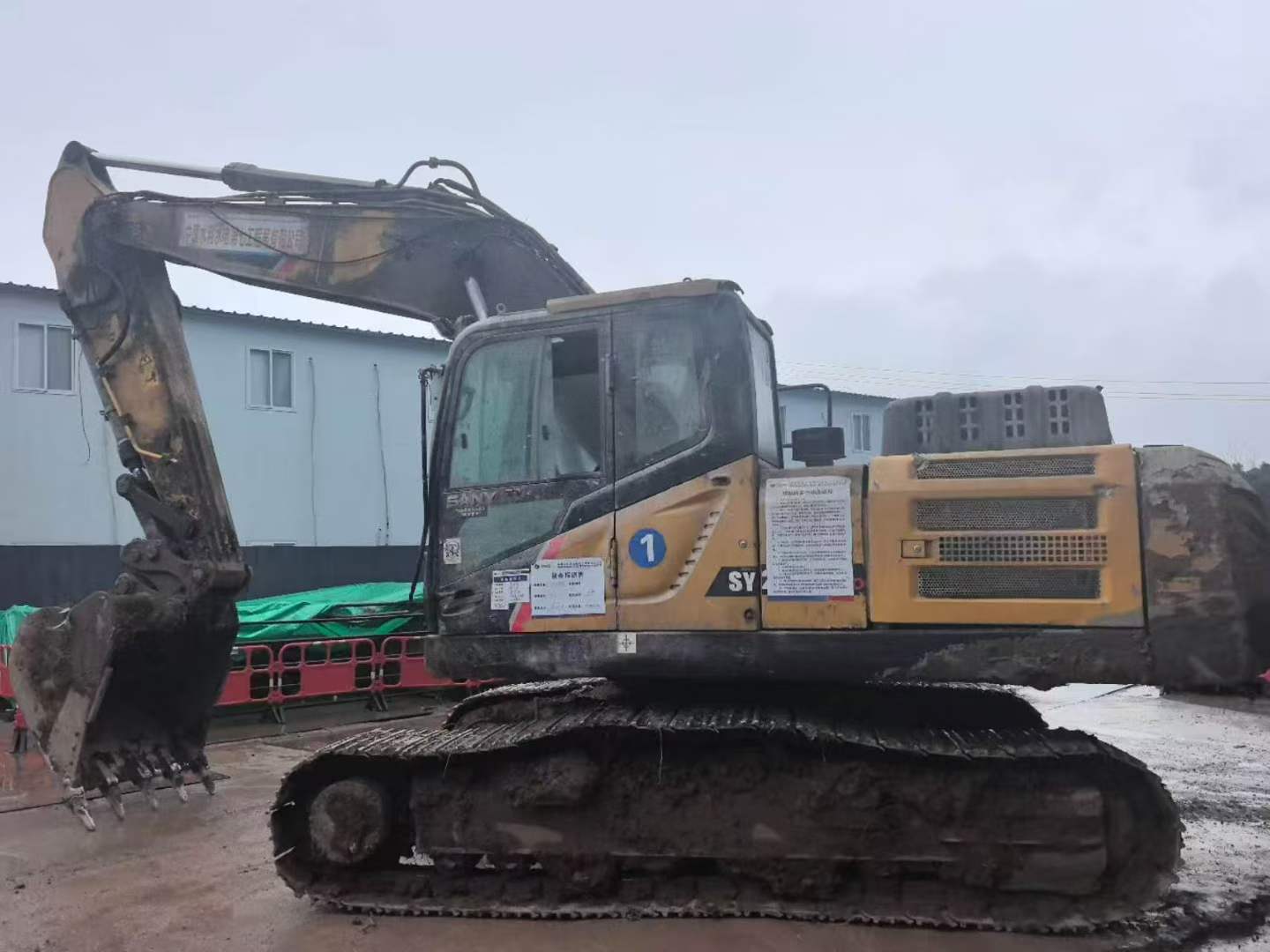

Powered by an Isuzu 4HK1 engine, the Sany SY215H delivers a robust 133 kW at 2000 rpm, ensuring reliable performance in demanding environments. With a displacement of 5.193 liters and a maximum torque of 657 N.m at 1500 rpm, this 22-ton excavator is engineered for efficiency and power. The water-cooled, 4-stroke diesel engine operates smoothly, providing a steady rotation speed of 11.4 rpm. Equipped with a backhoe bucket with a capacity of 1.1-1.15 m³, the SY215H boasts a bucket digging force of 138 kN and a rod digging force of 107 kN, making it ideal for tough excavation tasks. Its maximum tractive force of 211 kN and travel speeds of 5.4/3.4 km/h enhance its versatility on various terrains. This model, manufactured in China, offers a maximum digging radius of 9745 mm, a maximum digging depth of 6450 mm, and a maximum excavation height of 9470 mm, underscoring its technical superiority in the field.
| Specifications | Value |
|---|---|
| No. | 1027983 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22800 |
| Bucket capacity (m³) | 1.1-1.15 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4HK1 |
| Rated power (kw/rpm) | 133/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 657/1500 |
| Displacement (L) | 5.193 |
| Working form | Vertical, 4-stroke, water-cooled diesel engine |
| Rotation speed (rpm) | 11.4 |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 211 |
| Travel speed (km/h) | 5.4/3.4 |
| Maximum digging radius (mm) | 9745 |
| Maximum digging depth (mm) | 6450 |
| Maximum excavation height (mm) | 9470 |
