Product Description
Engineered with precision, this 2013 Sany SY215W wheeled excavator delivers 128.4 kW of rated power through its proven Isuzu 4HK1 engine, generating maximum torque of 670 N·m at 1,600 rpm. Operating at 21.5 tons working weight, the machine combines robust hydraulic performance with exceptional mobility—achieving forward speeds up to 38 km/h and a rotation speed of 11.9 rpm for efficient cycle times on diverse job sites.
- Hydraulic Power: 117.5 kN bucket digging force and 102.9 kN arm digging force ensure superior breakout capacity

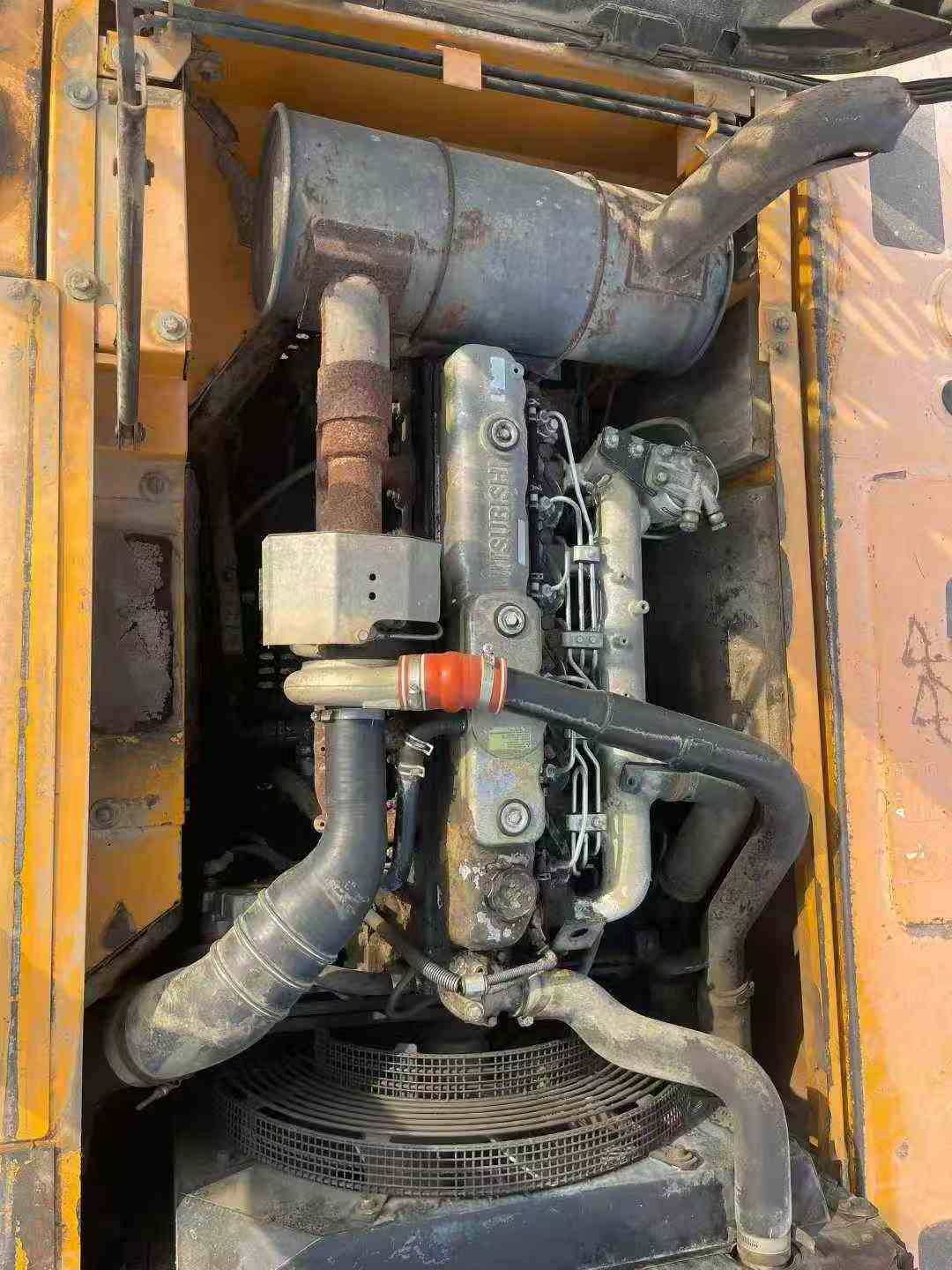

- Engine Specifications: 5.193L total displacement with fuel-efficient Isuzu 4HK1 design
- Operational Capacity: 0.93 m³ bucket capacity with backhoe configuration
- Terrain Performance: 35° climbing ability for challenging ground conditions
- Fuel & Hydraulic Systems: 400L fuel tank and 230L hydraulic reservoir for extended operation
Made in China and currently located in Jiangsu, this wheeled excavator represents Sany's commitment to combining reliable Japanese engine technology with heavy-duty construction capabilities. Ready for immediate deployment in infrastruct
| Specifications | Value |
|---|---|
| No. | 1014195 |
| Tonnage (tons) | 21.5 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.93 |
| power | Fuel oil |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4HK1 |
| Rated power (kw/rpm) | 128.4/2000 |
| Total displacement (L) | 5.193 |
| Maximum torque (N.m) | 670/1600 |
| Forward speed (Km/h) | 38/10 |
| Rotation speed (rpm) | 11.9 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 117.5 |
| Rod digging force (kN) | 102.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 230 |
| Engine Oil changes (L) | 20 |
