Product Description

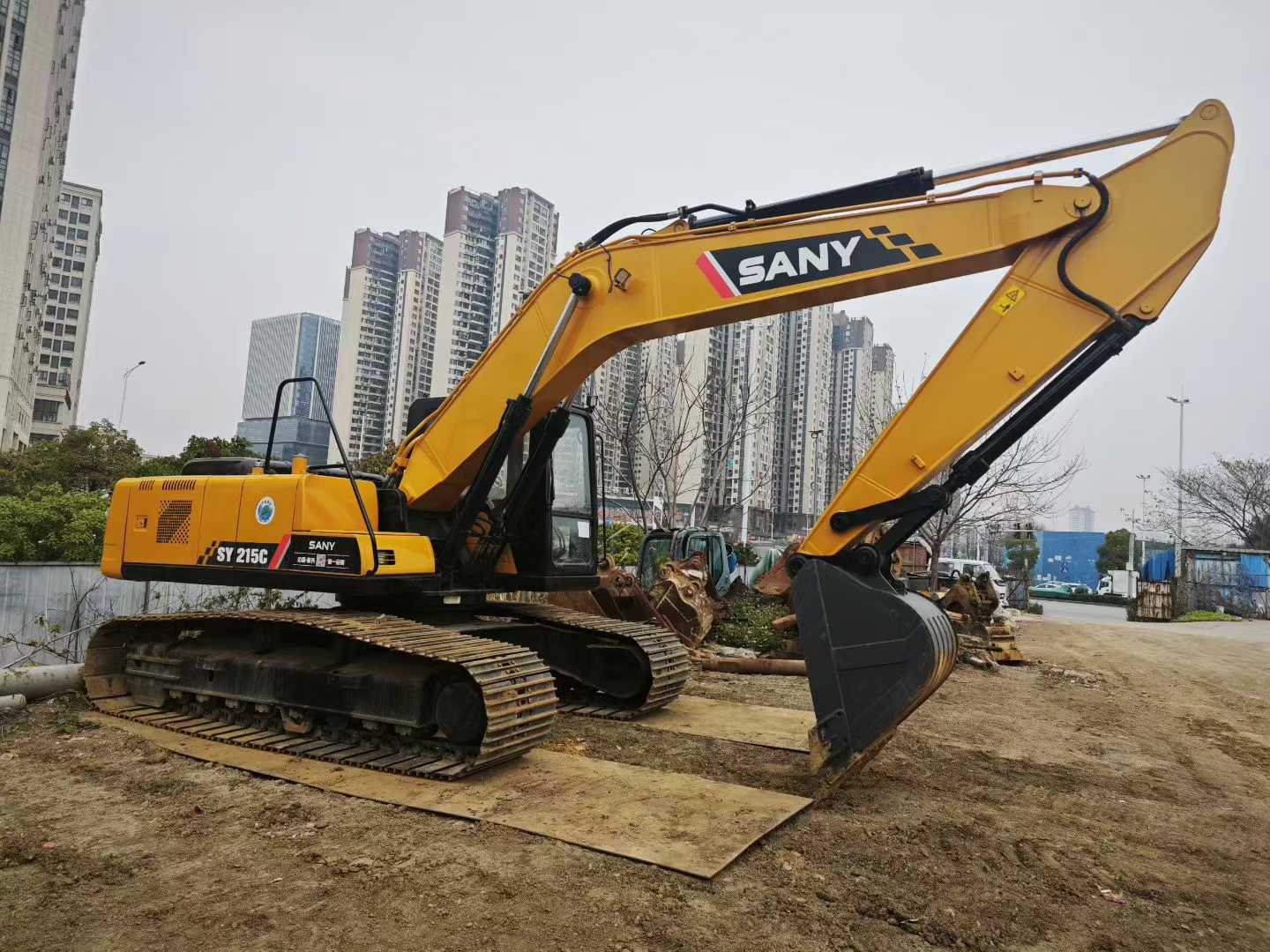

With a robust 21.5-ton working weight, the Sany SY215W is designed for immediate deployment in demanding construction environments. Powered by an Isuzu 4HK1 engine, delivering 128.4 kW at 2000 rpm, this excavator ensures reliable performance and efficiency. Equipped with a 0.93 m³ backhoe bucket, it excels in digging and grading tasks, providing a bucket digging force of 117.5 kN and a rod digging force of 102.9 kN. The machine's 35° climbing ability and forward speed of up to 38 km/h make it highly maneuverable on various terrains. Featuring a 400 L fuel tank and a 230 L hydraulic tank, the SY215W is built to handle long hours of continuous operation without frequent refueling. Located in 广西桂林, this site-ready excavator is primed for your next project.
| Specifications | Value |
|---|---|
| No. | 1001067 |
| Tonnage (tons) | 21.5 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.93 |
| power | Fuel oil |
| manufacturer | Made in China |
| bucket | backhoe |

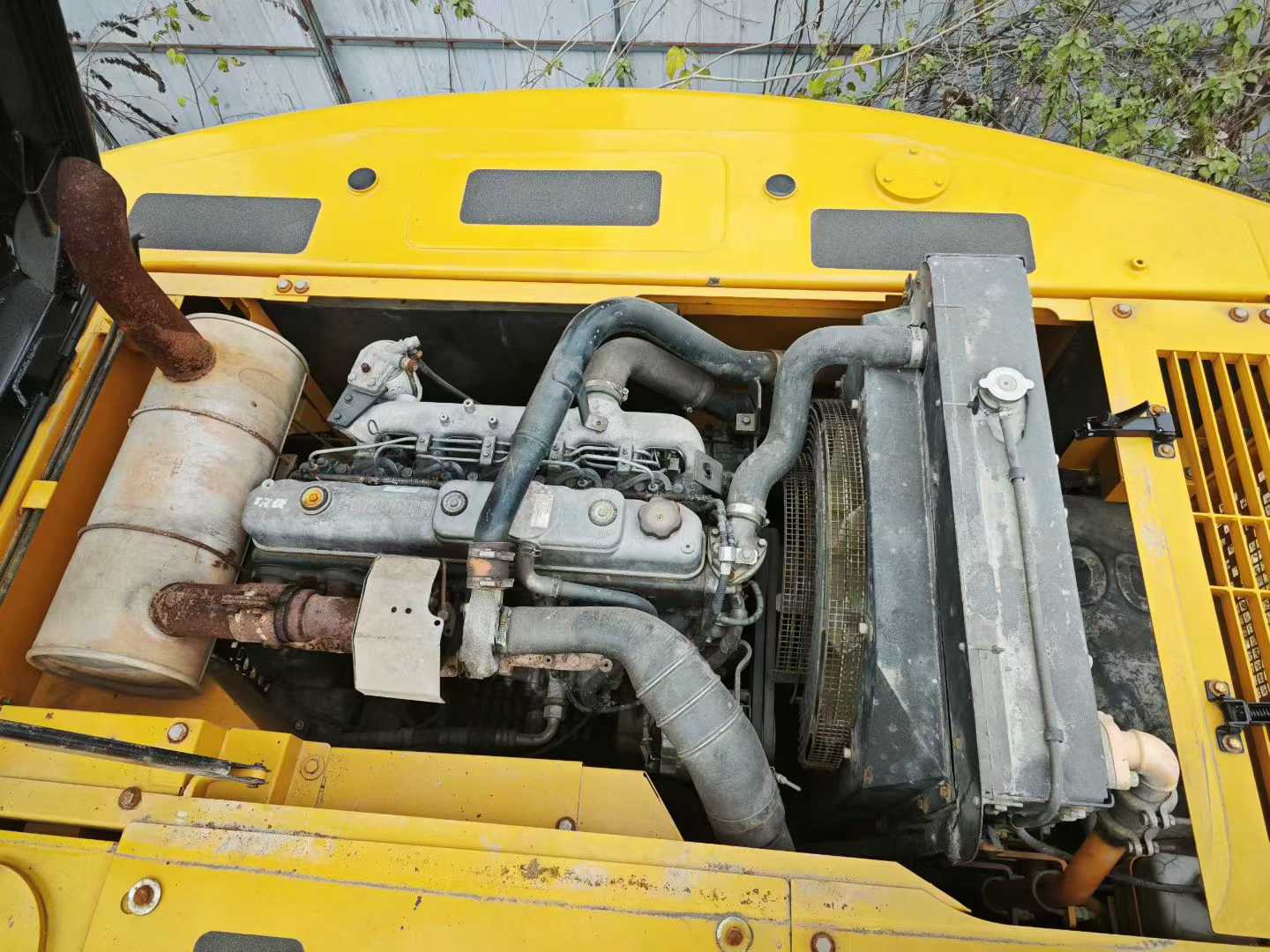

| Engine type | Isuzu 4HK1 |
| Rated power (kw/rpm) | 128.4/2000 |
| Total displacement (L) | 5.193 |
| Maximum torque (N.m) | 670/1600 |
| Forward speed (Km/h) | 38/10 |
| Rotation speed (rpm) | 11.9 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 117.5 |
| Rod digging force (kN) | 102.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 230 |
| Engine Oil changes (L) | 20 |
