Product Description

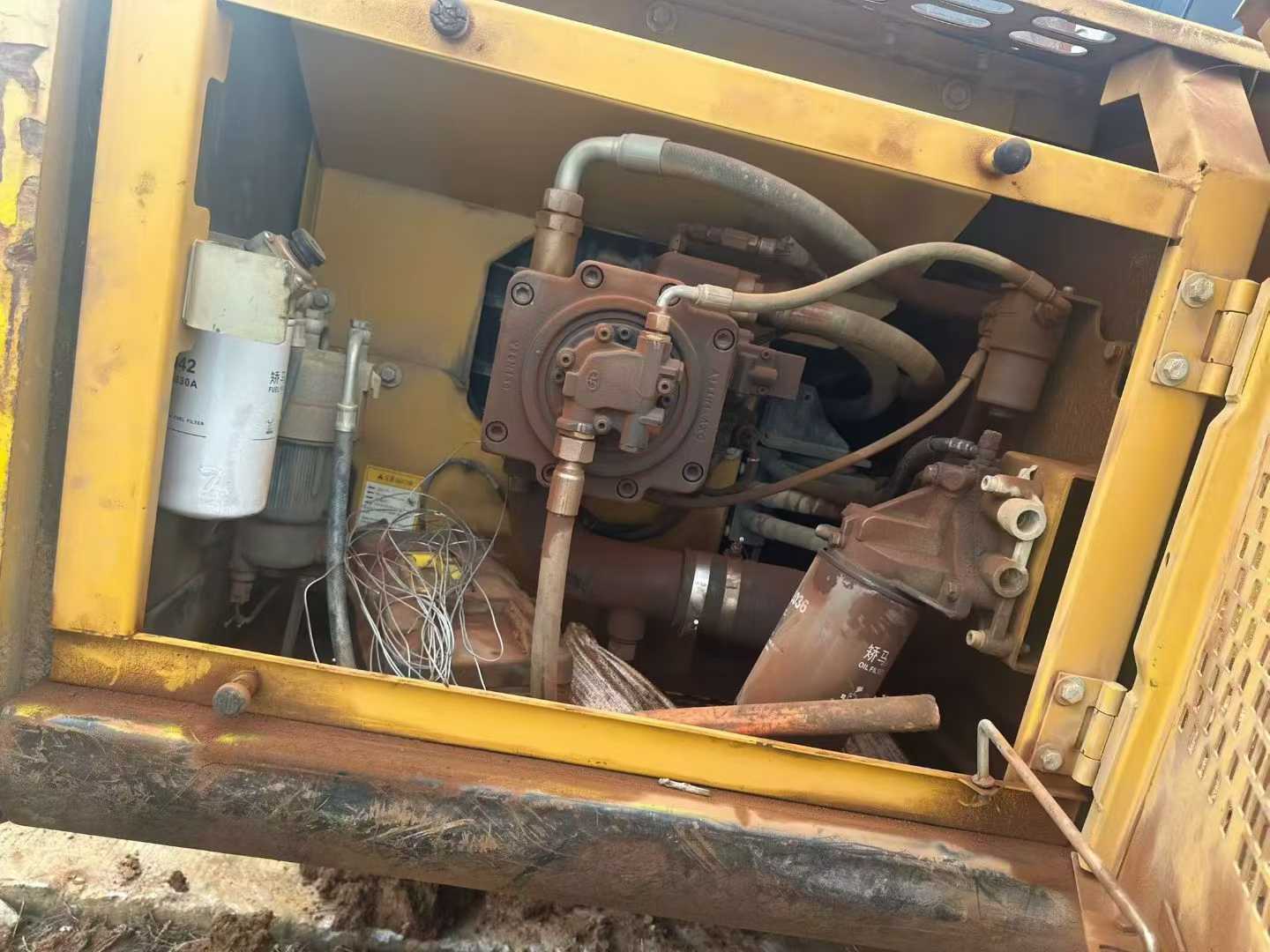

Powered by an Isuzu 4HK1 engine, delivering 128.4 kW at 2000 rpm, the Sany SY215W excavator from 2020 offers robust performance and reliability. With a total displacement of 5.193 liters and a maximum torque of 670 N.m at 1600 rpm, this machine is engineered for demanding tasks. The hydraulic system, featuring a 230-liter tank, ensures smooth and efficient operation, while the 400-liter fuel tank provides extended operational hours. Capable of forward speeds up to 38 km/h and a climbing ability of 35%, the SY215W excels in challenging terrains. Its bucket capacity of 0.93 m³, combined with a digging force of 117.5 kN, makes it ideal for heavy-duty excavation. Located in 广西桂林, this Chinese-made excavator is a testament to Sany's commitment to engineering excellence.
| Specifications | Value |
|---|---|
| No. | 1000280 |
| Tonnage (tons) | 21.5 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.93 |
| power | Fuel oil |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4HK1 |
| Rated power (kw/rpm) | 128.4/2000 |
| Total displacement (L) | 5.193 |
| Maximum torque (N.m) | 670/1600 |
| Forward speed (Km/h) | 38/10 |
| Rotation speed (rpm) | 11.9 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 117.5 |
| Rod digging force (kN) | 102.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 230 |
| Engine Oil changes (L) | 20 |
