Product Description

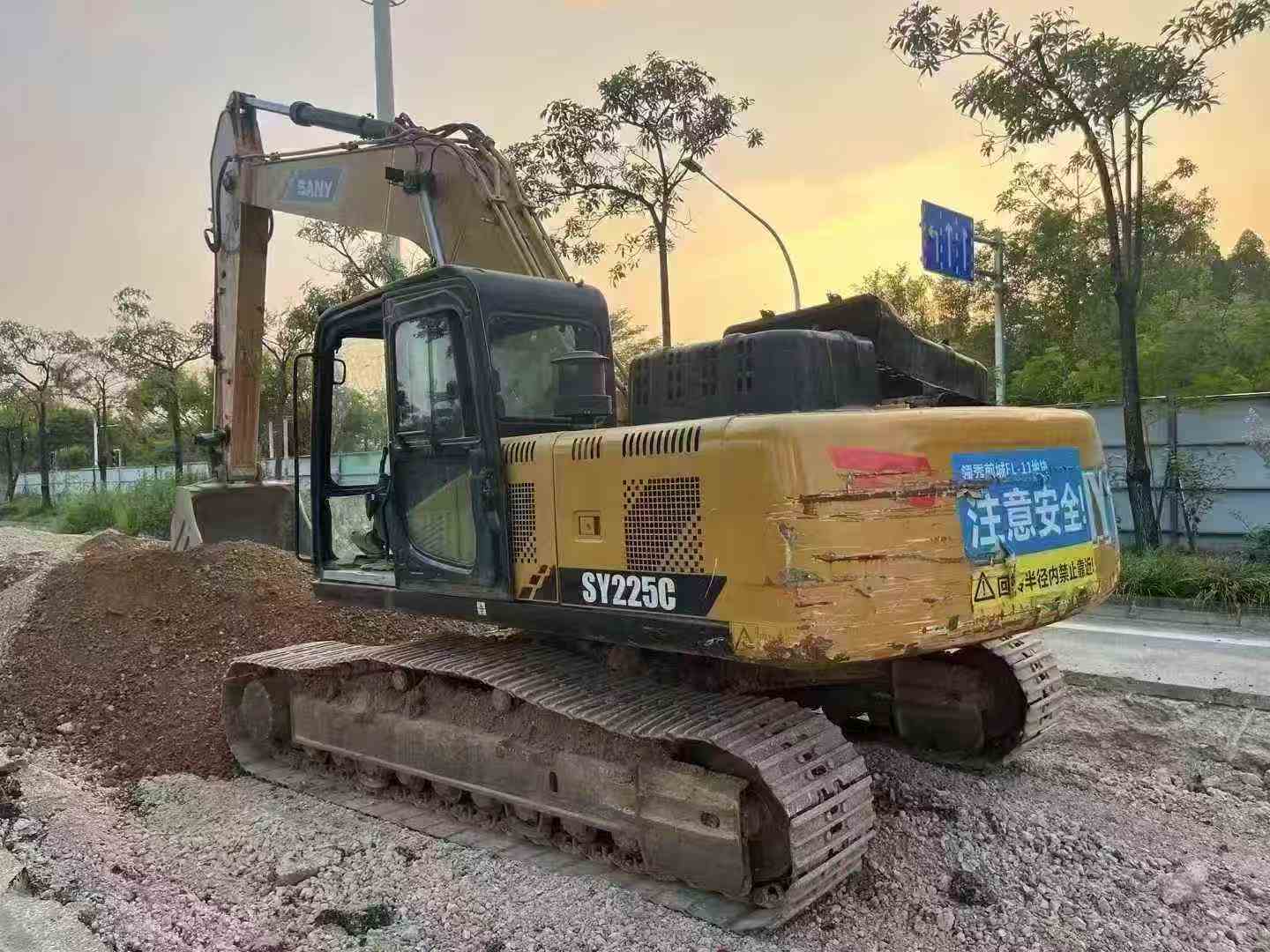

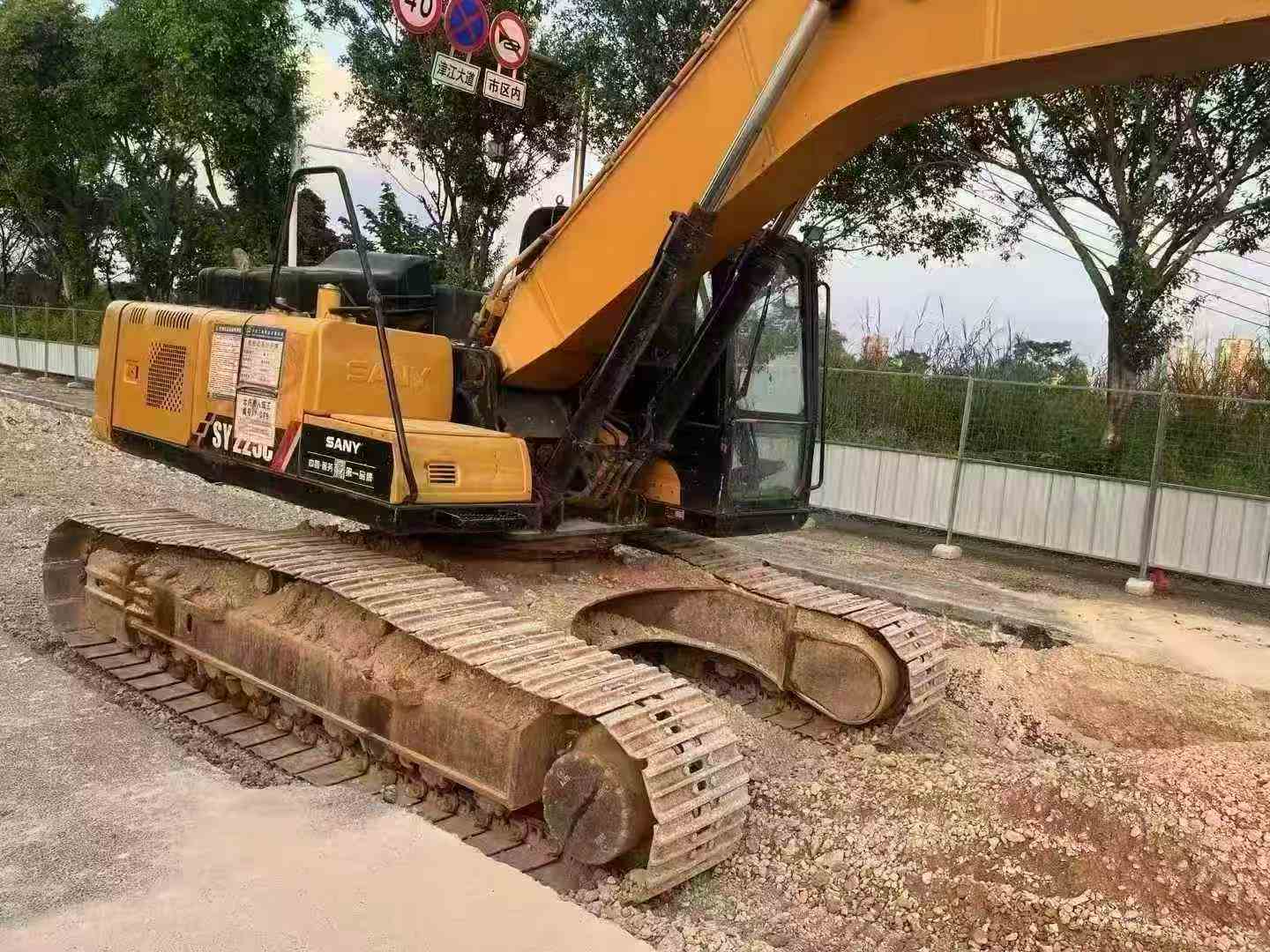

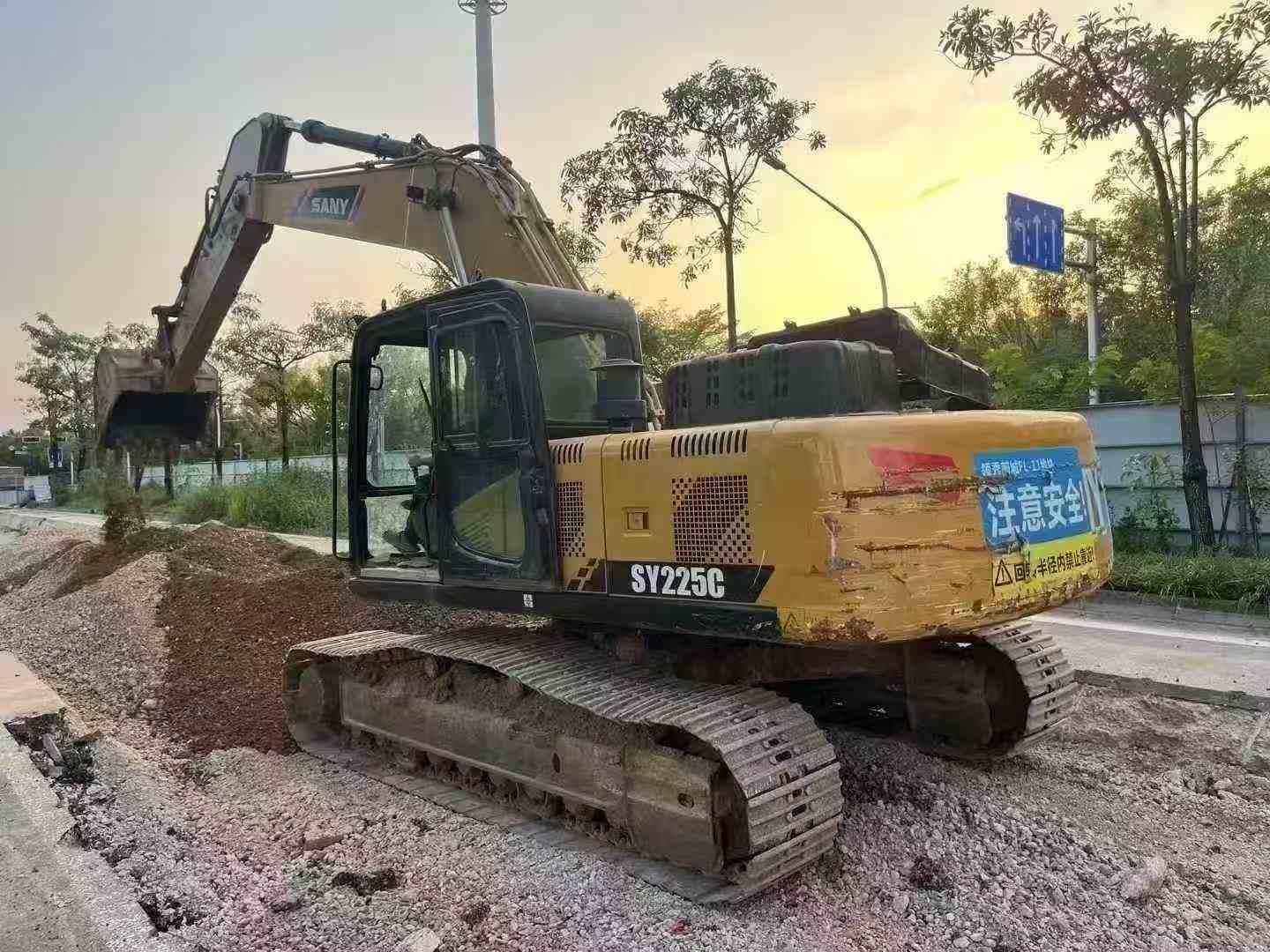

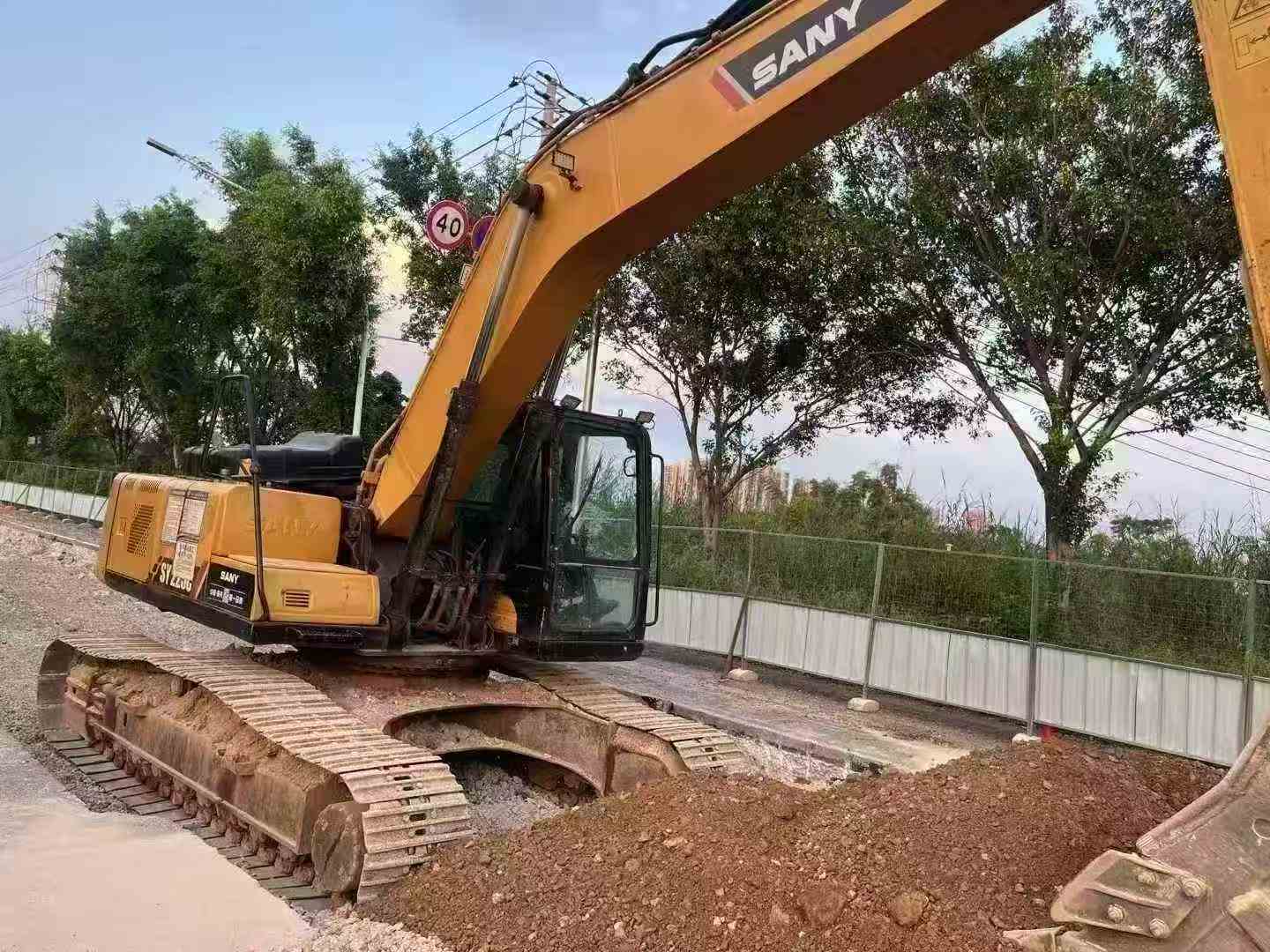

Expand your fleet capacity with this 2016 Sany SY225C excavator, currently positioned in Zhejiang Jinhua and ready for immediate deployment. Operating at 23 tons with a 1.1 m³ bucket and 118 kW Mitsubishi 4M50 engine, this mid-size crawler delivers reliable performance across demolition, earthmoving, and utility projects. Its 10,280 mm maximum reach and 6,600 mm dig depth handle standard commercial applications while the 138 kN bucket force maintains consistent productivity in mixed soil conditions.
- 22,300 kg working weight ideal for transport logistics and site mobility
- 340L fuel tank and 239L hydraulic reservoir minimize refueling downtime
- 70% gradeability and 47.4 kPa ground pressure for varied terrain access
- Compact 2,900 mm rear swing radius fits confined urban job sites
- Proven Chinese manufacturing with field-tested durability in Asian markets
Perfect as a backup unit during peak season or to fill scheduling gaps without capital equipment investment. This machine integrates seamlessly into existing Sany fleets while offering cross-compatibility for mixed-brand operations requiring 20–25 ton capacity.
| Specifications | Value |
|---|---|
| No. | 1013837 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300 |
| Bucket capacity (m³) | 1.1~1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

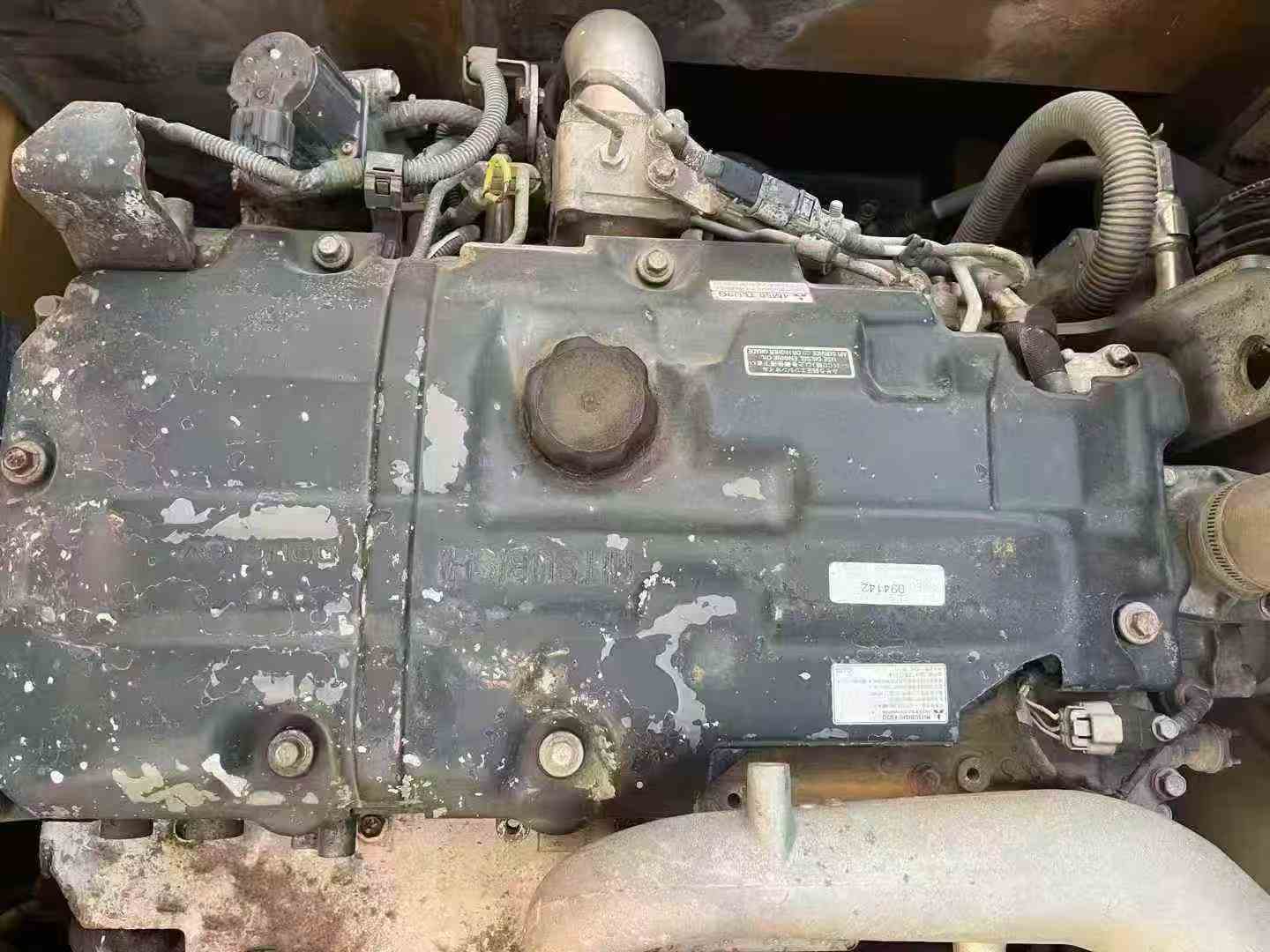

| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Counterweight ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
