Product Description

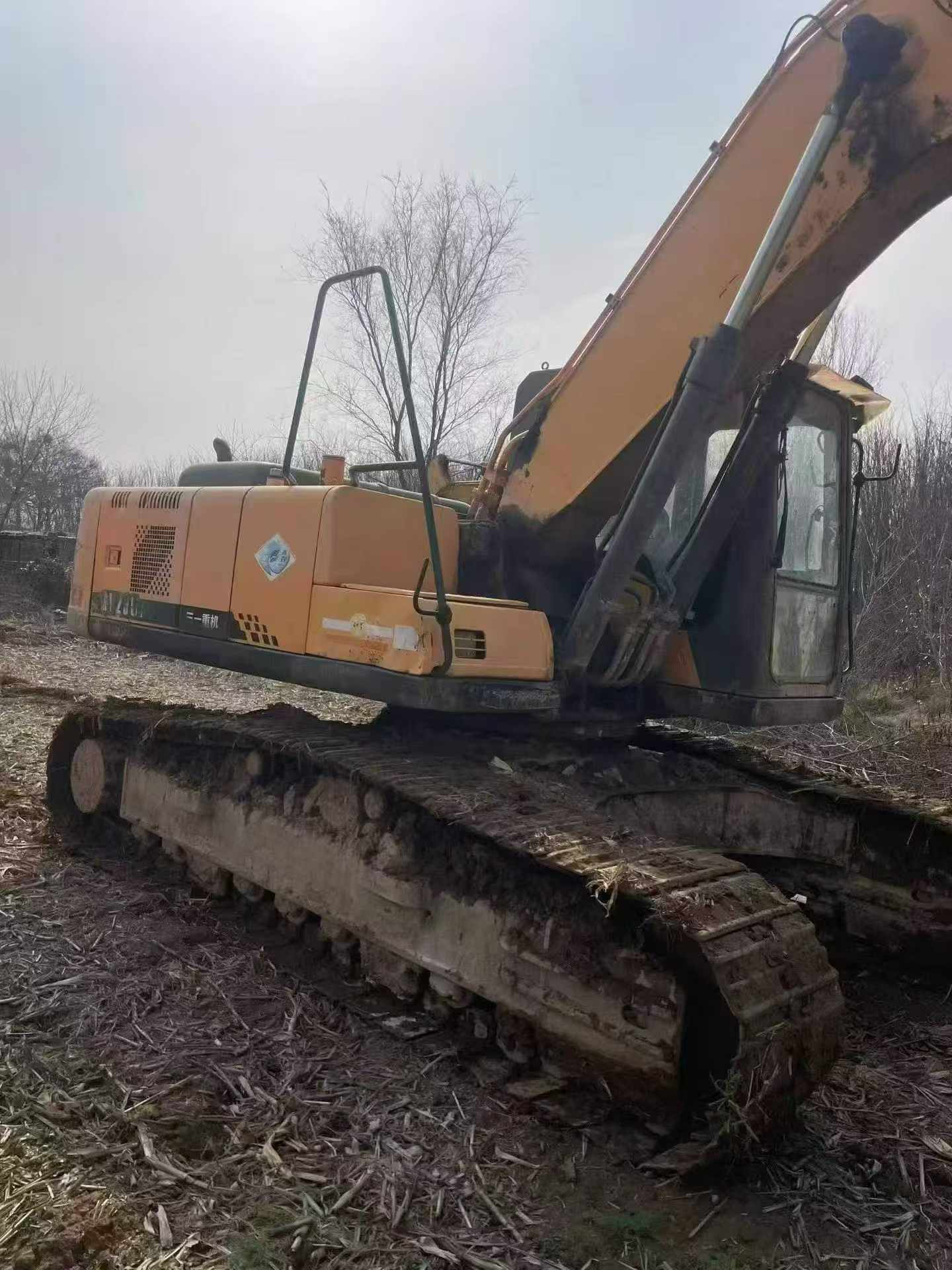

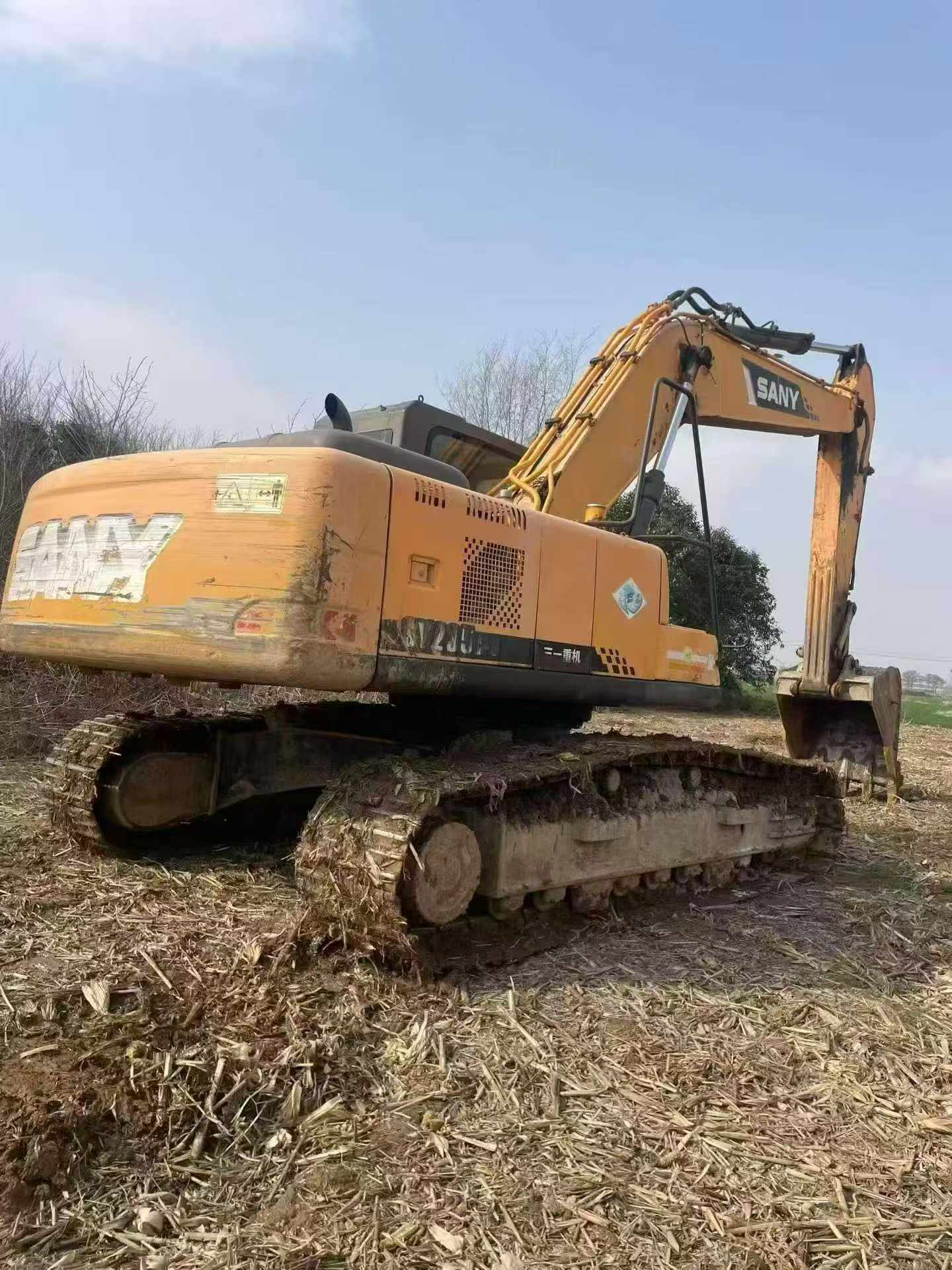

Built for high-output excavation and grading operations, this 2016 Sany SY225C delivers 23-ton performance with a proven 4M50 engine producing 118 kW at 2000 rpm. Currently located in Shaoxing, Zhejiang, this machine comes equipped with a 1.1–1.2 m³ backhoe bucket and generates 138 kN bucket digging force with 103 kN rod force—power you need for foundation work, trenching, and material handling across demanding jobsites.
- Immediate Productivity: 22,300 kg working weight with 10,280 mm maximum digging reach and 6,600 mm dig depth handles large-scale earthmoving tasks efficiently
- Proven Reliability: Traditional diesel powertrain with 340 L fuel capacity supports extended shifts without frequent refueling interruptions
- Versatile Performance: 70% grading ability and 5.4 km/h travel speed ensure rapid repositioning between work zones
- Transport-Ready Dimensions: 9,680 mm length × 2,980 mm width fits standard lowboy trailers for straightforward mobilization
Ready to deploy on demolition, site prep, or utility installation projects. Contact Fair Trade Machinery for current availability and shipping options world
| Specifications | Value |
|---|---|
| No. | 1041713 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300 |
| Bucket capacity (m³) | 1.1~1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

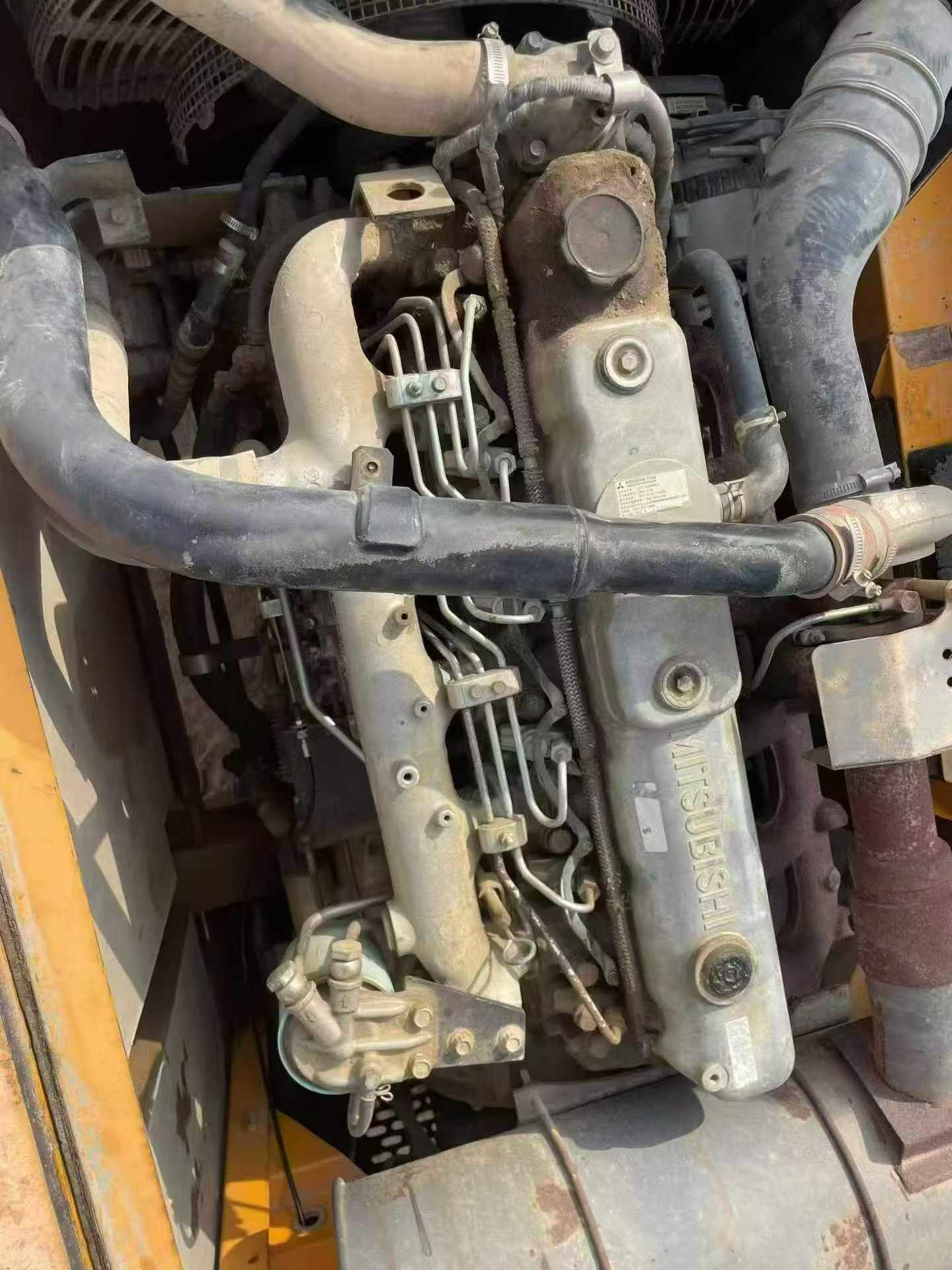

| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Counterweight ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
