Product Description

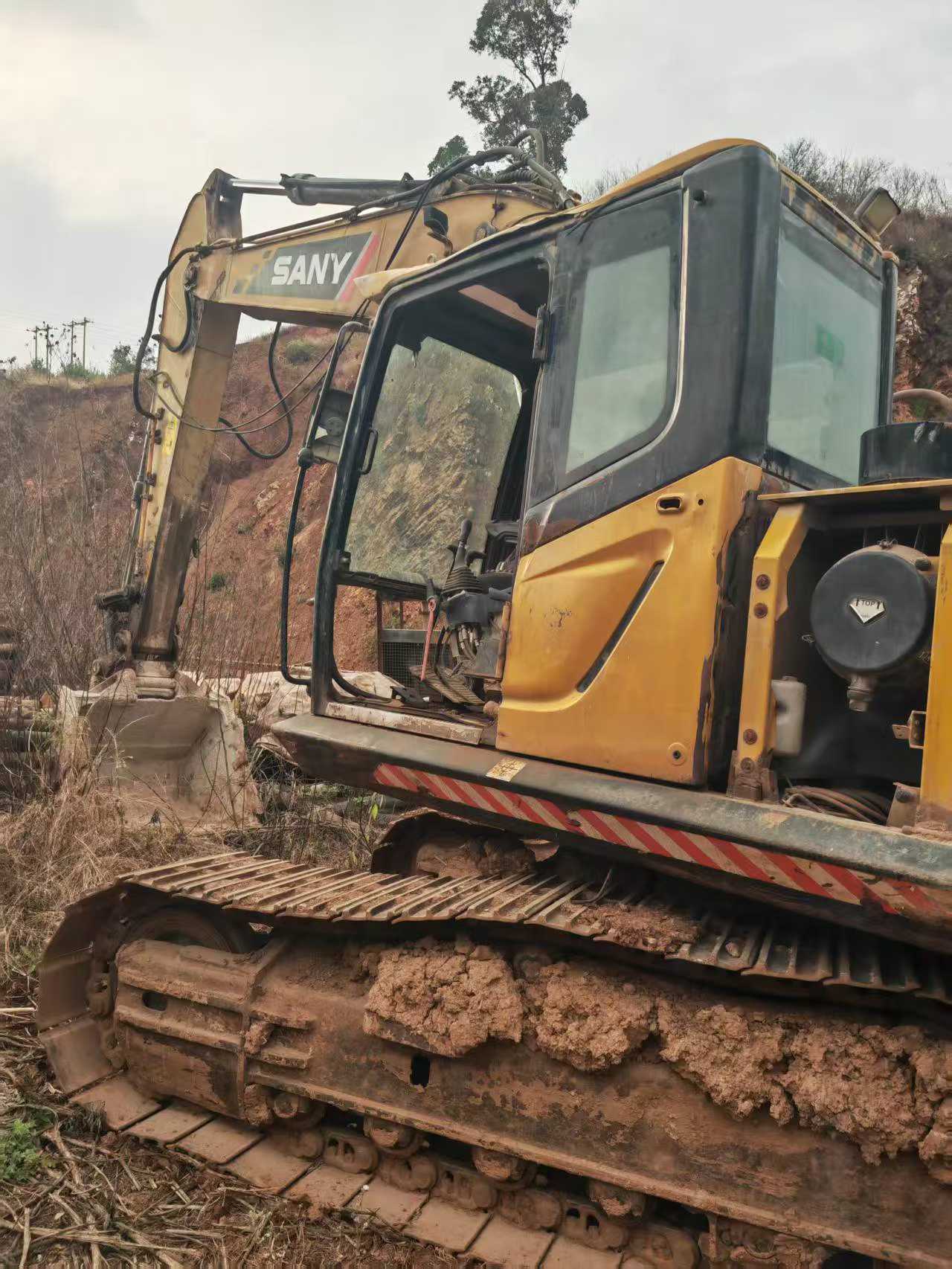

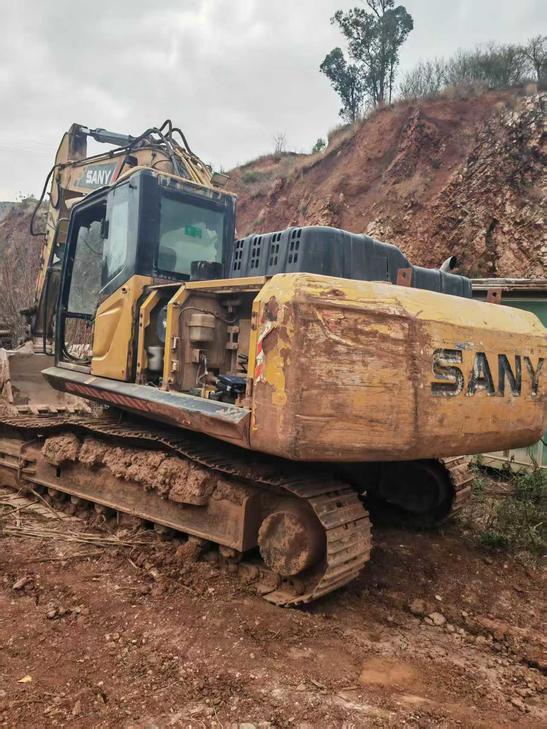

Built for demanding excavation work, this 2017 Sany SY225C delivers 23-ton performance across construction, demolition, and grading operations. Powered by a robust 4M50 engine generating 118kW at 2000rpm, this machine provides consistent hydraulic power for digging depths up to 6.6 meters and reach extending to 10.28 meters. The 1.1-1.2m³ backhoe bucket, backed by 138kN digging force, tackles dense material efficiently while the 103kN arm force handles precise grading tasks.
- Operating weight: 22,300kg with 340L fuel capacity for extended shifts
- Maximum digging depth: 6,600mm; maximum reach: 10,280mm
- Powerful 4M50 engine: 118kW/580N.m torque for reliable performance
- 70% climbing ability handles challenging terrain and slopes
- 600mm track plates with 47.4kPa ground pressure minimize site disturbance
- Currently located in Kunming, Yunnan—ready for immediate deployment
Equipped with dual sprockets per side and 8 wheels for stability, this SY225C maintains productivity across earthmoving, trenching, and demolition projects. Available now from Fair Trade Machinery's verified inventory.
| Specifications | Value |
|---|---|
| No. | 1030223 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300 |
| Bucket capacity (m³) | 1.1~1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Counterweight ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
