Product Description

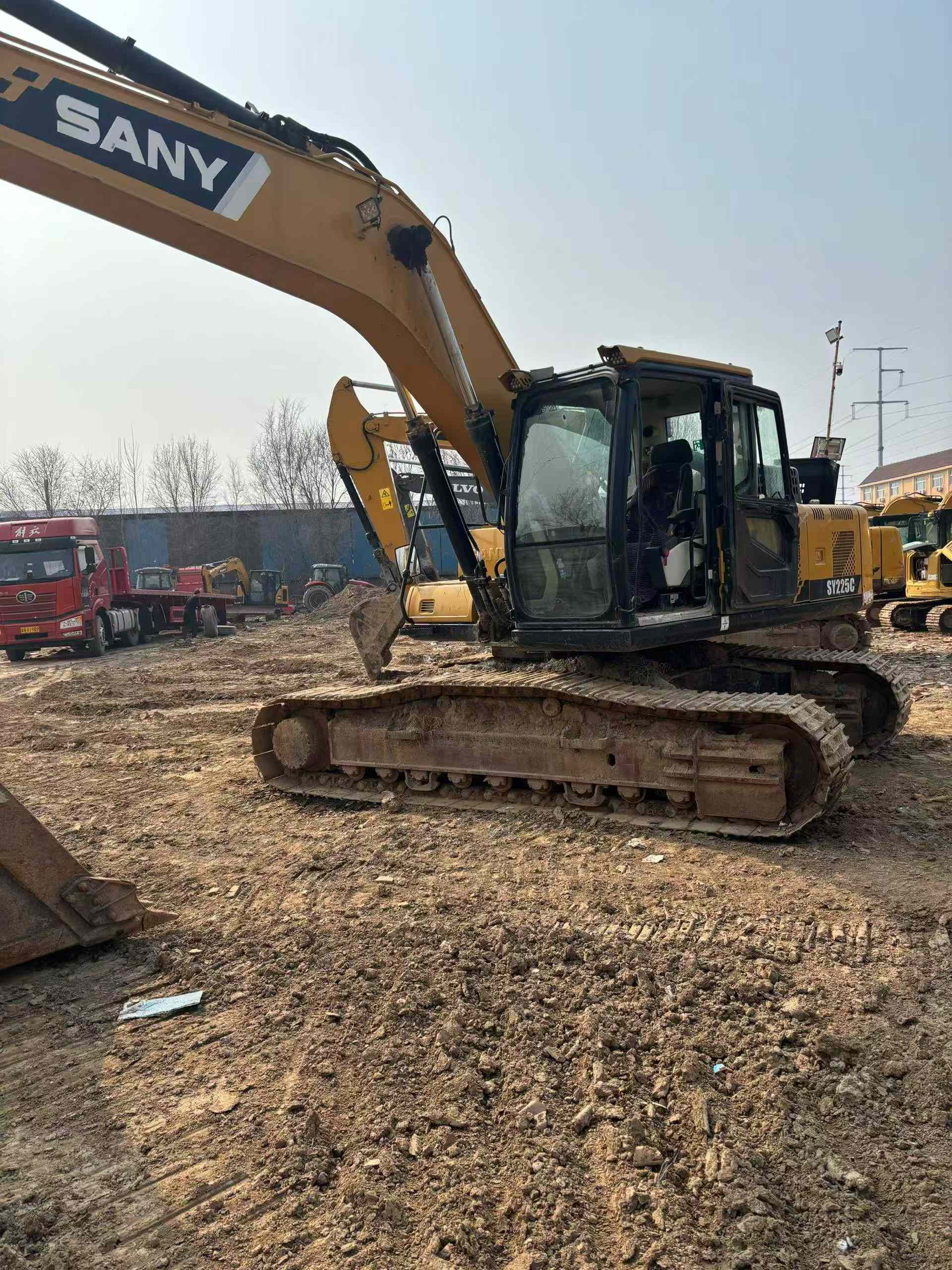

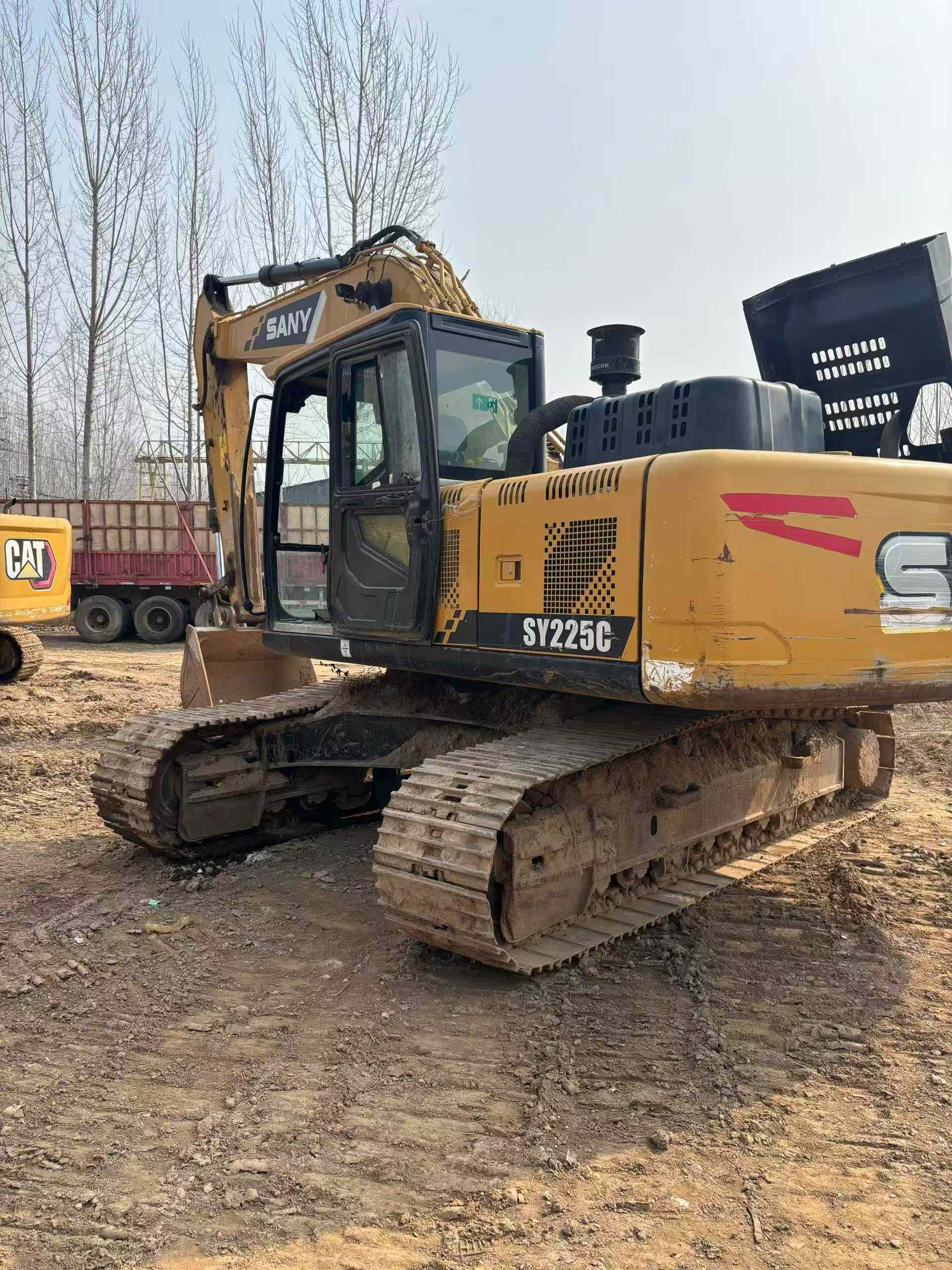

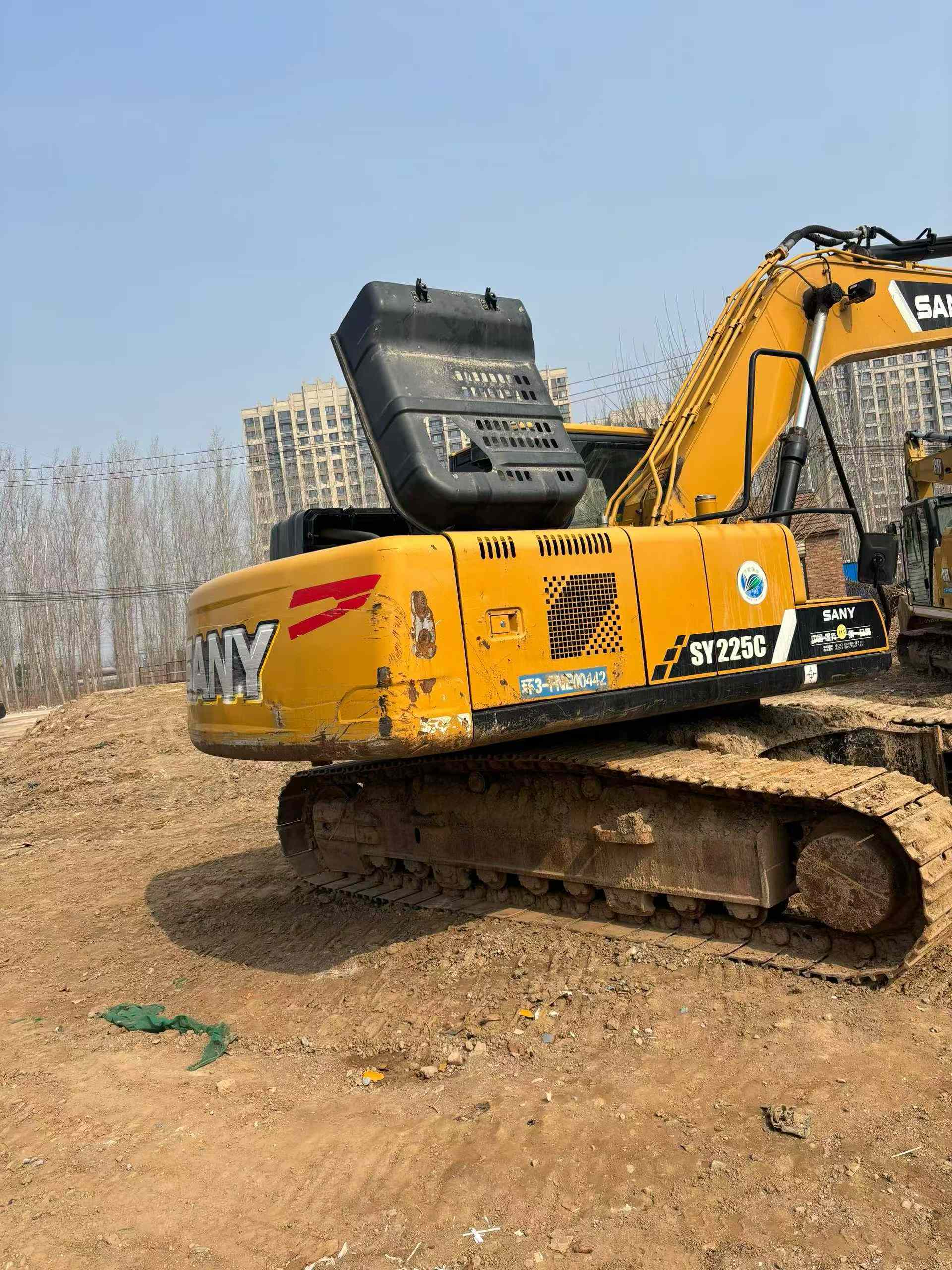

Proven in demanding conditions since 2018, this Sany SY225C excavator demonstrates the durability that defines reliable heavy equipment. Operating at 23 tons with a robust 22,300 kg working weight, this workhorse delivers consistent performance through its powerful 118 kW engine and exceptional 138 kN bucket digging force. Built with Sany's renowned engineering standards, it features a substantial 1.2 m³ bucket capacity and impressive 10,280 mm maximum digging radius for versatile jobsite applications.
- Model Year: 2018 | Location: Shandong, Dezhou

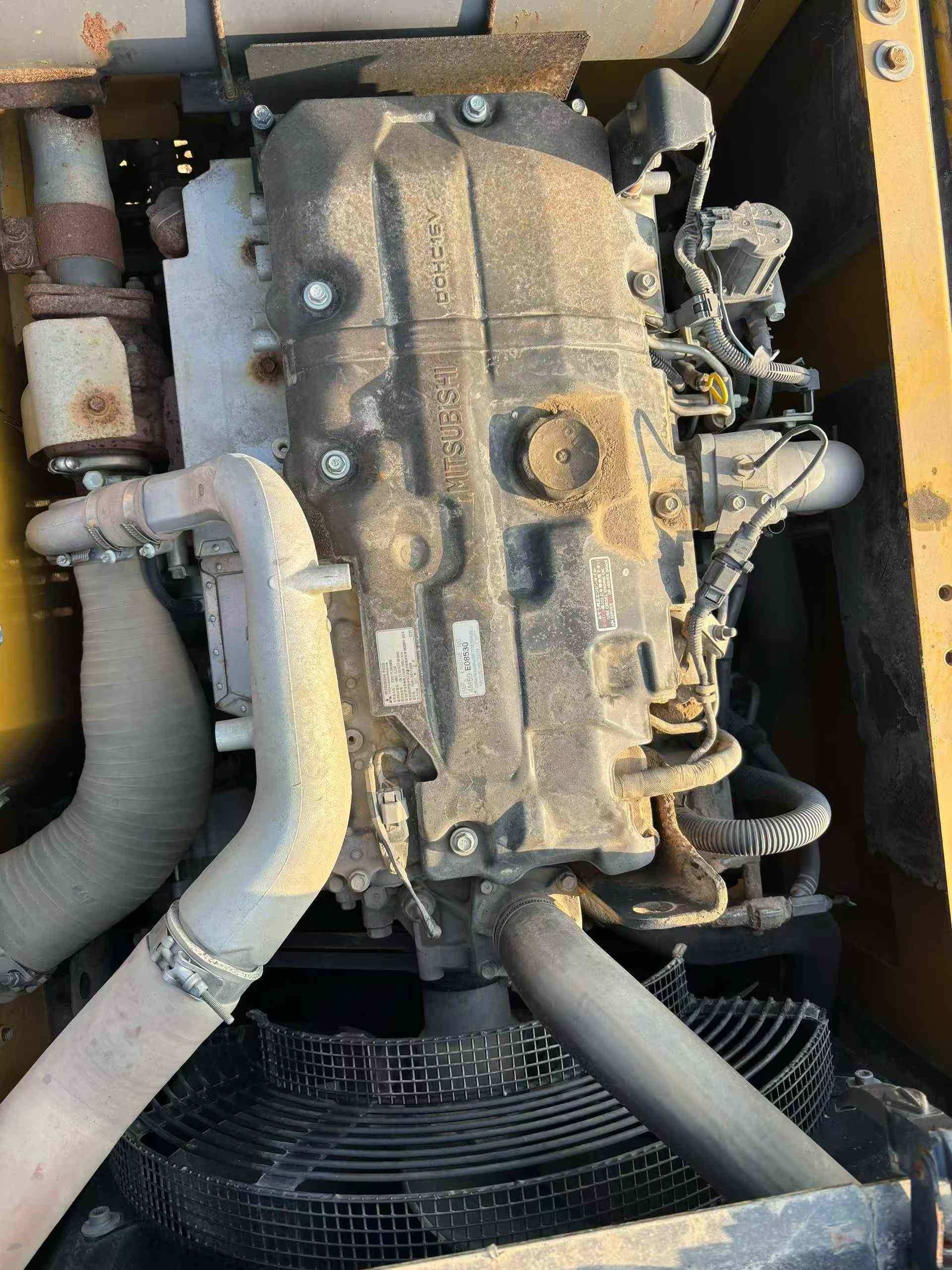

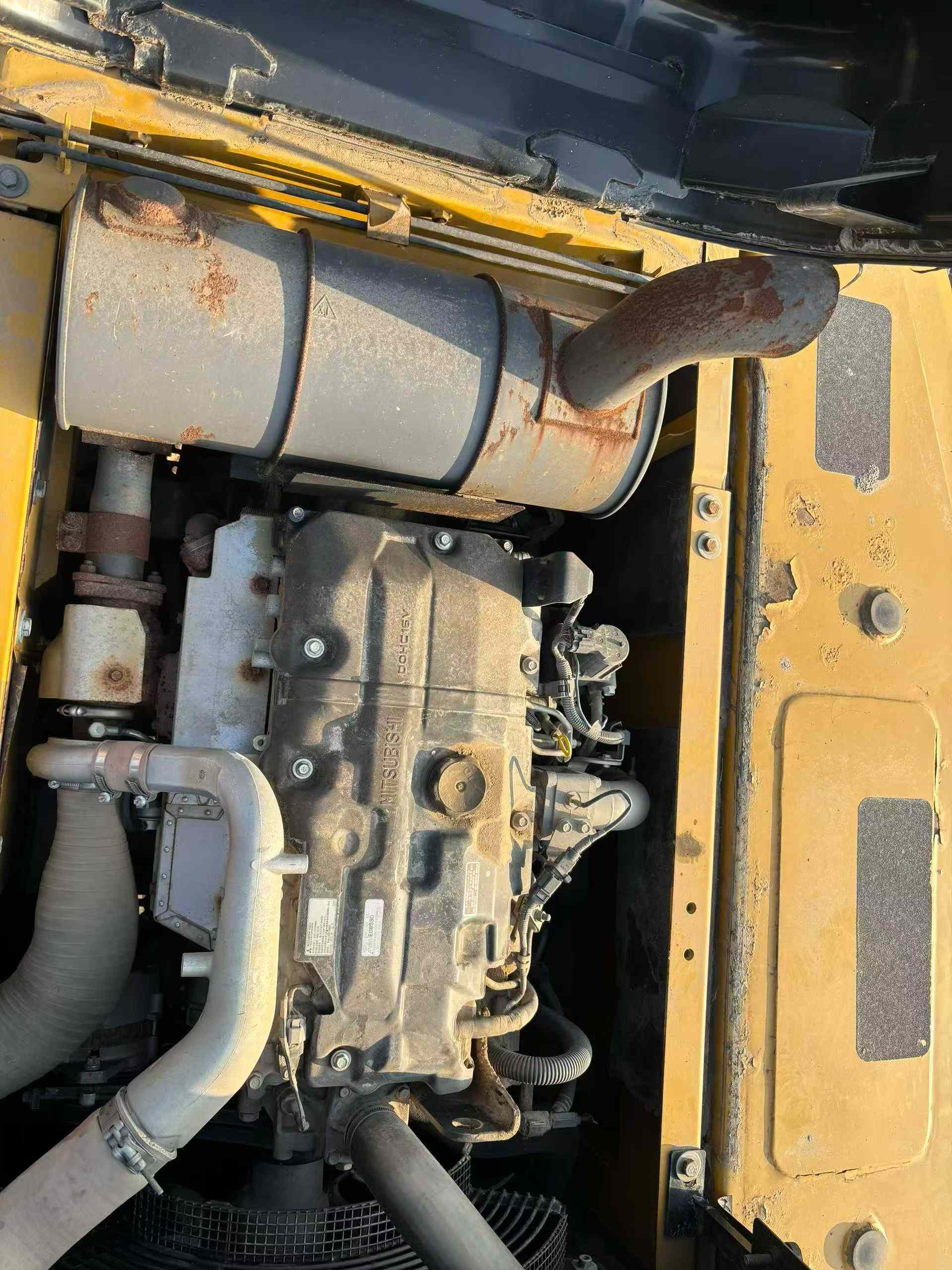

- Engine: 4M50 diesel, 118 kW rated power at 2000 rpm
- Performance: 6,600 mm max digging depth, 9,600 mm max excavation height
- Capacity: 340 L fuel tank, 239 L hydraulic reservoir for extended operation
- Mobility: 70% climbing ability, 5.4 km/h travel speed
- Dimensions: 9,680 mm transport length, 2,980 mm width
With five years of proven service backing its construction quality, this machine represents dependable value for contractors seeking a reliable mid-size excavator. Currently available from our Shandong facility, ready for immediate deployment worldwide.
| Specifications | Value |
|---|---|
| No. | 1027727 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300 |
| Bucket capacity (m³) | 1.1~1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Counterweight ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
