Product Description
Built for high-volume earthmoving, this 2019 Sany SY225C excavator delivers proven 23-ton performance backed by China's most trusted heavy equipment manufacturer. Powered by a robust 118kW engine generating 580N·m torque, this machine combines a 1.2m³ bucket capacity with 138kN digging force to handle demanding excavation projects across mining, construction, and infrastructure sectors.
Sany's global parts network ensures minimal downtime—critical when purchasing used equipment. With widespread dealer support and component availability, maintenance costs remain predictable compared to lesser-known brands. Strong resale values reflect the manufacturer's reputation for durability, making this model a strategic investment rather than a depreciating asset.
- Operating weight: 22,300kg with superior 70% grading capability
- Maximum reach: 10,280mm with 6,600mm digging depth
- Fuel-efficient 340L tank for extended operation cycles

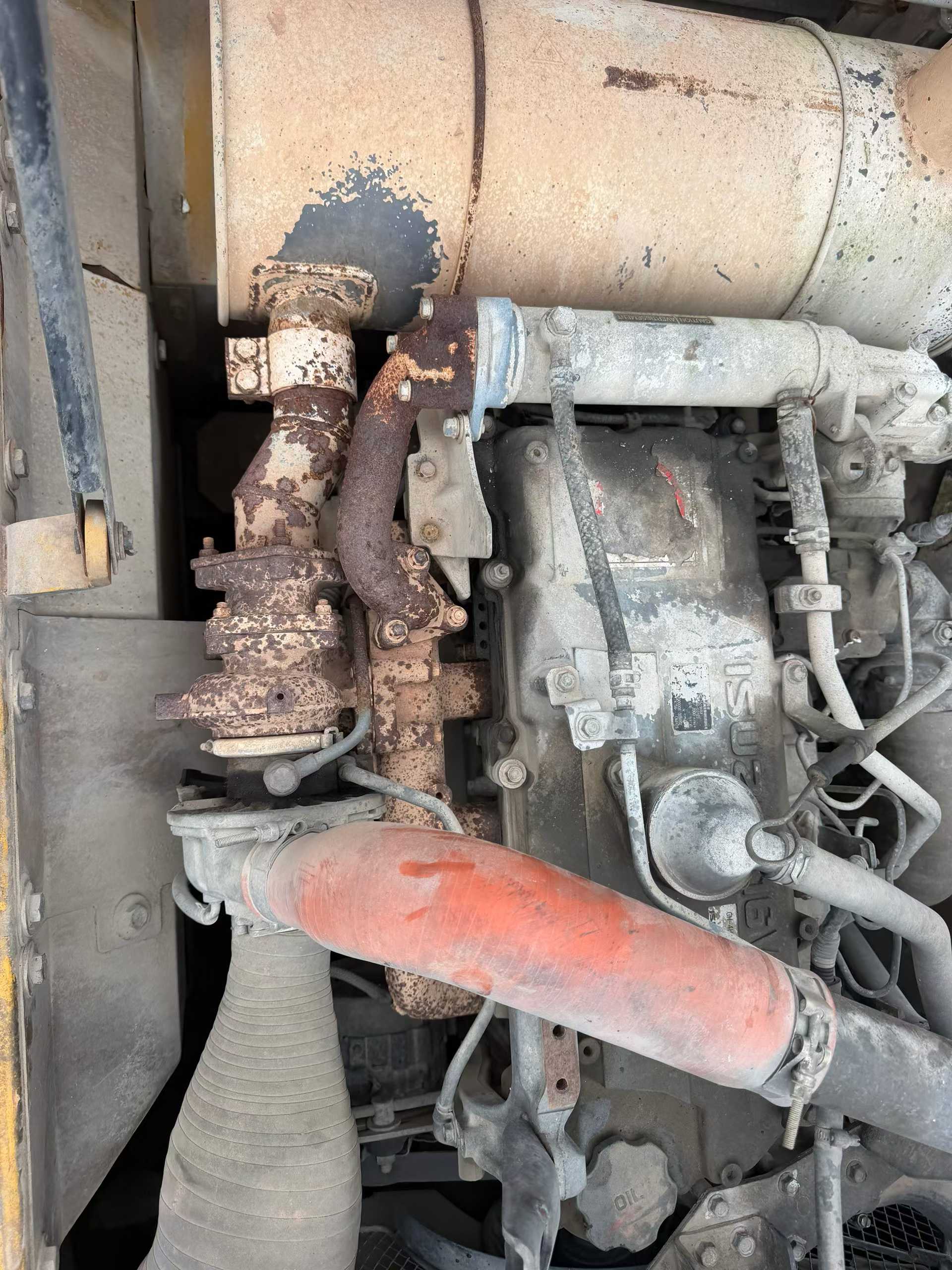

- Factory-standard 4M50 engine with proven reliability records
- Currently located in Sichuan, ready for international shipment
Fair Trade Machinery verifies all technical specifications and operational history. Contact our team for inspection report
| Specifications | Value |
|---|---|
| No. | 1043239 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300 |
| Bucket capacity (m³) | 1.1~1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Counterweight ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
