2019 Sany SY225C

1/8
Buy Sany SY225C Used Excavator / 1
Buy Sany SY225C Used Excavator / 2

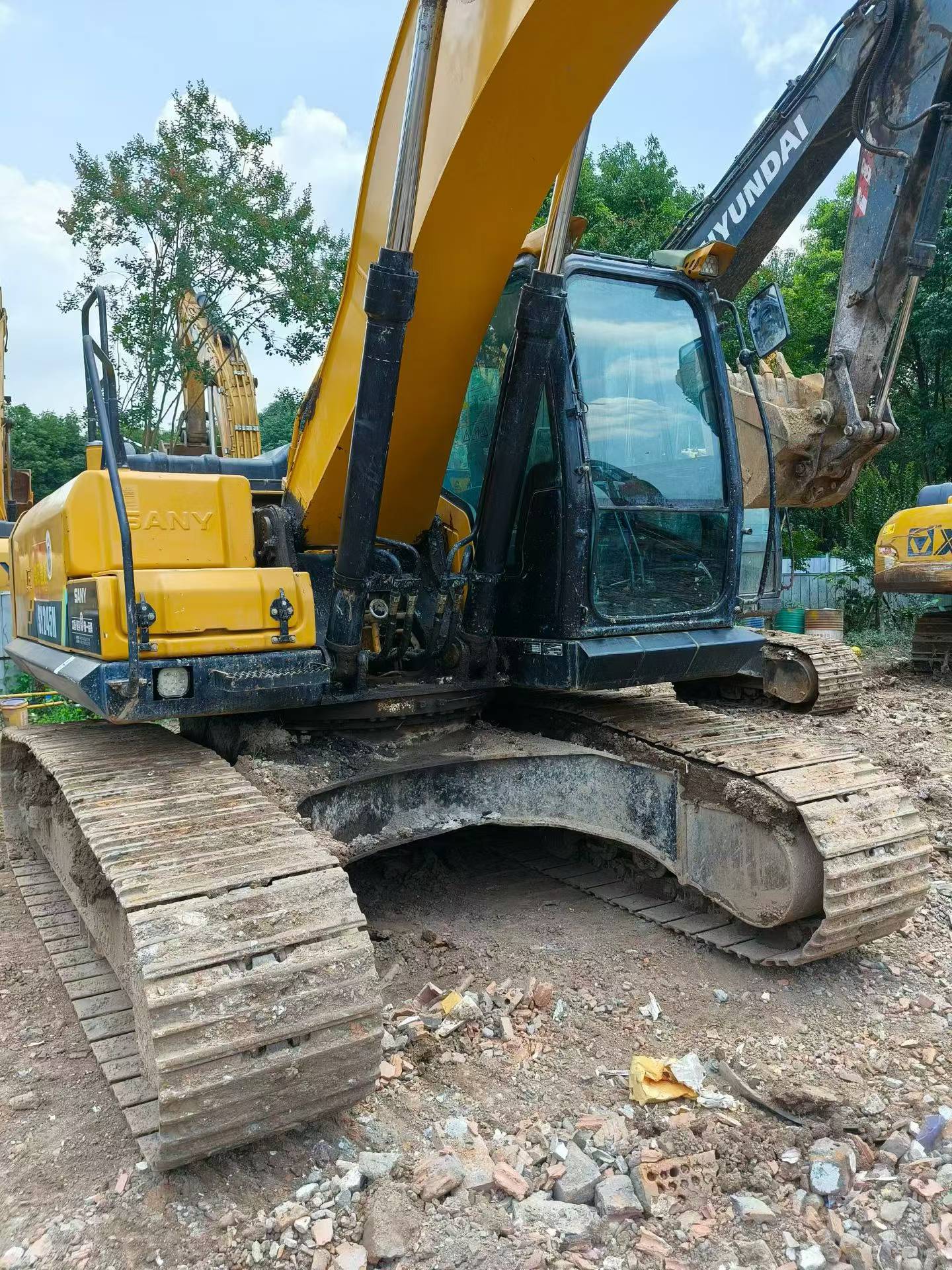

Buy Sany SY225C Used Excavator / 3

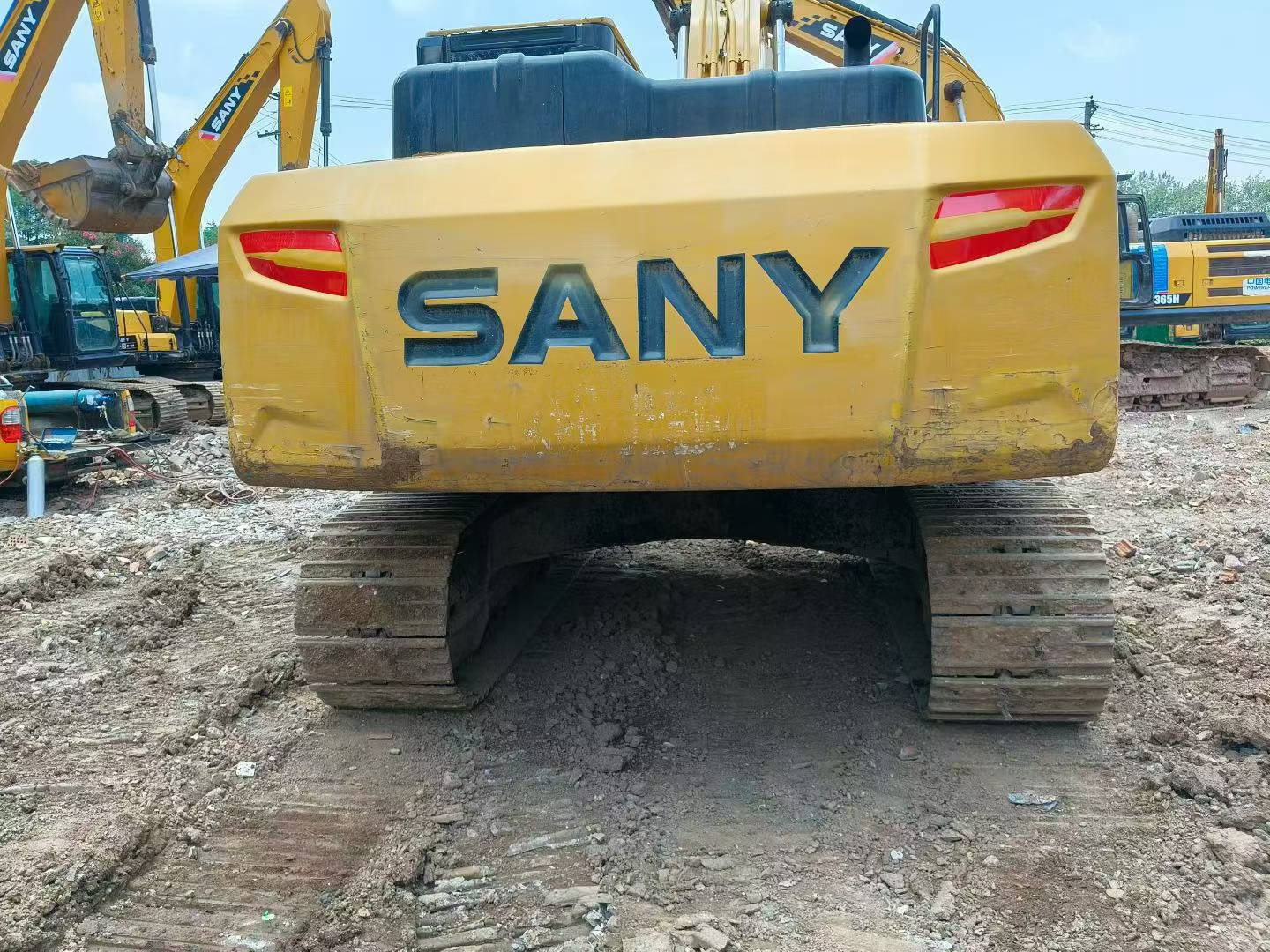

Buy Sany SY225C Used Excavator / 4

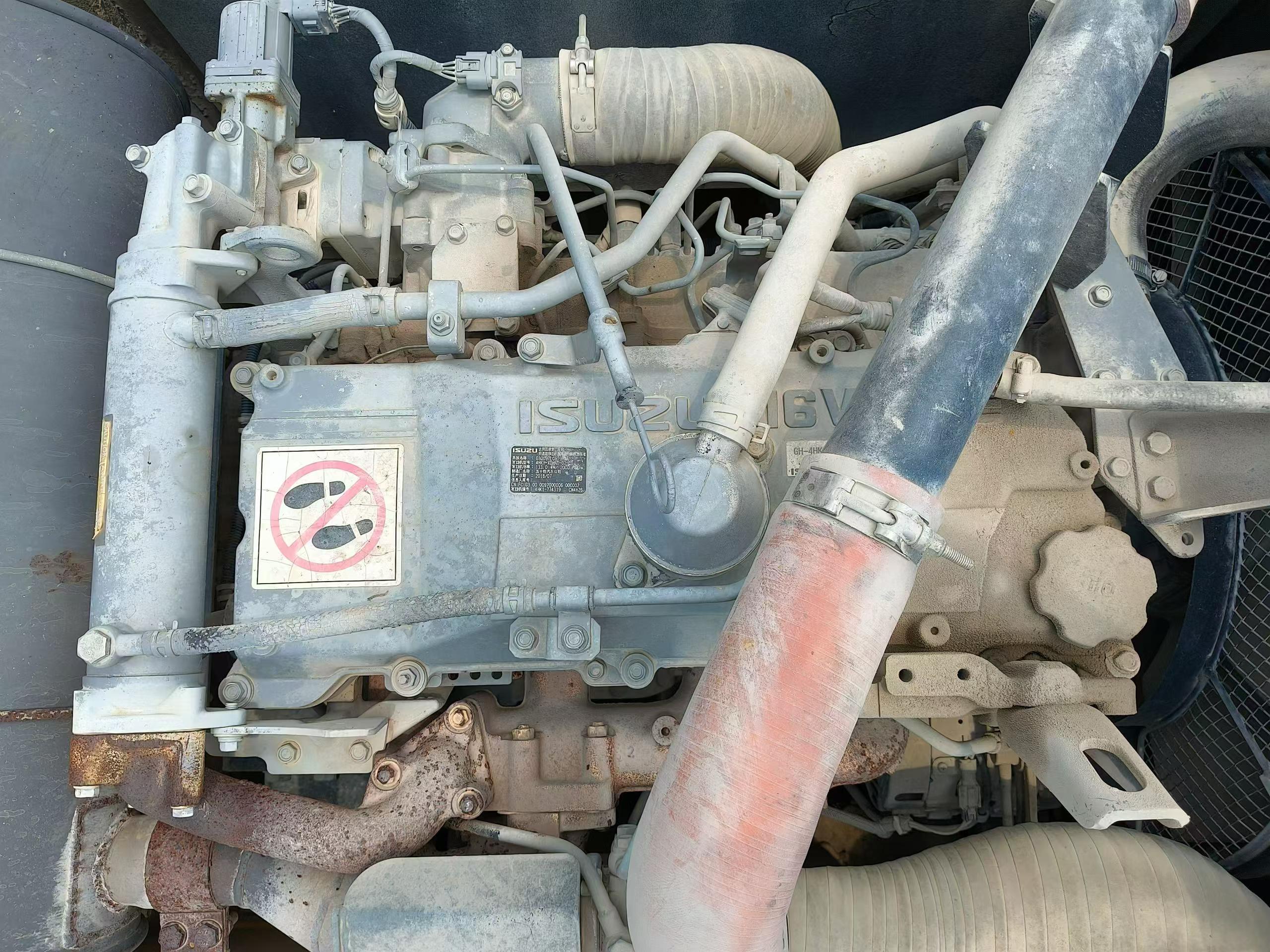

Buy Sany SY225C Used Excavator / 5

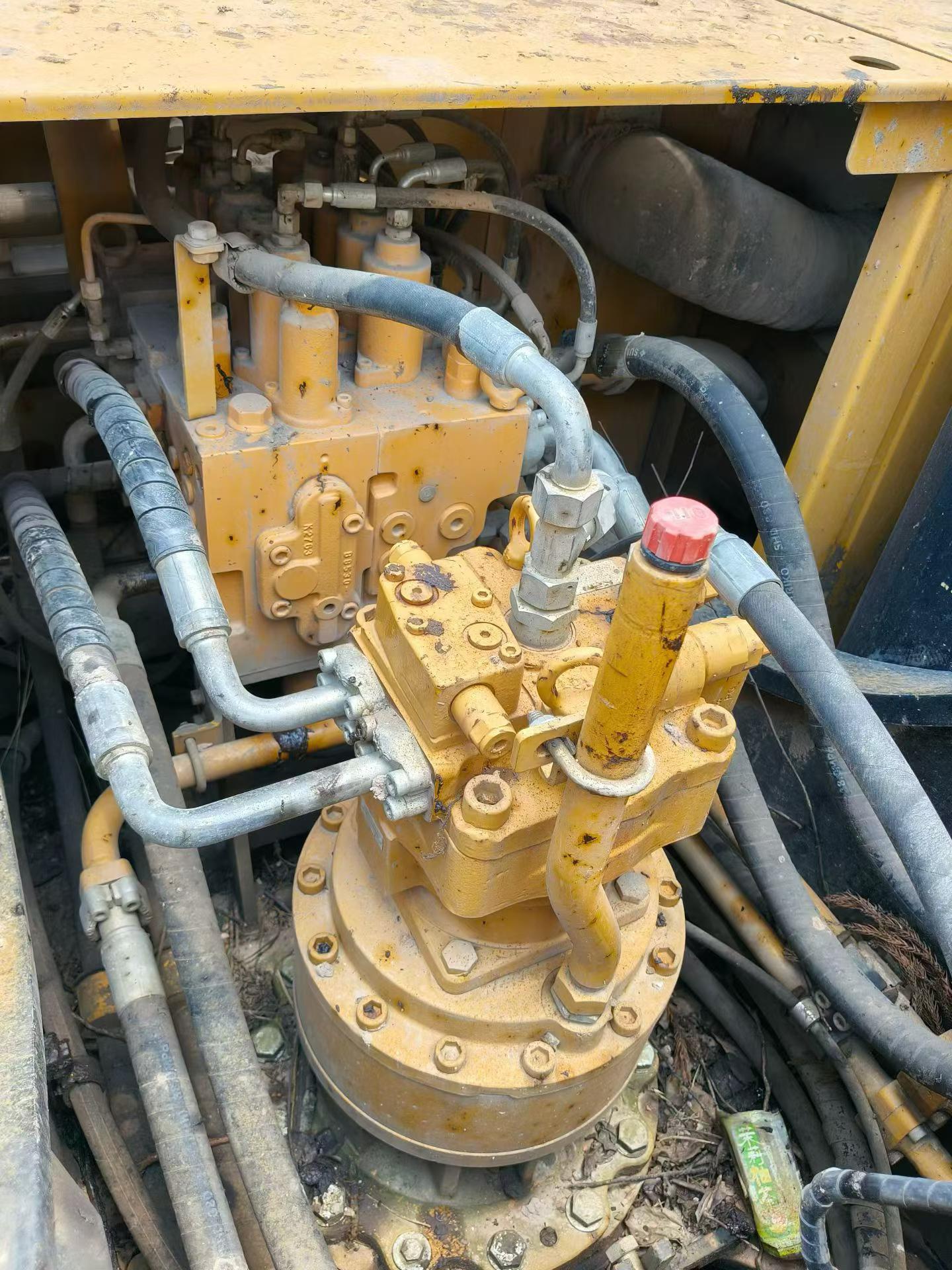

Buy Sany SY225C Used Excavator / 6

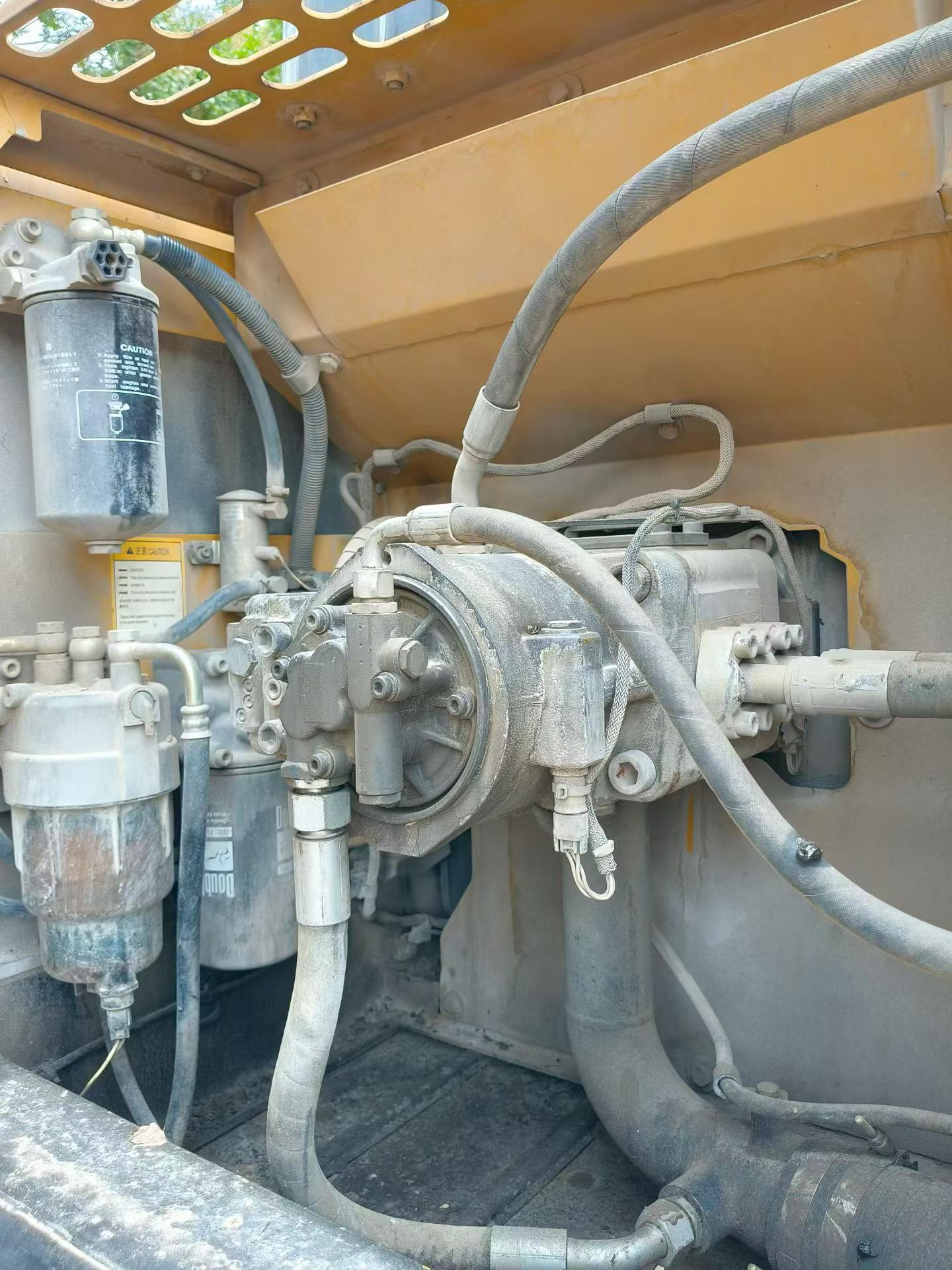

Buy Sany SY225C Used Excavator / 7

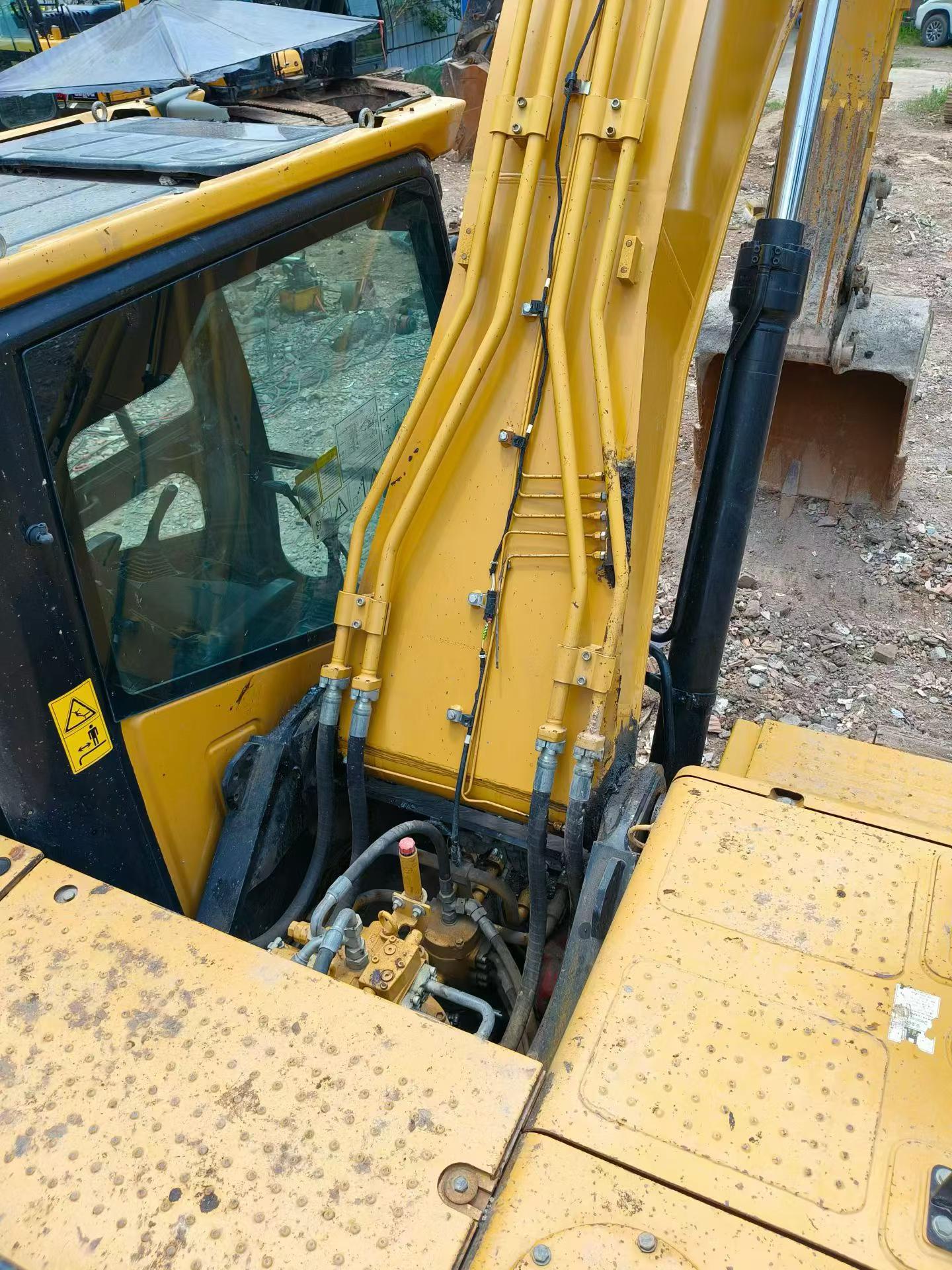

Buy Sany SY225C Used Excavator / 8

Product Description

This 2019 Sany SY225C excavator represents a well-maintained mid-size crawler excavator sourced from Sichuan, China. Manufactured during Sany's quality-focused production period, this unit comes equipped with a reliable Isuzu high-configuration engine, delivering robust power output for demanding earthmoving applications.

The machine features a premium Kawasaki hydraulic system, known for precise control and fuel efficiency in heavy-duty operations. This factory-installed configuration ensures optimal performance across digging, loading, and grading tasks.

  • Year of Manufacture: 2019
  • Model: Sany SY225C
  • Engine: Isuzu High-Configuration
  • Hydraulic System: Kawasaki
  • Current Location: Sichuan, China
  • Operating Weight Class: 22-ton

Ideal for construction contractors, mining operations, and infrastructure projects requiring a dependable excavator with proven Japanese components. Available for immediate inspection and export arrangements.

SpecificationsValue
No.1095602
Tonnage (tons)23
Working weight (kg)22300
Bucket capacity (m³)1.1~1.2(1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4M50
Rated power (kw/rpm)118/2000
Maximum torque (N.m)580/1600
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)340
Hydraulic Tank (L)239
Engine Oil changes (L)2
Coolant (L)30.9
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Counterweight ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1095602

Brand Name:

Sany

Model Number:

SY225C

Year:

2019

Location:

Sichuan China

Pub Date

Are you interested in this machine?

Please contact us
