Product Description

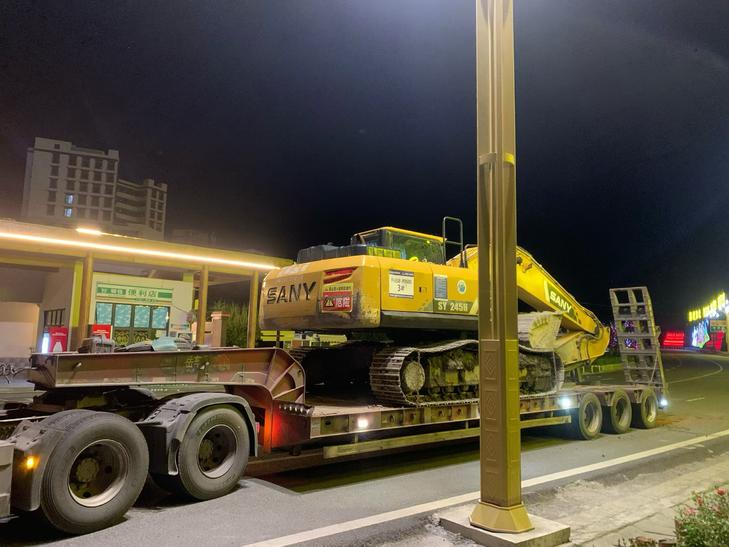

This 2019 Sany SY225C medium-class hydraulic excavator presents an excellent opportunity for operations requiring reliable performance and proven durability. Manufactured by Sany Heavy Industry, one of China's leading construction equipment producers, this unit represents the popular 22-ton category widely used in infrastructure projects, earthmoving, and general construction applications.
Currently located in Sichuan, China, this machine has been well-maintained and is reported to be in inspection-ready condition. The SY225C model is recognized for its balanced combination of digging force, fuel efficiency, and operator comfort, making it suitable for contractors seeking dependable mid-size excavation equipment.
- Year of Manufacture: 2019
- Operating Weight Class: Approximately 22 tonnes
- Location: Sichuan Province, China
- Condition: Well-maintained, inspection-ready
- Application: Earthmoving, construction, infrastructure development
Contact FairTradeMachinery for detailed specifications, inspection reports, and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1099621 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300 |
| Bucket capacity (m³) | 1.1~1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Counterweight ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
