2020 Sany SY225C

1/5

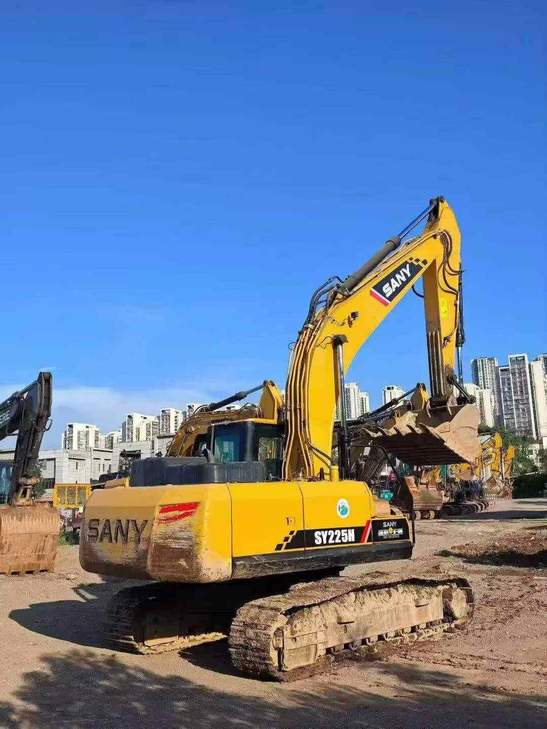

Buy Sany SY225C Used Excavator / 1

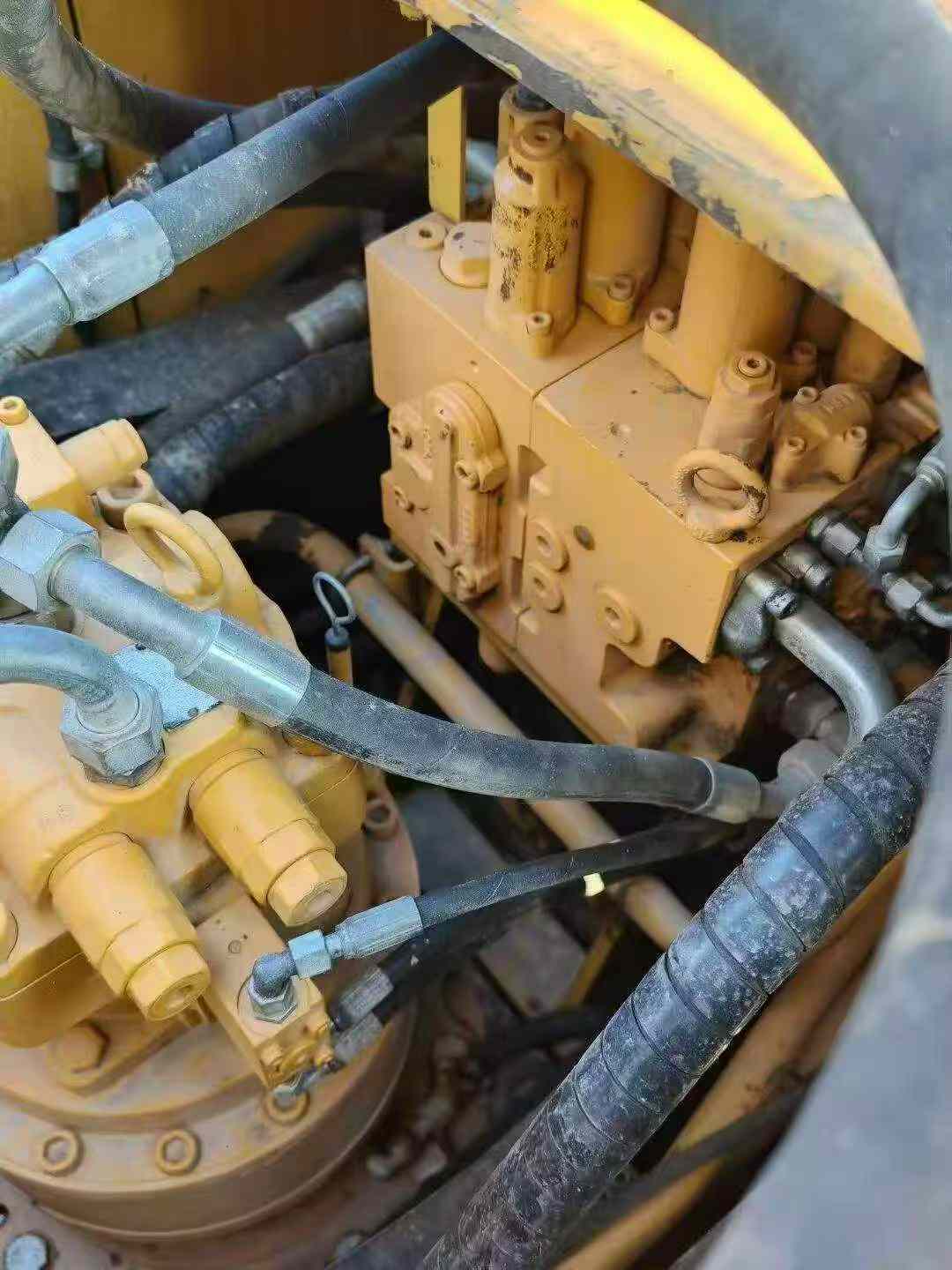

Buy Sany SY225C Used Excavator / 2

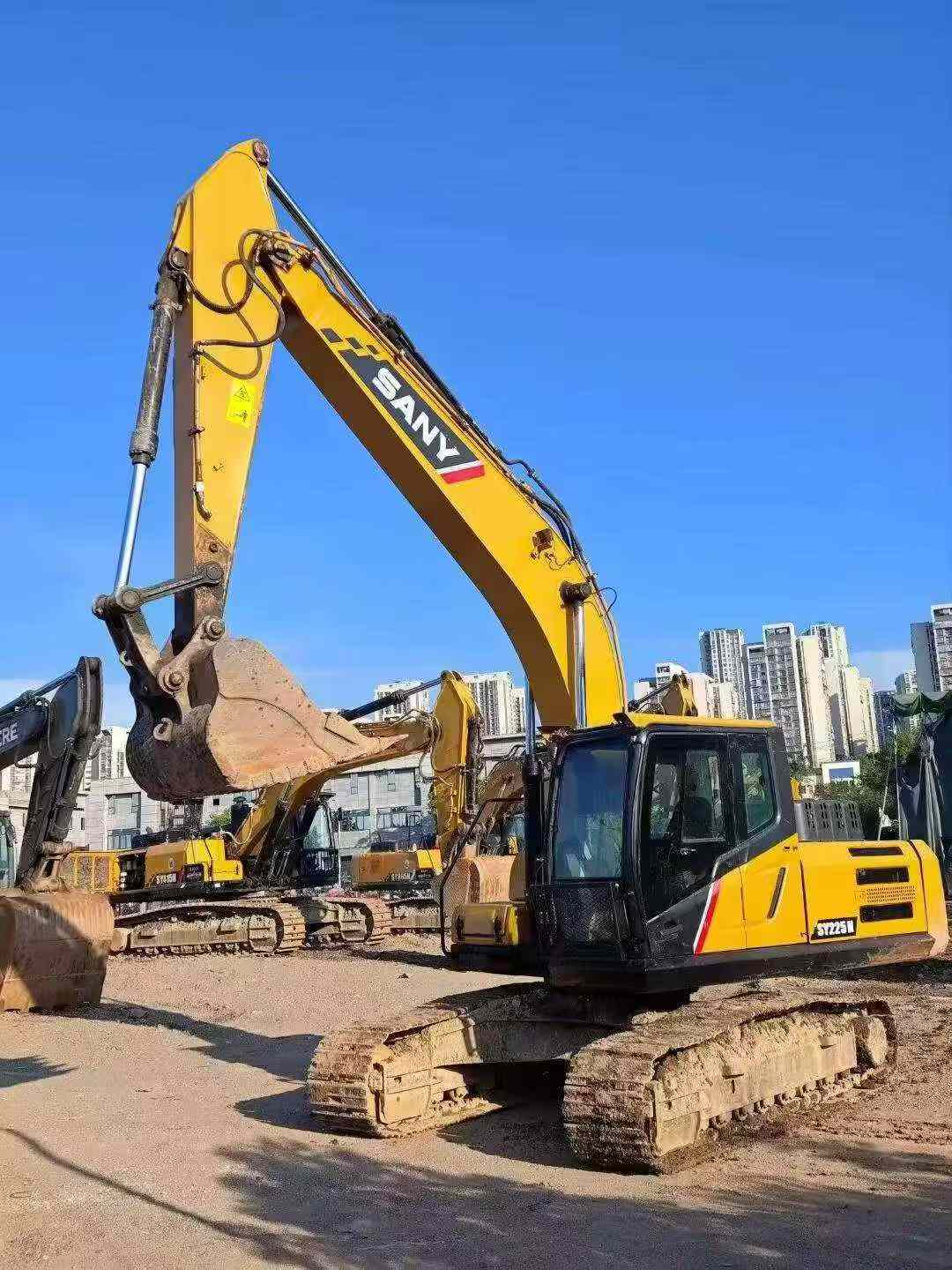

Buy Sany SY225C Used Excavator / 3

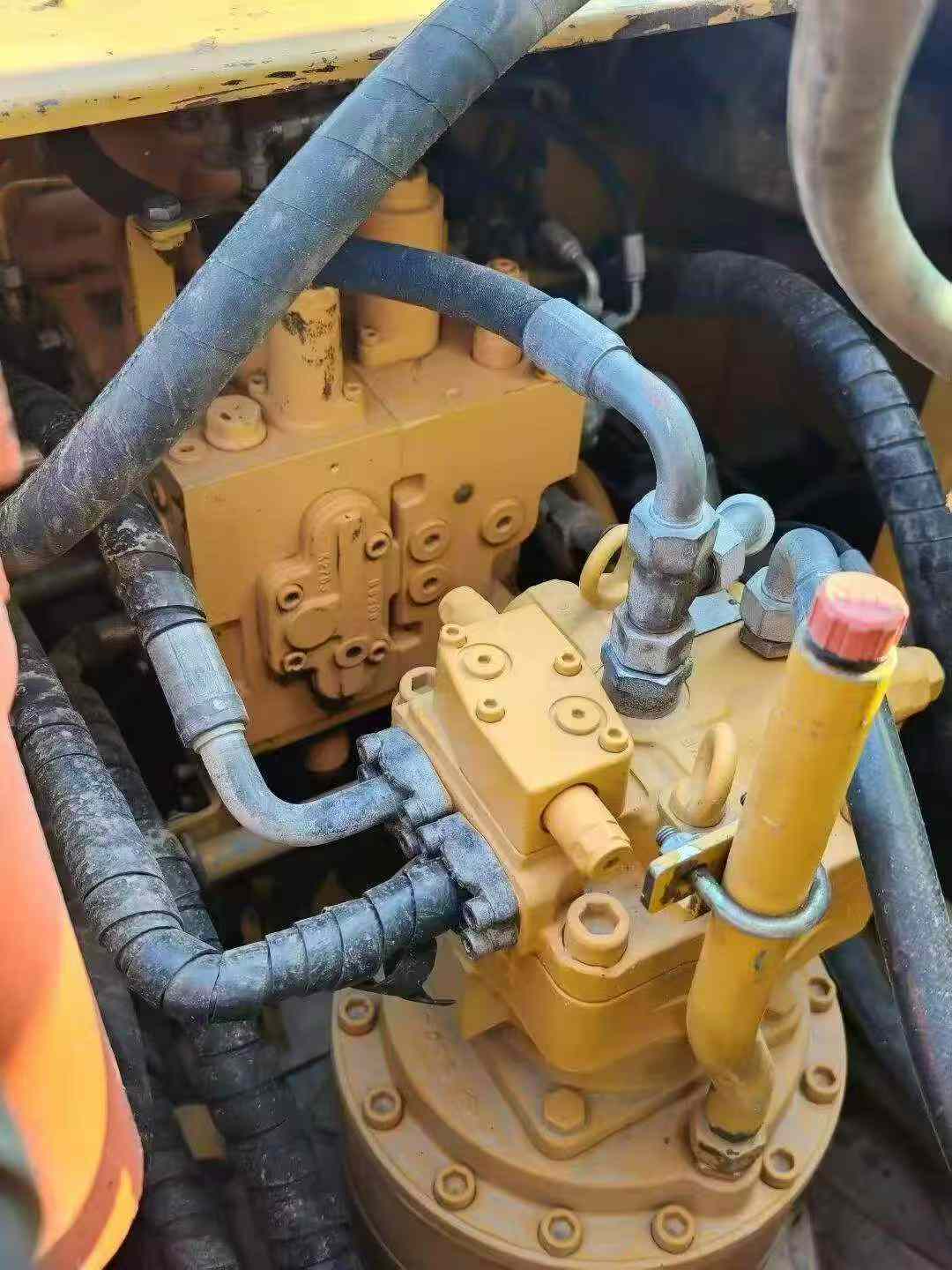

Buy Sany SY225C Used Excavator / 4
Buy Sany SY225C Used Excavator / 5

Product Description

Well-maintained Sany SY225C hydraulic excavator available from Sichuan, China. This 2020 model represents a reliable mid-size excavator from one of China's leading construction equipment manufacturers. The SY225C is designed for general earthmoving, trenching, and site development applications.

  • Year of Manufacture: 2020
  • Make: Sany
  • Model: SY225C
  • Location: Sichuan Province, China
  • Competitive pricing for a recent-year machine

The Sany SY225C series offers proven performance for contractors seeking value in the 22-ton excavator class. This unit has been operated in Sichuan's working conditions and is ready for immediate deployment. Suitable for construction sites, infrastructure projects, and material handling operations. Contact us for detailed specifications, inspection arrangements, and shipping quotes to your location.

SpecificationsValue
No.1106255
Tonnage (tons)23
Working weight (kg)22300
Bucket capacity (m³)1.1~1.2(1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4M50
Rated power (kw/rpm)118/2000
Maximum torque (N.m)580/1600
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)340
Hydraulic Tank (L)239
Engine Oil changes (L)2
Coolant (L)30.9
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Counterweight ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
