2020 Sany SY225C

1/9

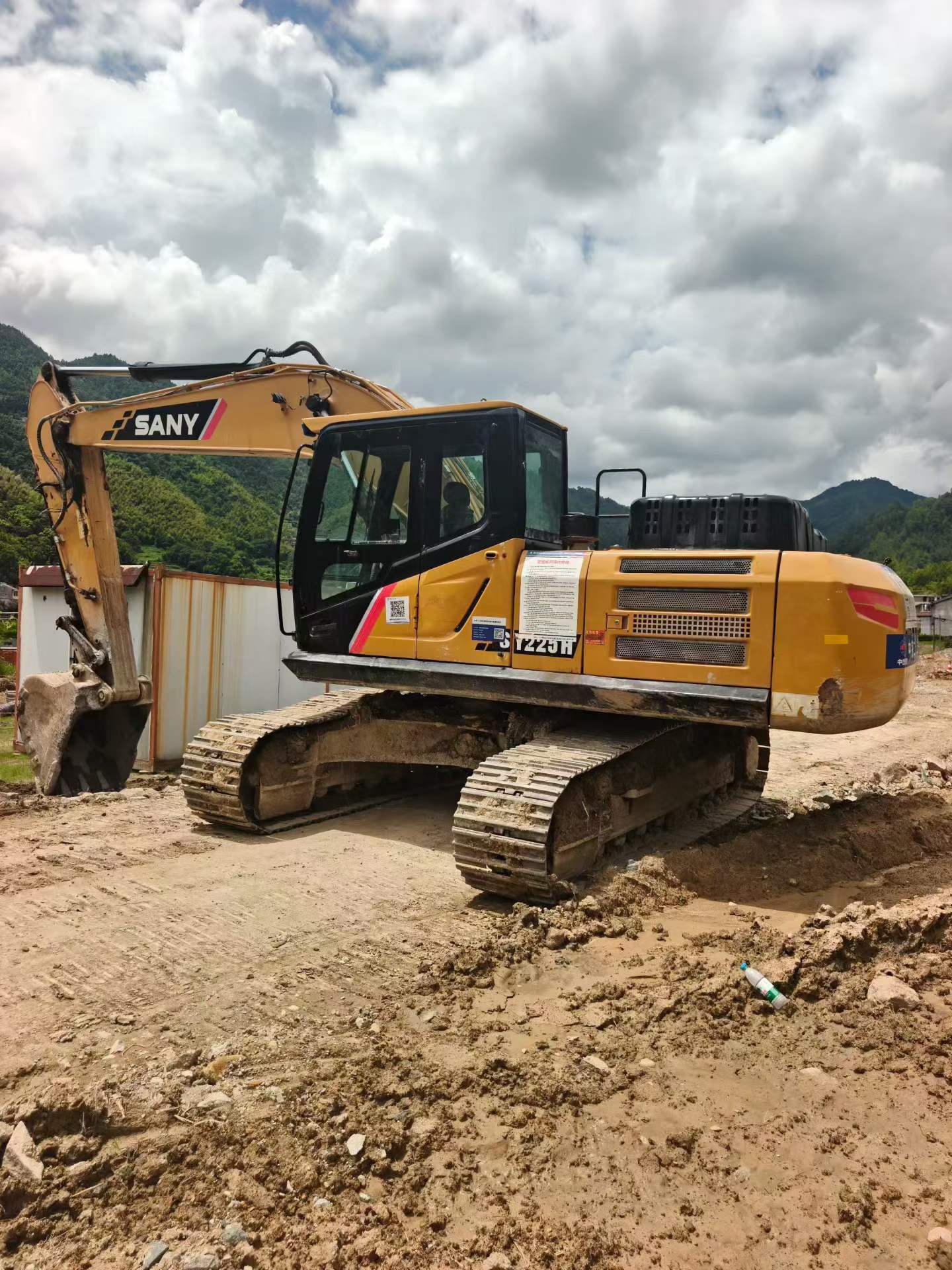

Buy Sany SY225C Used Excavator / 1

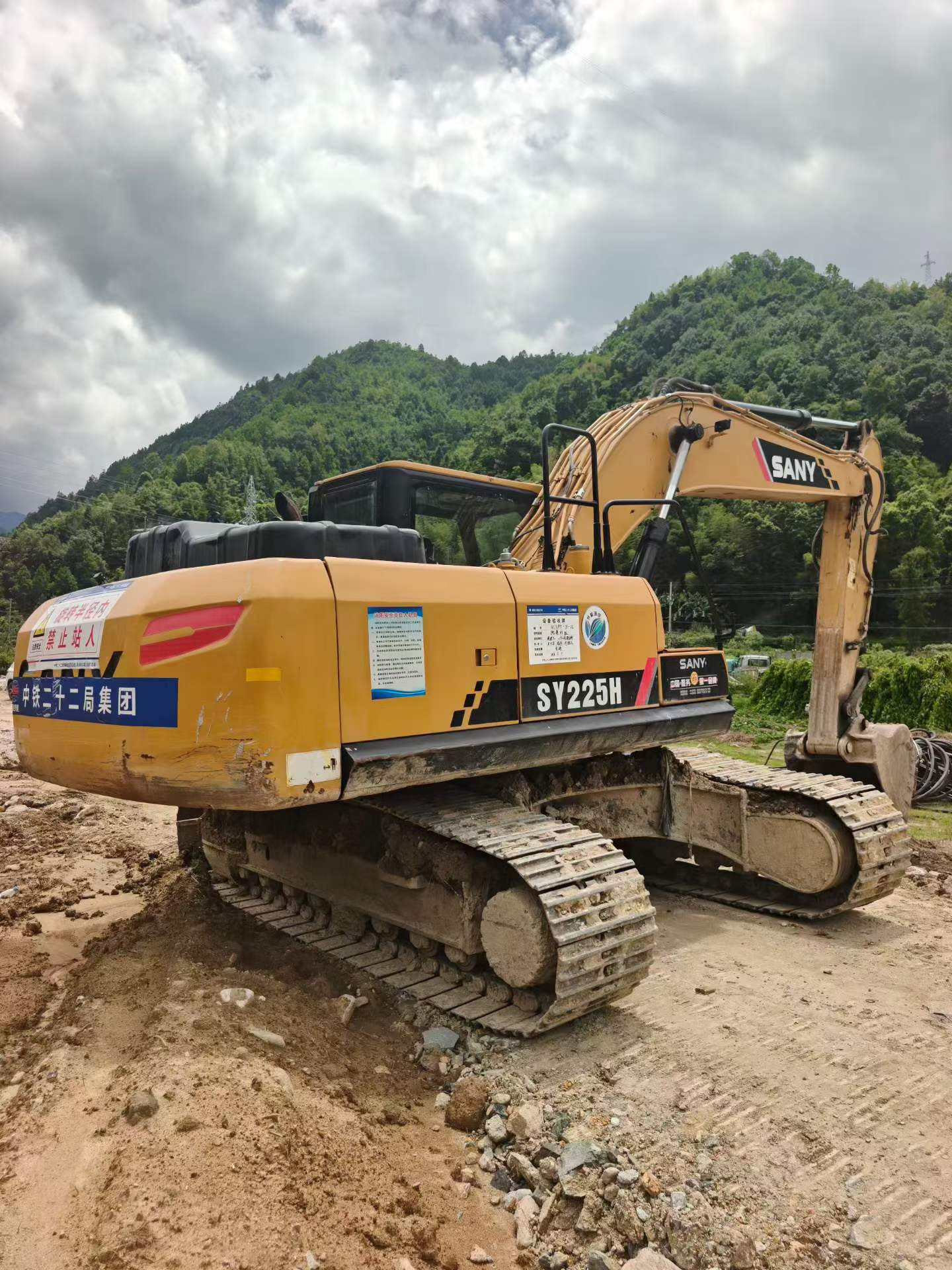

Buy Sany SY225C Used Excavator / 2

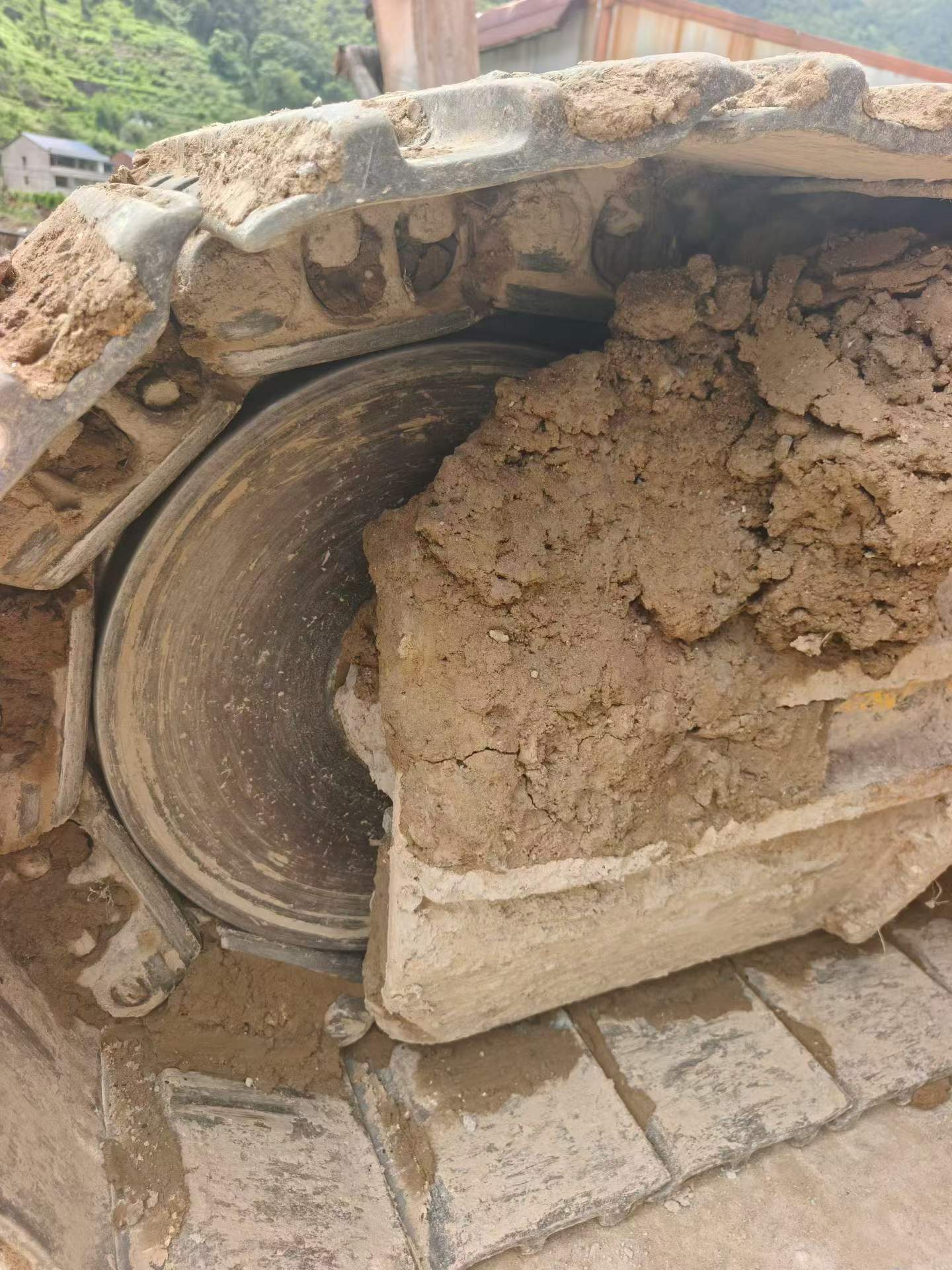

Buy Sany SY225C Used Excavator / 3

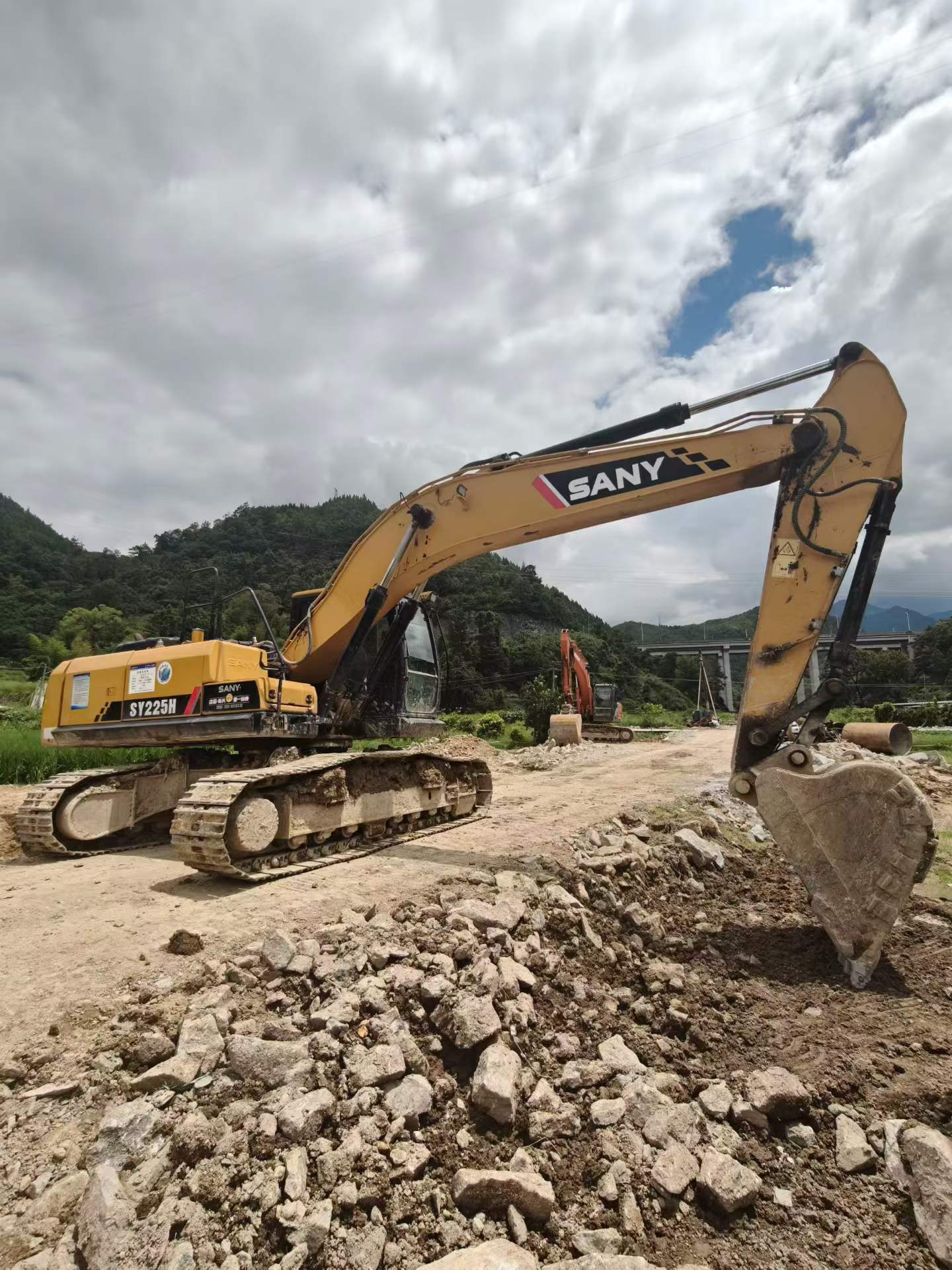

Buy Sany SY225C Used Excavator / 4

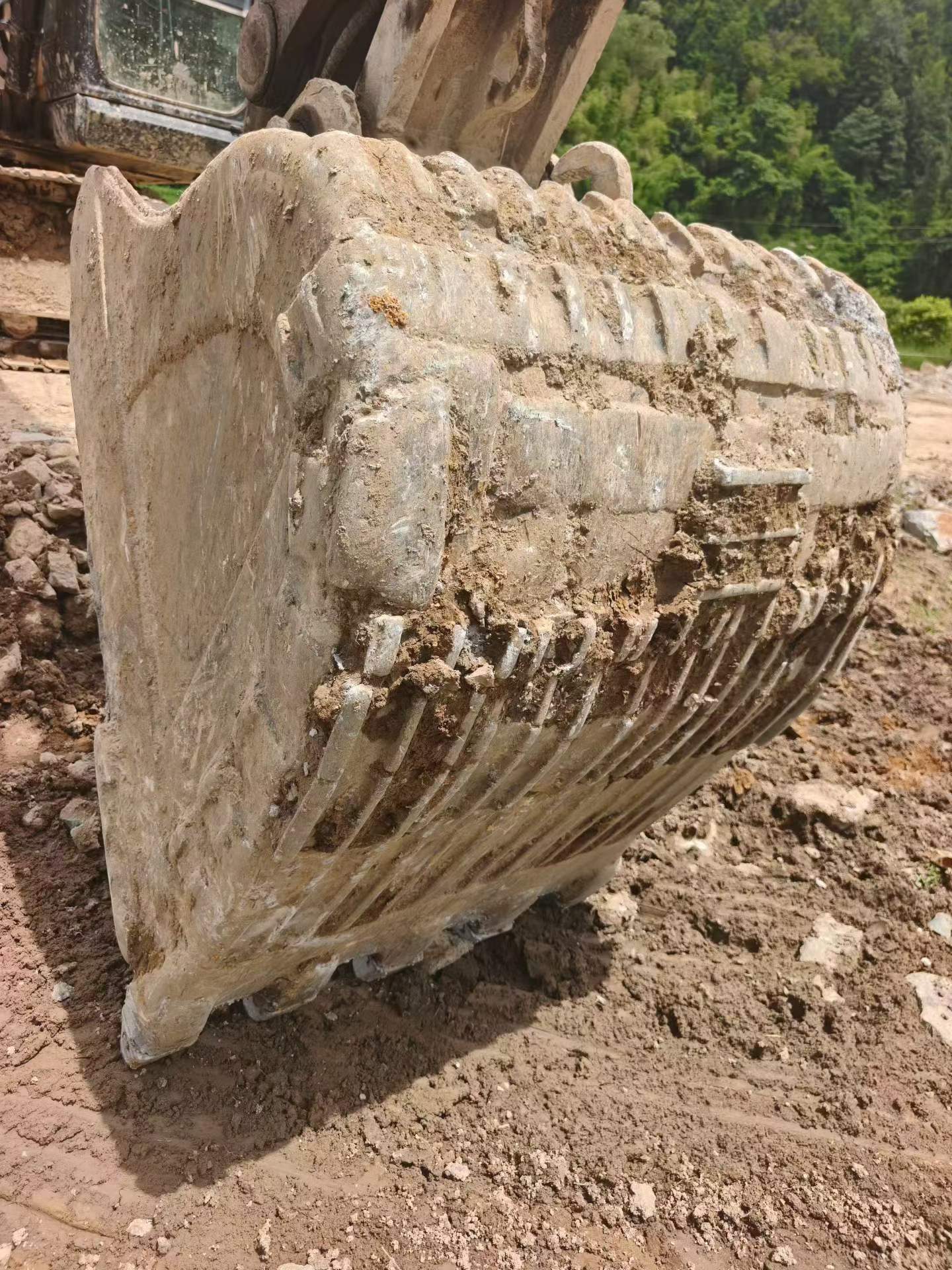

Buy Sany SY225C Used Excavator / 5

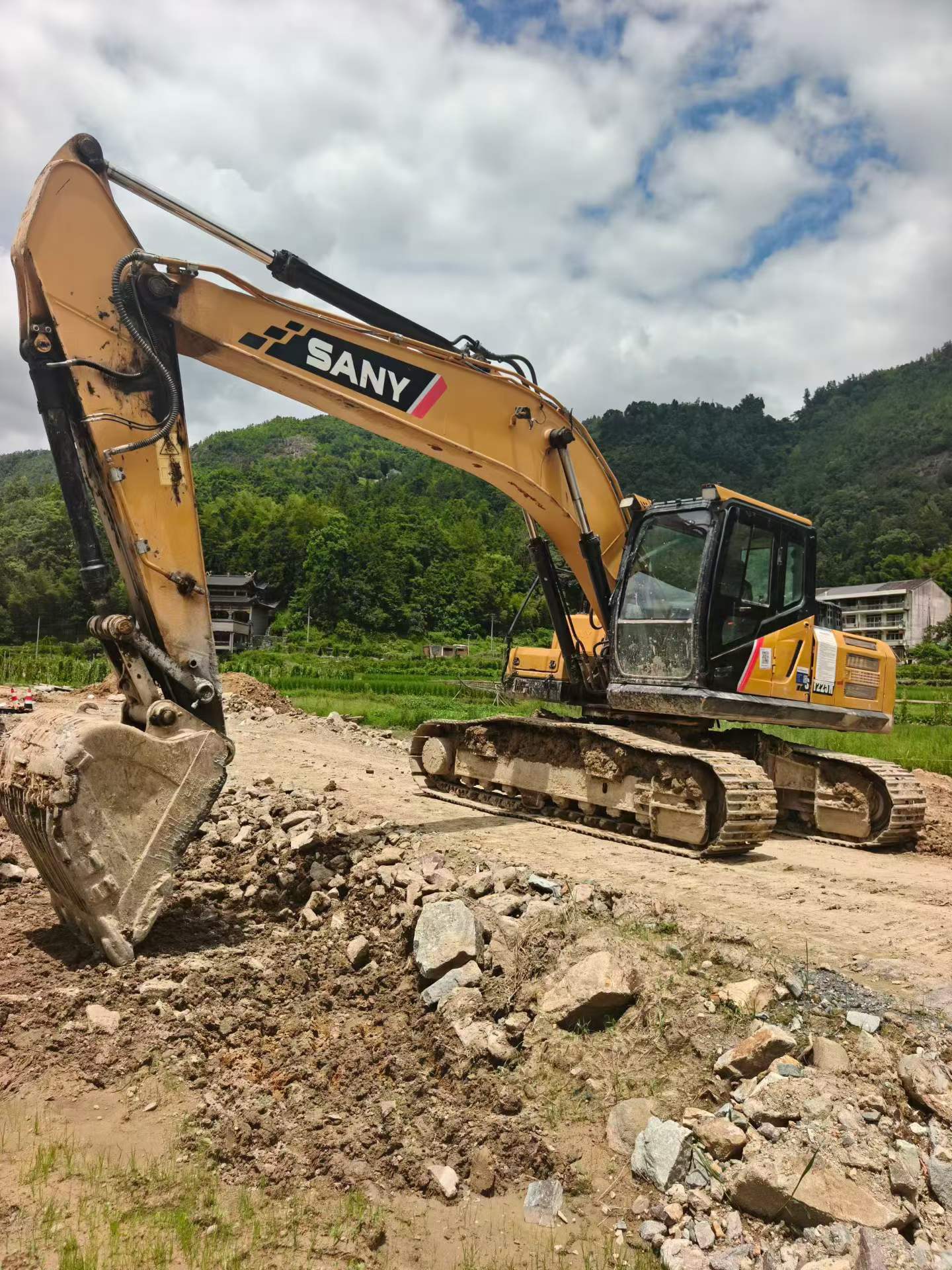

Buy Sany SY225C Used Excavator / 6

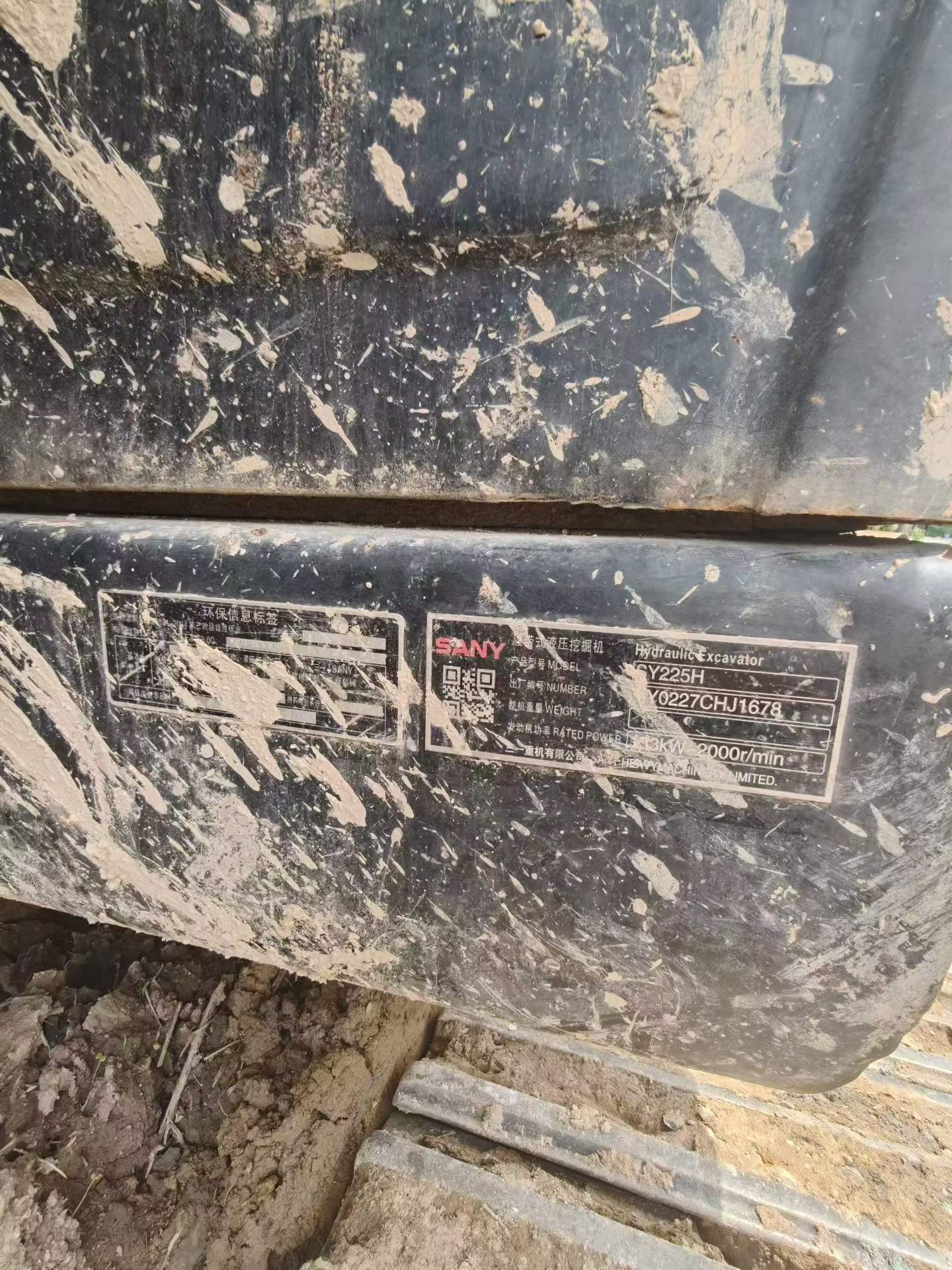

Buy Sany SY225C Used Excavator / 7

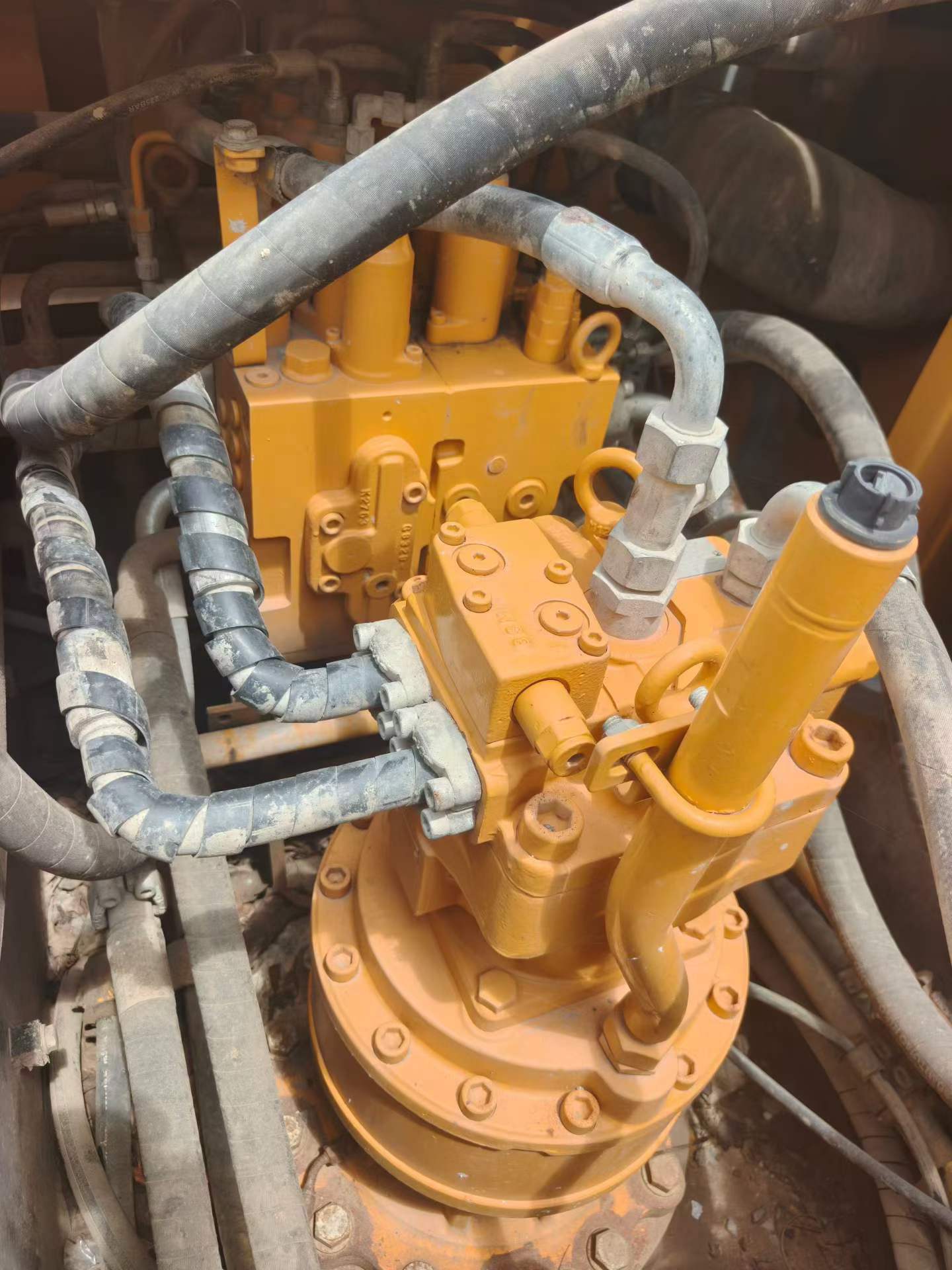

Buy Sany SY225C Used Excavator / 8

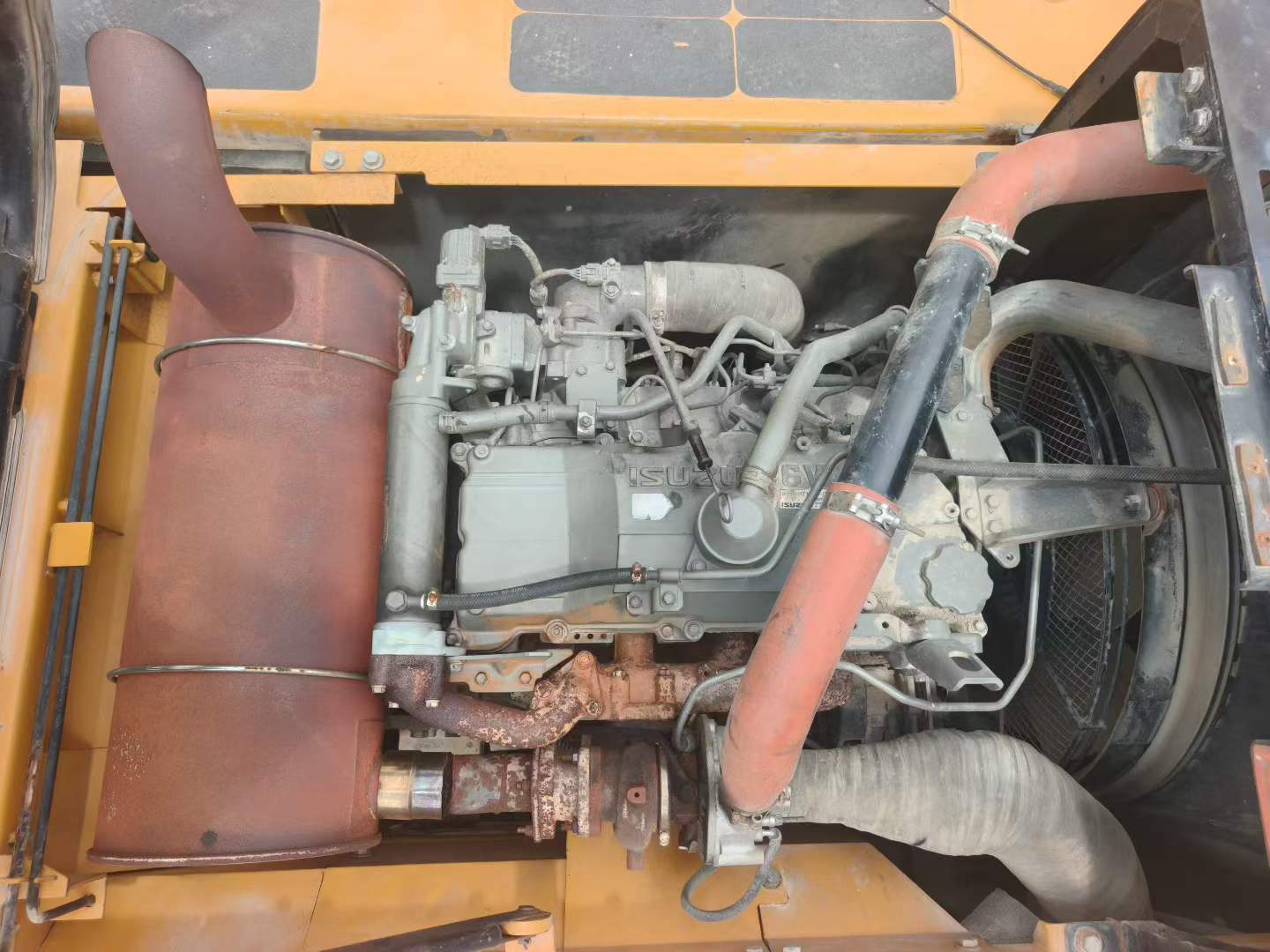

Buy Sany SY225C Used Excavator / 9

Product Description

This 2020 Sany SY225C excavator is a reliable workhorse ready for immediate deployment. With approximately 4 years of operational history, this 22-ton class machine has been well-maintained and remains in working condition. The SY225C is known for its robust hydraulic system, fuel efficiency, and versatility across earthmoving, trenching, and general construction applications.

Key features include:

  • Proven Sany reliability with strong digging force
  • Competitive operating costs and straightforward maintenance
  • Suitable for construction, excavation, and material handling
  • Currently located in Zhejiang, China
  • Competitively priced for quick sale

This unit represents solid value for contractors seeking dependable equipment without the premium of new machinery. Ideal for companies looking to expand their fleet or replace aging equipment with a modern, serviceable excavator.

SpecificationsValue
No.1136717
Tonnage (tons)23
Working weight (kg)22300
Bucket capacity (m³)1.1~1.2(1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4M50
Rated power (kw/rpm)118/2000
Maximum torque (N.m)580/1600
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)340
Hydraulic Tank (L)239
Engine Oil changes (L)2
Coolant (L)30.9
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Counterweight ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1136717

Brand Name:

Sany

Model Number:

SY225C

Year:

2020

Location:

Zhejiang China

Pub Date
