Product Description
With a robust 23-ton working weight and a powerful 4M50 engine, this Sany SY225C excavator is designed for immediate deployment on your job site. Featuring a bucket capacity of 1.1 to 1.2 m³, it excels in digging, grading, and demolition tasks. The machine's impressive 138 kN bucket digging force and 103 kN rod digging force ensure efficient and precise operations. Capable of reaching a maximum digging depth of 6600 mm and a maximum unloading height of 6730 mm, it handles demanding projects with ease. Traveling at speeds up to 5.4 km/h, the SY225C offers both power and agility. Equipped with a 340 L fuel tank and a 239 L hydraulic tank, it is ready for long hours of continuous work. Located in Zhejiang, China, this 2022 model is a reliable and versatile addition to any construction fleet.

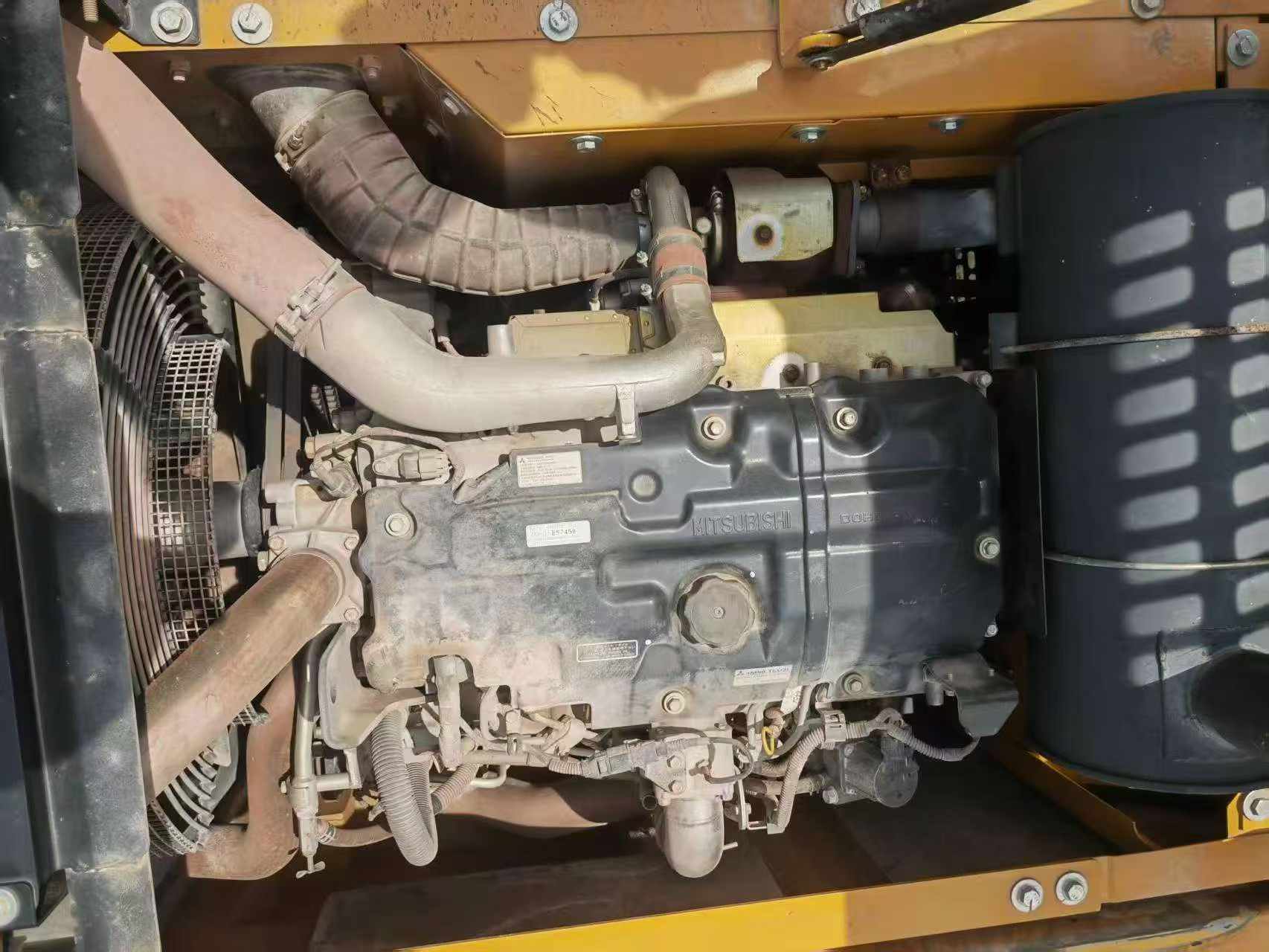

- Powerful 4M50 engine with 118 kW rated power
- Bucket capacity: 1.1 to 1.2 m³
- Maximum digging depth: 6600 mm
- Travel speed: 5.4/3.3 km/h
- Fuel tank: 340 L, Hydraulic tank: 239 L
| Specifications | Value |
|---|---|
| No. | 1057133 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300 |
| Bucket capacity (m³) | 1.1~1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Counterweight ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
