Product Description

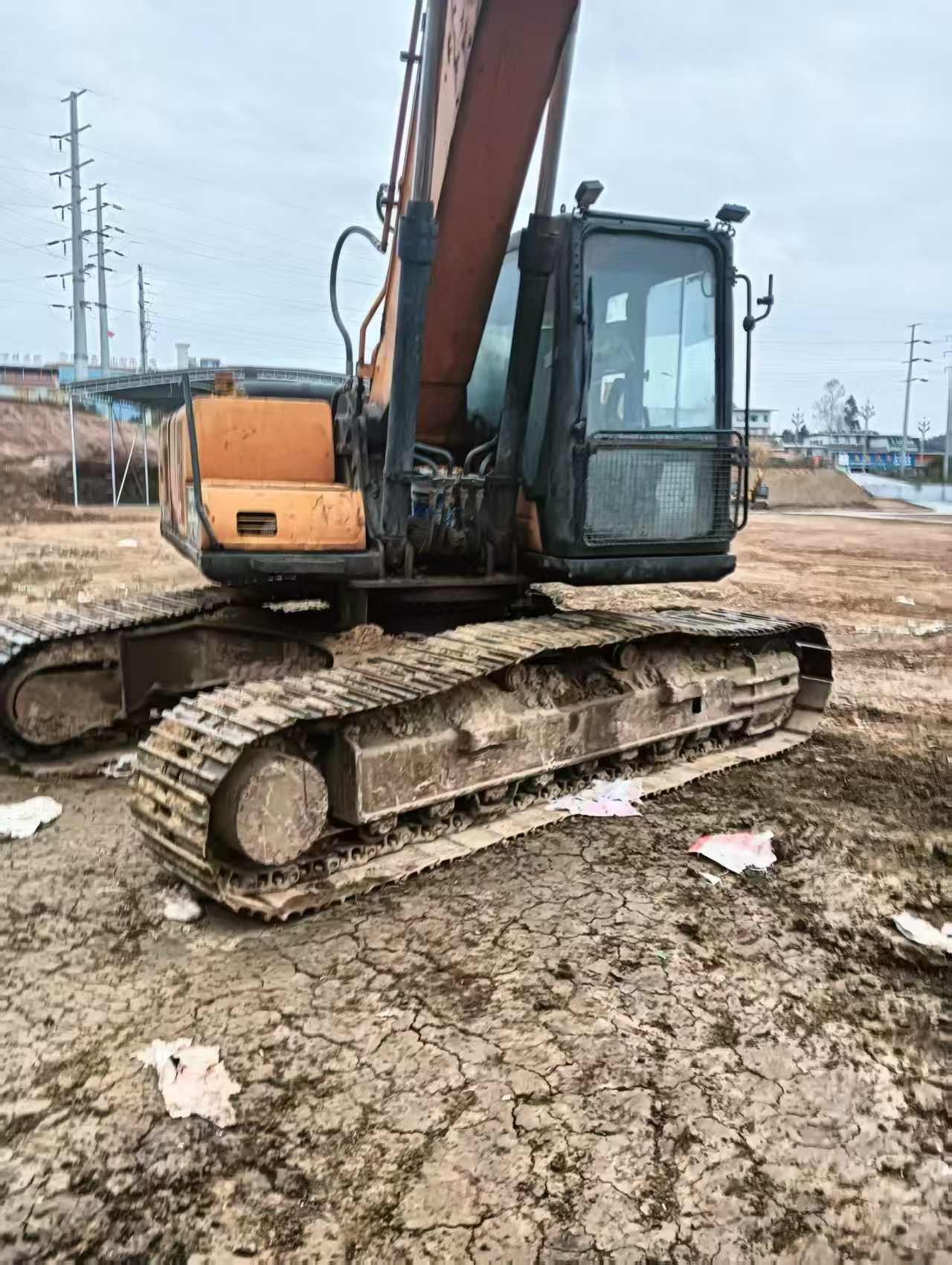

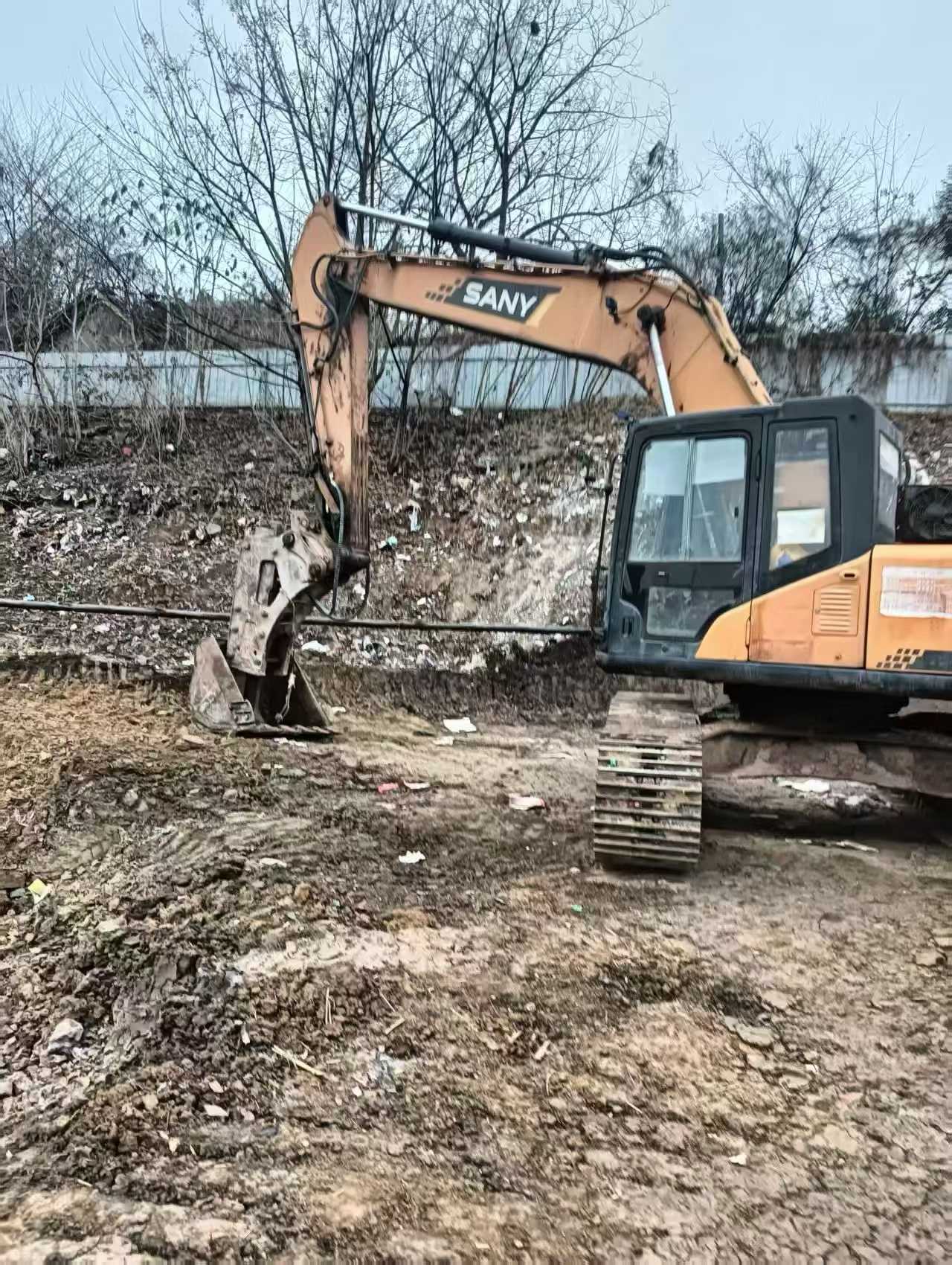

Expand your fleet capacity with this reliable 2014 Sany SY225C-9 excavator, strategically positioned in Kunming, Yunnan. Built for consistent performance across demanding jobsites, this 22-ton workhorse delivers 114kW of proven power through its six-cylinder turbocharged engine.
Key operational advantages include:
- 1.0m³ bucket capacity with 138kN digging force for efficient material handling
- 9.95m maximum reach and 6.6m digging depth for versatile applications
- Compact 2.98m transport width enables easy mobilization between projects
- 70% gradeability and 45.9kPa ground pressure for challenging terrain access
- Water-cooled system ensures consistent operation in extended duty cycles
Perfect as a backup unit or fleet expansion, this Shanghai-manufactured excavator provides the dependable performance contractors need when primary equipment is committed elsewhere. Ready for immediate deployment across construction, utility, and earthmoving operations requiring proven 22-ton class capability.
| Specifications | Value |
|---|---|
| No. | 991580 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22600 |
| Bucket capacity (m³) | 1.0 (Optional 1.0 to 1.1) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Four stroke six cylinder turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 45.9 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
