Product Description
Built in 2018, this Sany SY225H excavator delivers proven performance with the reliability of China's leading construction equipment manufacturer. Operating at 22 tons with a 133 kW rated power output and 1.1 m³ bucket capacity, this machine handles demanding excavation tasks with consistent efficiency. Sany's extensive global dealer network ensures parts availability and technical support remain accessible throughout the equipment's service life, protecting your investment in the secondary market.
Currently located in Hubei, this mid-size excavator features:
- 22,800 kg working weight with 140 kN bucket digging force

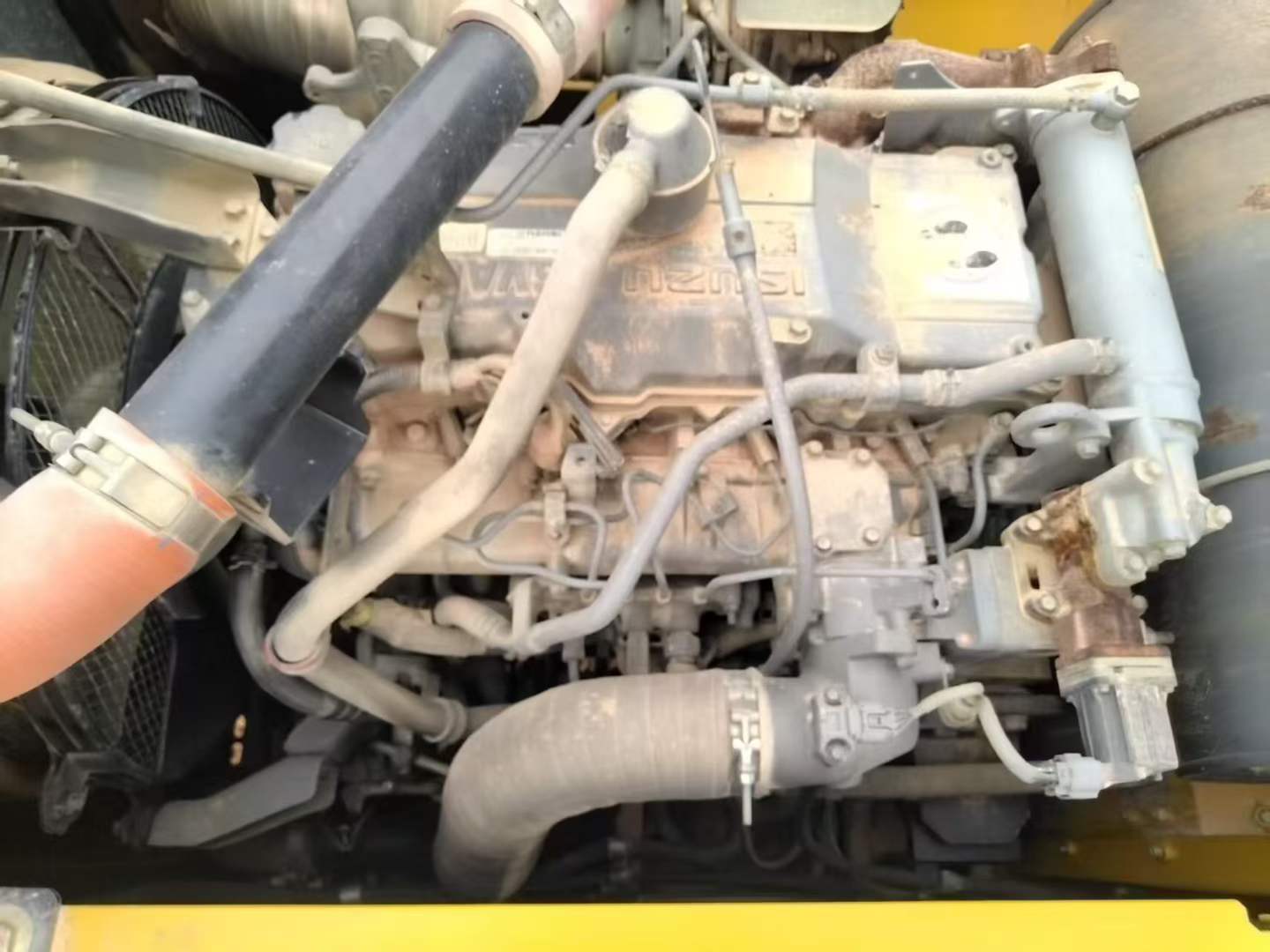

- 5.193L displacement engine producing 657 N·m maximum torque
- 370L fuel tank and 270L hydraulic tank for extended operation
- 600mm track plates with proven undercarriage configuration
- 70% grading ability and 10.8 rpm rotation speed for versatile job site performance
Sany equipment maintains strong resale value due to widespread market acceptance and standardized component systems. This SY225H represents a cost-effective acquisition for contractors seeking dependable excavation capacity backed by an established manufacturer's support infrastructure.
| Specifications | Value |
|---|---|
| No. | 1016396 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22800 |
| Bucket capacity (m³) | 1.1-1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 133/2000 |
| Maximum torque (N.m) | 657/1500 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Travel speed (km/h) | 5.6/3.3 |
| Turning torque (kN/m) | 657/1500 |
| Fuel Tank (L) | 370 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 21.5 |
| Coolant (L) | 33 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
