Product Description

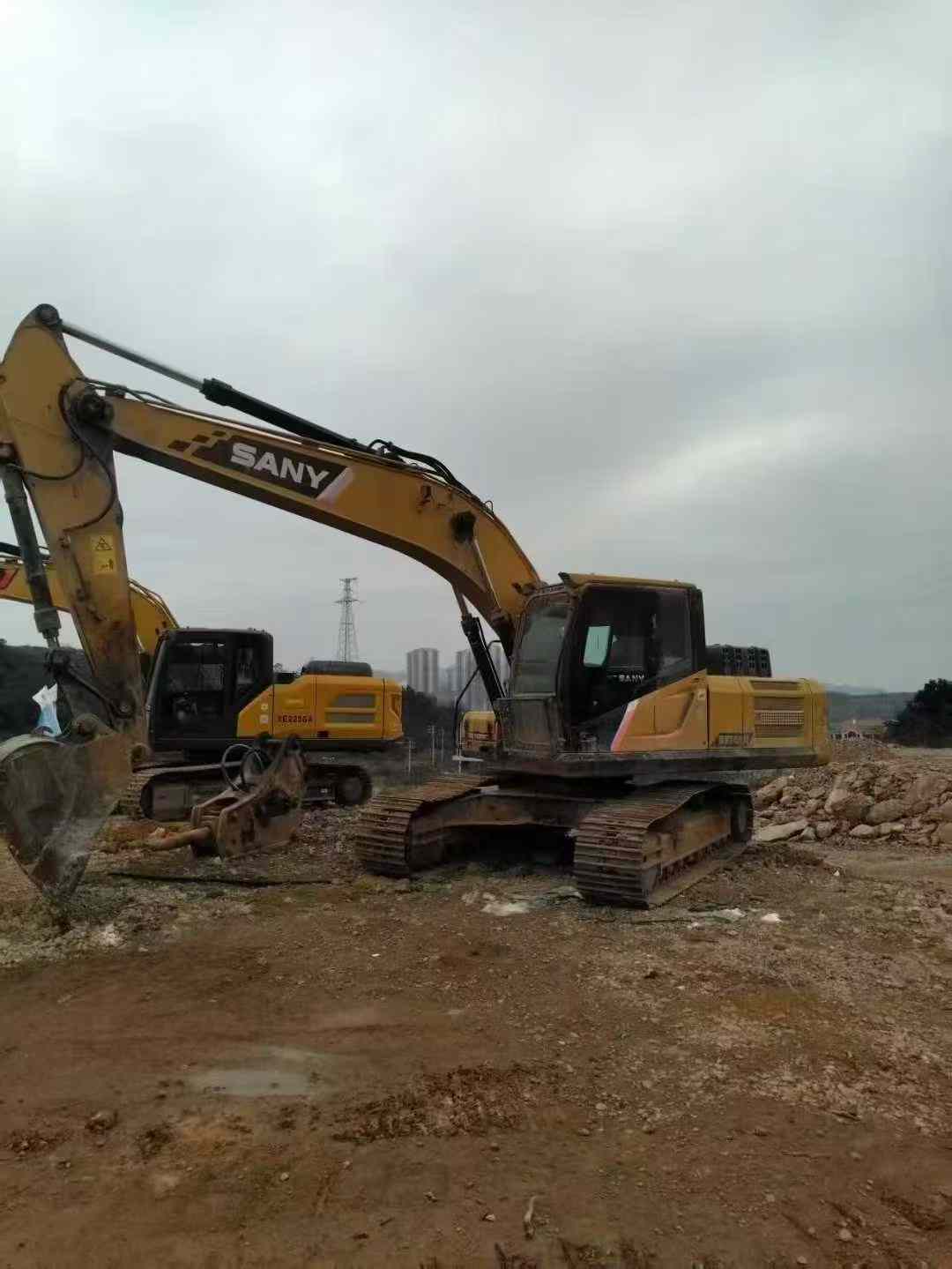

With a working weight of 22,800 kg and a bucket capacity of 1.1-1.2 m³, the Sany SY225H from 2019 is an ideal addition to any contractor's fleet. Manufactured in China, this excavator boasts a rated power of 133 kW at 2000 rpm, ensuring robust performance for demanding jobs. Equipped with a backhoe bucket, it delivers a digging force of 140 kN, making it perfect for tough excavation tasks.
- Travel speed: 5.6/3.3 km/h
- Maximum torque: 657 N.m at 1500 rpm
- Fuel tank capacity: 370 L
- Ground specific pressure: 51 Kpa
- Climbing ability: 70% (35°)
Integrate this reliable unit into your existing fleet to enhance productivity and ensure continuous operation. Located in Zhejiang Jinhua, this machine is ready to support your projects with its powerful and efficient performance.
| Specifications | Value |
|---|---|
| No. | 1015908 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22800 |
| Bucket capacity (m³) | 1.1-1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 133/2000 |
| Maximum torque (N.m) | 657/1500 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Travel speed (km/h) | 5.6/3.3 |
| Turning torque (kN/m) | 657/1500 |
| Fuel Tank (L) | 370 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 21.5 |
| Coolant (L) | 33 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
