Product Description
This 2019 Sany SY225H hydraulic excavator represents a well-maintained example of Sany's mid-size crawler excavator line. Manufactured in September 2019, this machine features the reliable Isuzu engine known for fuel efficiency and durability in demanding applications. The Kawasaki hydraulic system delivers precise control and responsive performance across a range of excavation tasks.
Currently located in Sichuan, China, this unit is available for inspection. The SY225H is designed for general construction, earthmoving, and utility work, offering a balance of power and operational economy suitable for contractors and fleet operators.
- Year: 2019 (September production)
- Model: Sany SY225H
- Engine: Isuzu

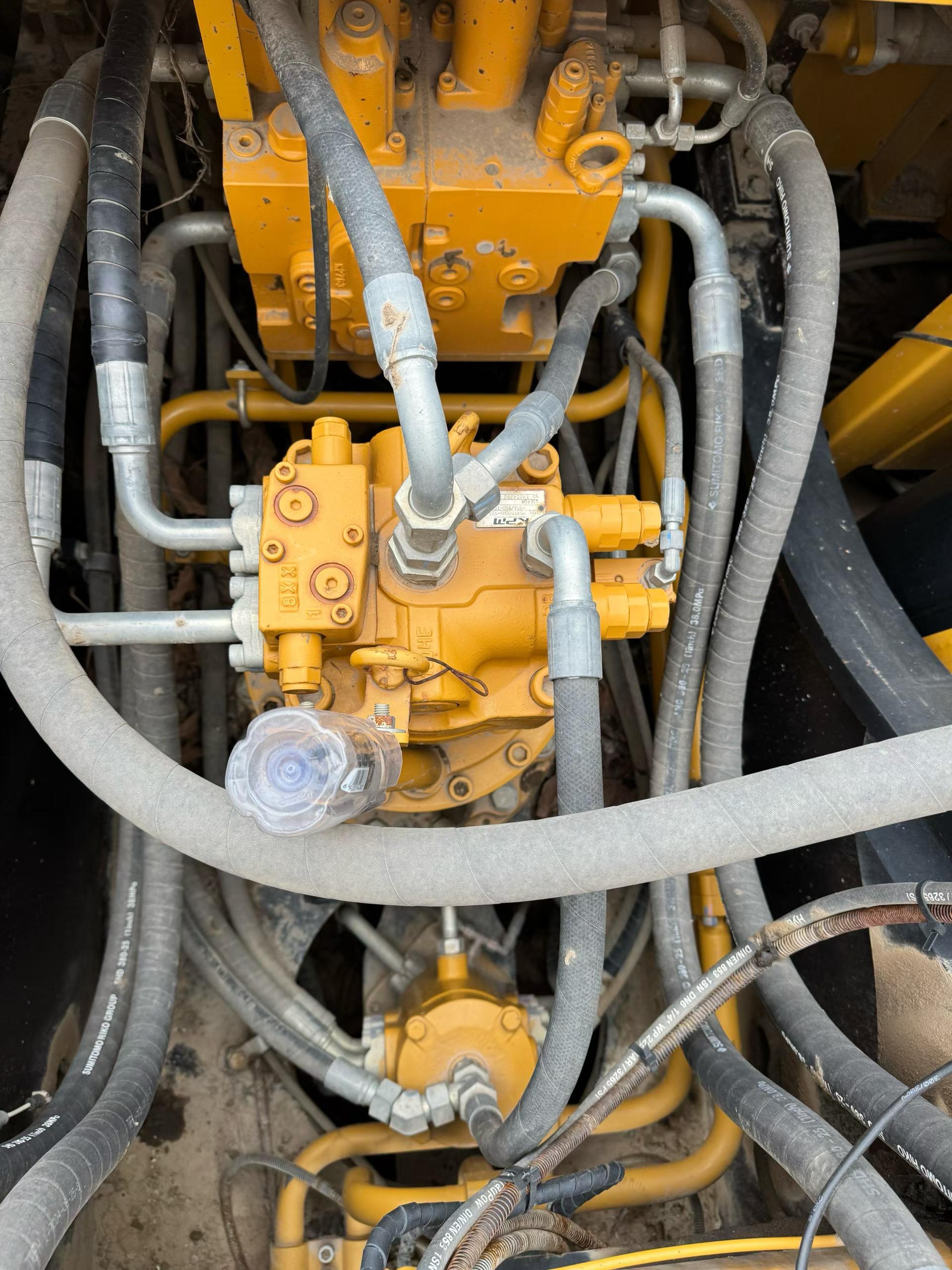

- Hydraulics: Kawasaki system
- Location: Sichuan, China
Contact us for detailed specifications, service records, and current availability.
| Specifications | Value |
|---|---|
| No. | 1073255 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22800 |
| Bucket capacity (m³) | 1.1-1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 133/2000 |
| Maximum torque (N.m) | 657/1500 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Travel speed (km/h) | 5.6/3.3 |
| Turning torque (kN/m) | 657/1500 |
| Fuel Tank (L) | 370 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 21.5 |
| Coolant (L) | 33 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
