Product Description

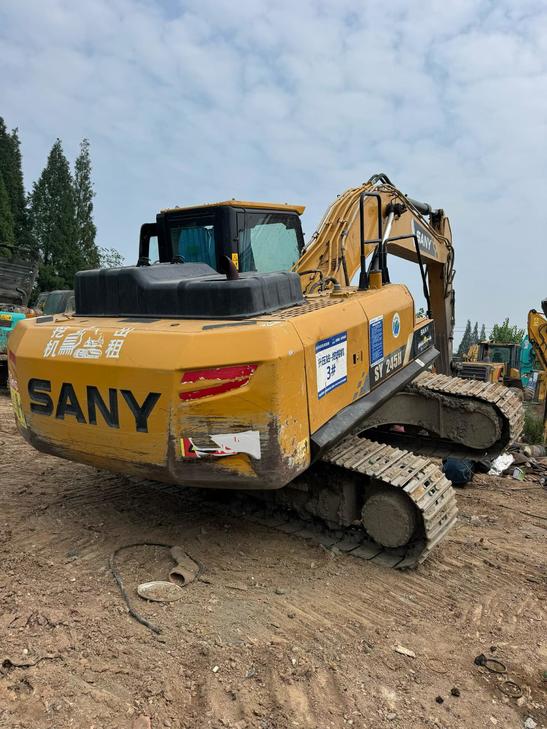

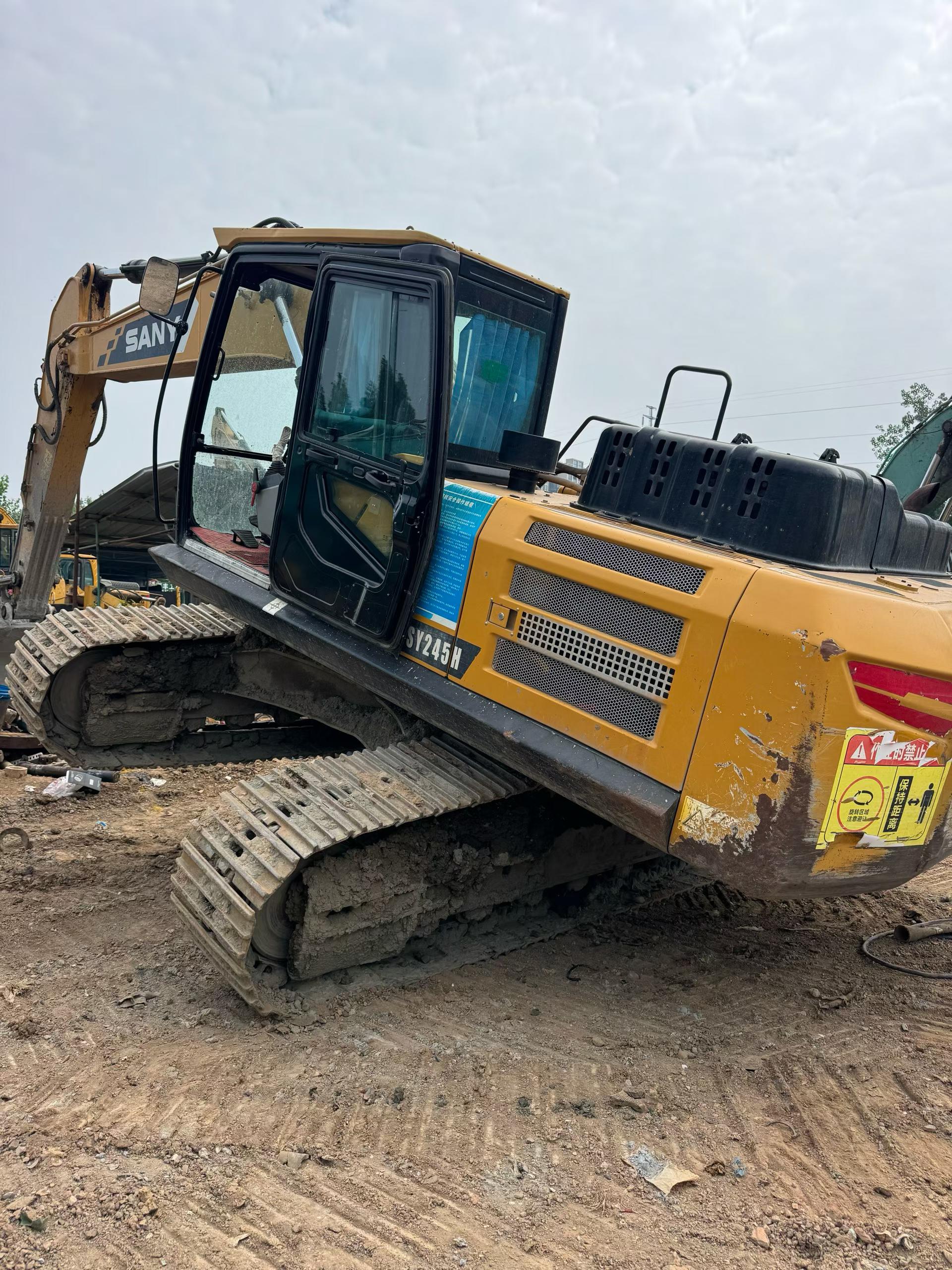

Discover the 2019 Sany SY225H, a robust and reliable excavator available in Sichuan, China. This machine retains its original condition, ensuring you receive a high-quality, well-maintained piece of equipment. Equipped with an Isuzu engine, it offers dependable performance and fuel efficiency, making it ideal for various construction and excavation tasks. The Sany SY225H also features a Kawasaki hydraulic system, known for its precision and durability, which enhances overall operational efficiency and control. This excavator is ready to meet the demanding needs of your project while providing the reliability and power expected from the Sany brand.
- Year: 2019
- Brand: Sany
- Model: SY225H
- Location: Sichuan, China

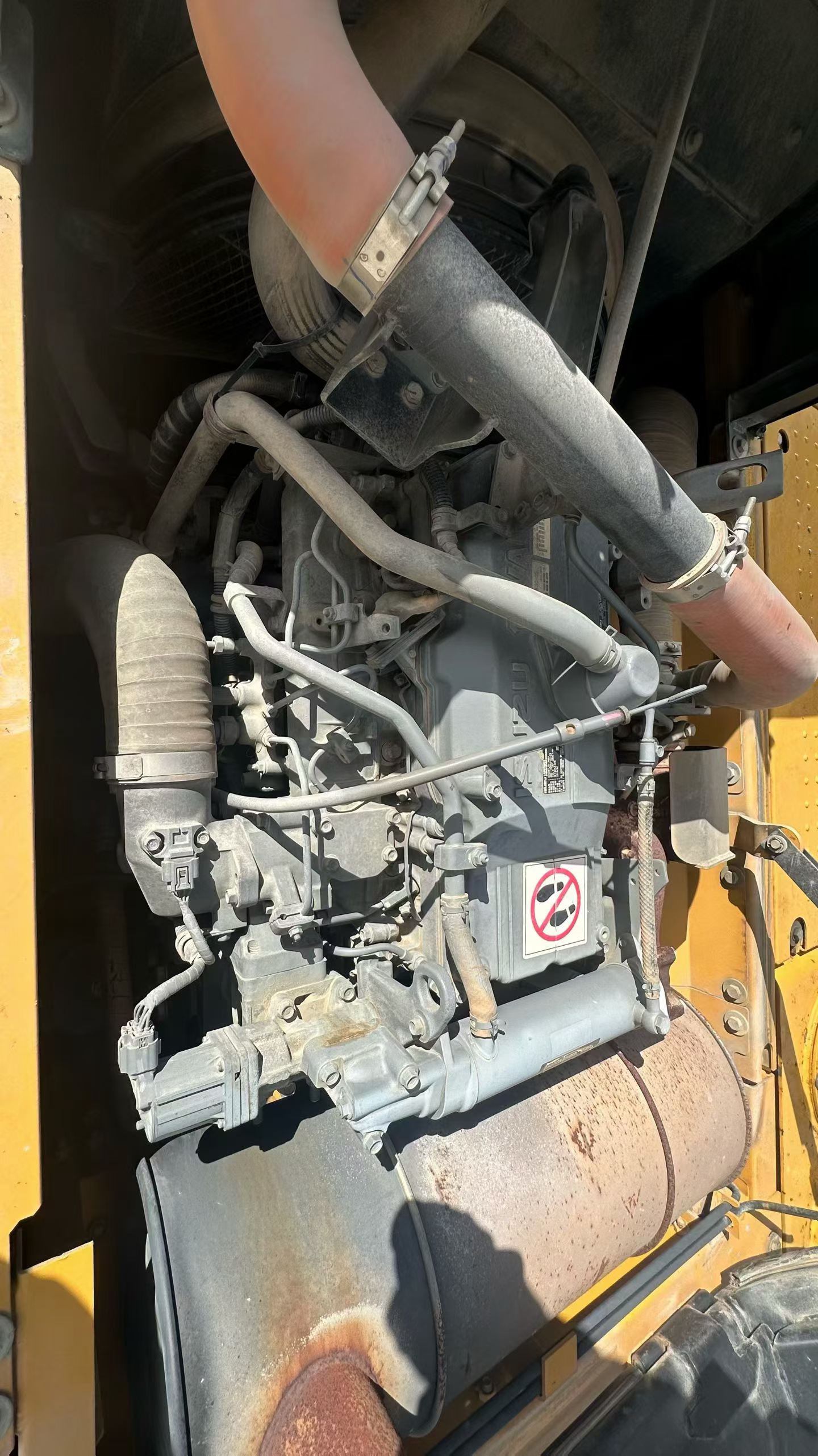

- Engine: Isuzu

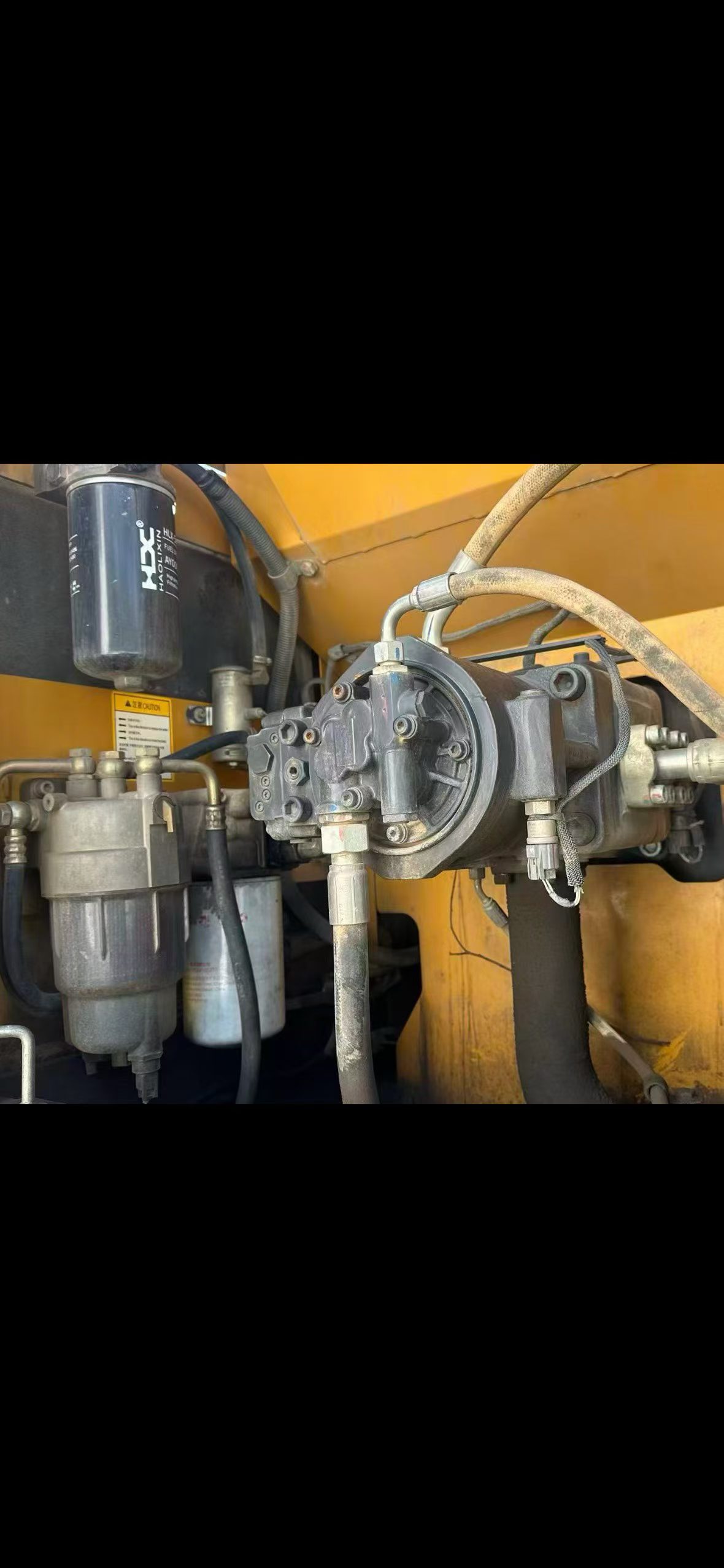

- Hydraulic System: Kawasaki
| Specifications | Value |
|---|---|
| No. | 1099987 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22800 |
| Bucket capacity (m³) | 1.1-1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 133/2000 |
| Maximum torque (N.m) | 657/1500 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Travel speed (km/h) | 5.6/3.3 |
| Turning torque (kN/m) | 657/1500 |
| Fuel Tank (L) | 370 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 21.5 |
| Coolant (L) | 33 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
