Product Description
Built for demanding excavation work, this 2020 Sany SY225H delivers 22 tons of proven performance on any jobsite. Powered by a robust 133kW engine generating 657 N·m of maximum torque, this machine tackles digging, grading, and demolition tasks with authority. The 1.1-1.2m³ backhoe bucket provides optimal capacity for material handling, while 140kN bucket digging force and 107kN arm digging force ensure efficient trenching and loading operations.
Operational specifications include:
- 22,800kg working weight with 51kPa ground pressure for stable operation
- 5.6/3.3 km/h travel speeds for efficient site mobility
- 10.8 rpm rotation speed enabling precise positioning
- 70% (35°) climbing ability for challenging terrain
- 370L fuel tank and 270L hydraulic tank for extended runtime

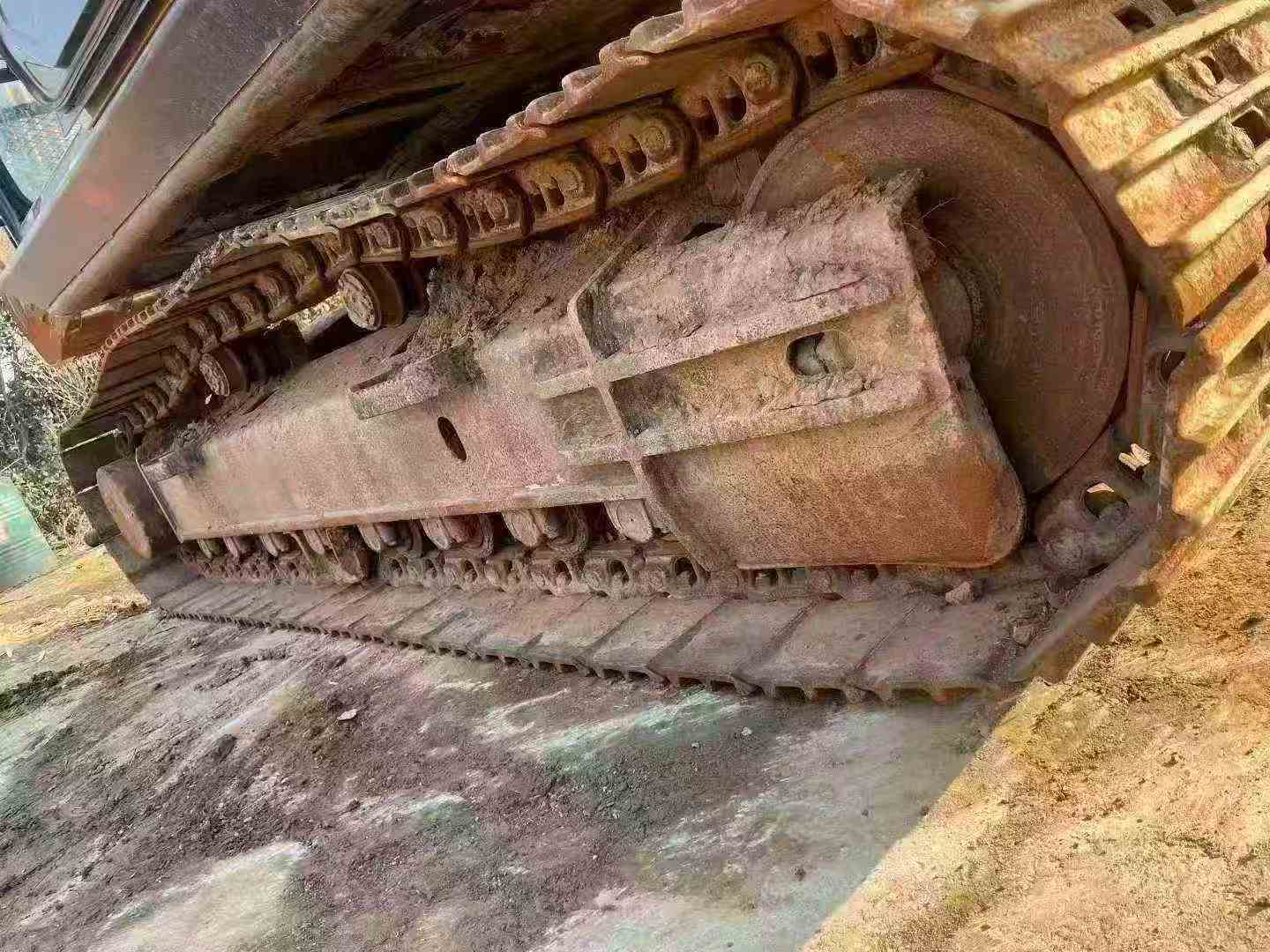

- 600mm track plates with 8 rollers per side for durability
Currently located in Jiangsu, this site-ready excavator is equipped with traditional power systems and Chinese manufacturing quality. Deploy immediately for earthmoving, foundation work, or utility installation projects requiring reliable 22-ton class performance.
| Specifications | Value |
|---|---|
| No. | 1010227 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22800 |
| Bucket capacity (m³) | 1.1-1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 133/2000 |
| Maximum torque (N.m) | 657/1500 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Travel speed (km/h) | 5.6/3.3 |
| Turning torque (kN/m) | 657/1500 |
| Fuel Tank (L) | 370 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 21.5 |
| Coolant (L) | 33 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
