2013 Sany SY235C-8

1/4

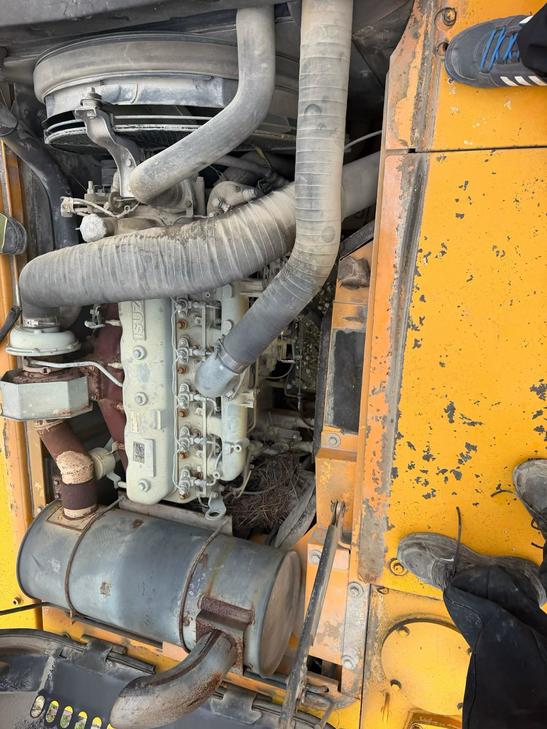

Buy Sany SY235C-8 Used Excavator / 1
Buy Sany SY235C-8 Used Excavator / 2
Buy Sany SY235C-8 Used Excavator / 3
Buy Sany SY235C-8 Used Excavator / 4

Product Description

This 2013 Sany SY235C-8 hydraulic excavator represents reliable mid-size earthmoving capability from one of China's leading heavy equipment manufacturers. Located in Sichuan, China, this machine offers the durability and performance characteristics typical of Sany's 23-ton class excavators.

The SY235C-8 features a robust design suitable for construction, excavation, and material handling applications. With over a decade of proven operation, this unit demonstrates the longevity of Sany's engineering standards.

  • Operating weight: Approximately 23,500 kg
  • Bucket capacity: Standard 1.0-1.2 m³ range
  • Diesel-powered hydraulic system
  • Suitable for general earthmoving and construction projects
  • Currently located in Sichuan Province, China

This excavator is available for inspection and immediate deployment. Contact us for detailed specifications, current condition assessment, and export arrangements to your location.

SpecificationsValue
No.1080847
Tonnage (tons)23
Working weight (kg)22900
Bucket capacity (m³)1
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)125/2100
Cooling modewater-cooling
Ground specific pressure (Kpa)47.6
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)159
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 265
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9780
Total transport width (mm)2980
Total transport height (mm)3160
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2860
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3640
Maximum digging radius (mm)10180
Maximum digging depth (mm)6920
Maximum excavation height (mm)9380
Maximum unloading height (mm)6515
Maximum vertical digging depth (mm)6010
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1080847

Brand Name:

Sany

Model Number:

SY235C-8

Year:

2013

Location:

Sichuan China
