2014 Sany SY235C-8

1/3
Buy Sany SY235C-8 Used Excavator / 1

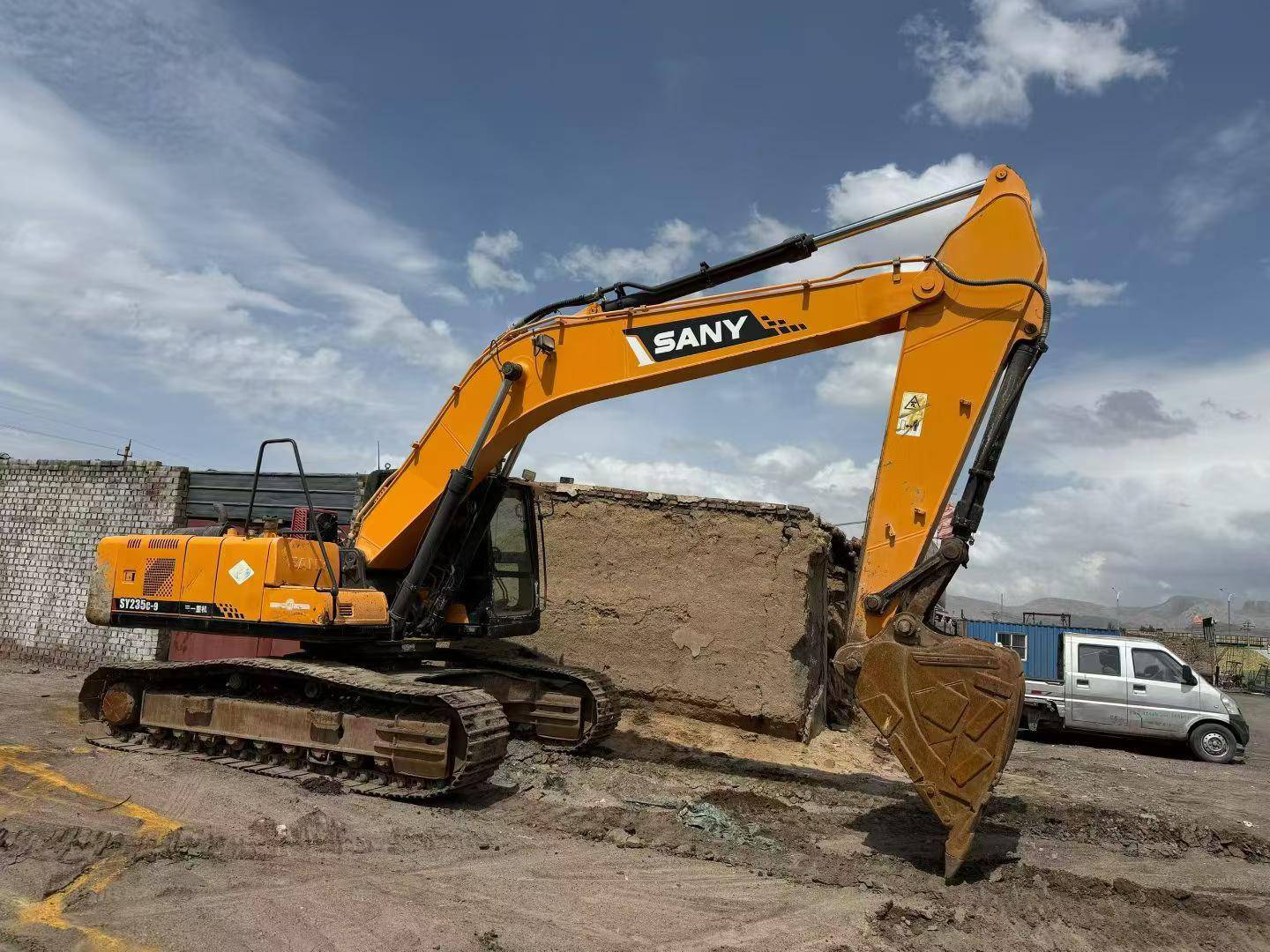

Buy Sany SY235C-8 Used Excavator / 2

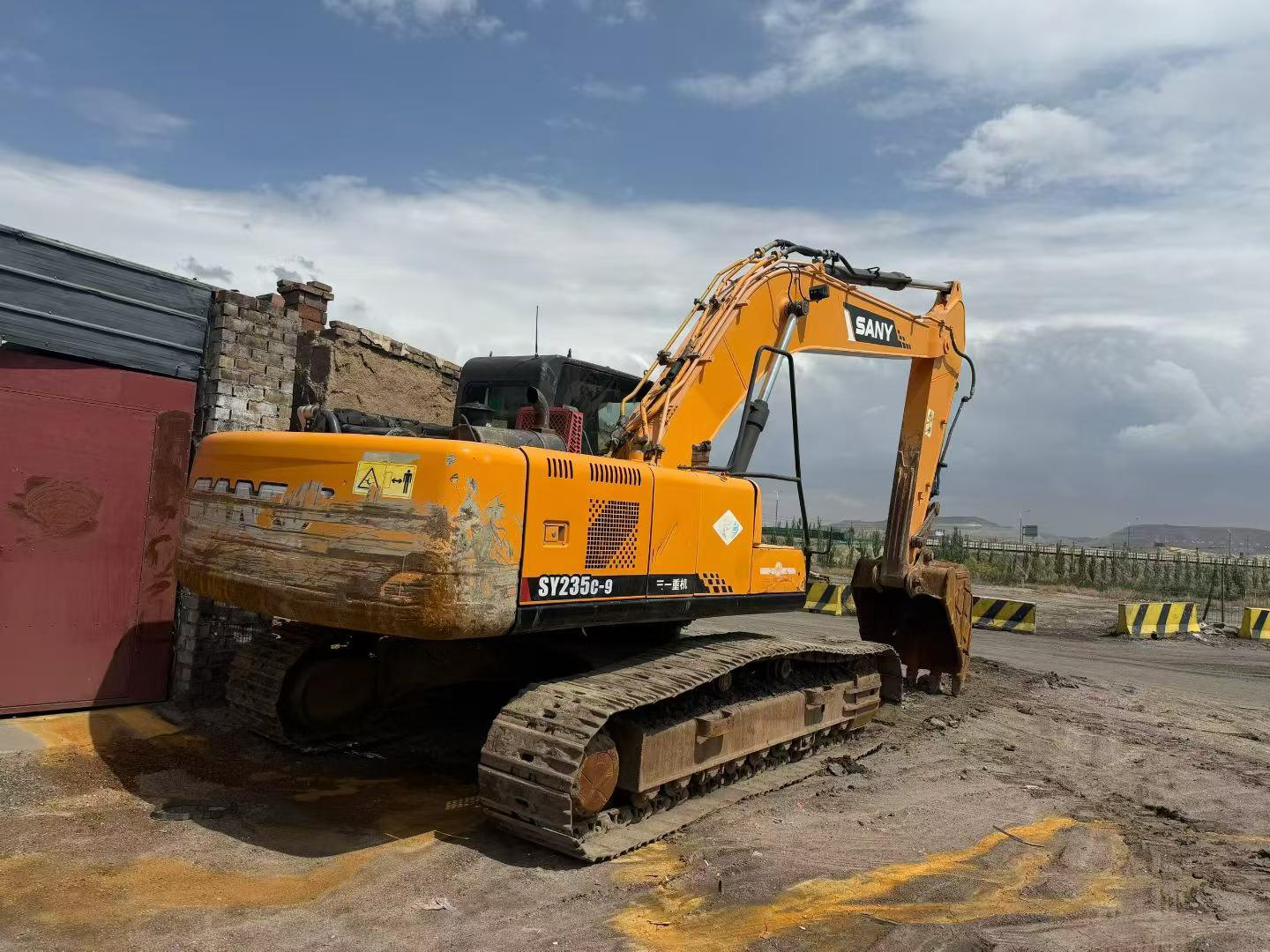

Buy Sany SY235C-8 Used Excavator / 3

Product Description

This 2014 Sany SY235C-8 hydraulic excavator is available from Inner Mongolia, China. The machine remains in original factory condition with no major modifications or aftermarket components. All systems are operational and performance characteristics meet manufacturer specifications for this model year.

The SY235C-8 is a mid-size crawler excavator suitable for earthmoving, site preparation, and general construction applications. This unit has been maintained in working condition and is priced competitively for the secondary equipment market.

  • Year: 2014
  • Model: Sany SY235C-8
  • Configuration: Standard hydraulic excavator
  • Condition: Original factory specification
  • Location: Inner Mongolia, China

Inspection reports and additional documentation available upon request. Suitable for buyers seeking reliable used equipment at accessible pricing.

SpecificationsValue
No.1072860
Tonnage (tons)23
Working weight (kg)22900
Bucket capacity (m³)1
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)125/2100
Cooling modewater-cooling
Ground specific pressure (Kpa)47.6
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)159
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 265
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9780
Total transport width (mm)2980
Total transport height (mm)3160
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2860
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3640
Maximum digging radius (mm)10180
Maximum digging depth (mm)6920
Maximum excavation height (mm)9380
Maximum unloading height (mm)6515
Maximum vertical digging depth (mm)6010
Bulldozer lift or depth (mm)There is no
