Product Description

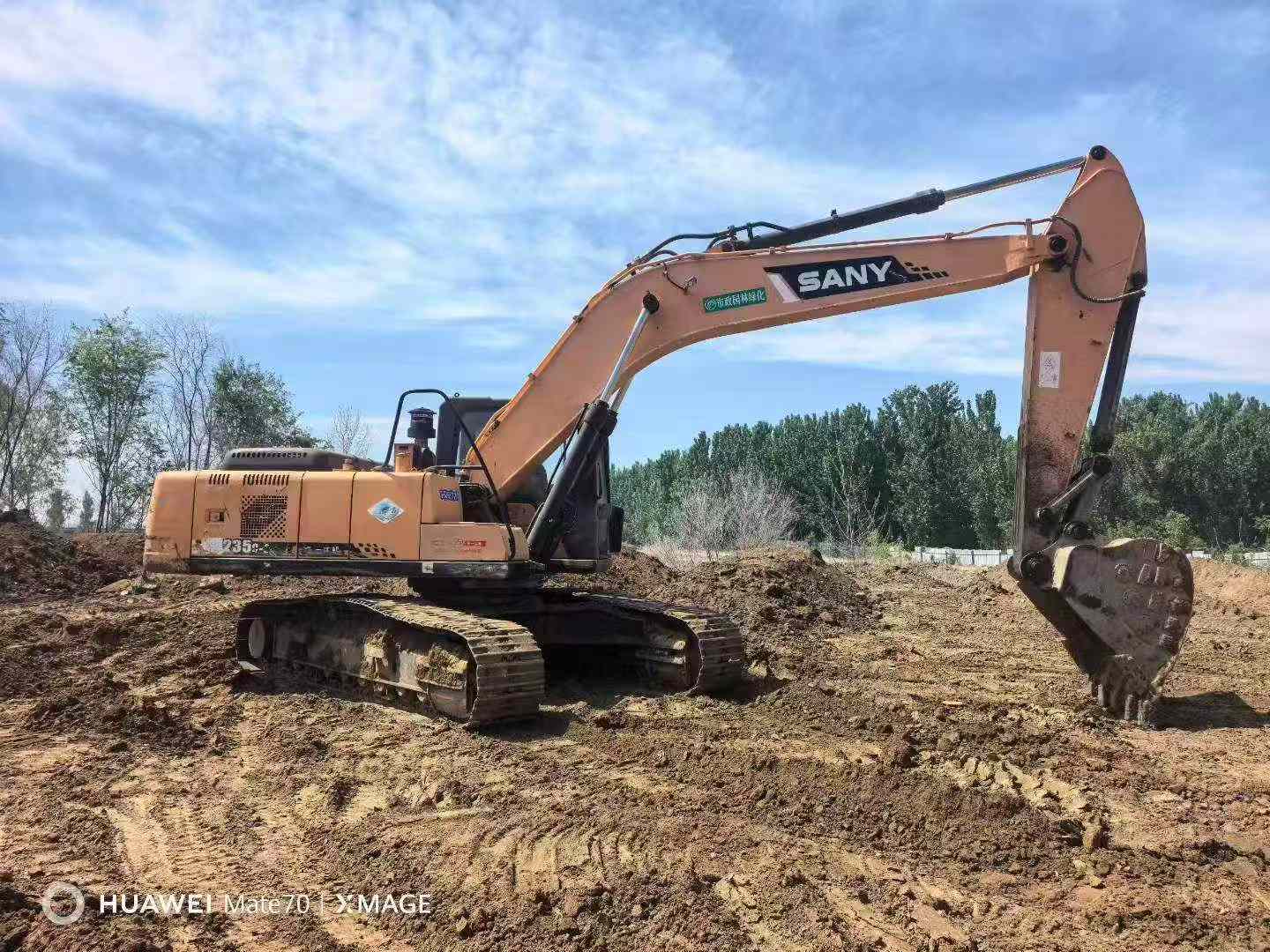

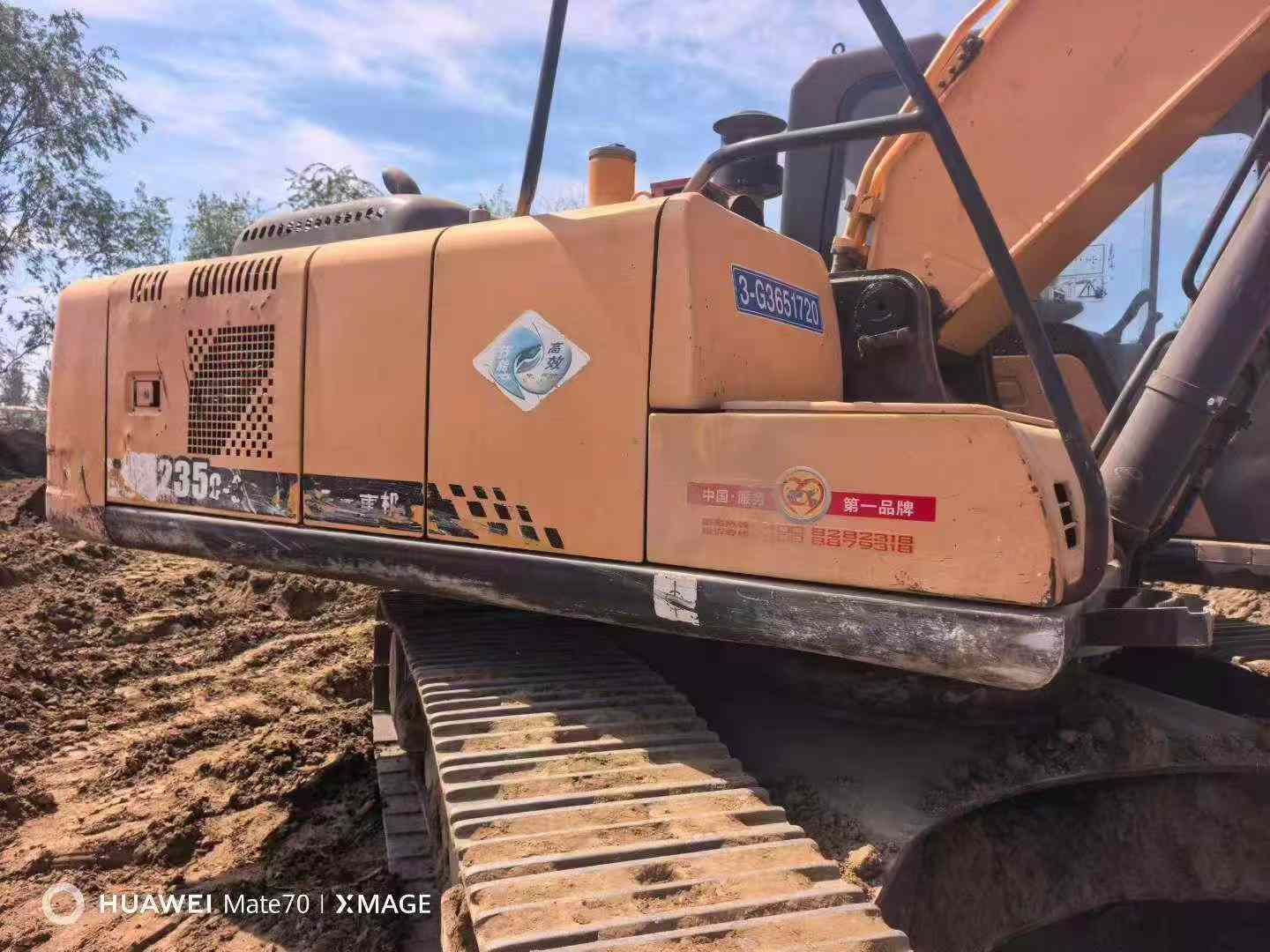

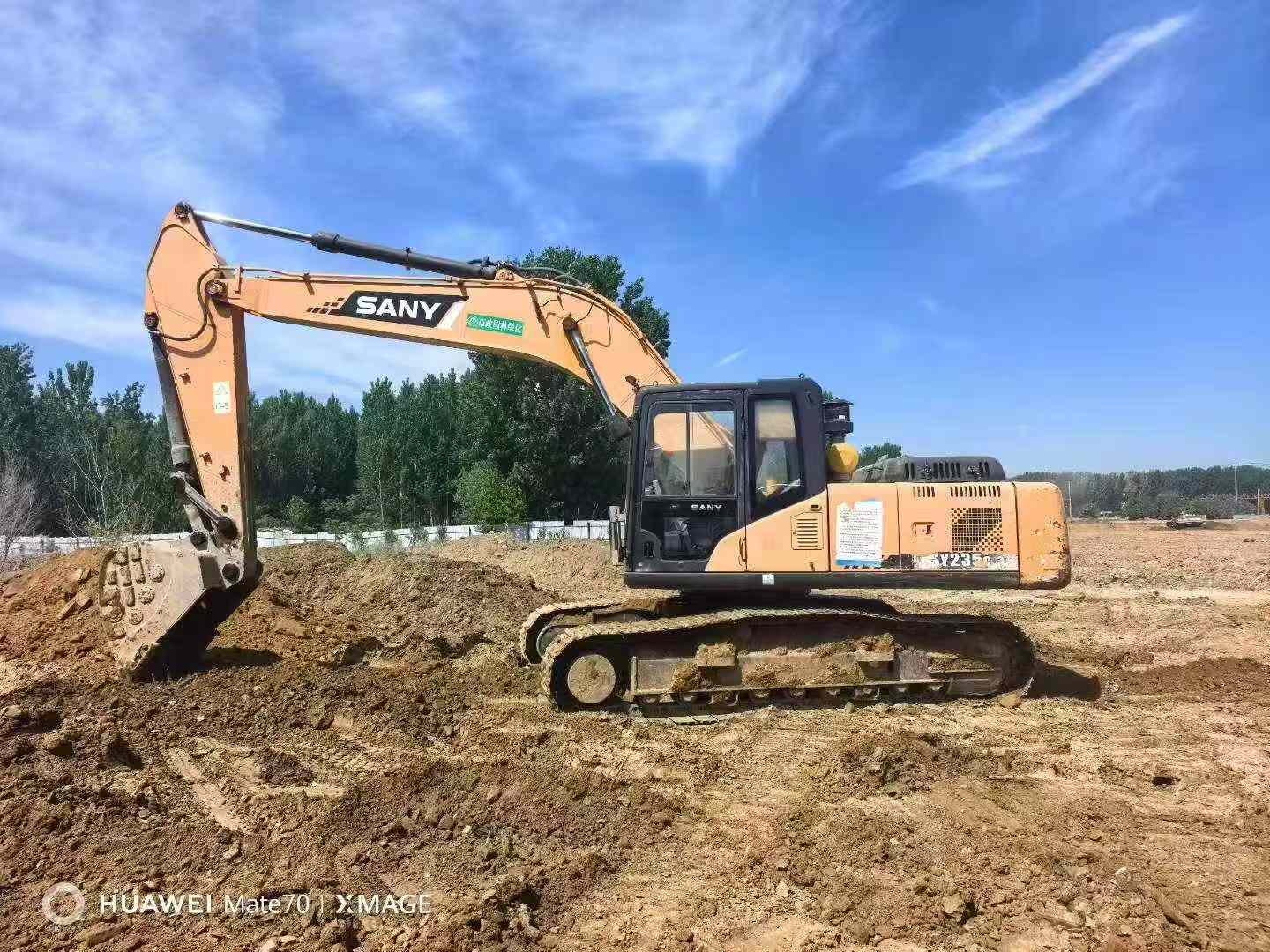

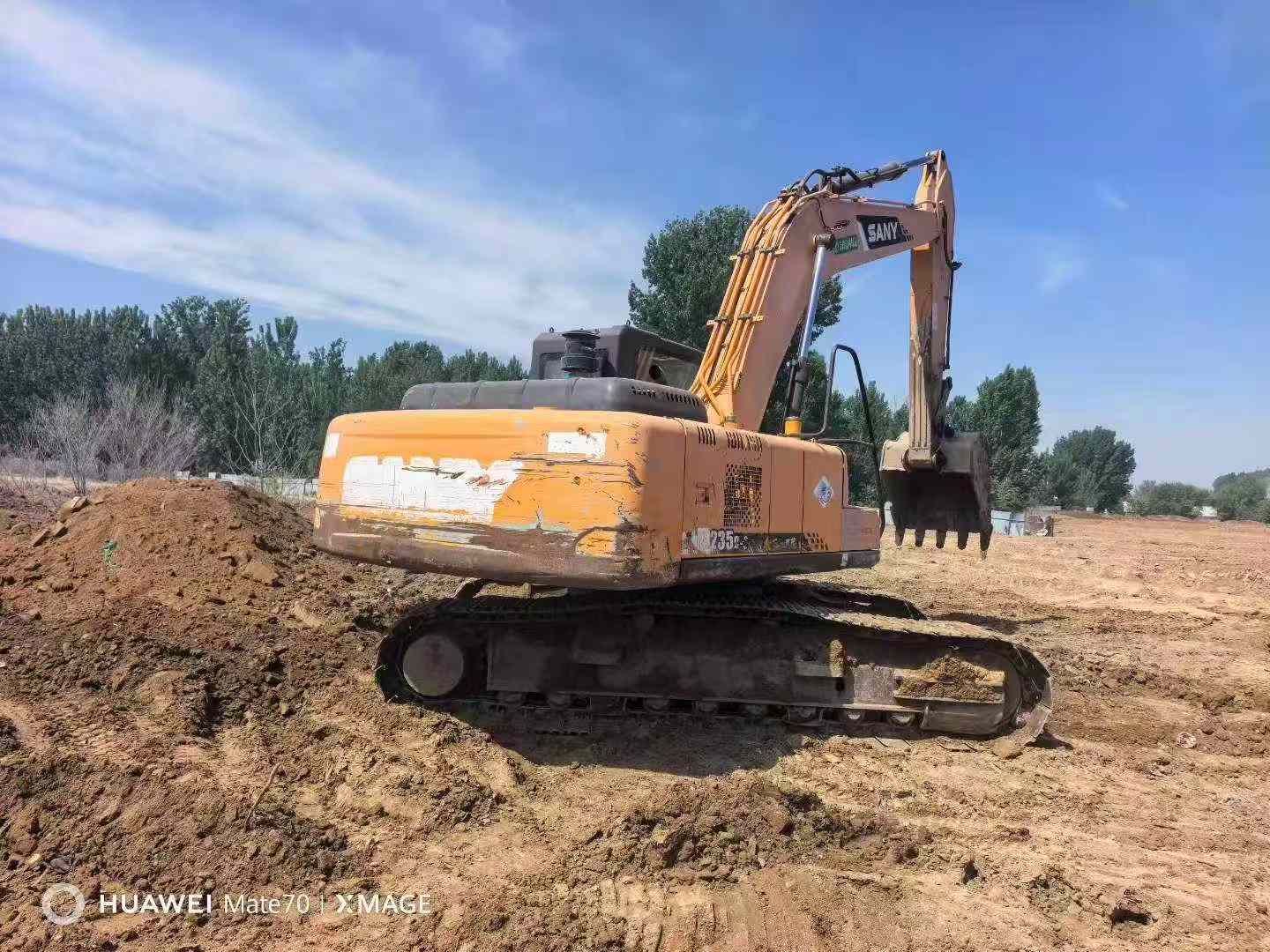

Built to endure, the Sany SY235C-8 has proven its worth since 2020 — a 23-ton backhoe excavator manufactured in Kunshan, Jiangsu Province, China, and available now from Peking. With over four years of operational history behind it, this machine stands as a testament to Sany's engineering durability in demanding earthmoving environments.

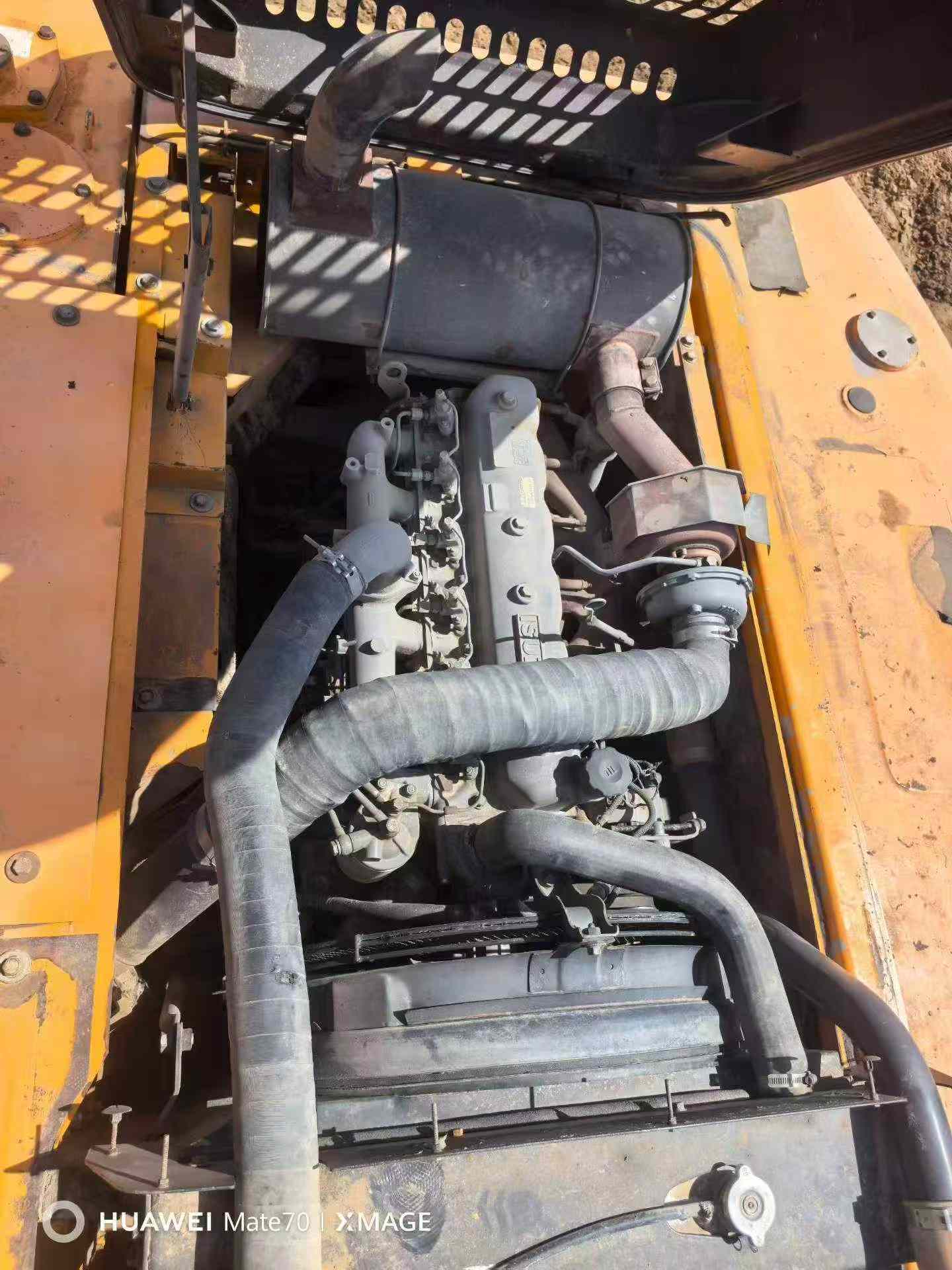

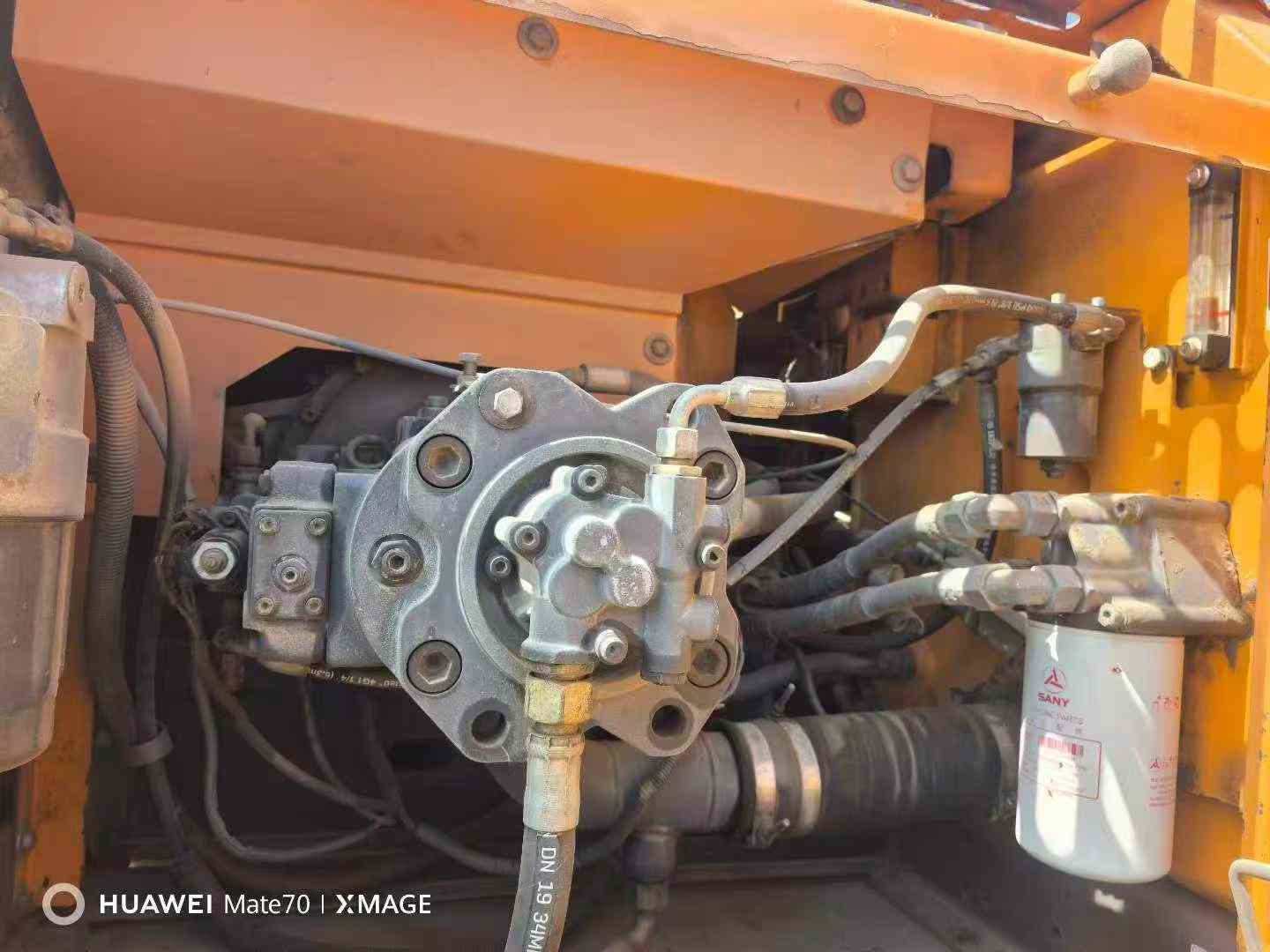

Powered by a water-cooled engine rated at 125 kW / 2100 rpm and backed by a dual main pump delivering up to 2 × 265 l/min, the SY235C-8 delivers consistent hydraulic performance across long shifts. A bucket digging force of 159 kN and 1 m³ bucket capacity make it a proven workhorse for excavation, trenching, and material handling.
- Working weight: 22,900 kg
- Maximum digging depth: 6,920 mm
- Maximum digging radius: 10,180 mm
- Maximum excavation height: 9,380 mm
- Travel speed: 3.2 / 5.5 km/h
- Climbing ability: 70% / 35°
- Ground pressure: 47.6 kPa

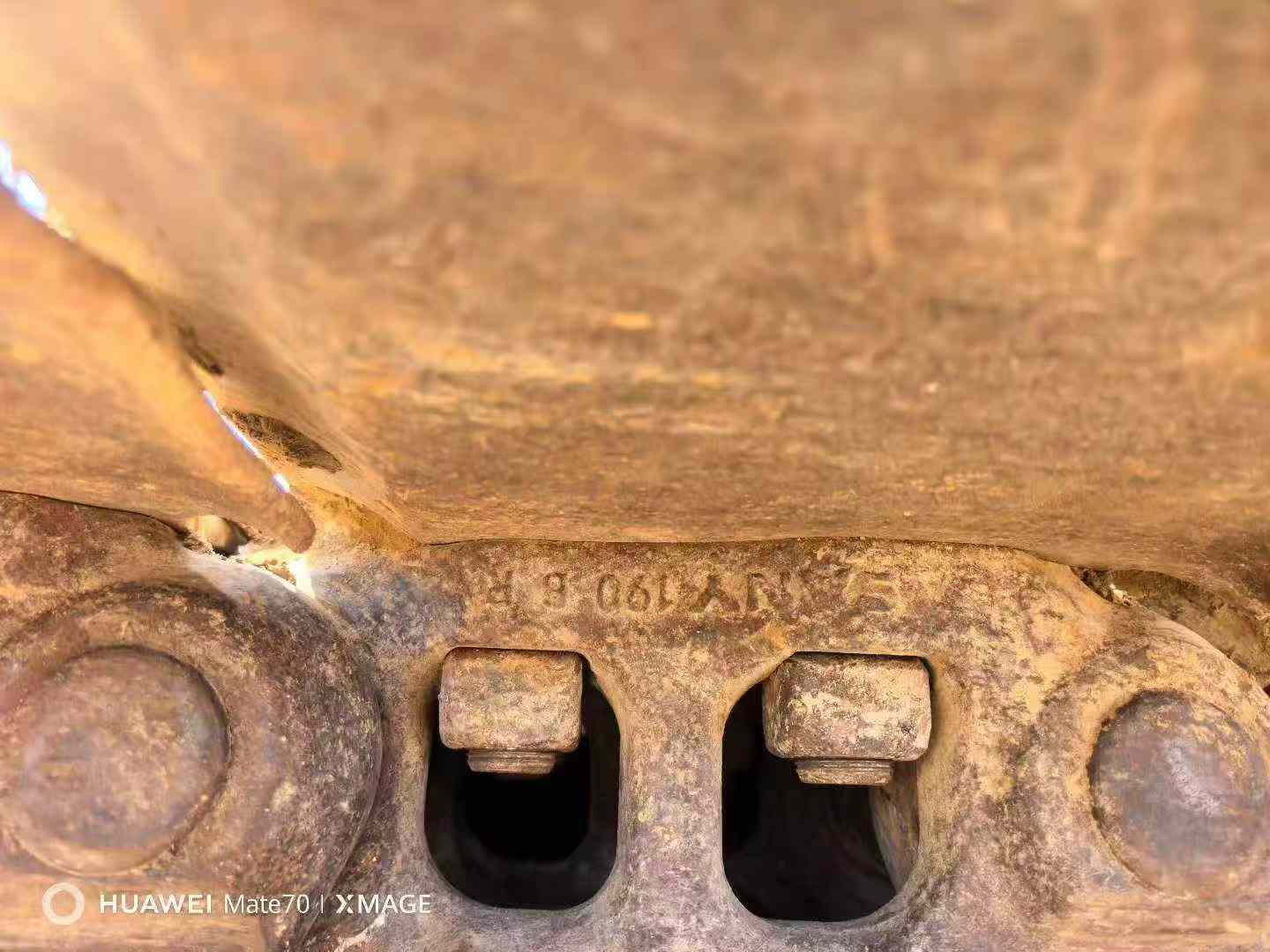

- Track plate width: 600 mm
- Transport dimensions (L × W × H): 9,780 × 2,980 × 3,160 mm
| Specifications | Value |
|---|---|
| No. | 1059188 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22900 |
| Bucket capacity (m³) | 1 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 47.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 159 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 265 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9780 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3160 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2860 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 9380 |
| Maximum unloading height (mm) | 6515 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | There is no |
