2020 Sany SY235C-8

1/9
Buy Sany SY235C-8 Used Excavator / 1

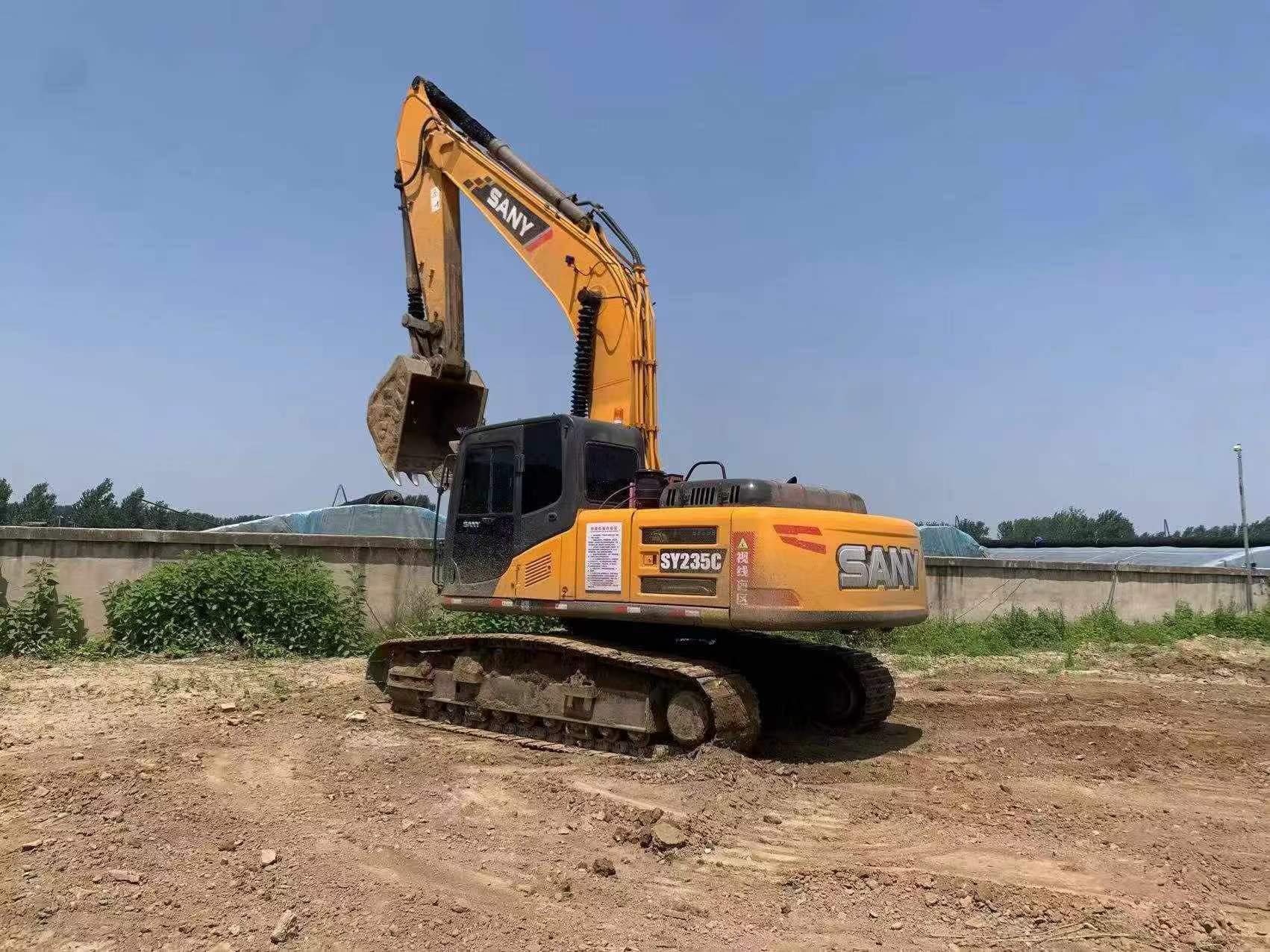

Buy Sany SY235C-8 Used Excavator / 2

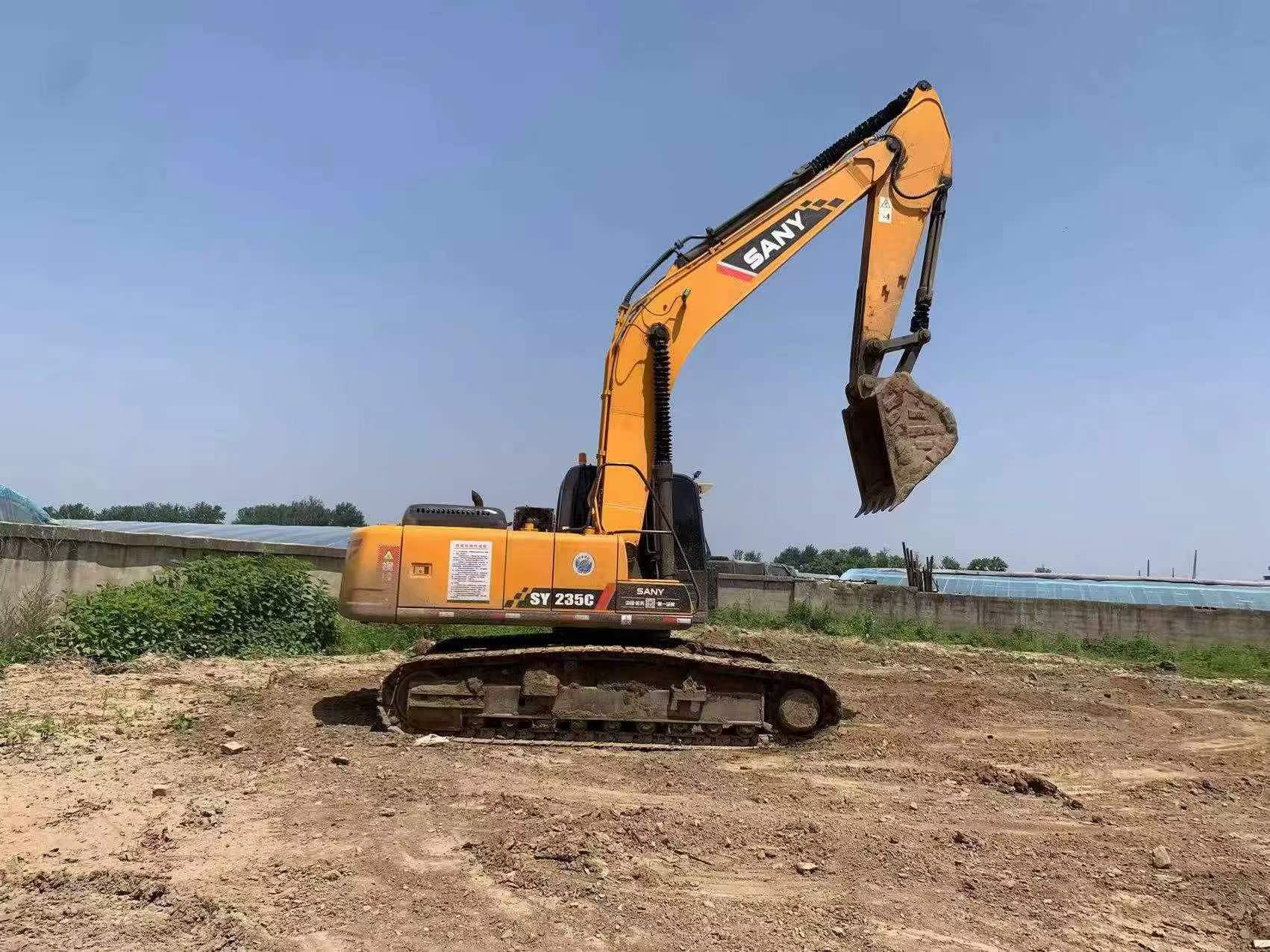

Buy Sany SY235C-8 Used Excavator / 3

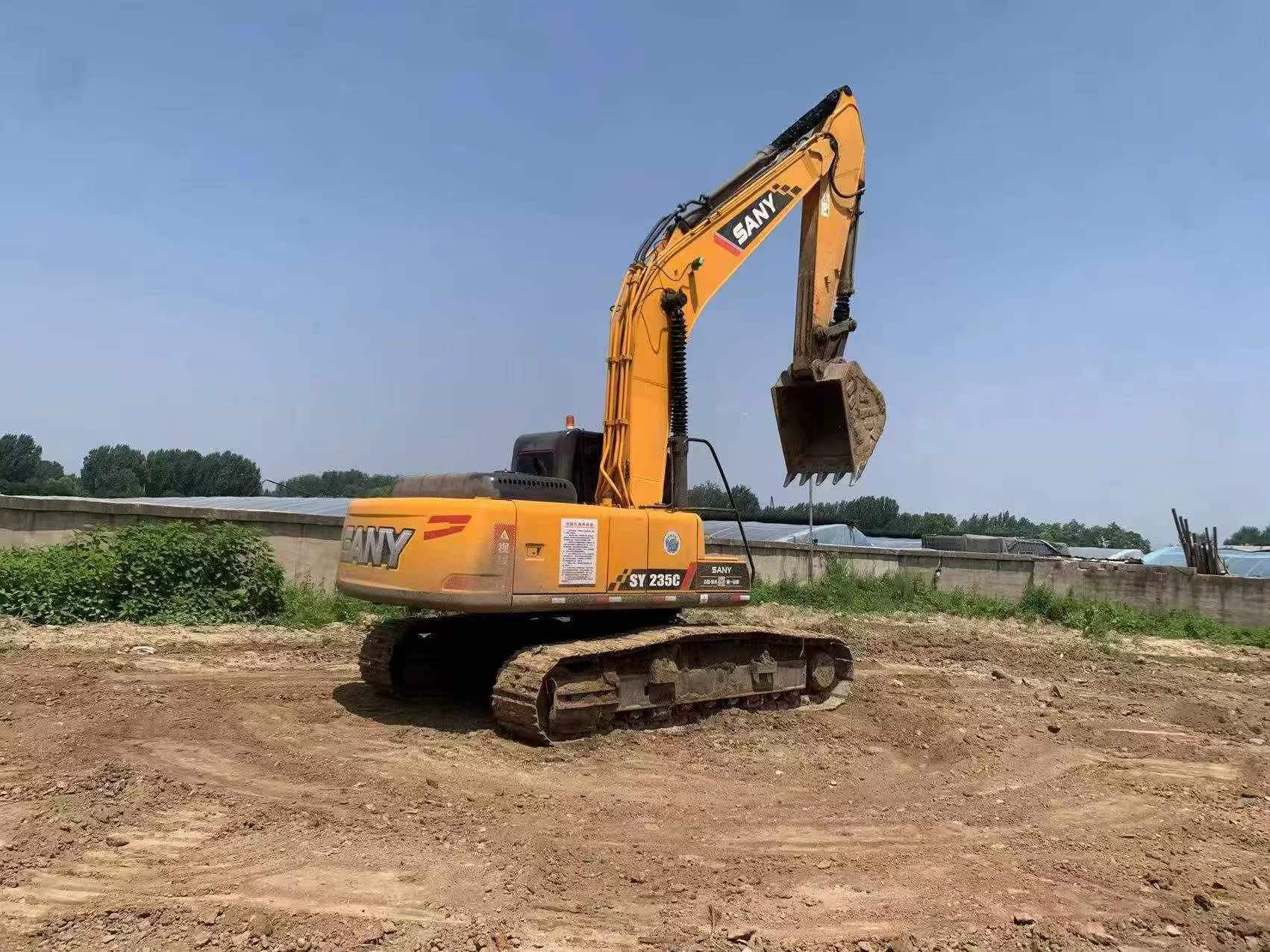

Buy Sany SY235C-8 Used Excavator / 4

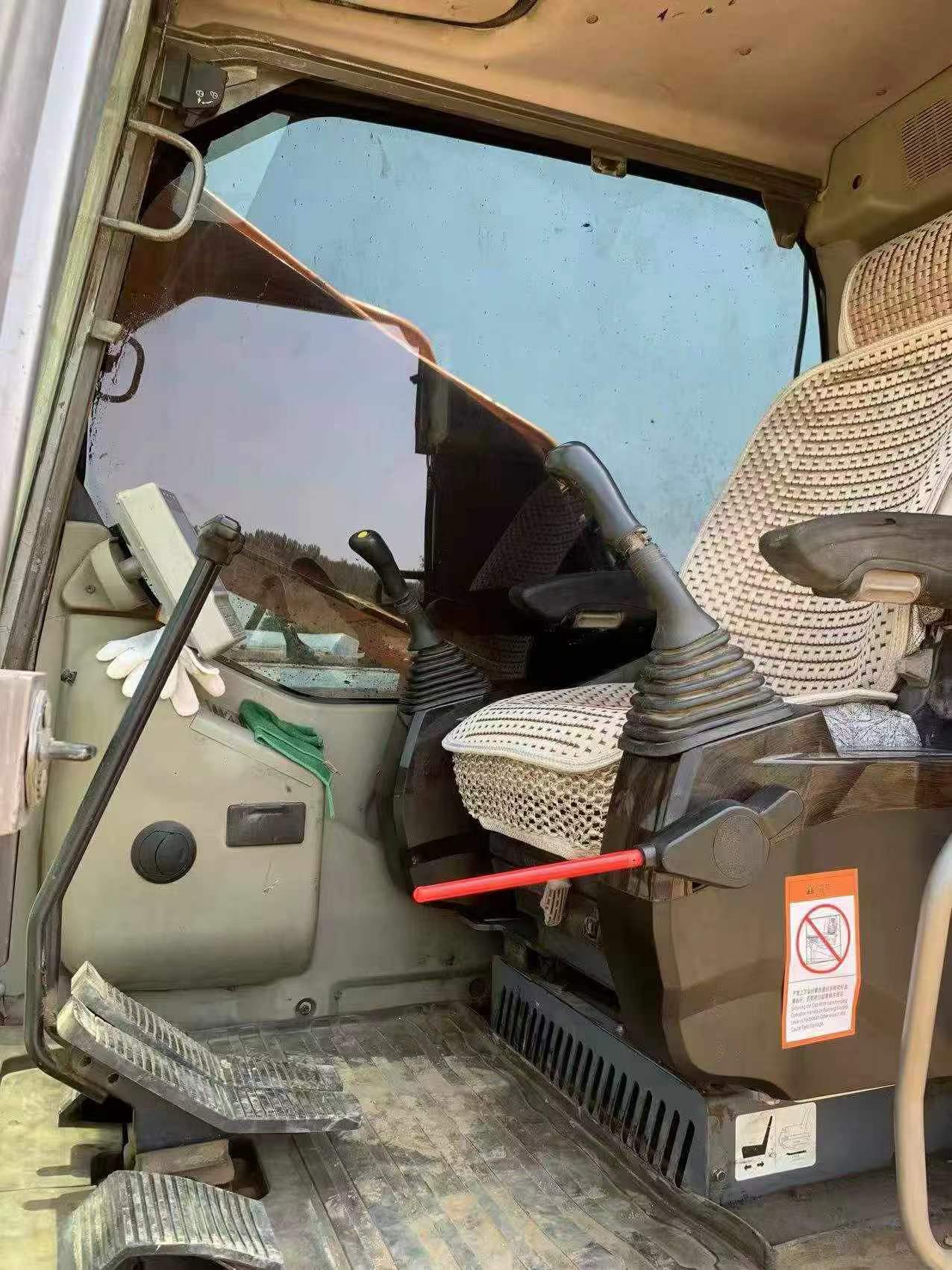

Buy Sany SY235C-8 Used Excavator / 5

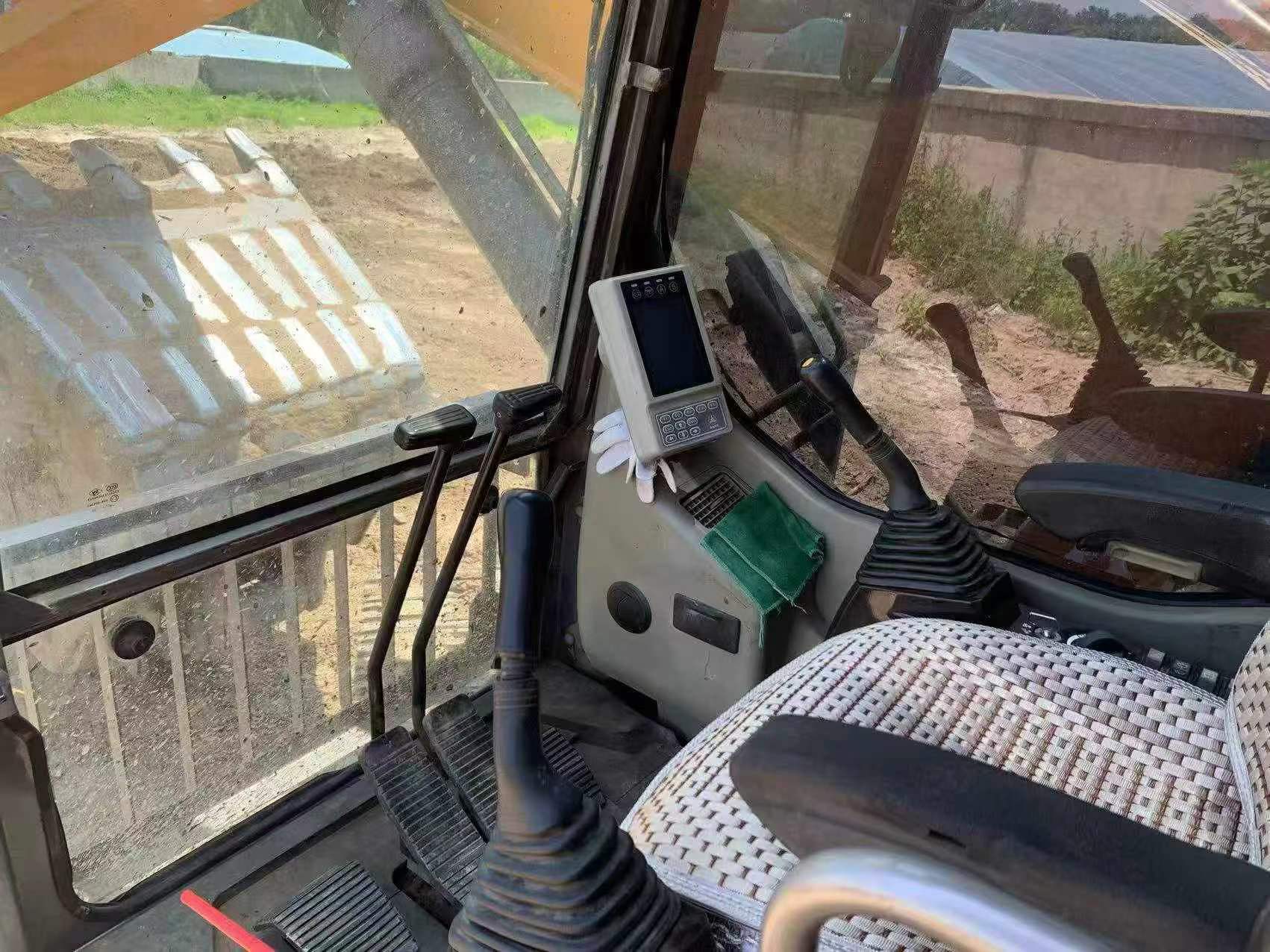

Buy Sany SY235C-8 Used Excavator / 6

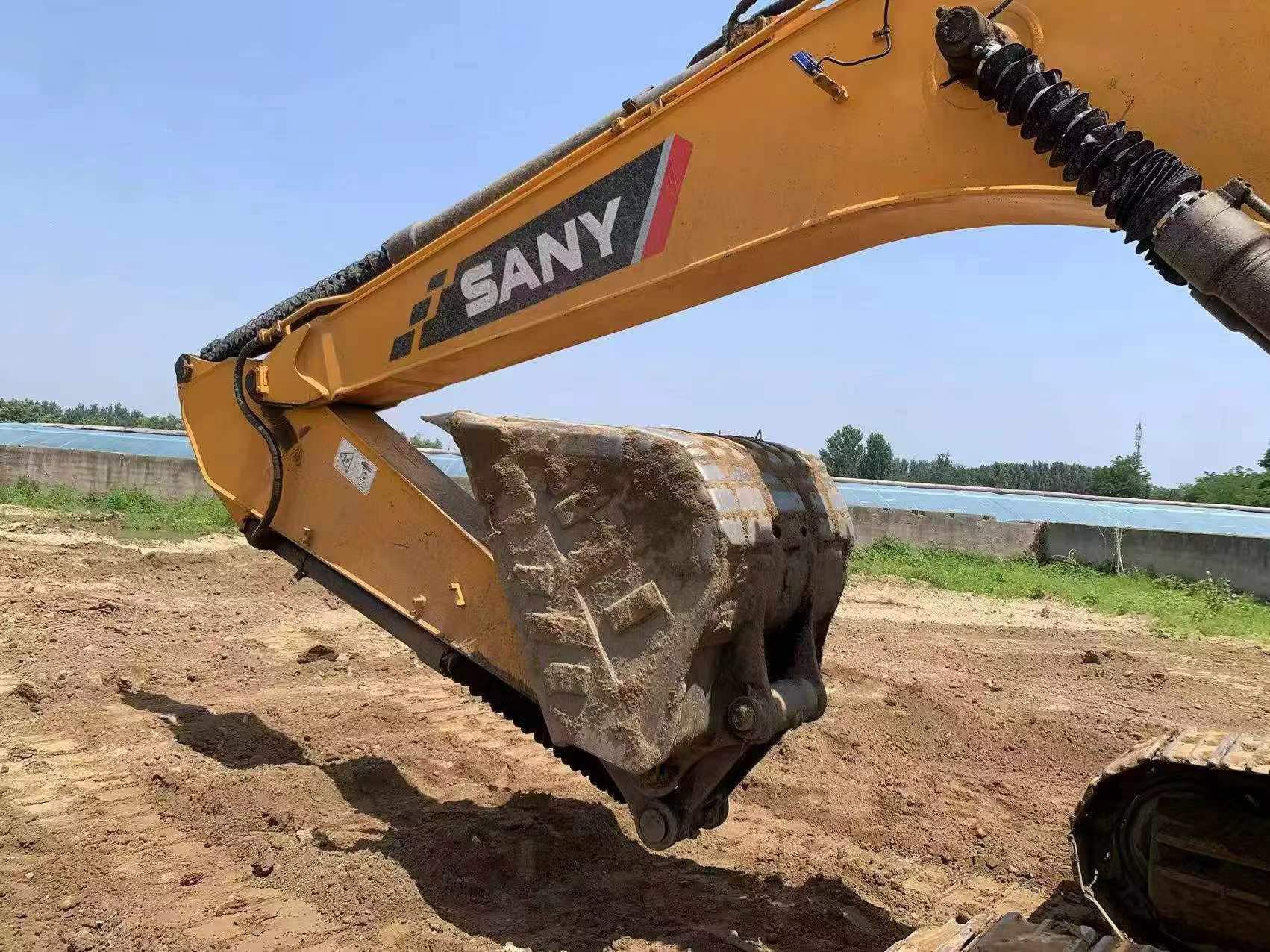

Buy Sany SY235C-8 Used Excavator / 7

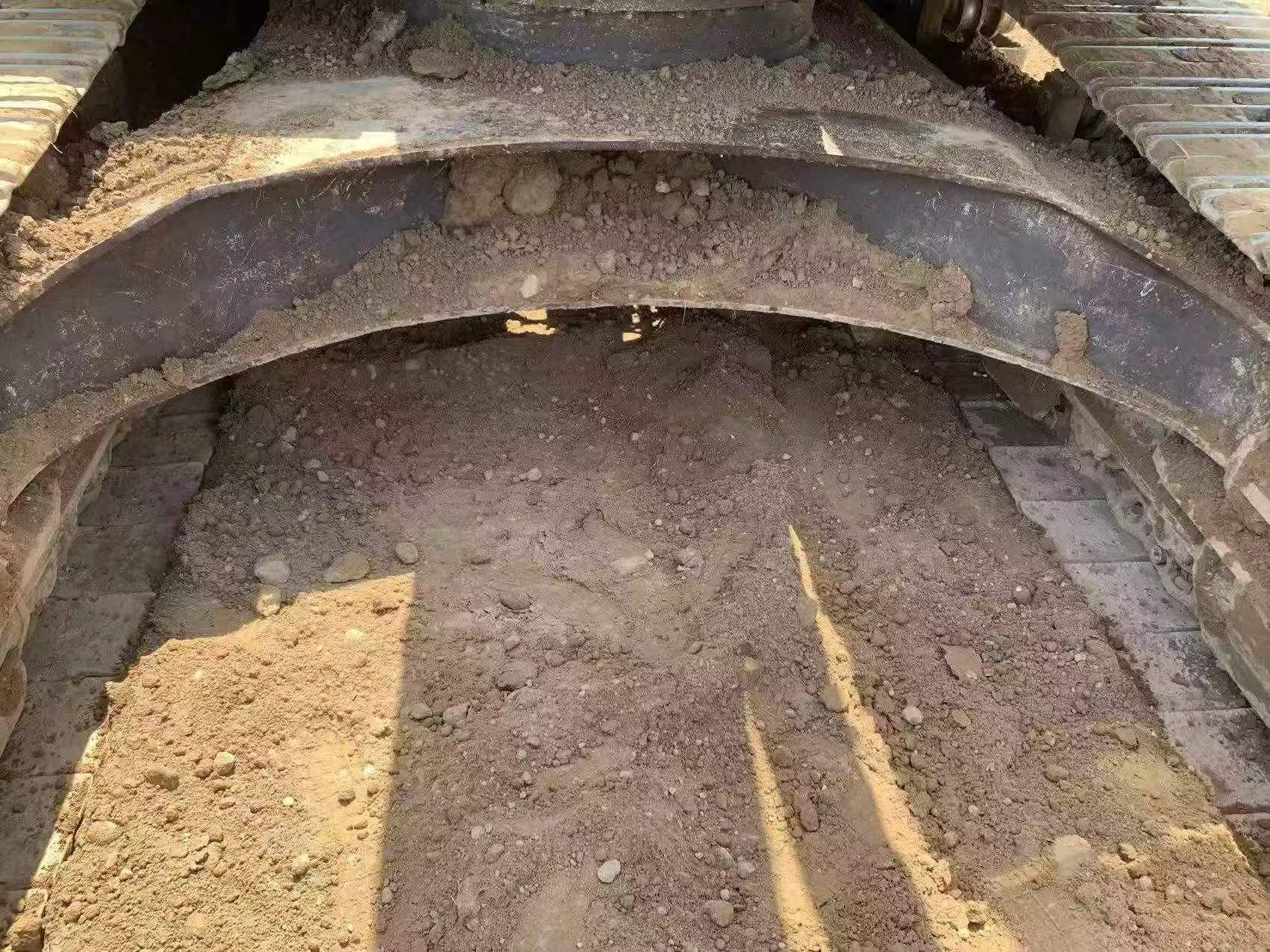

Buy Sany SY235C-8 Used Excavator / 8

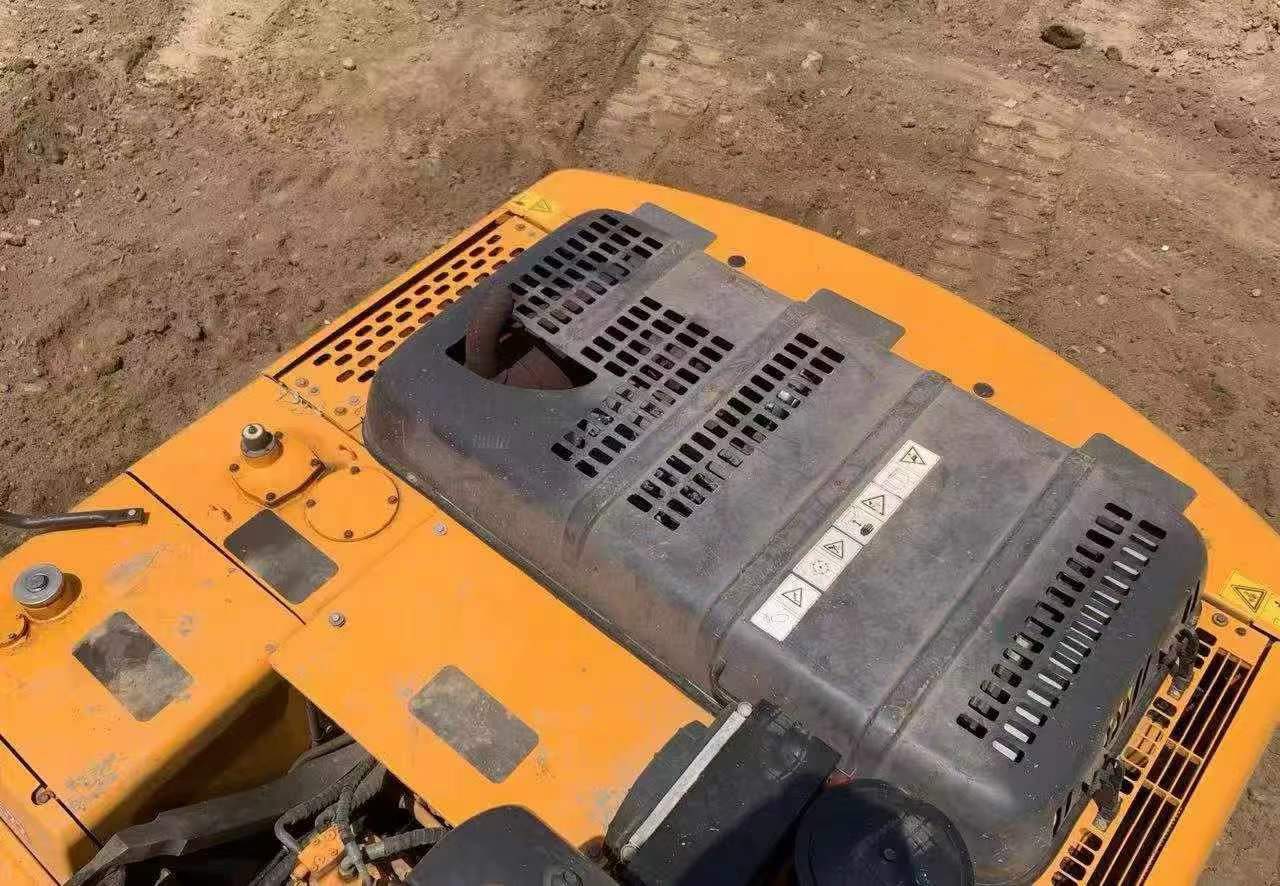

Buy Sany SY235C-8 Used Excavator / 9

Product Description

This 2020 Sany SY235C-8 excavator represents a proven workhorse in the 23-ton class. Originally purchased new in 2020, this unit has been dedicated to earthmoving applications throughout its service life. The machine features Sany's reliable hydraulic system and electrical components, both functioning within normal operating parameters.

Key highlights include:

  • Classic SY235C-8 platform with proven reliability
  • Dedicated earthmoving service history
  • Functional hydraulic and electrical systems
  • Available for on-site inspection in Hebei, China
  • Competitively priced for the current market

This excavator suits contractors seeking dependable performance for excavation, trenching, and general earthwork. Detailed condition assessment available upon inspection. Contact us to arrange viewing at our Hebei facility.

SpecificationsValue
No.1093079
Tonnage (tons)23
Working weight (kg)22900
Bucket capacity (m³)1
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)125/2100
Cooling modewater-cooling
Ground specific pressure (Kpa)47.6
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)159
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 265
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9780
Total transport width (mm)2980
Total transport height (mm)3160
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2860
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3640
Maximum digging radius (mm)10180
Maximum digging depth (mm)6920
Maximum excavation height (mm)9380
Maximum unloading height (mm)6515
Maximum vertical digging depth (mm)6010
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1093079

Brand Name:

Sany

Model Number:

SY235C-8

Year:

2020

Location:

Hebei China

Pub Date
