Product Description

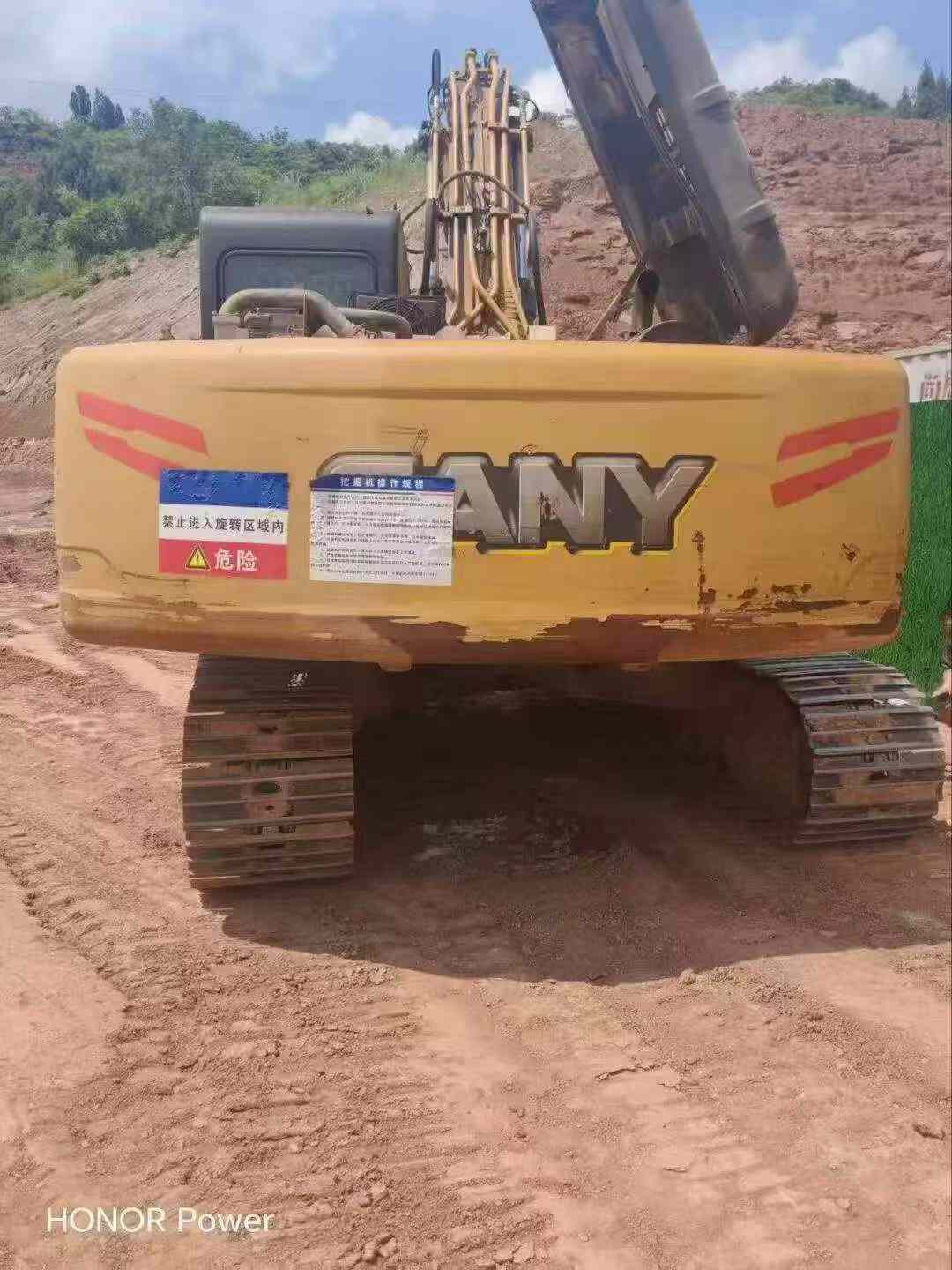

This 2020 Sany SY235C-8 hydraulic excavator is available in Sichuan, China at a competitive price point. The SY235C-8 represents Sany's reliable mid-size excavator platform, designed for general earthmoving, trenching, and construction applications. With approximately 23 tons operating weight and a reach suitable for a wide range of jobsite tasks, this model balances productivity with operational efficiency.
Key features include:

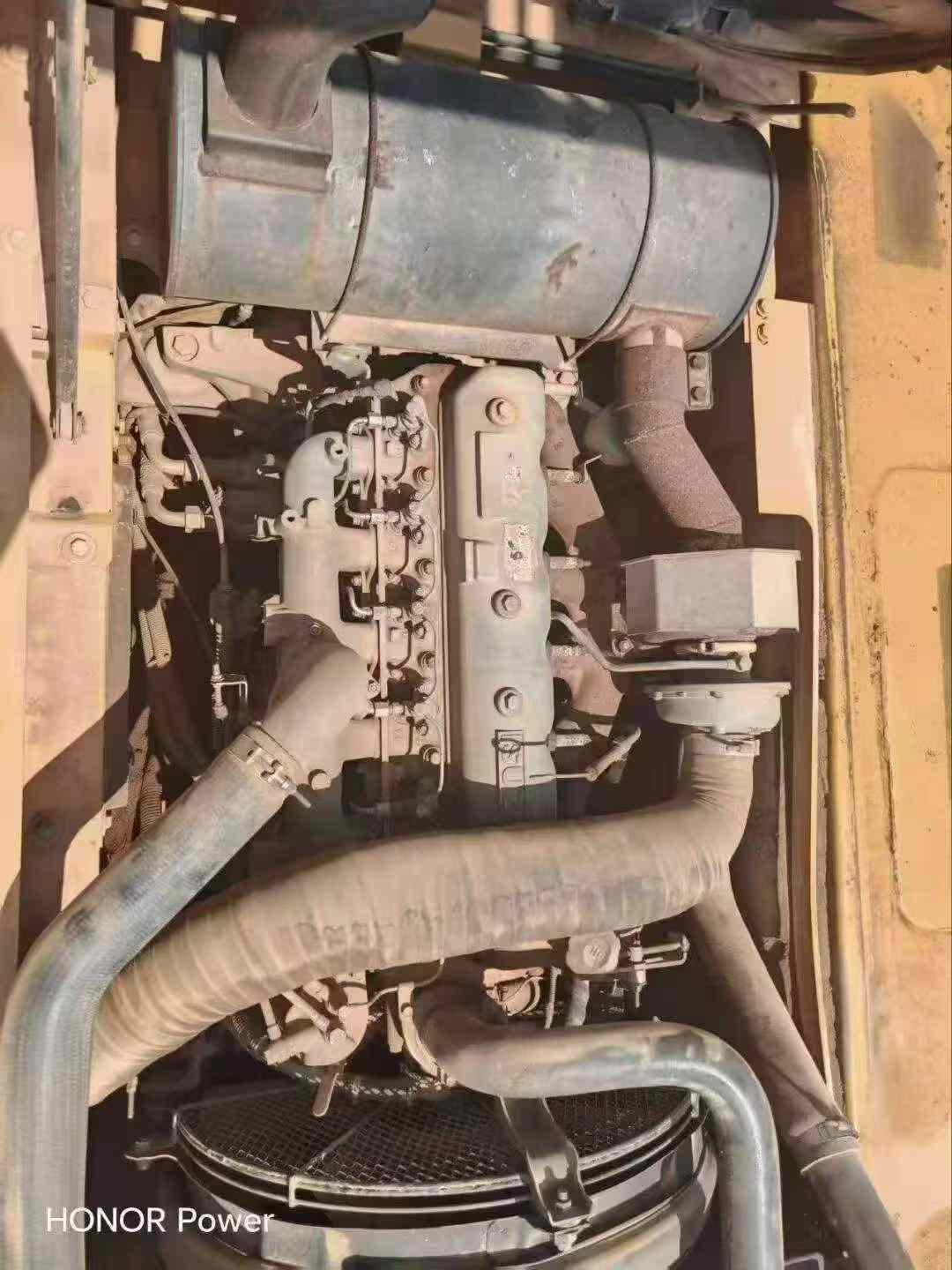

- Sany diesel engine delivering dependable power output
- Hydraulic system optimized for digging force and cycle times
- Operator cab with standard controls and visibility
- Undercarriage designed for stability on varied terrain
- Service access points for routine maintenance
This unit offers a practical solution for contractors seeking proven mid-range excavator capacity from an established manufacturer. Inspection recommended prior to purchase.
| Specifications | Value |
|---|---|
| No. | 1101318 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22900 |
| Bucket capacity (m³) | 1 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 47.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 159 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 265 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9780 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3160 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2860 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 9380 |
| Maximum unloading height (mm) | 6515 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | There is no |
