2020 Sany SY235C-8

1/8

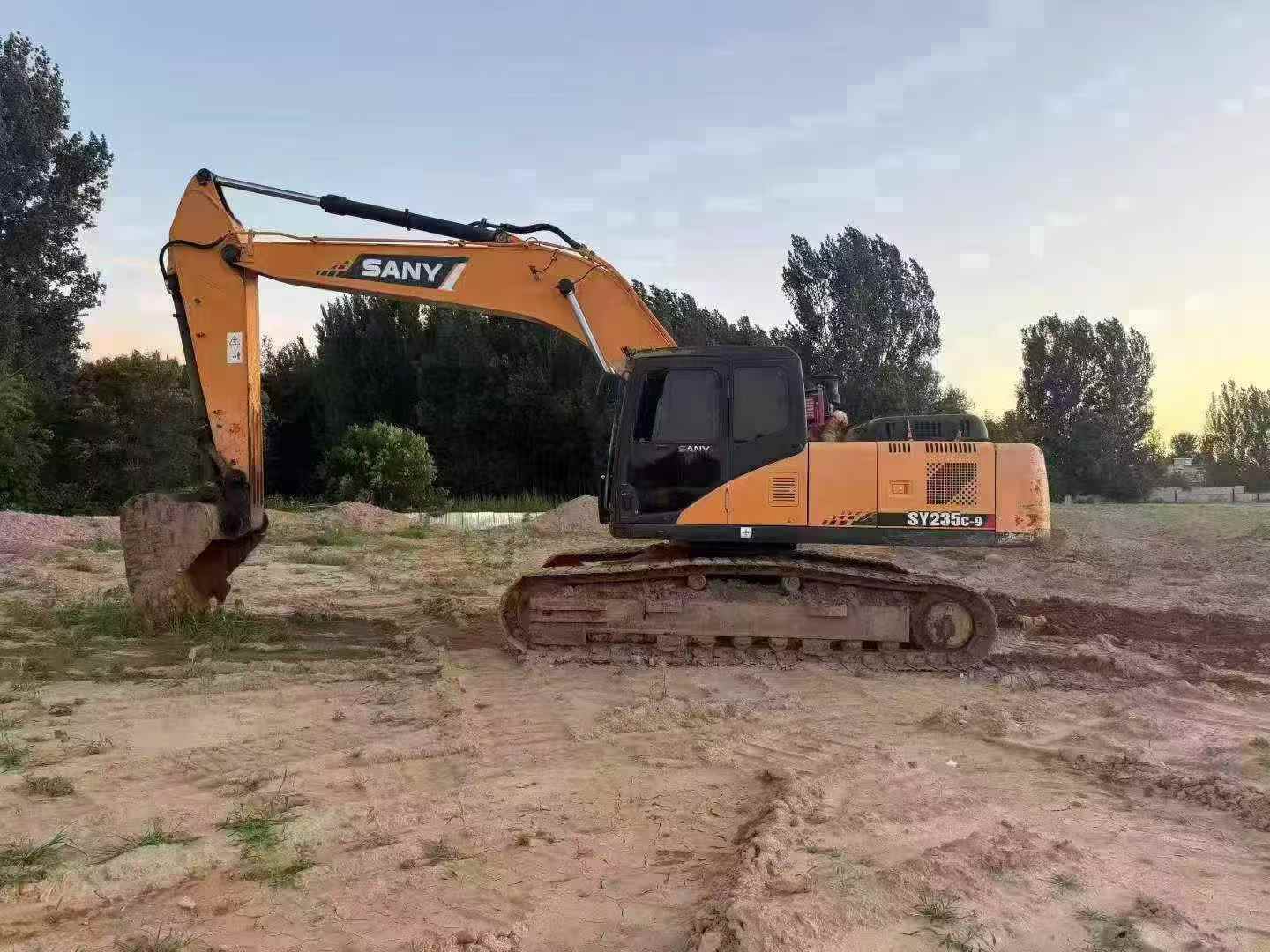

Buy Sany SY235C-8 Used Excavator / 1

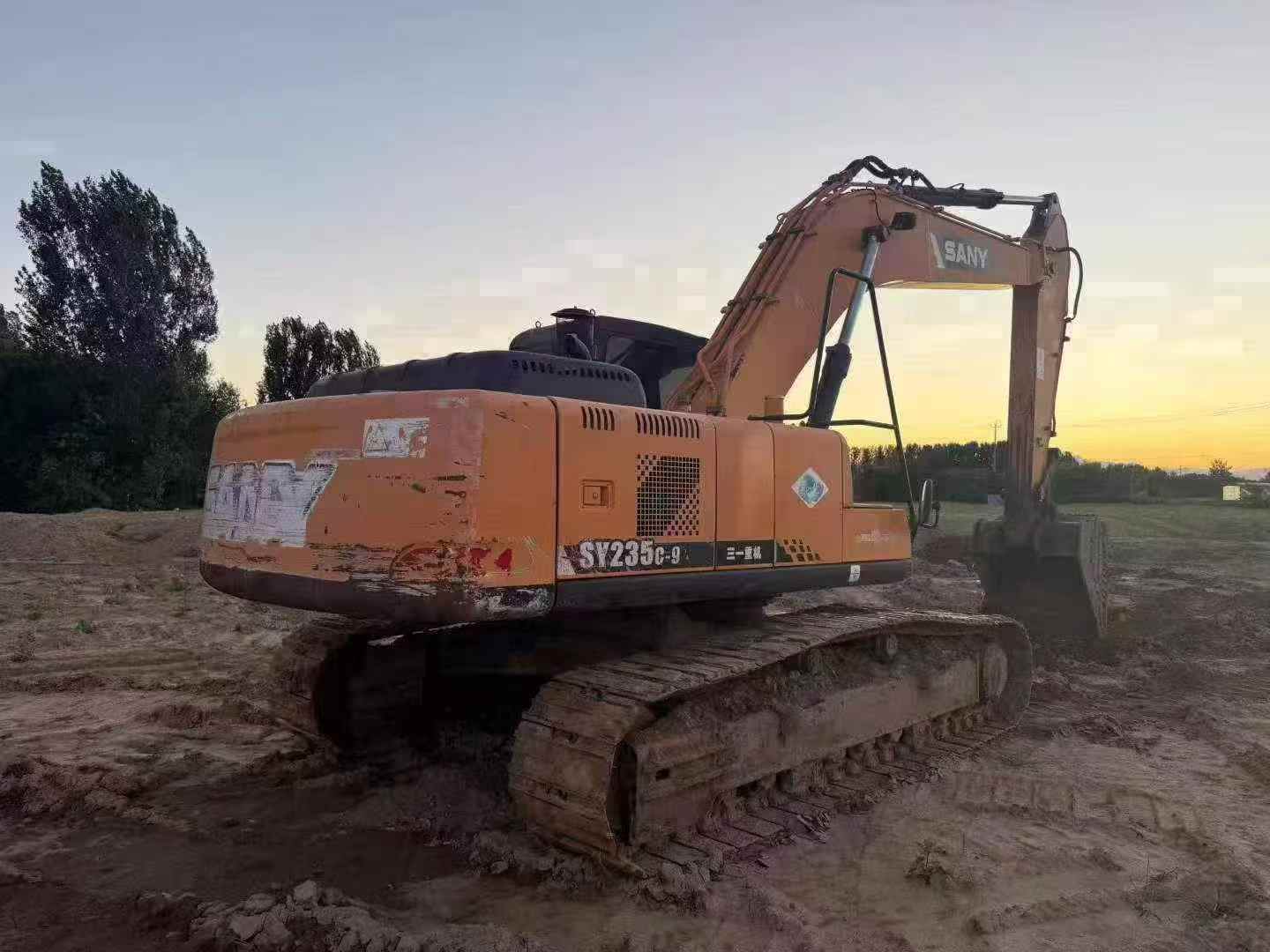

Buy Sany SY235C-8 Used Excavator / 2

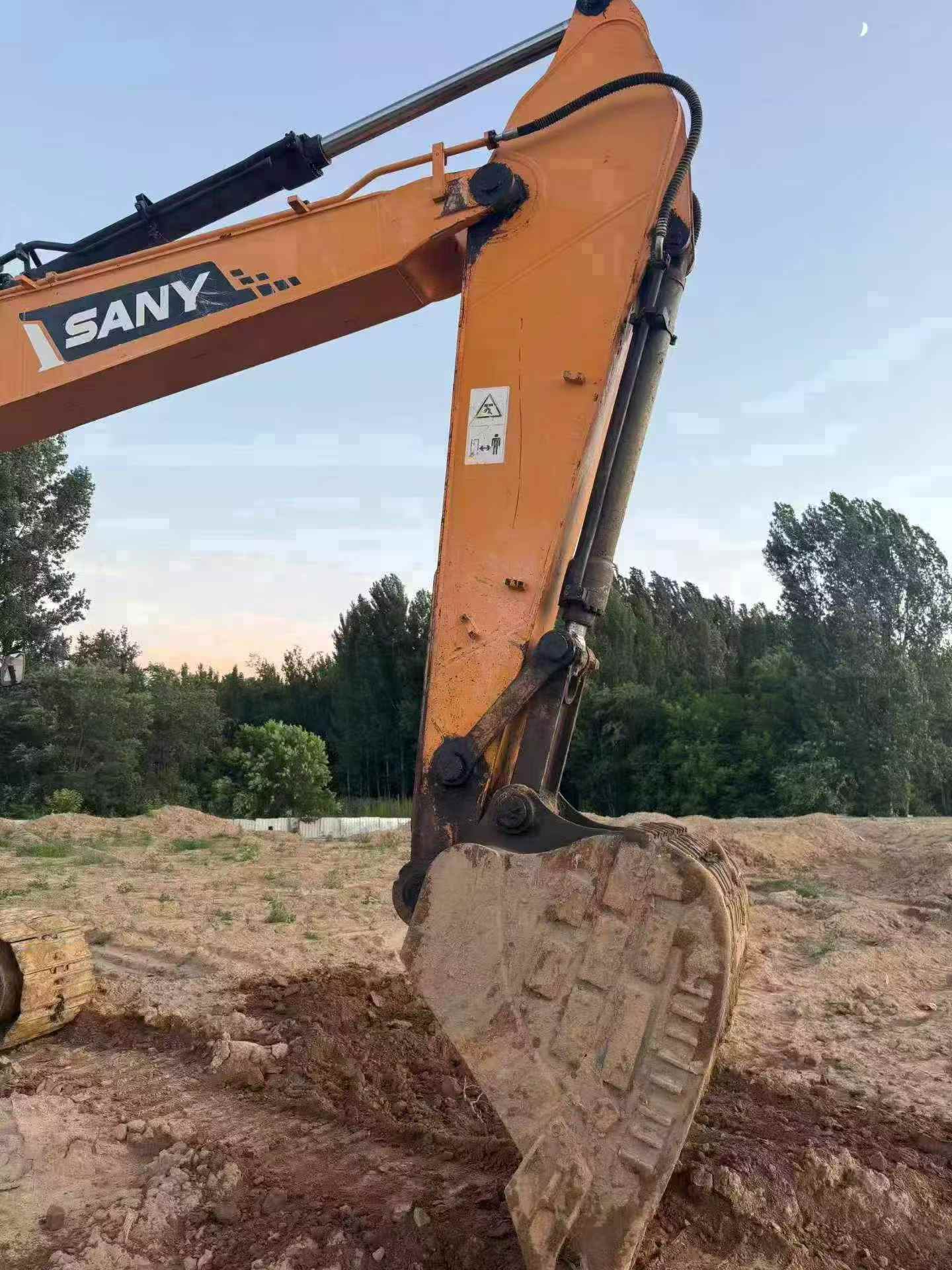

Buy Sany SY235C-8 Used Excavator / 3

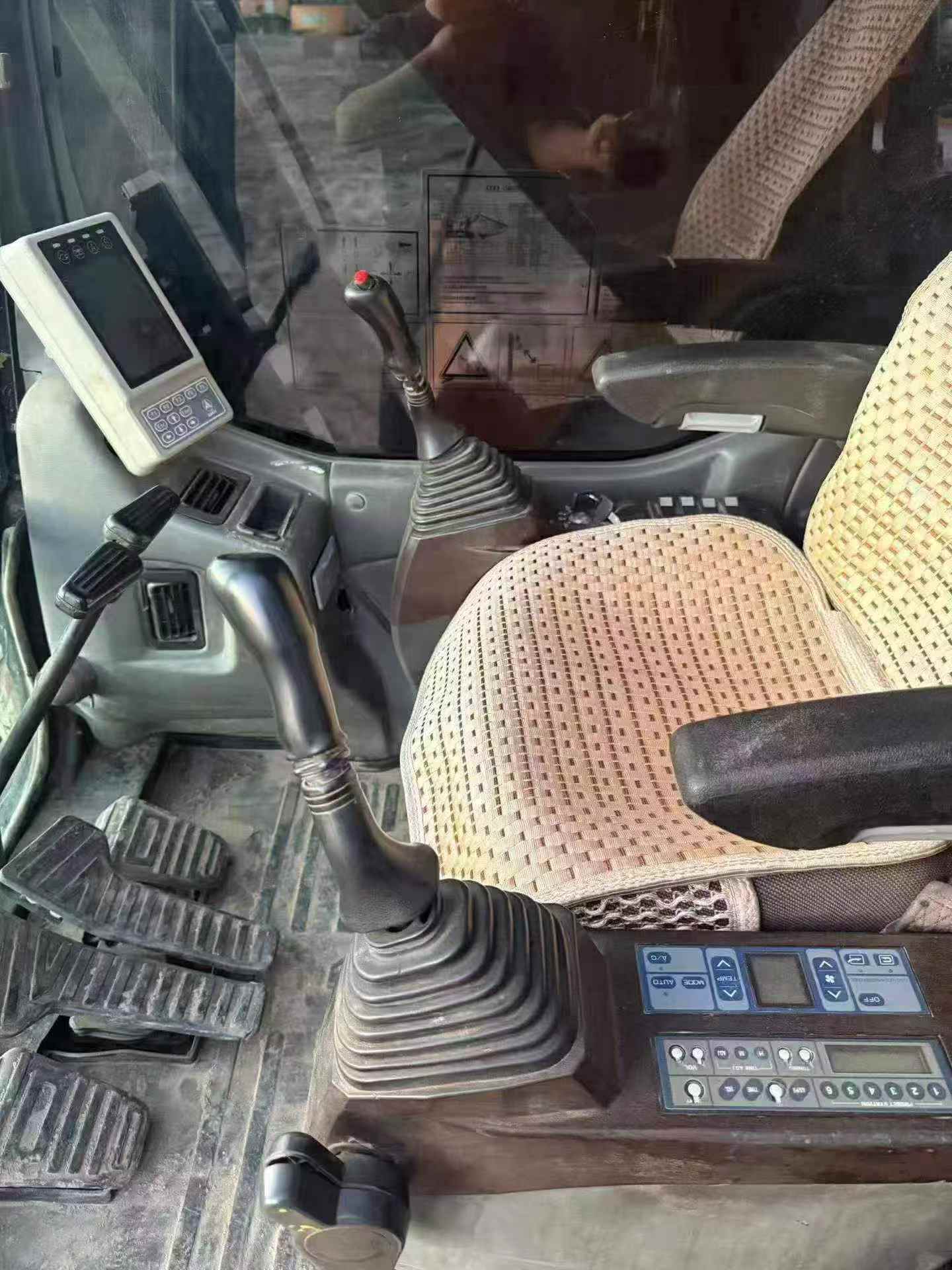

Buy Sany SY235C-8 Used Excavator / 4

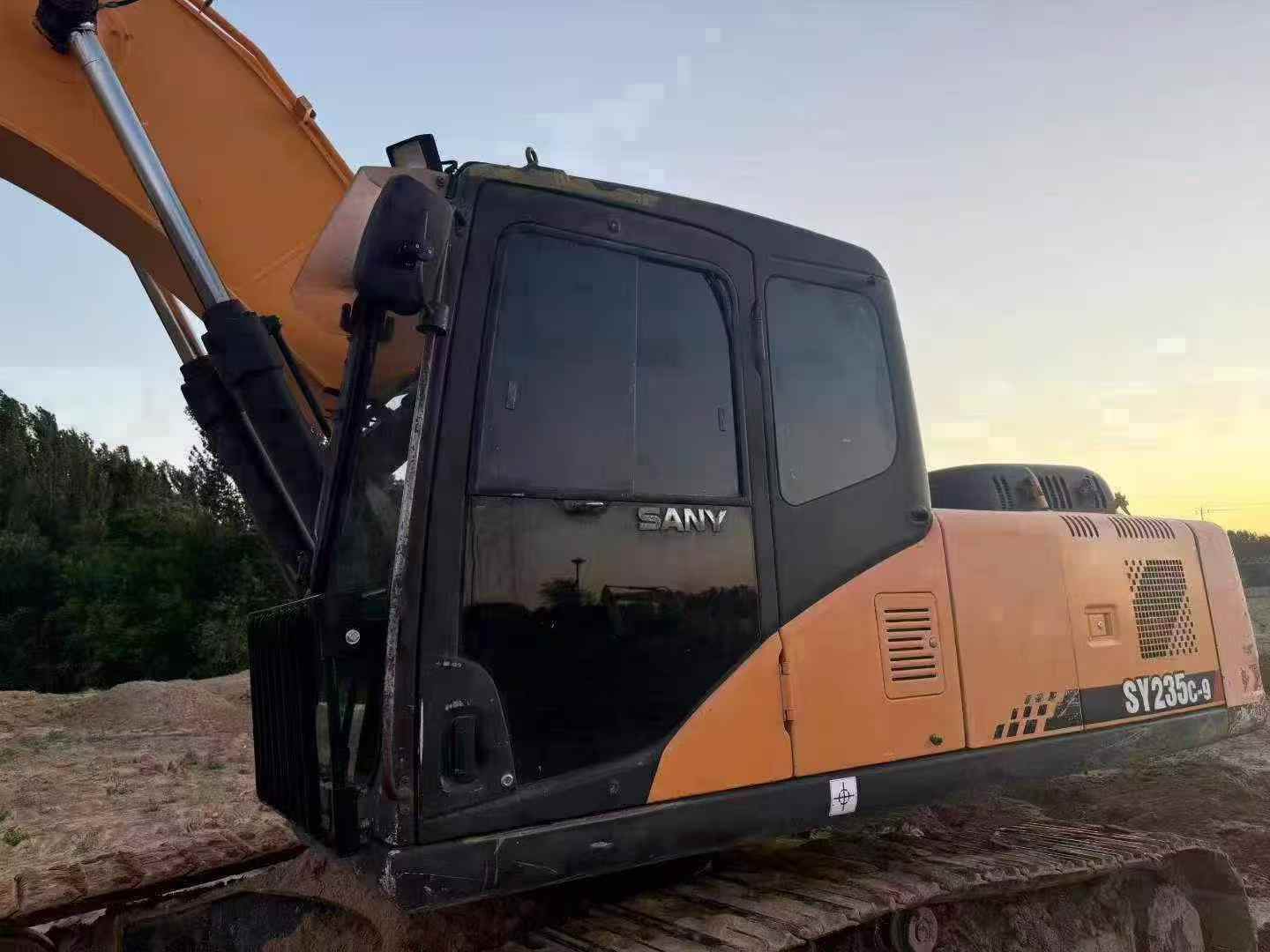

Buy Sany SY235C-8 Used Excavator / 5

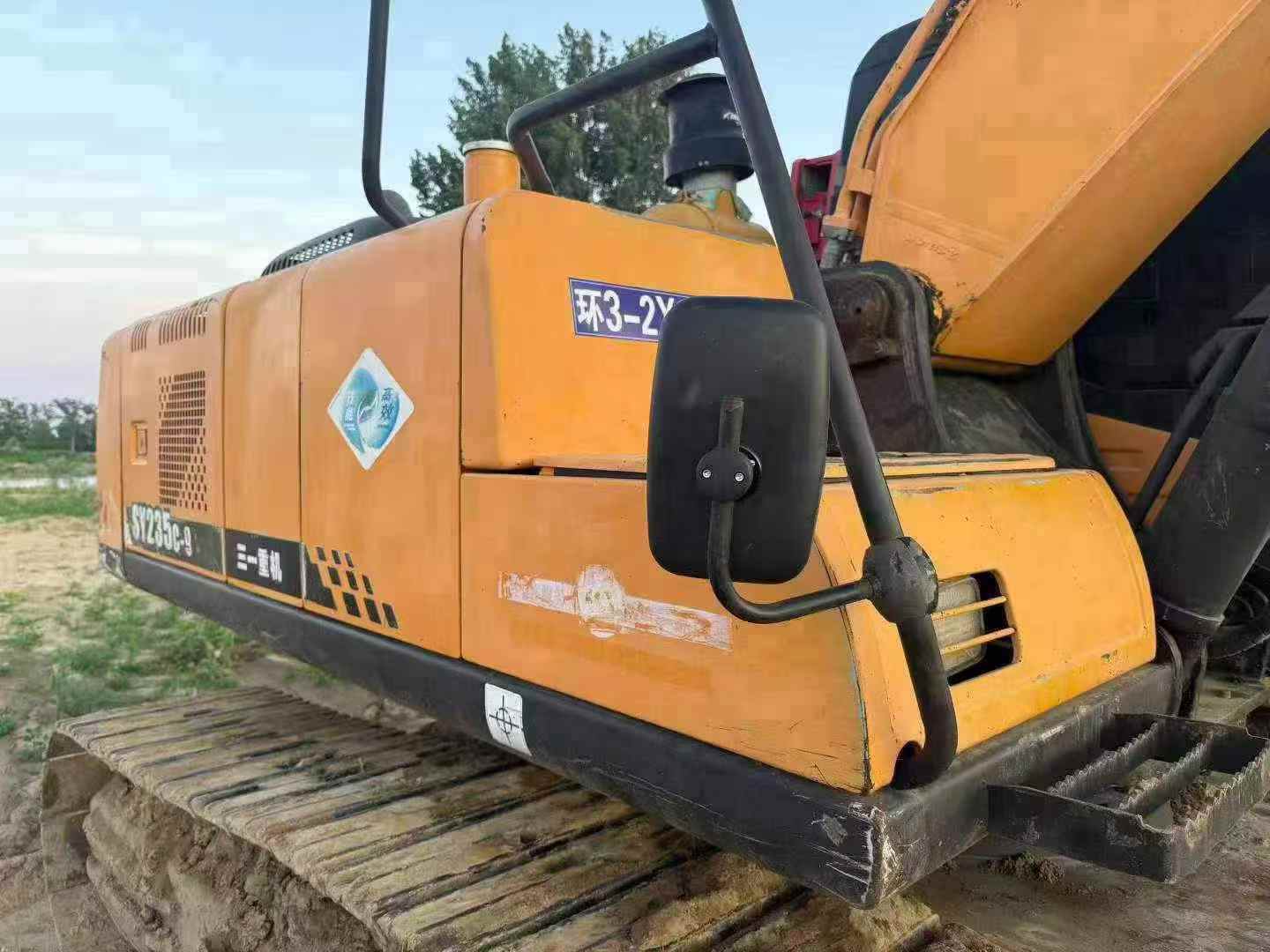

Buy Sany SY235C-8 Used Excavator / 6

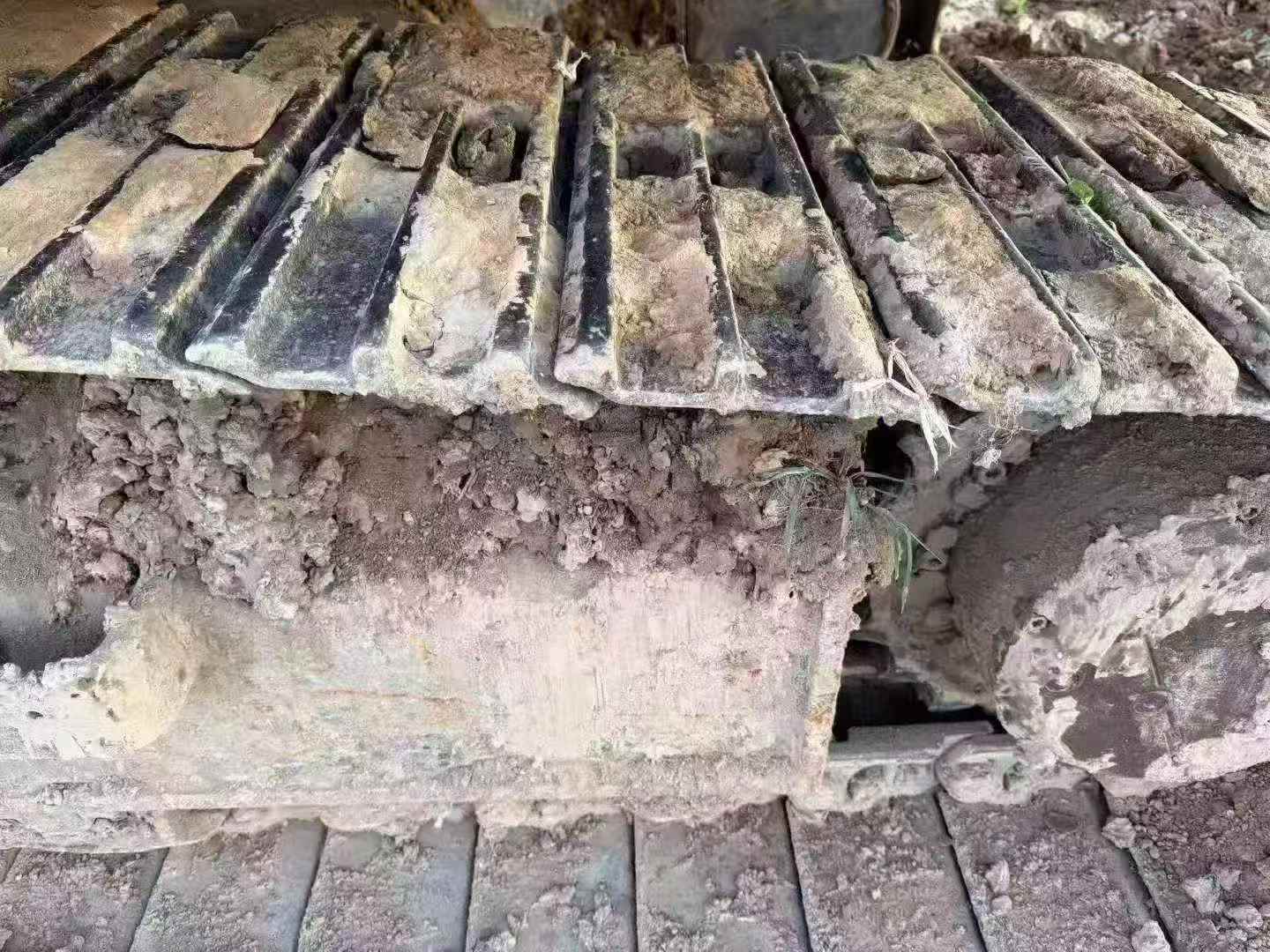

Buy Sany SY235C-8 Used Excavator / 7

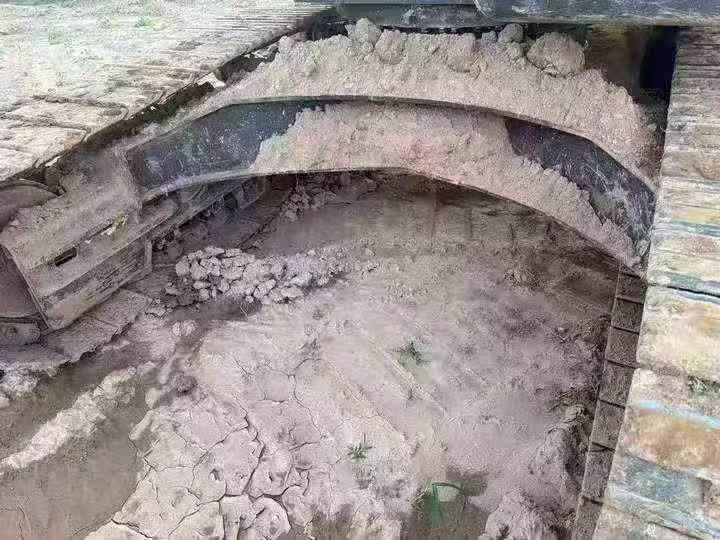

Buy Sany SY235C-8 Used Excavator / 8

Product Description

This 2020 Sany SY235C-8 hydraulic excavator represents a well-maintained example of Sany's reliable mid-size crawler excavator platform. Currently located in Hebei, China, this machine has been primarily used for earthmoving applications without attachment of heavy breaker tools, contributing to its preserved structural condition.

The unit retains original factory paint with minimal touch-ups, indicating careful operation and storage. Major components show no signs of oil leakage, and overall mechanical performance remains consistent with low-hour operation. Track assemblies exhibit approximately 95% remaining life, suggesting limited wear and proper maintenance practices.

Key features include:

  • Operating weight: approximately 23.5 tonnes
  • Hydraulic system in clean, leak-free condition
  • Original equipment configuration maintained throughout service life
  • Suitable for general earthmoving, trenching, and site development applications

This excavator is available for immediate inspection and purchase in Hebei Province.

SpecificationsValue
No.1101351
Tonnage (tons)23
Working weight (kg)22900
Bucket capacity (m³)1
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)125/2100
Cooling modewater-cooling
Ground specific pressure (Kpa)47.6
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)159
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 265
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9780
Total transport width (mm)2980
Total transport height (mm)3160
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2860
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3640
Maximum digging radius (mm)10180
Maximum digging depth (mm)6920
Maximum excavation height (mm)9380
Maximum unloading height (mm)6515
Maximum vertical digging depth (mm)6010
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1101351

Brand Name:

Sany

Model Number:

SY235C-8

Year:

2020

Location:

Hebei China
