2020 Sany SY235C-8

1/9
Buy Sany SY235C-8 Used Excavator / 1
Buy Sany SY235C-8 Used Excavator / 2
Buy Sany SY235C-8 Used Excavator / 3
Buy Sany SY235C-8 Used Excavator / 4
Buy Sany SY235C-8 Used Excavator / 5
Buy Sany SY235C-8 Used Excavator / 6
Buy Sany SY235C-8 Used Excavator / 7
Buy Sany SY235C-8 Used Excavator / 8
Buy Sany SY235C-8 Used Excavator / 9

Product Description

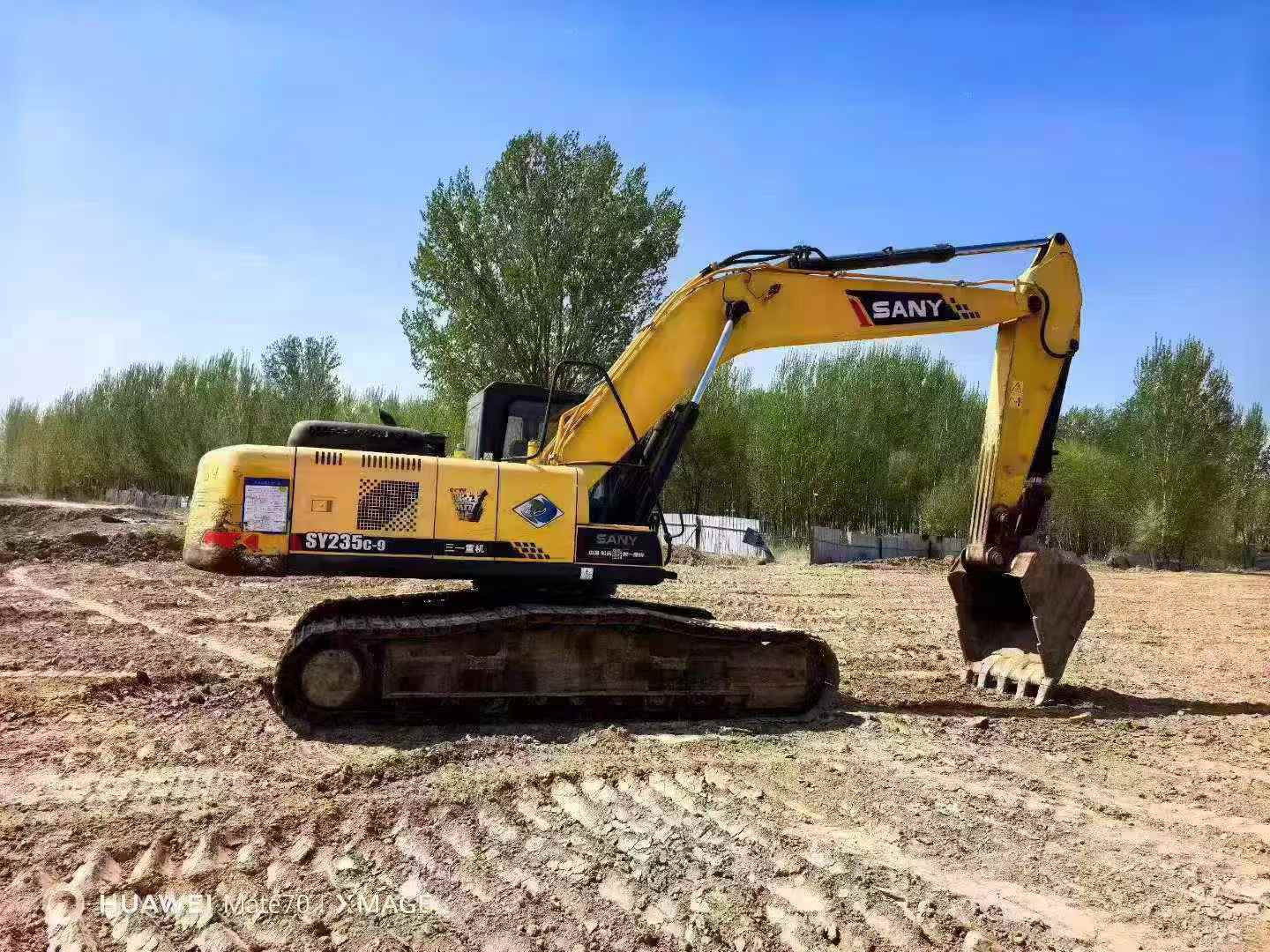

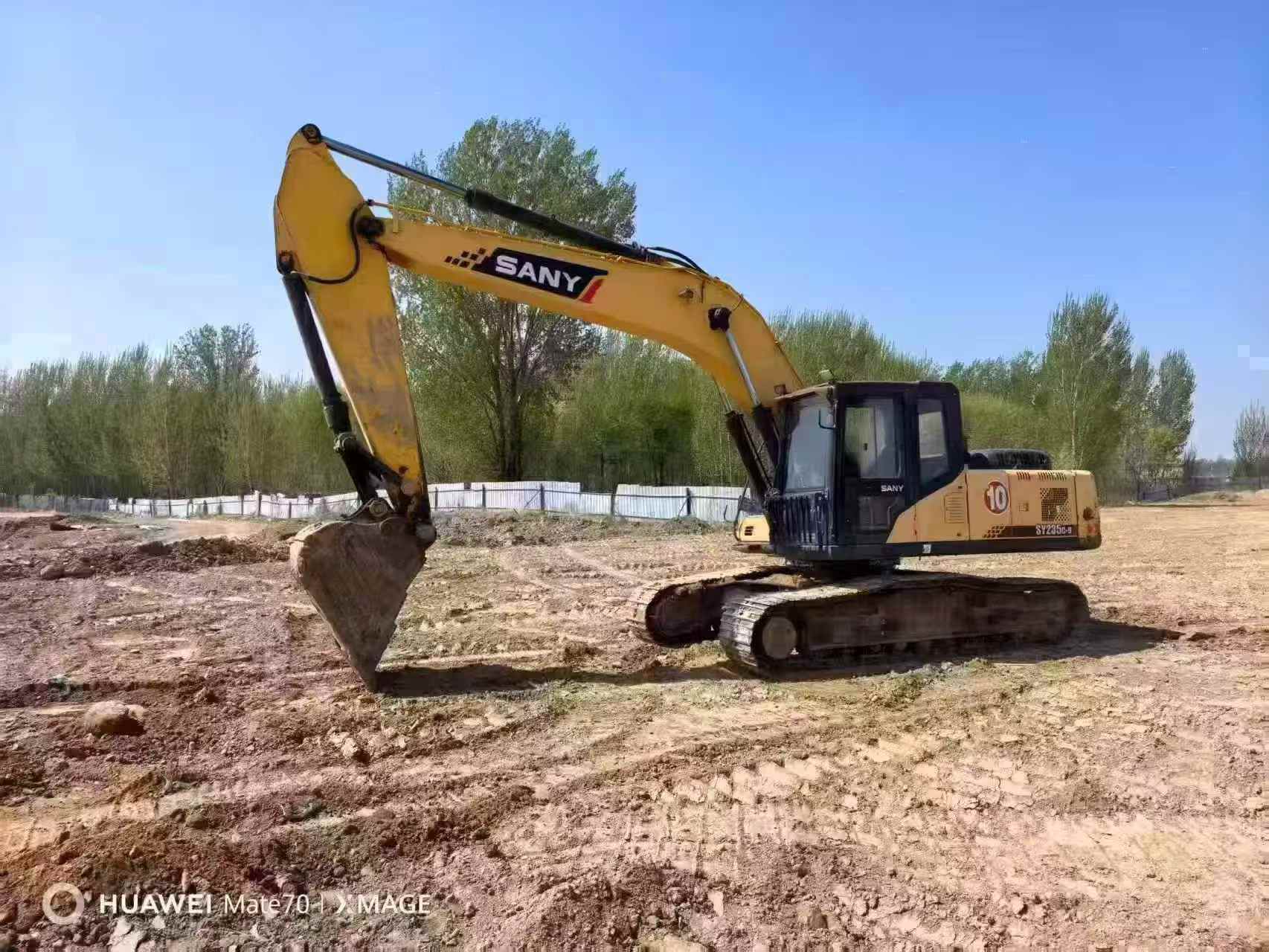

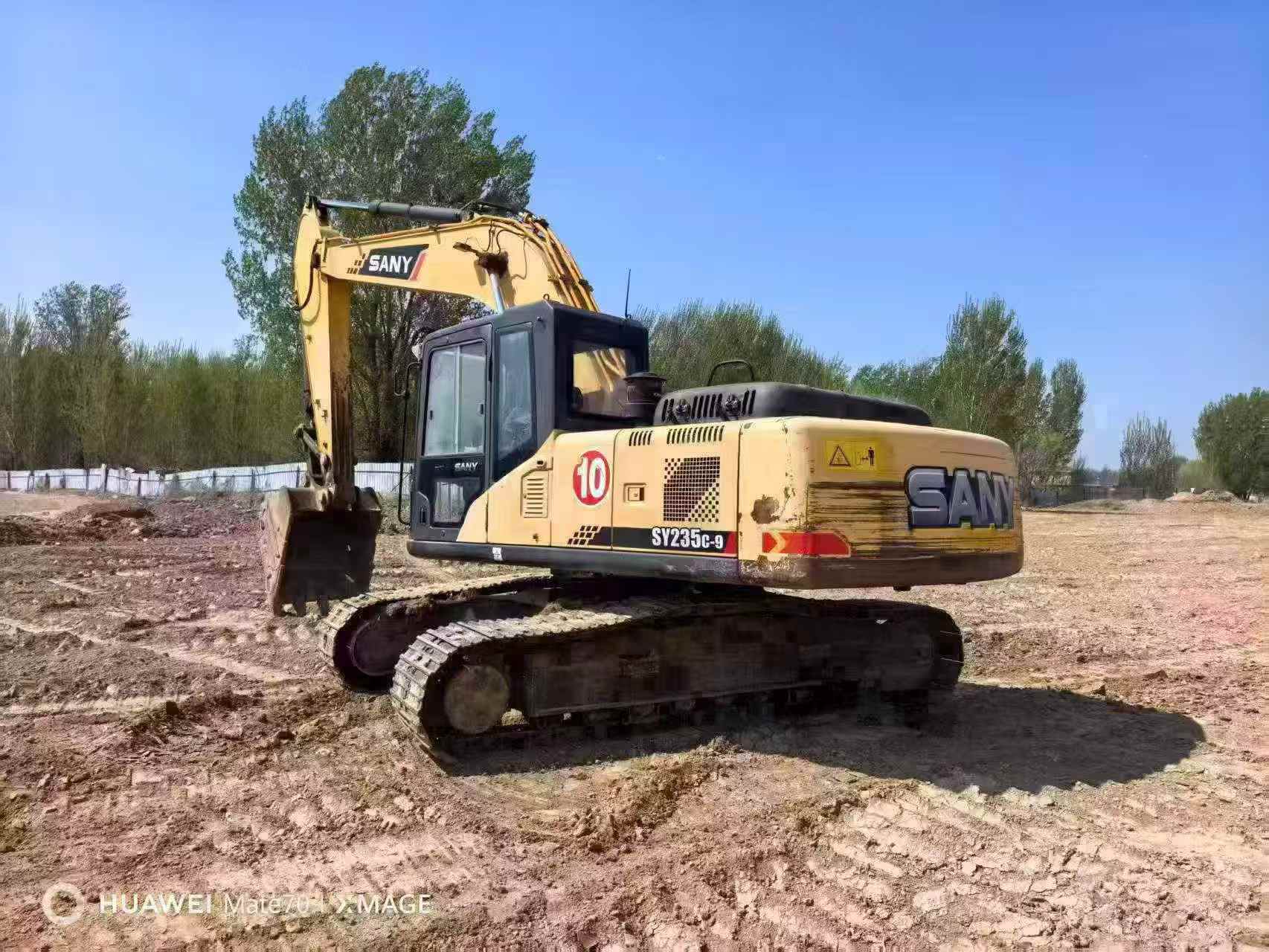

2020 Sany SY235C-8 hydraulic excavator available in Hebei, China. This 23-ton class machine comes from a single owner who purchased it new for earthmoving applications. The excavator has been used exclusively for soil excavation work without hydraulic breaker attachment, resulting in reduced wear on the hydraulic system and undercarriage.

Key highlights:

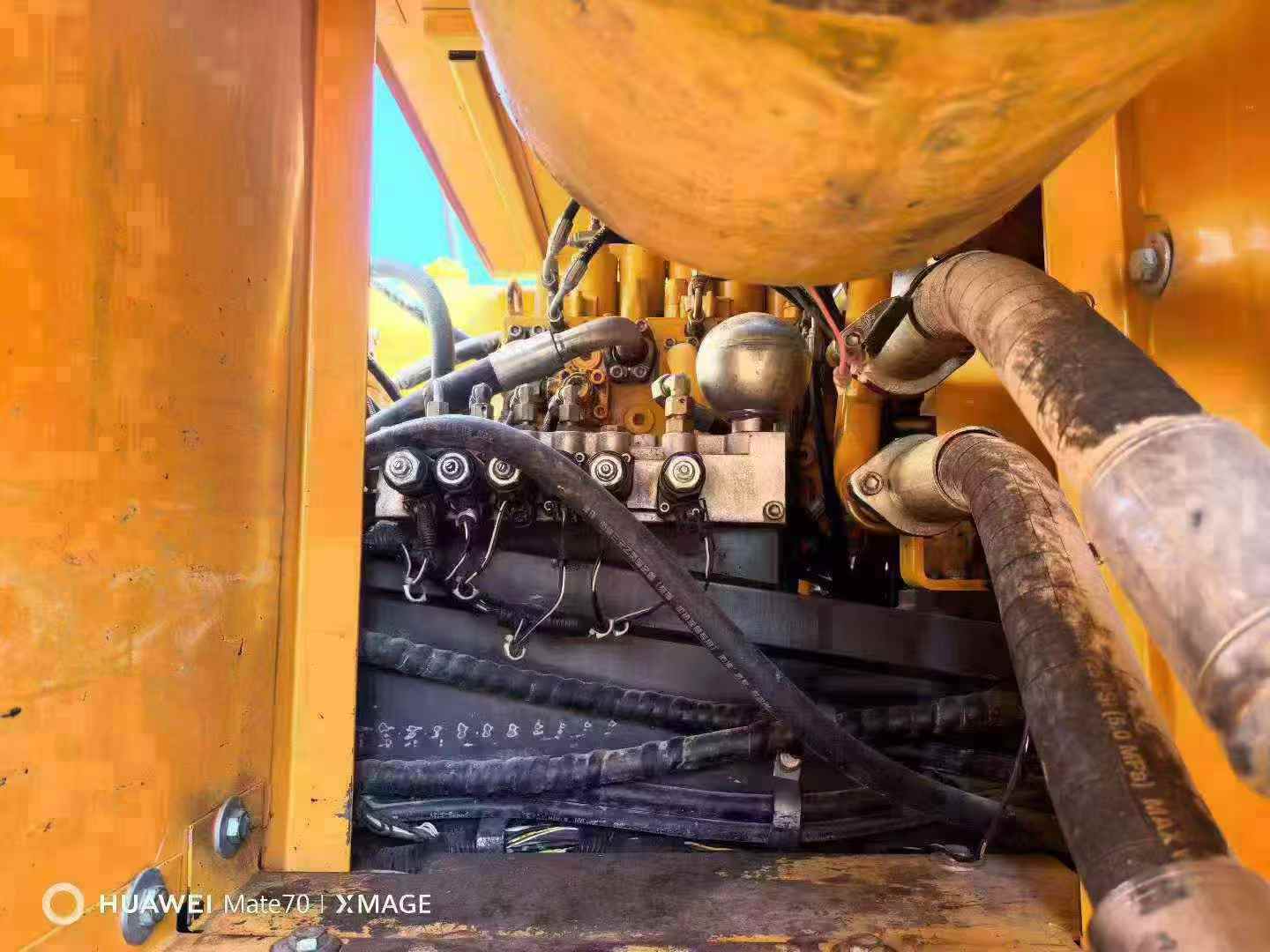

  • Original major components (engine, hydraulic pump, main valve) unserviced and in working condition
  • No oil leaks reported from hydraulic or engine systems

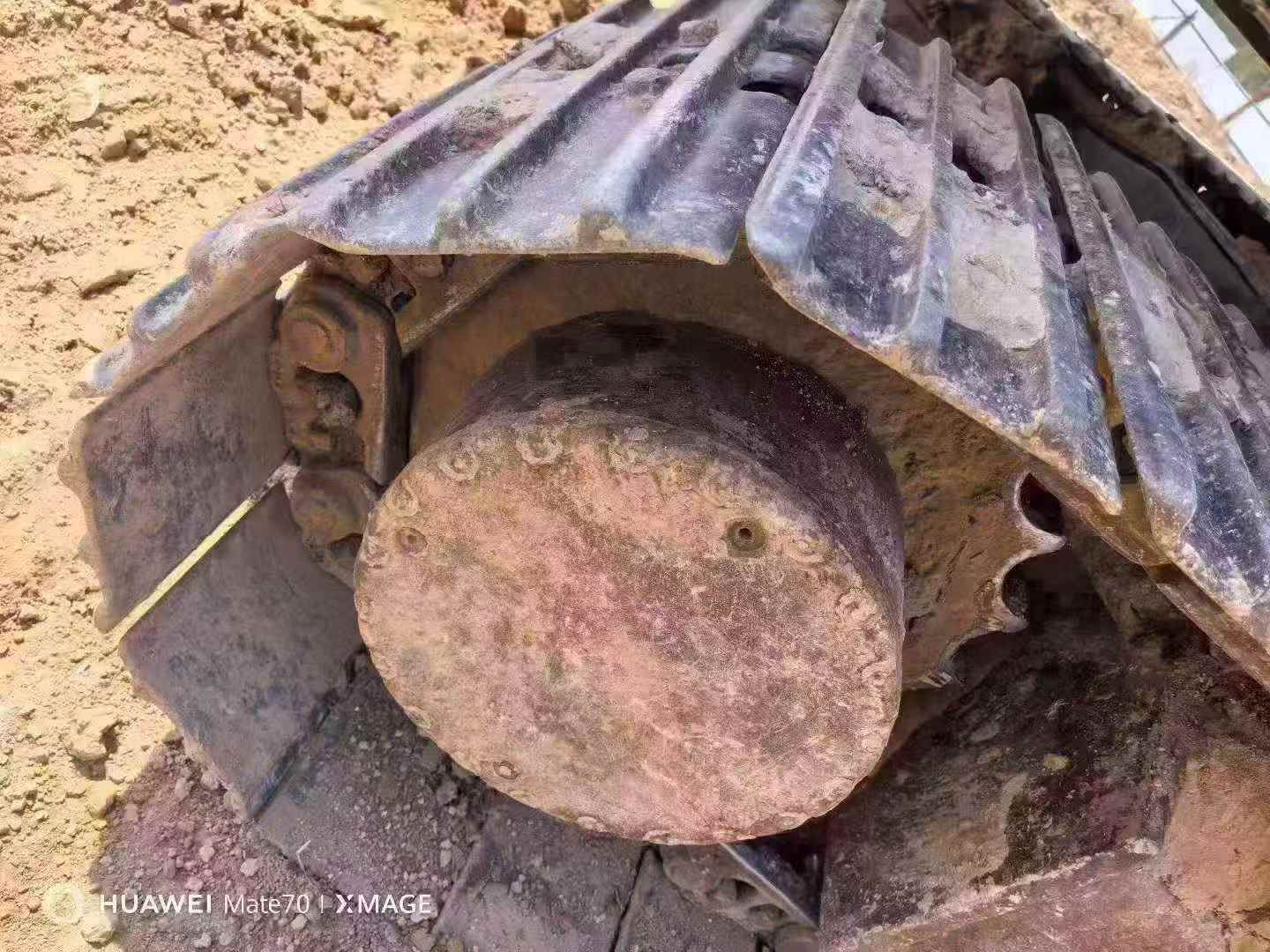

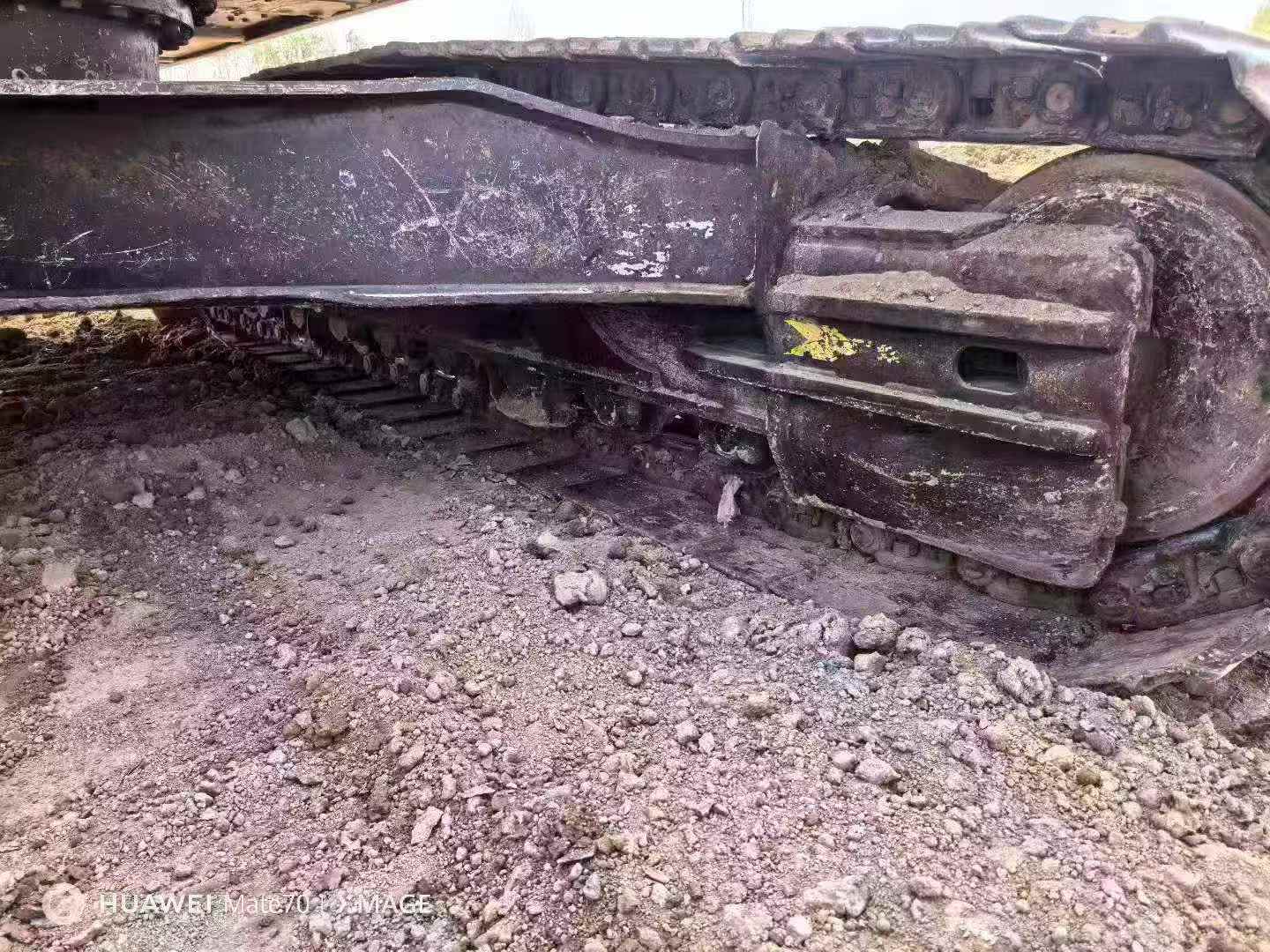

  • Track pads show approximately 90% remaining tread life
  • Recently released from completed construction project
  • Standard Sany SY235C-8 specifications: operating weight ~23,500 kg, bucket capacity 1.0-1.2 m³

Suitable for contractors seeking a low-hour mid-size excavator with documented single-ownership history. Inspection welcomed.

SpecificationsValue
No.1101356
Tonnage (tons)23
Working weight (kg)22900
Bucket capacity (m³)1
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)125/2100
Cooling modewater-cooling
Ground specific pressure (Kpa)47.6
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)159
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 265
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9780
Total transport width (mm)2980
Total transport height (mm)3160
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2860
Total track length (mm)4445
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3640
Maximum digging radius (mm)10180
Maximum digging depth (mm)6920
Maximum excavation height (mm)9380
Maximum unloading height (mm)6515
Maximum vertical digging depth (mm)6010
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1101356

Brand Name:

Sany

Model Number:

SY235C-8

Year:

2020

Location:

Hebei China
