Product Description

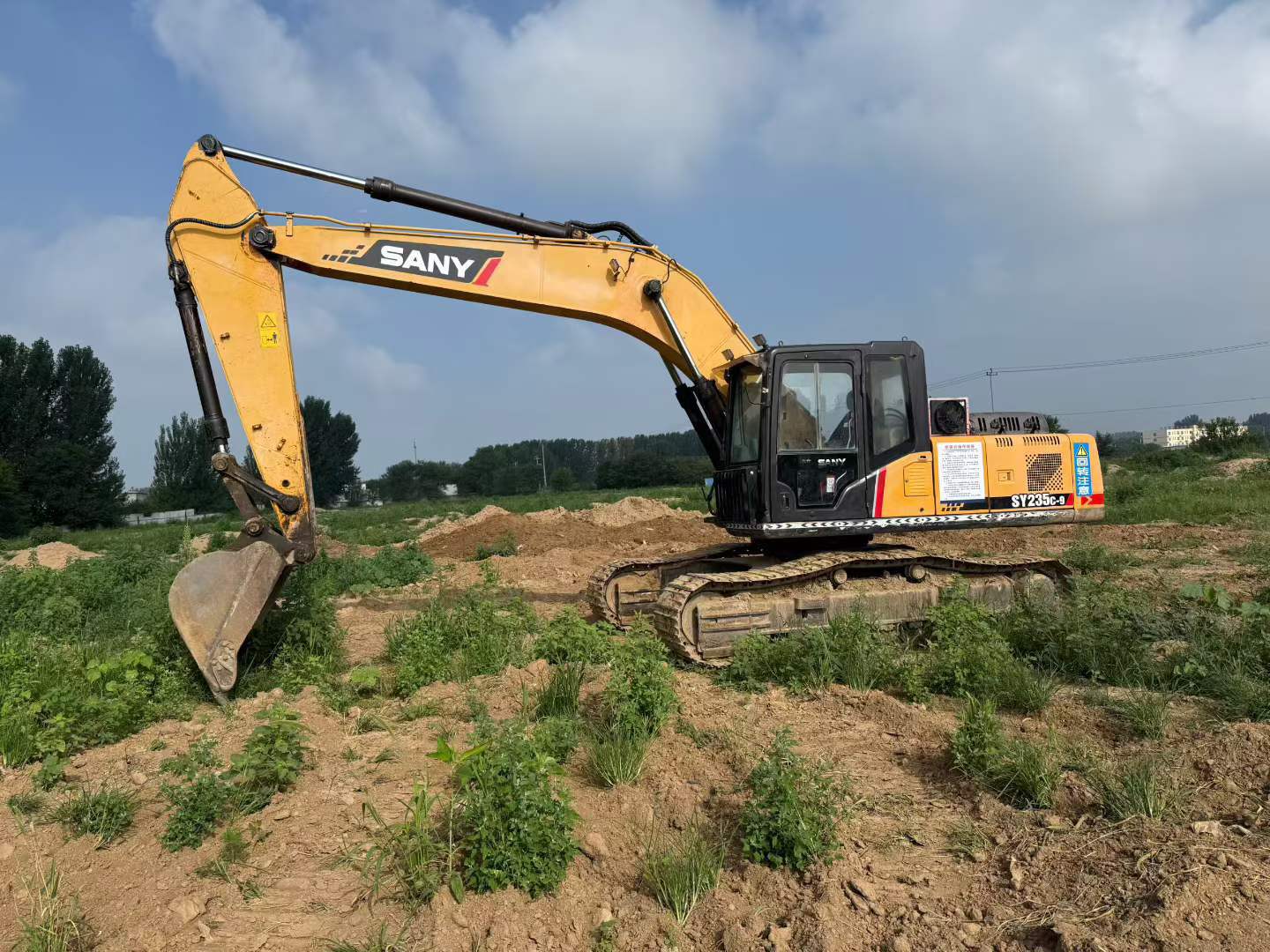

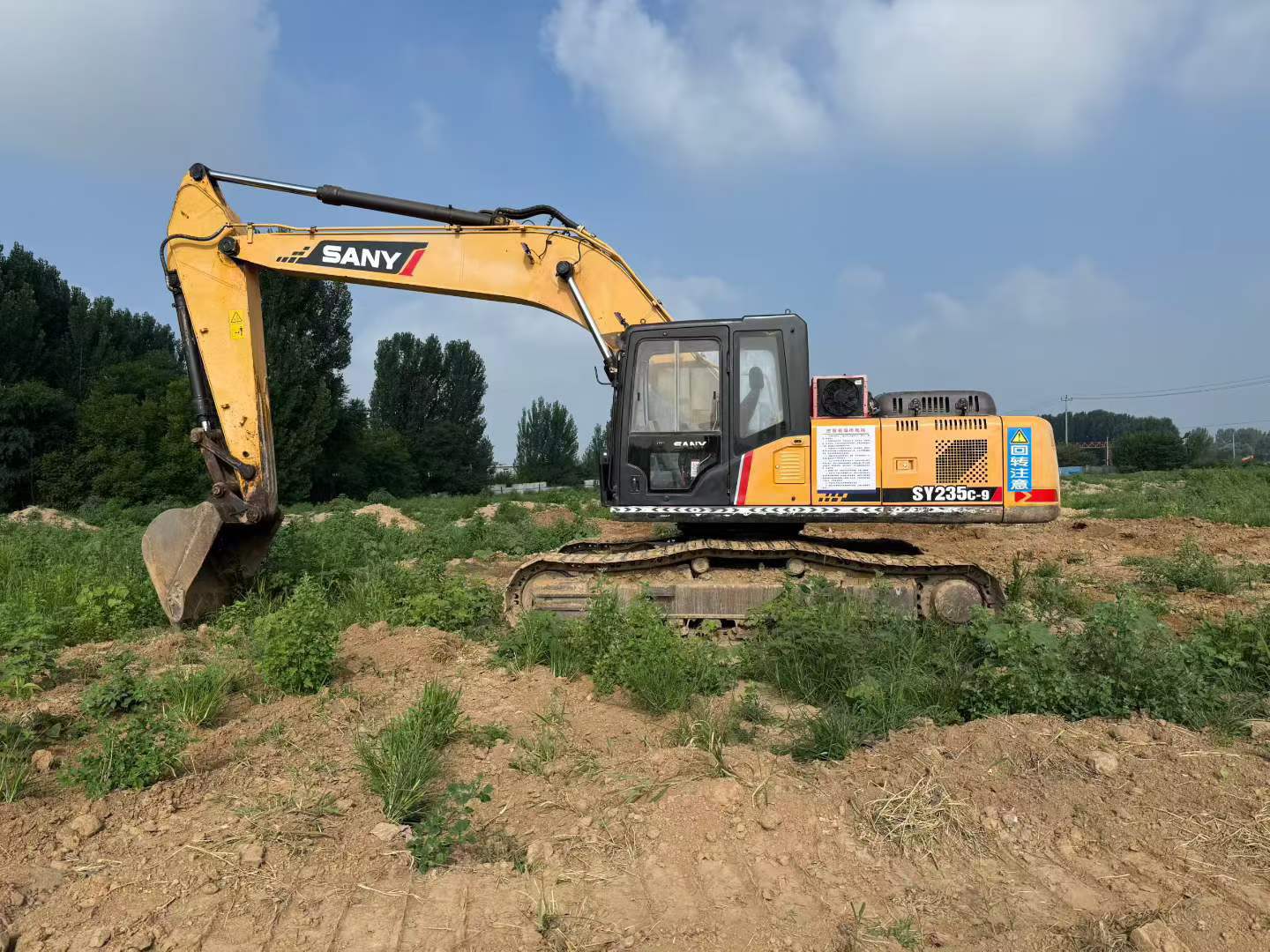

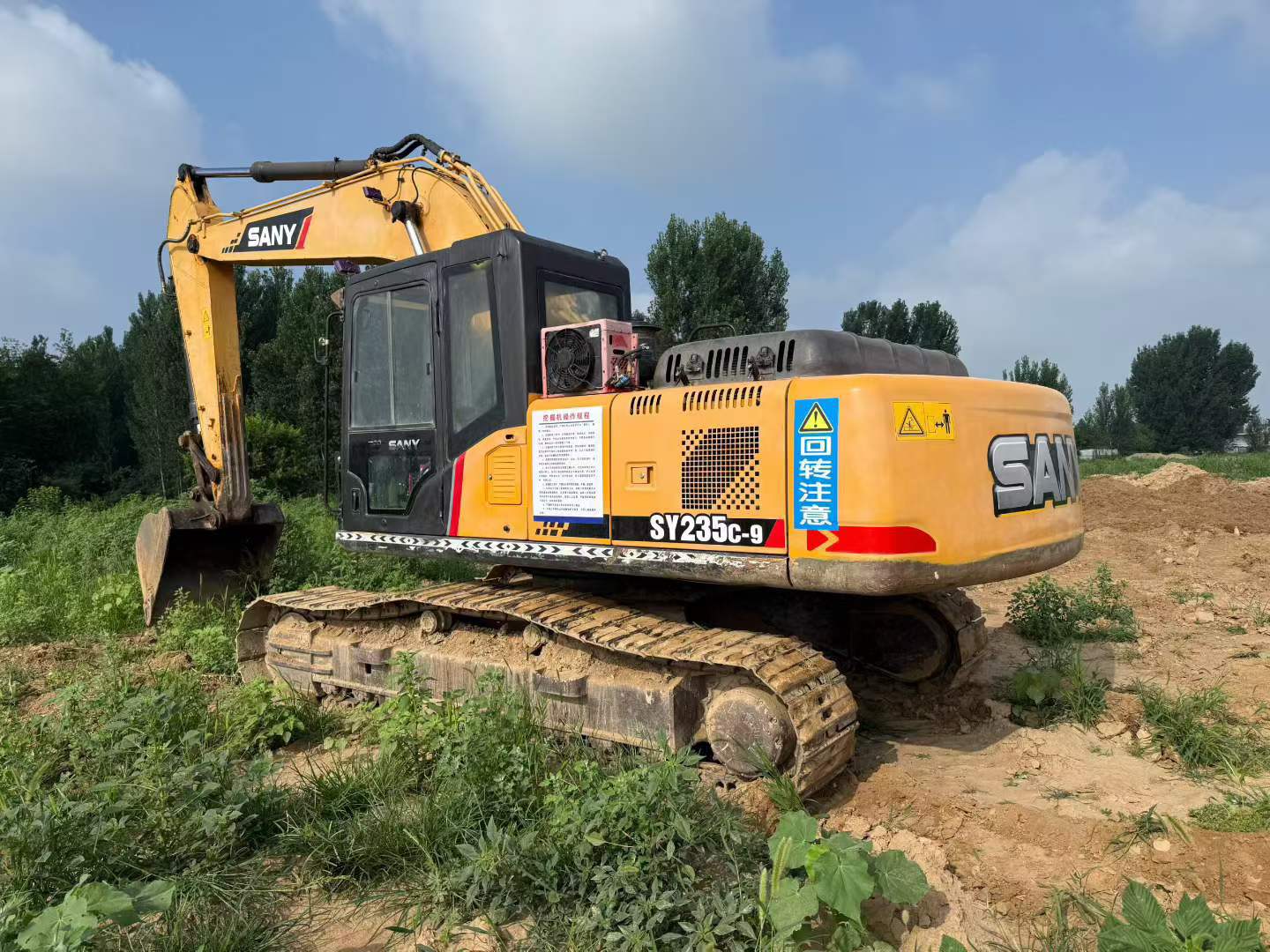

Discover the 2020 Sany SY235C-8, a top-tier excavator currently available in Hebei, China. This machine is ideal for demanding earthwork projects, boasting exceptional performance and reliability. It has been meticulously maintained, with a recent service completed, ensuring it is ready for immediate deployment to your worksite. The excavator is in excellent condition, with components that are nearly new, rated at 9.5 out of 10. Notably, this model is known for its robustness and efficiency, making it a valuable asset for any construction fleet. Don't miss the opportunity to acquire this high-quality, well-maintained Sany SY235C-8.
- Year: 2020
- Brand: Sany
- Model: SY235C-8
- Location: Hebei, China
- Condition: Excellent, recently serviced
| Specifications | Value |
|---|---|
| No. | 1102582 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22900 |
| Bucket capacity (m³) | 1 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |

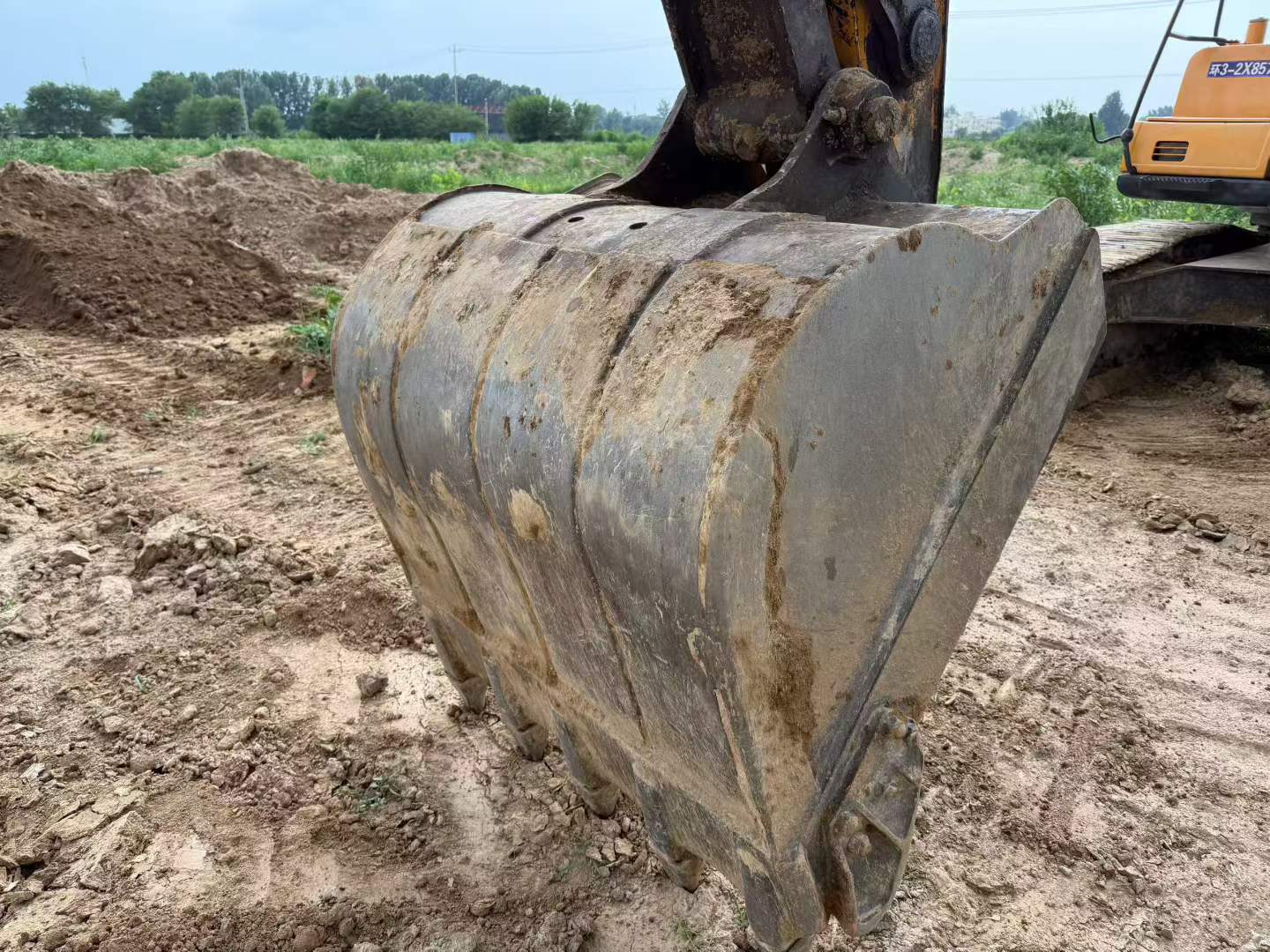

| bucket | backhoe |

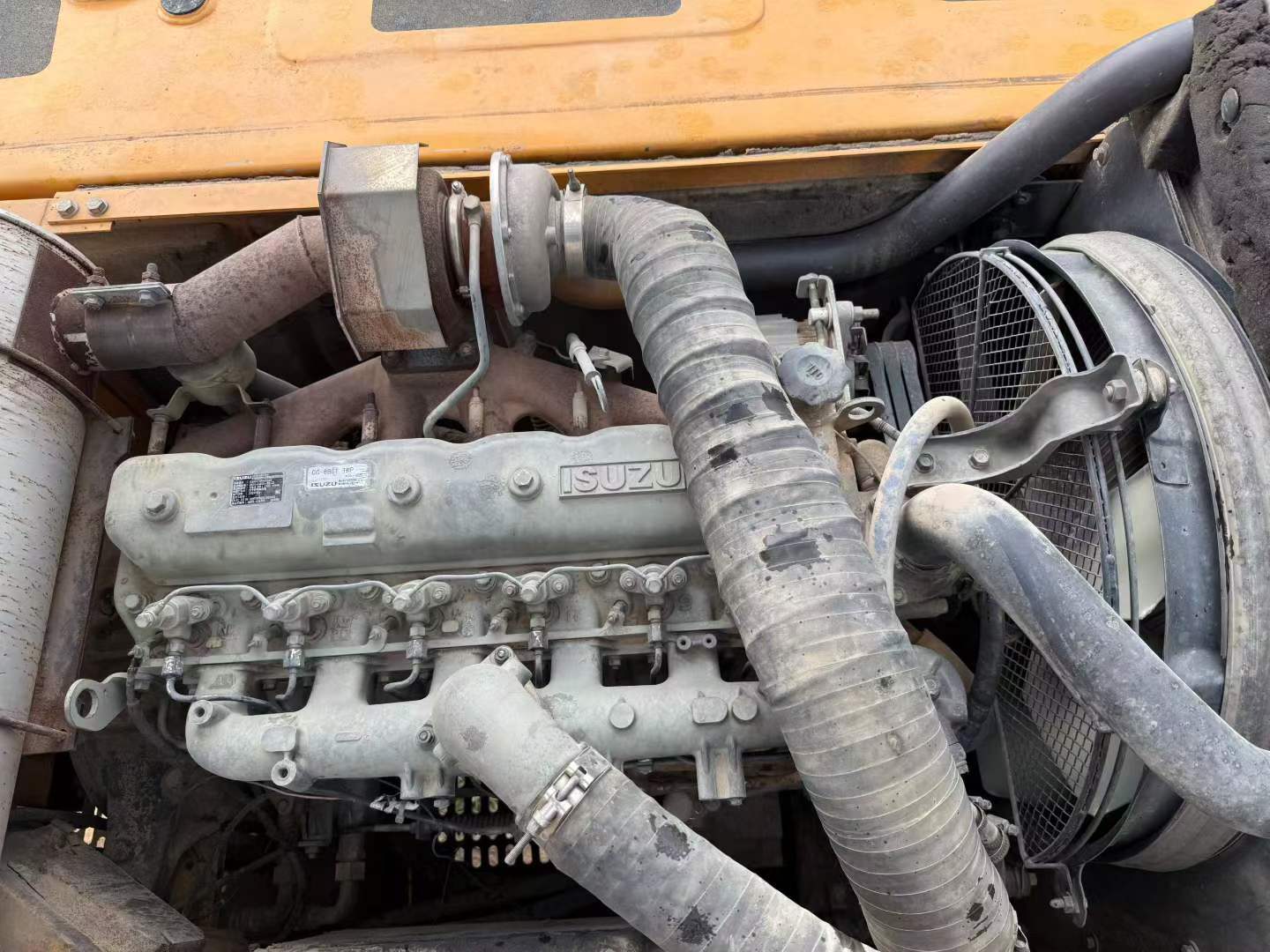

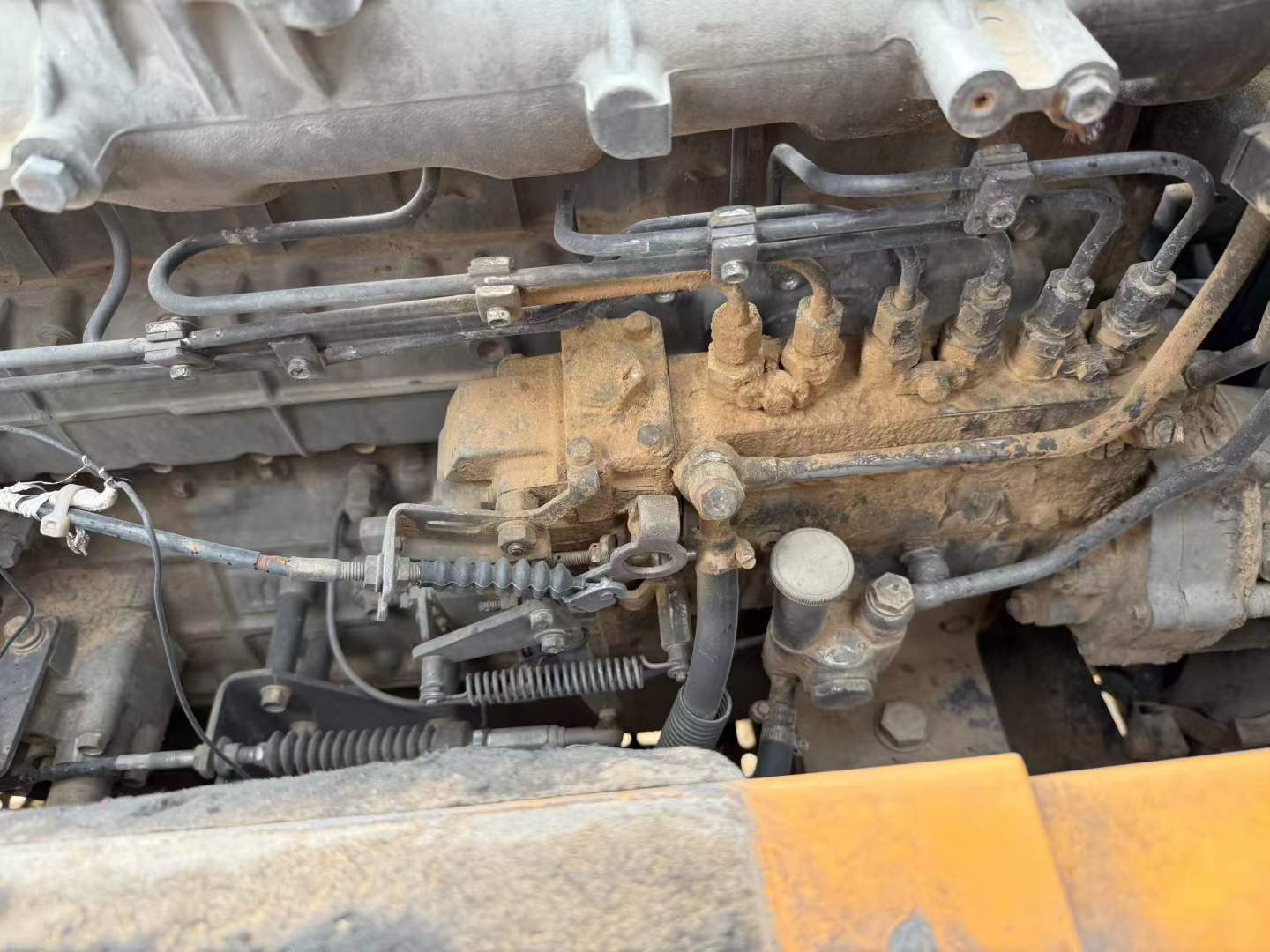

| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 47.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 159 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |

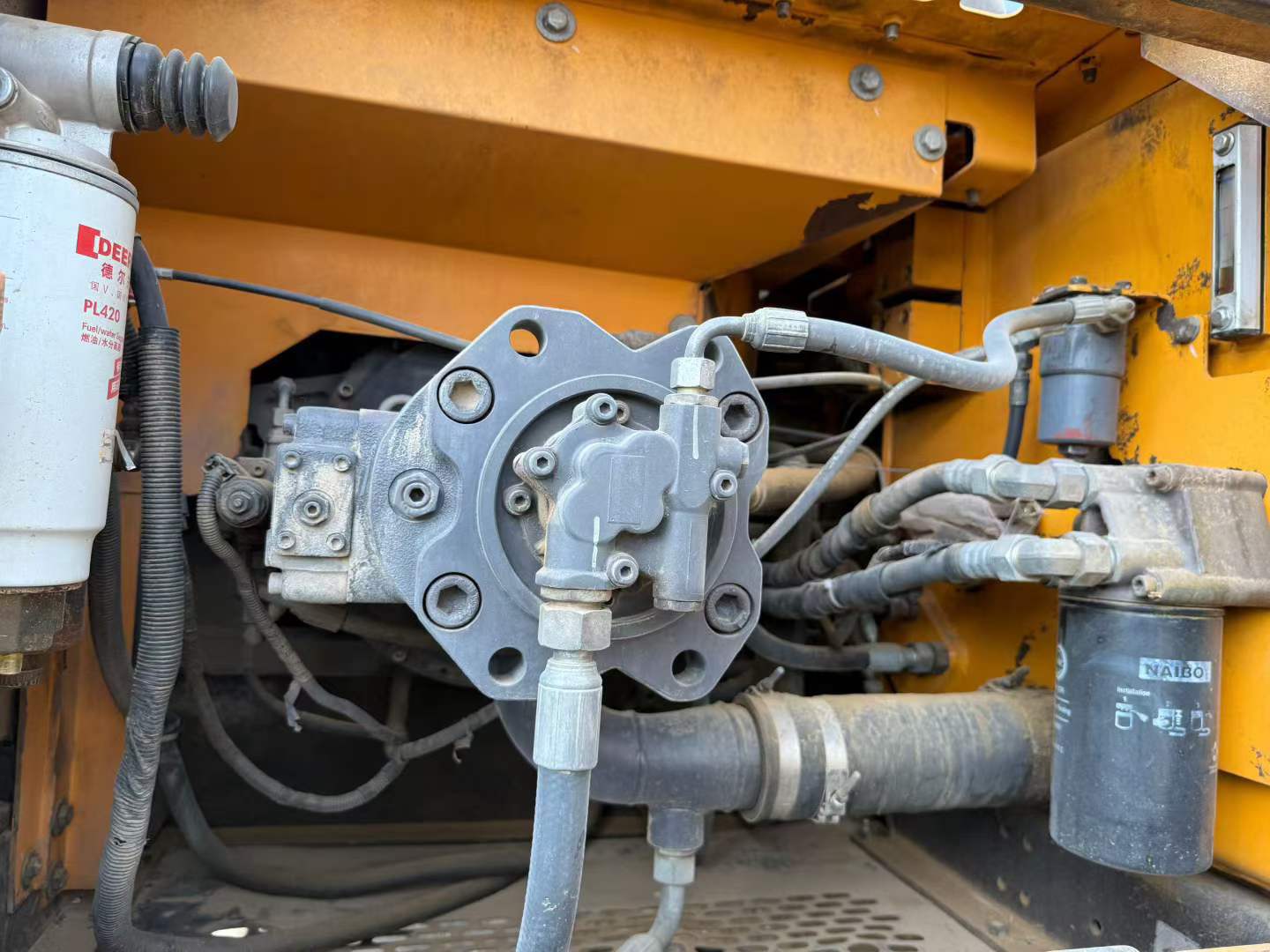

| Maximum flow of main pump (l/min) | 2 x 265 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9780 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3160 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2860 |

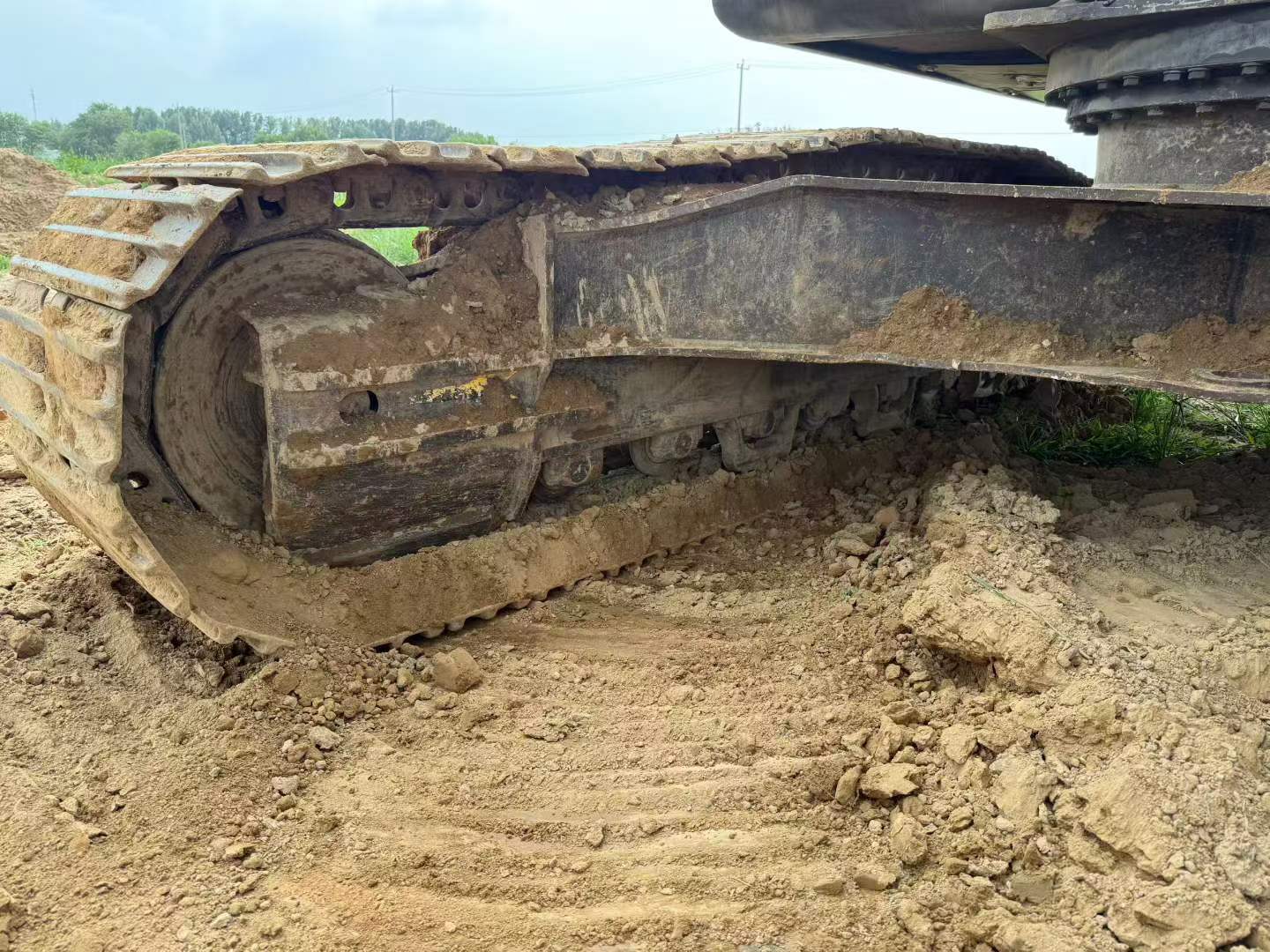

| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 9380 |
| Maximum unloading height (mm) | 6515 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | There is no |
