Product Description

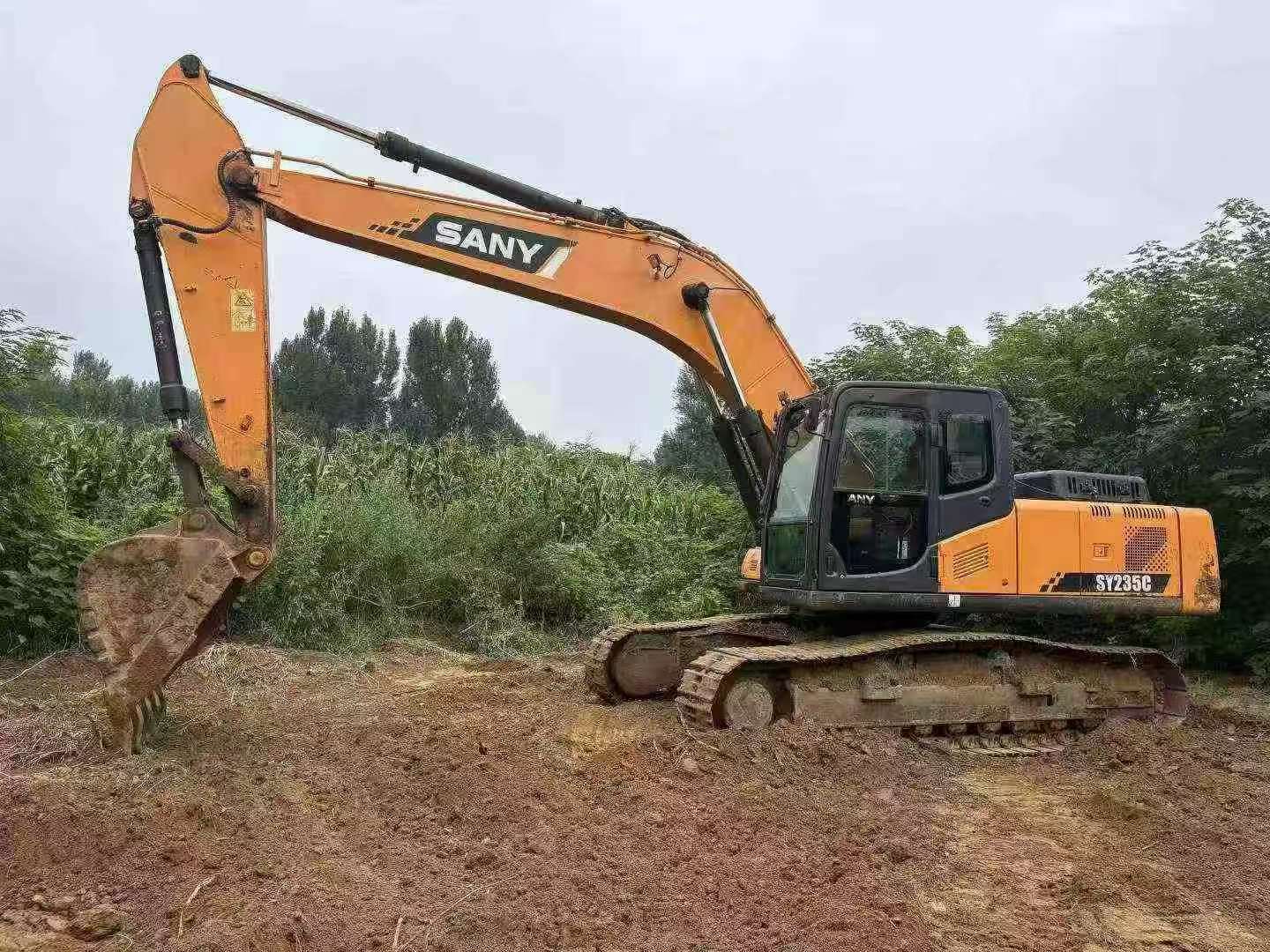

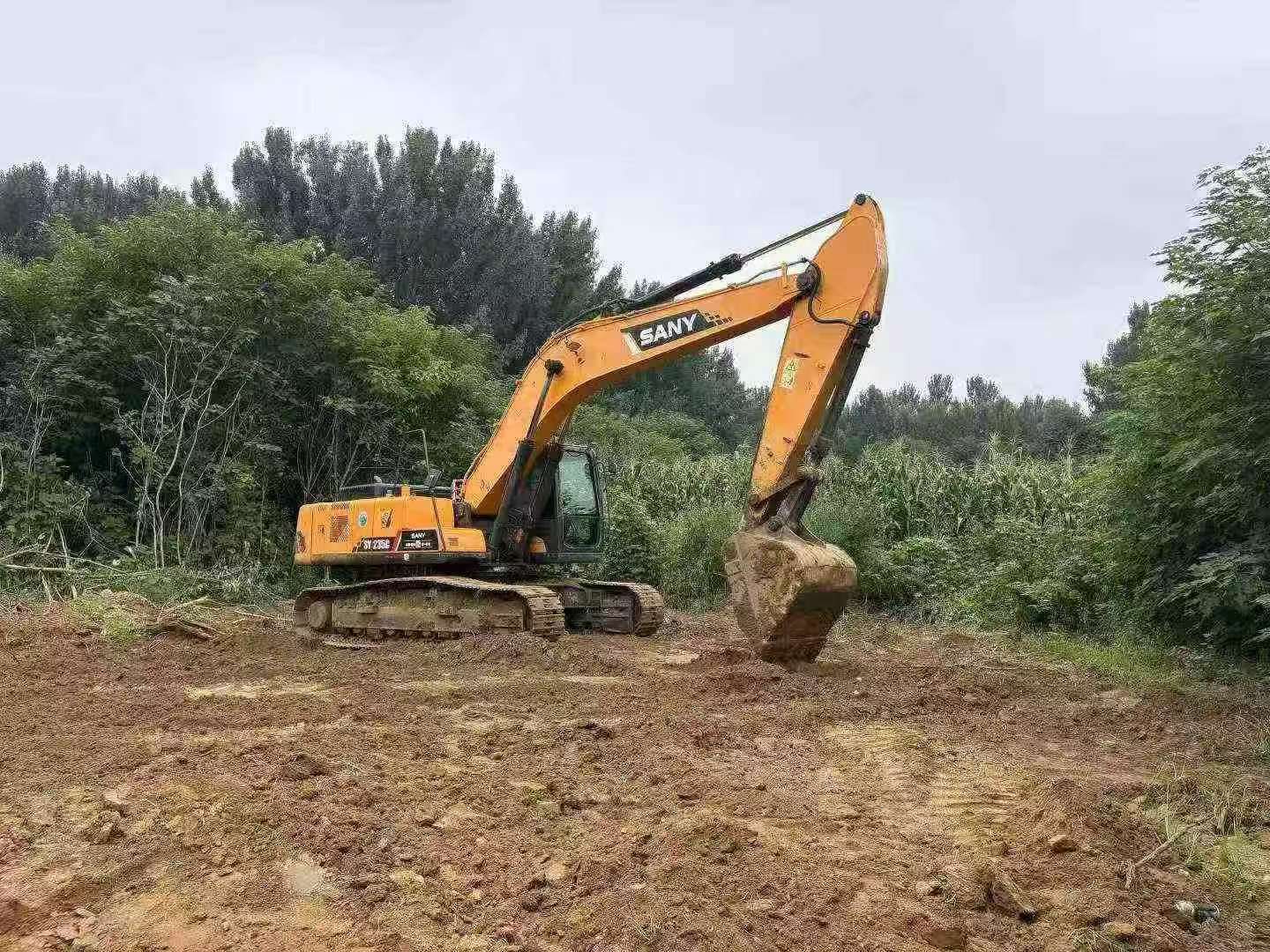

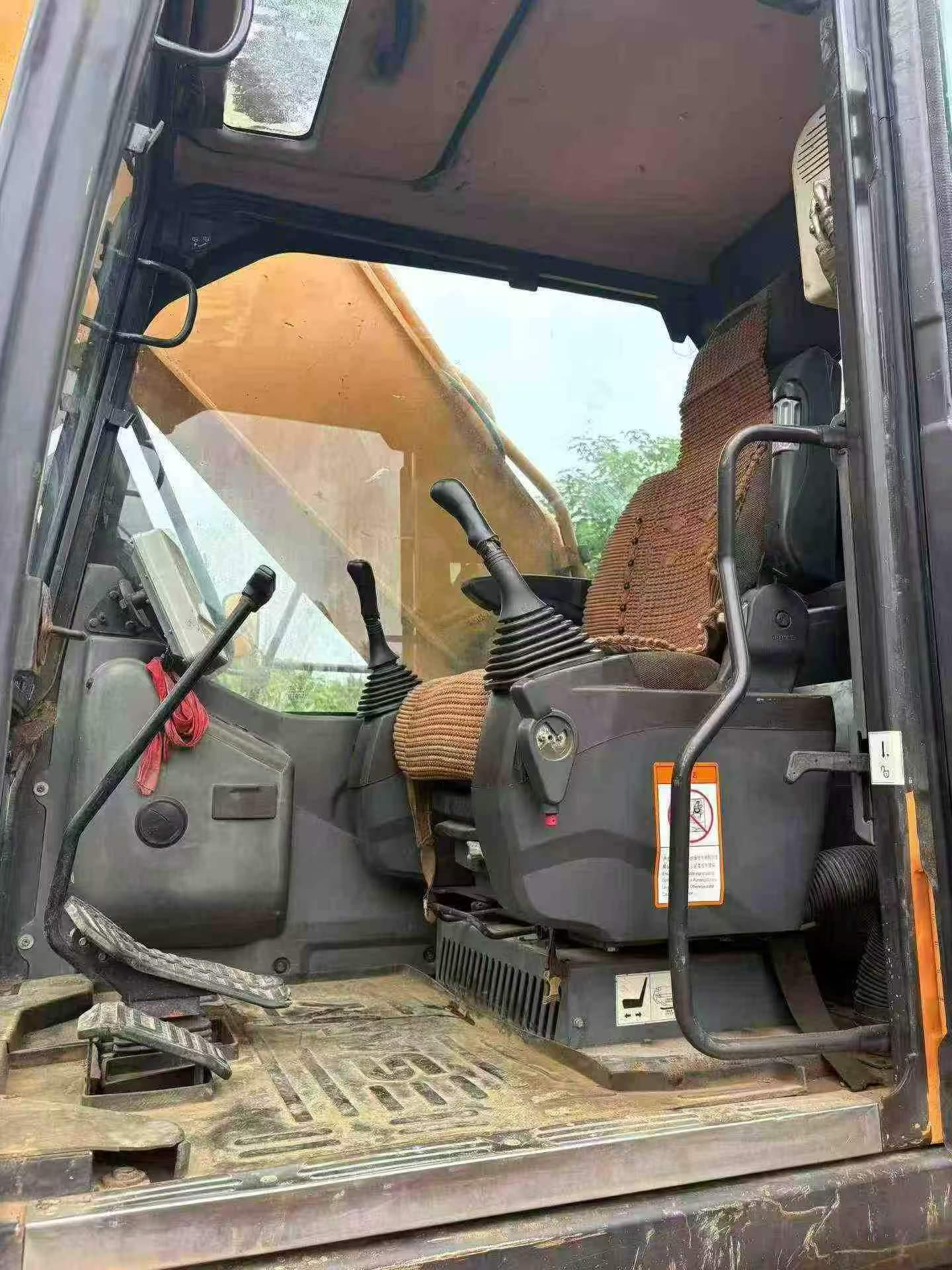

This 2020 Sany SY235C-8 excavator represents a well-maintained mid-size crawler excavator suitable for earthmoving and general construction applications. Currently located in Hebei, China, this machine has been primarily utilized for soil excavation work and shows consistent operational performance.
Key features include:
- Sany SY235C-8 model from 2020

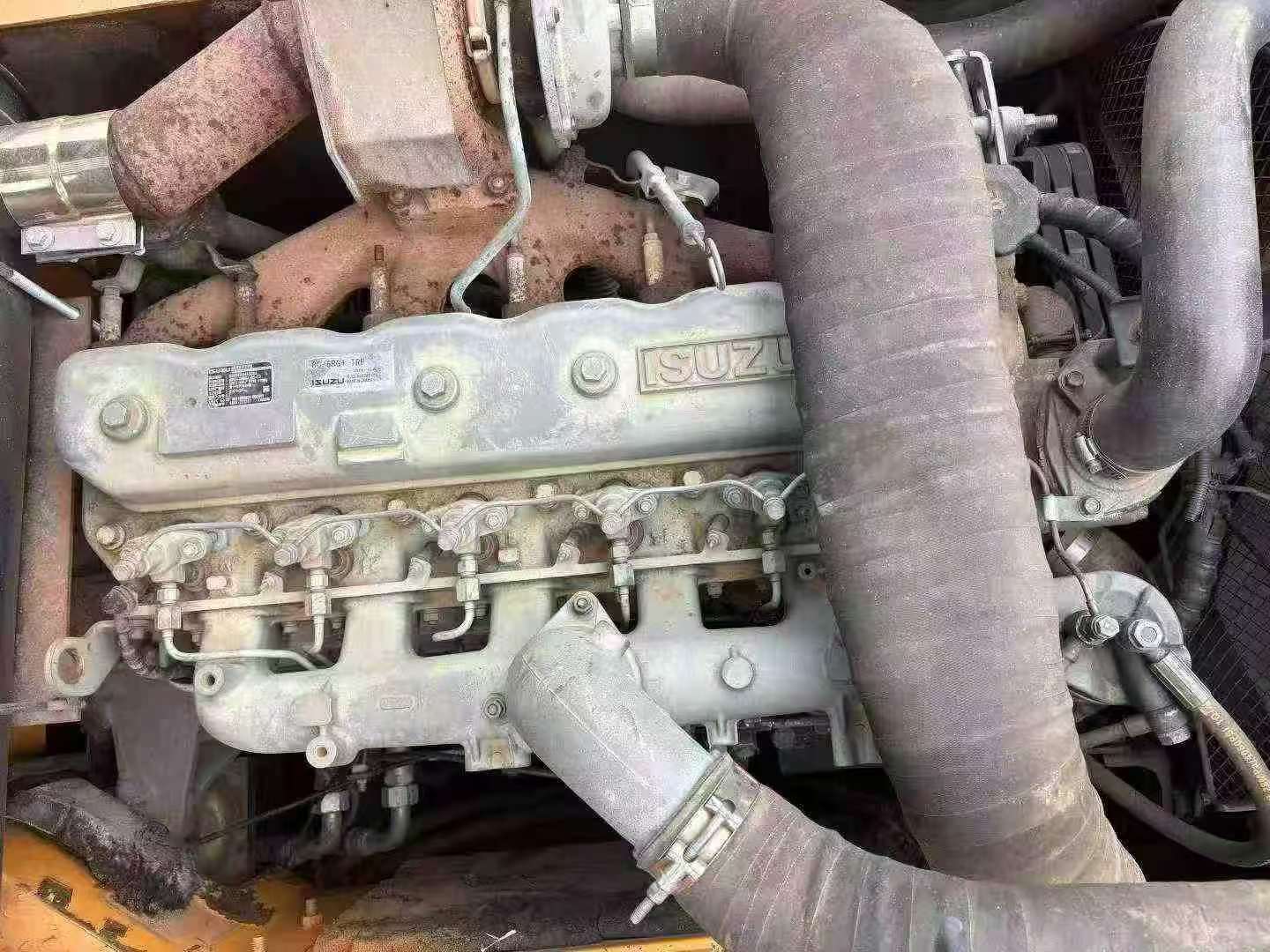

- Isuzu direct injection diesel engine for reliable power delivery
- Primarily used for earthmoving operations
- Major components remain original without major overhauls
- Available for domestic and international trade
This excavator offers a practical solution for contractors and equipment dealers seeking dependable used machinery. The machine's service history indicates standard maintenance protocols have been followed. Inspection welcome prior to purchase. Suitable for export or regional deployment.
| Specifications | Value |
|---|---|
| No. | 1137943 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22900 |
| Bucket capacity (m³) | 1 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 47.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 159 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |

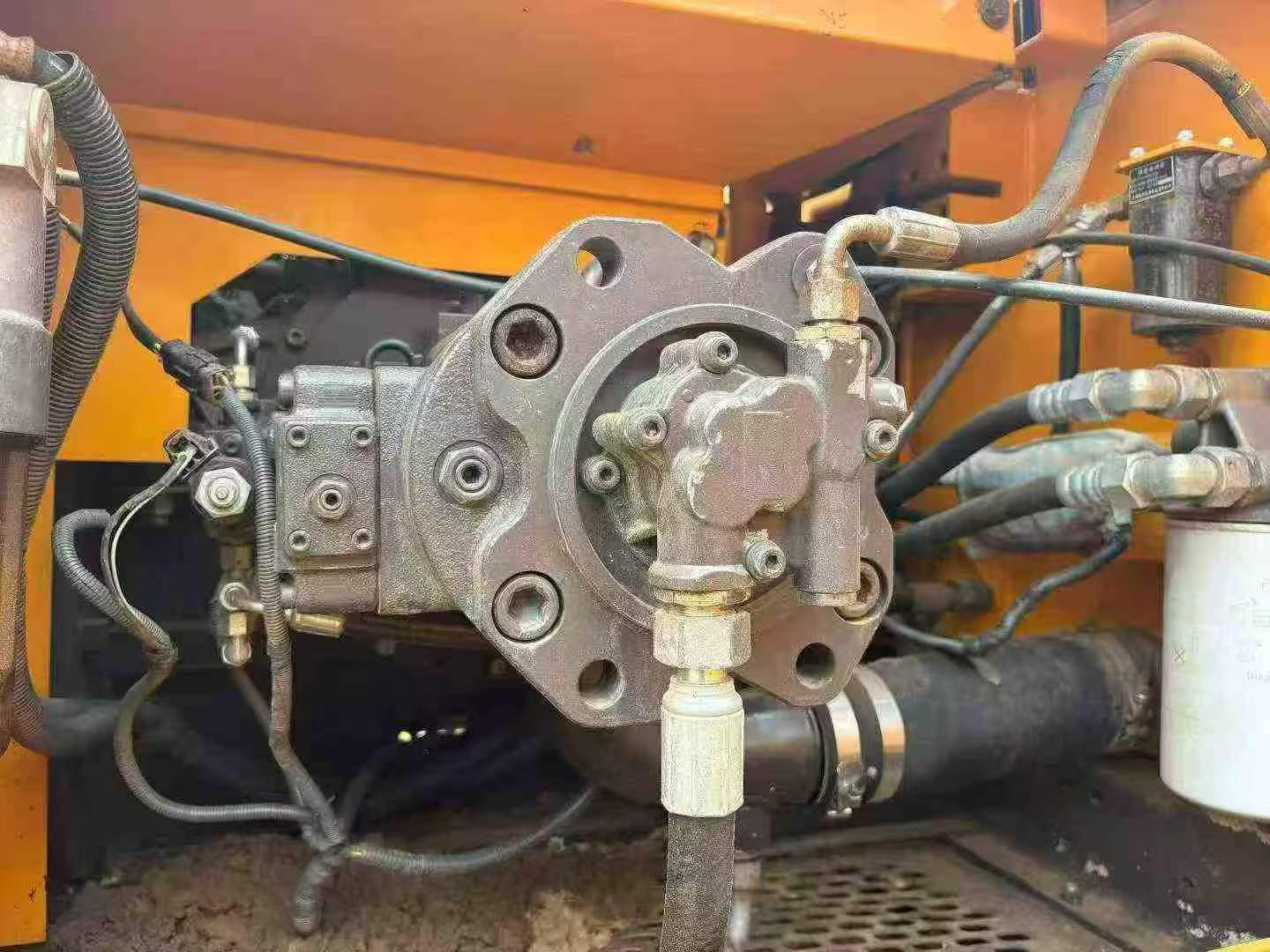

| Maximum flow of main pump (l/min) | 2 x 265 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9780 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3160 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2860 |

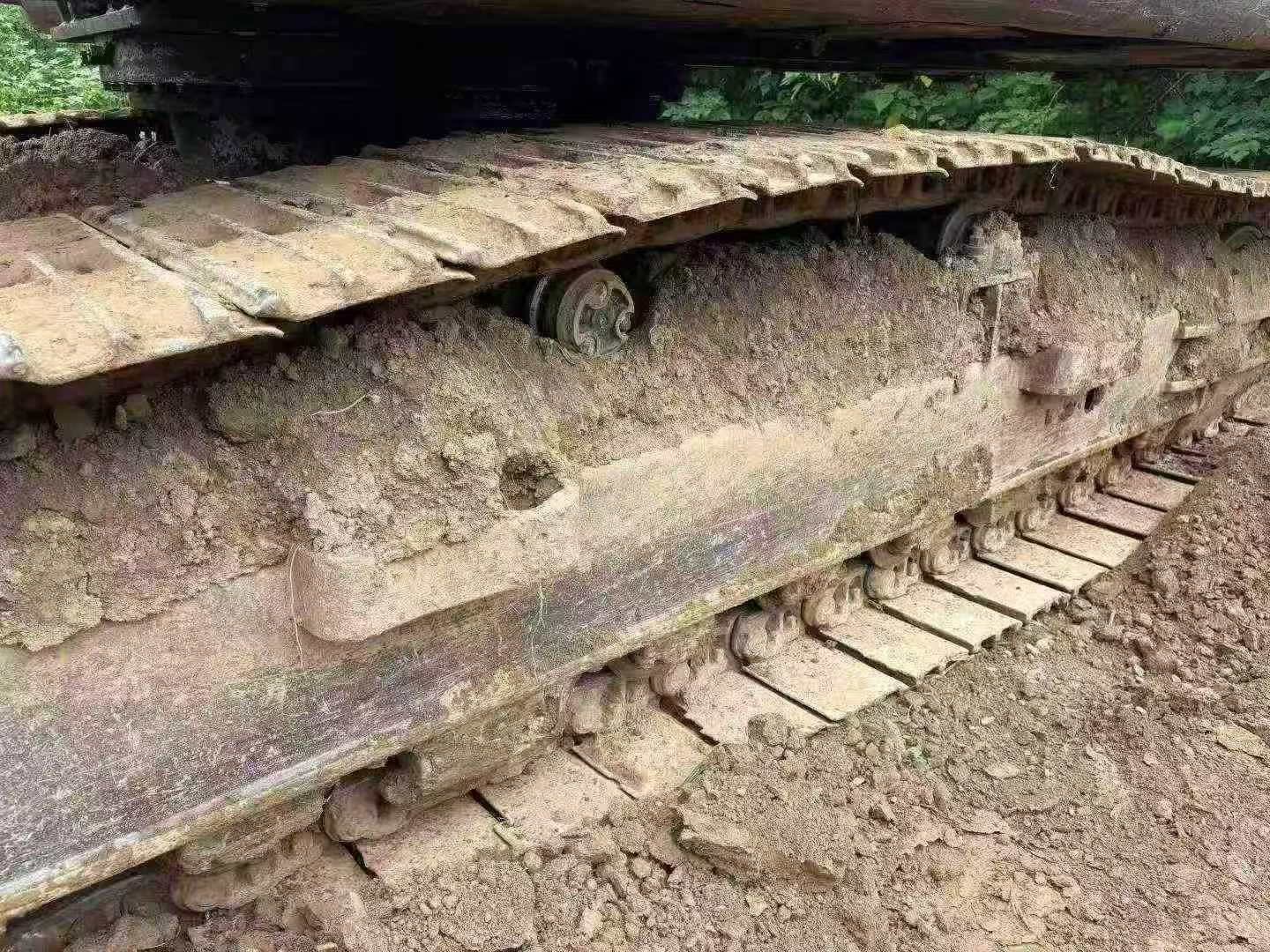

| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 9380 |
| Maximum unloading height (mm) | 6515 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | There is no |
