Product Description

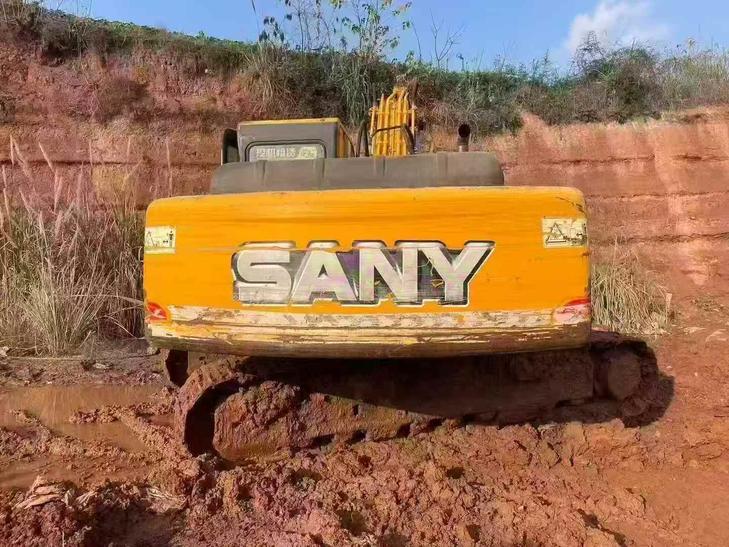

With a working weight of 24,200 kg and a powerful ISUZU 6BG1 engine, this 2016 Sany SY235C-9 excavator is an ideal fleet addition for busy contractors. Offering a bucket capacity of 1.1 to 1.2 m³ and a digging force of 175 kN, it ensures efficient and robust performance on any job site. The 23-ton machine features a four-stroke, six-cylinder turbocharged direct injection engine, delivering 128.5 kW at 2100 rpm, and boasts a maximum digging depth of 6785 mm.
- Ground specific pressure: 47.6 Kpa
- Climbing ability: 70% / 35°
- Travel speed: 5.5/3.5 km/h
- Total transport dimensions: 9920 x 2980 x 3550 mm
- Track gauge: 2380 mm
- Maximum digging radius: 10150 mm
- Maximum unloading height: 6725 mm
Located in 贵州, this Made in China excavator is ready to integrate seamlessly into your existing fleet, providing reliable backup and enhancing your operational efficiency.
| Specifications | Value |
|---|---|
| No. | 1000747 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 24200 |
| Bucket capacity (m³) | 1.1 (Optional 1.1 to 1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU 6BG1 |
| Rated power (kw/rpm) | 128.5/2100 |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Four-stroke, six-cylinder turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 122 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 9920 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3550 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7940 |
| Maximum digging radius (mm) | 10150 |
| Maximum digging depth (mm) | 6785 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6725 |
| Maximum vertical digging depth (mm) | 5845 |
