Product Description

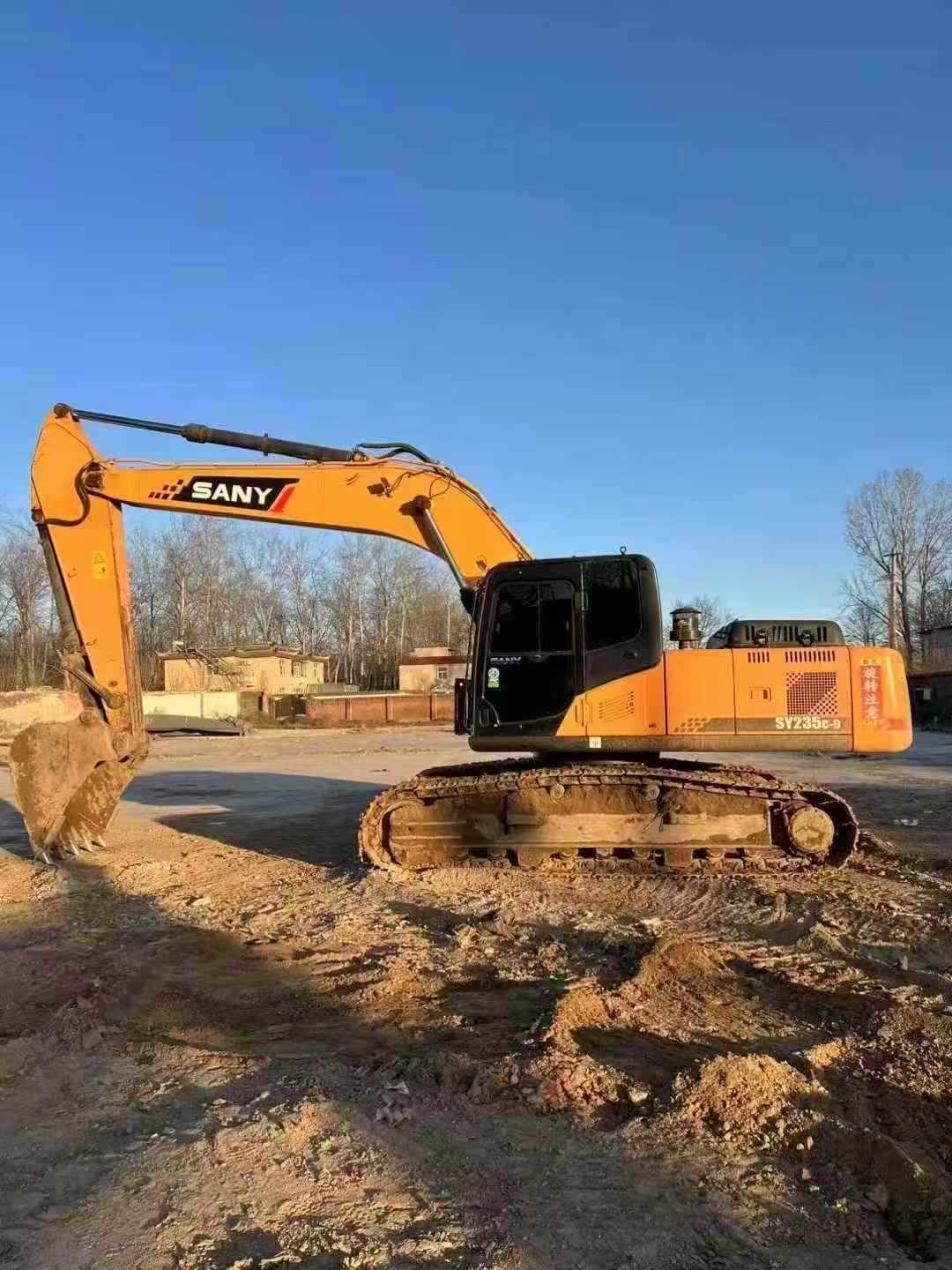

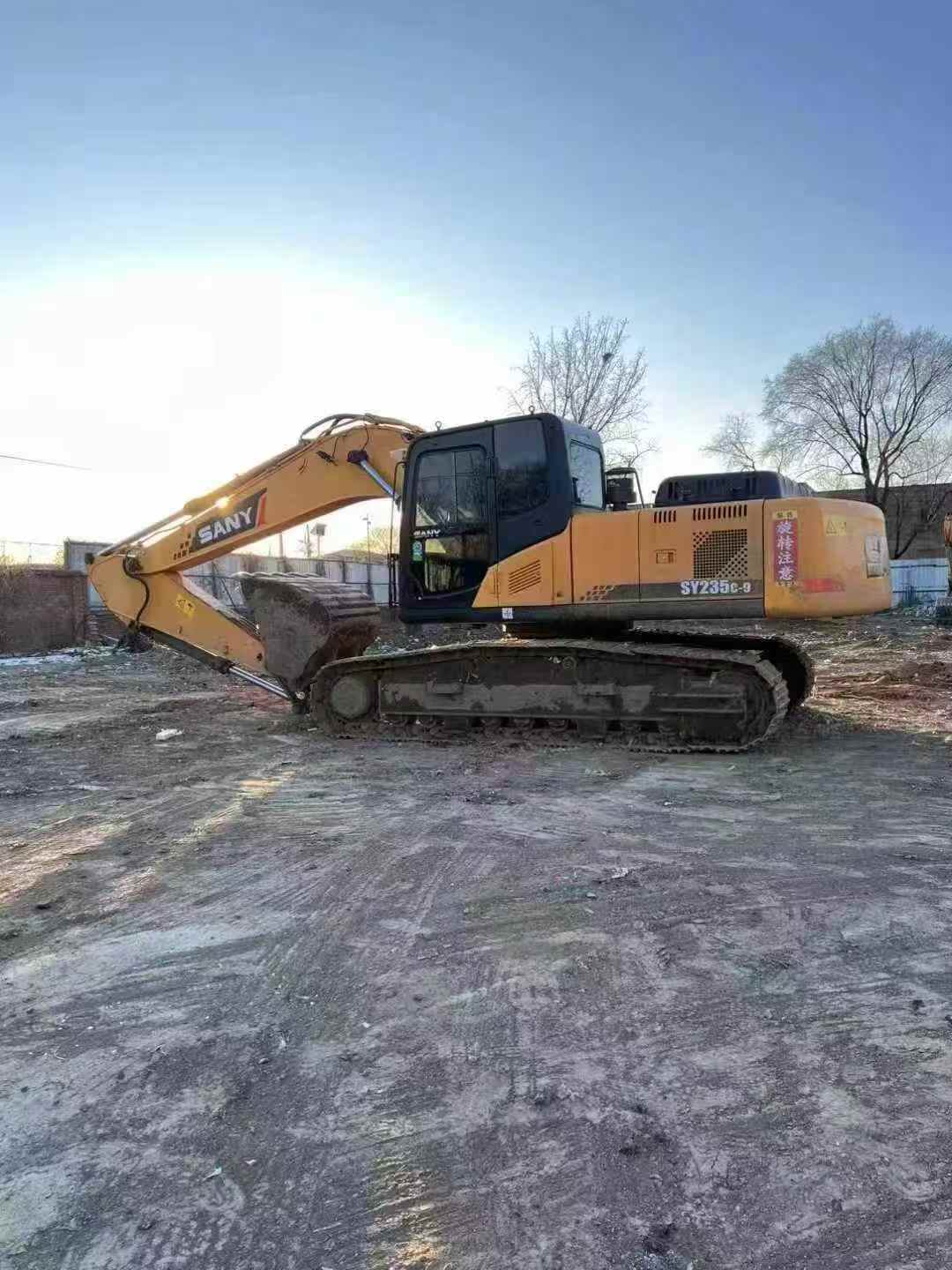

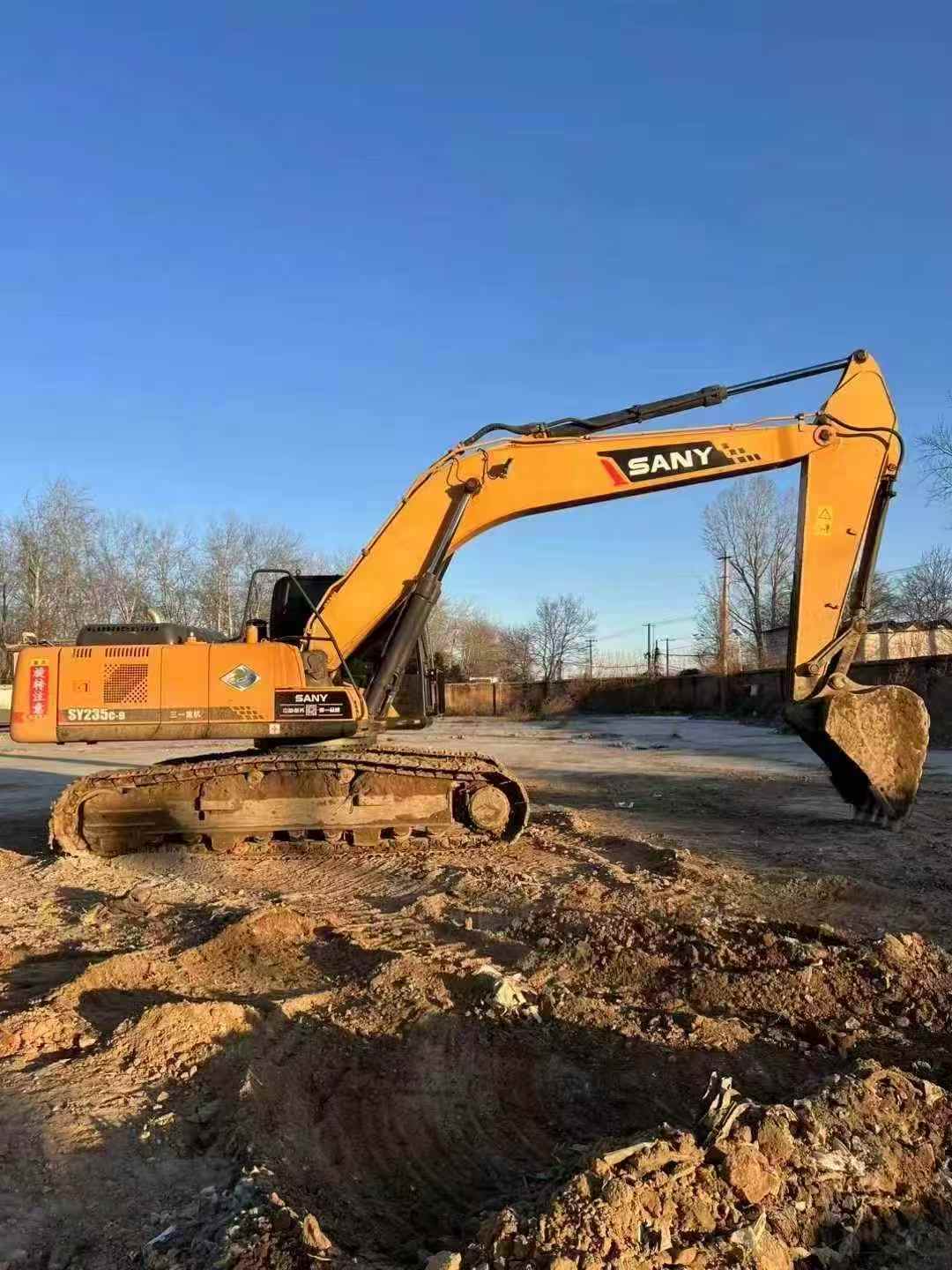

Available now from our Hebei facility, this 2016 Sany SY235C-9 medium excavator eliminates factory wait times and gets your project moving immediately. Operating at 23 tons with a robust 128.5kW ISUZU 6BG1 six-cylinder engine, this crawler excavator delivers proven performance for earthmoving, trenching, and site development across Asia, Africa, and emerging markets.

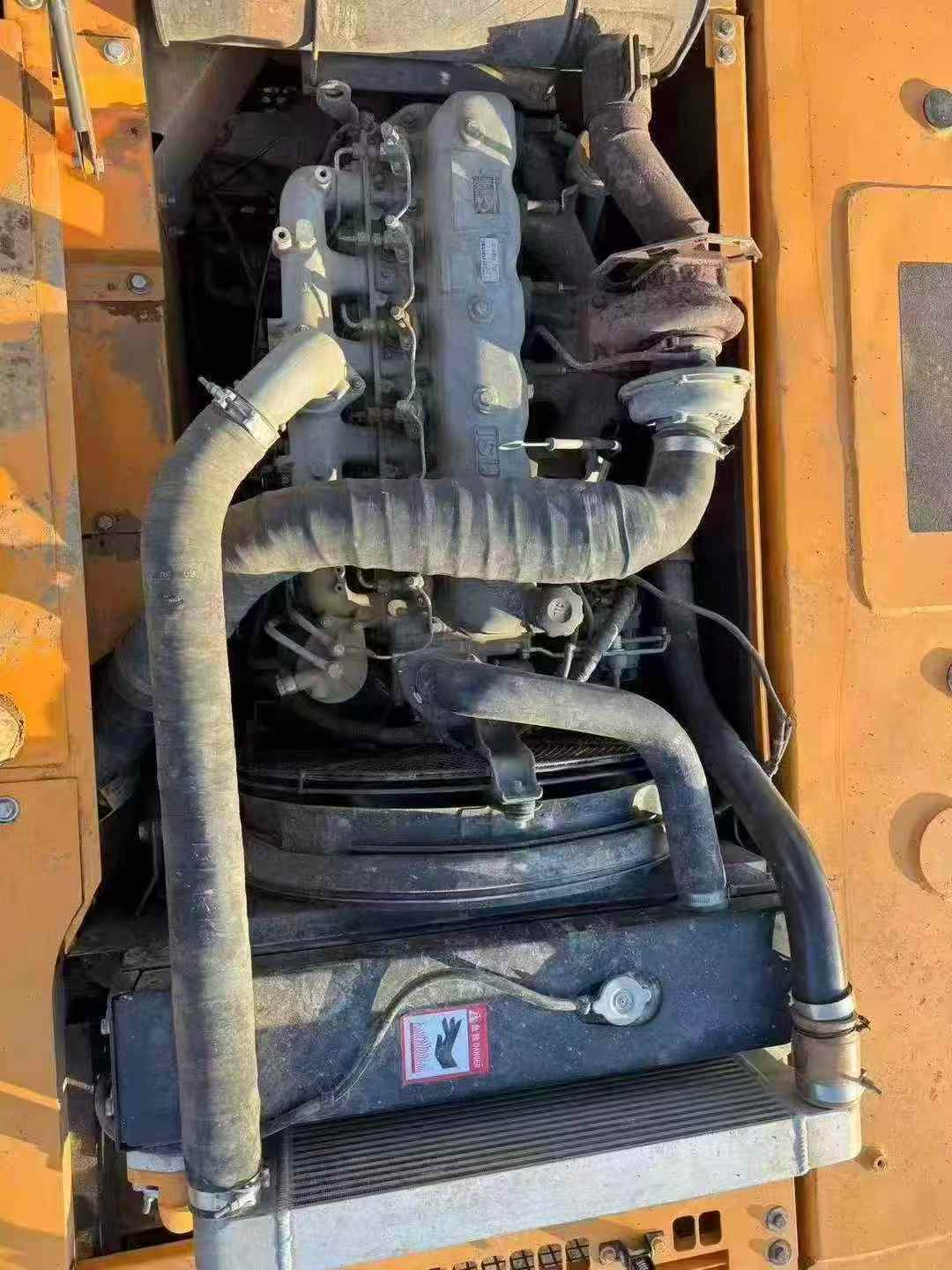

- Engine: ISUZU 6BG1 turbocharged, 128.5kW @ 2100rpm, 6-cylinder direct injection
- Digging Performance: 10,150mm max reach, 6,785mm max depth, 175kN bucket force
- Capacity: 1.1m³ bucket (expandable to 1.2m³), 24,200kg working weight
- Mobility: 5.5km/h travel speed, 70% gradeability, 3,800mm tight turning radius
- Transport Dimensions: 9,920mm L × 2,980mm W × 3,550mm H
Positioned in Hebei for rapid deployment throughout Northern China and Central Asian corridors, this machine ships faster than new-build alternatives. Inspection welcome. Request shipping quotes and technical documentation today.
| Specifications | Value |
|---|---|
| No. | 1012733 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 24200 |
| Bucket capacity (m³) | 1.1 (Optional 1.1 to 1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU 6BG1 |
| Rated power (kw/rpm) | 128.5/2100 |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Four-stroke, six-cylinder turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 122 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 9920 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3550 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7940 |
| Maximum digging radius (mm) | 10150 |
| Maximum digging depth (mm) | 6785 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6725 |
| Maximum vertical digging depth (mm) | 5845 |
