Product Description
Engineered with a robust 125 kW engine paired with dual 228 l/min hydraulic pumps, this 2020 Sany SY240C-8 delivers exceptional performance for demanding excavation projects. Operating at 23,400 kg working weight with a 1.0 m³ bucket capacity, this 24-ton crawler excavator combines Chinese manufacturing precision with proven hydraulic architecture. The water-cooled powertrain generates 163 kN bucket digging force, while the 34.3 MPa main overflow pressure ensures consistent power delivery across all functions.
Built in Kunshan, Jiangsu Province, the SY240C-8 features a maximum digging reach of 9,700 mm and excavation depth of 6,310 mm, supported by a 440 mm ground clearance and 2,940 mm rear turning radius for superior maneuverability on confined sites. The machine's 70% climbing capability and 55.2 kPa ground pressure enable stable operation across varied terrain conditions.
Currently located in Jinhua, Zhejiang, this unit offers dual travel speeds (3.2/5.5 km/h) and an 11 rpm swing speed for optimized cycle times. Compact transport dimensions (9,924 × 2,980 × 3,182 mm) facilitate efficient logistics worldwide.
| Specifications | Value |
|---|---|
| No. | 1025160 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23400 |
| Bucket capacity (m³) | 1 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 55.2 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 163 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |

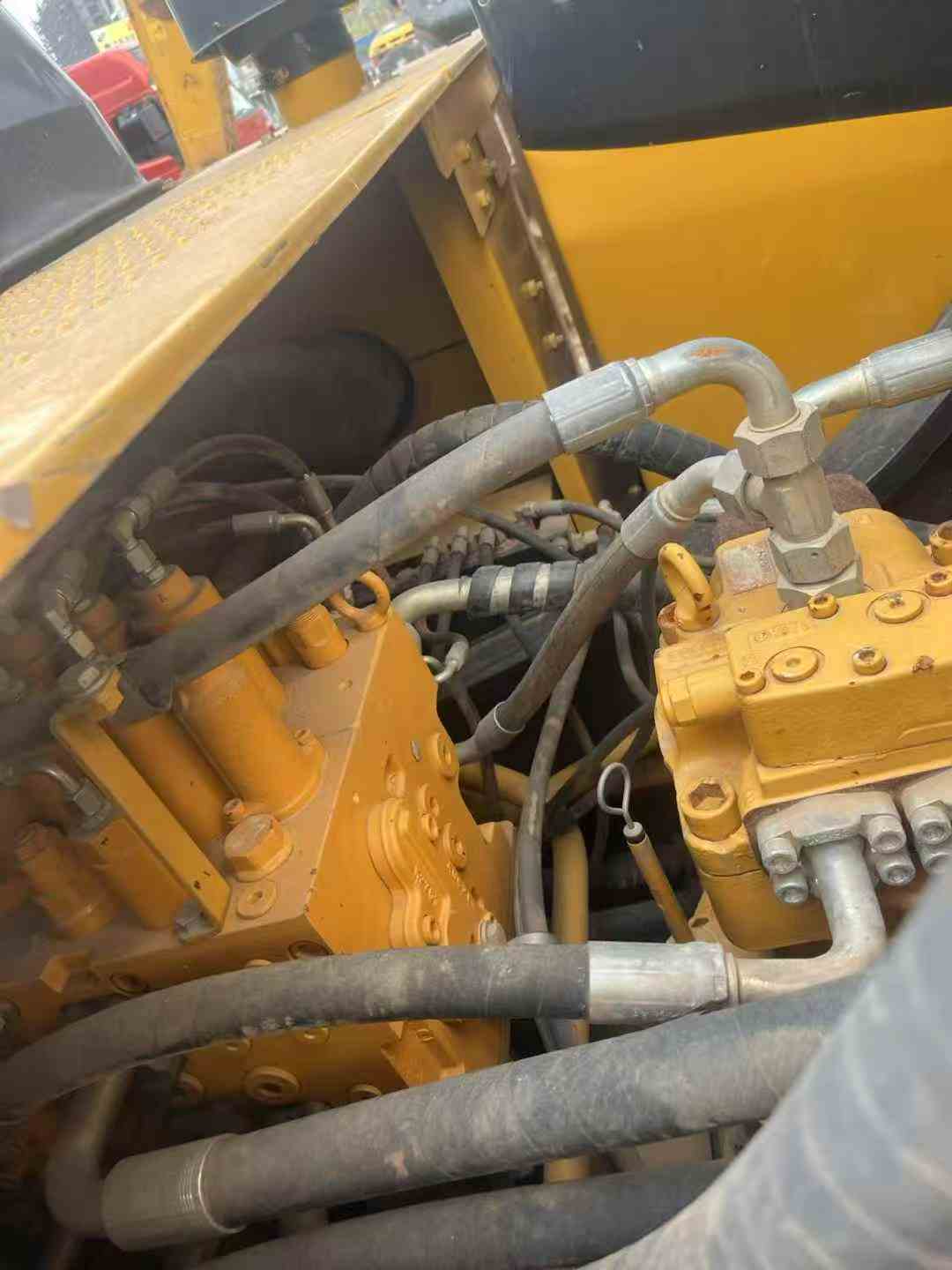

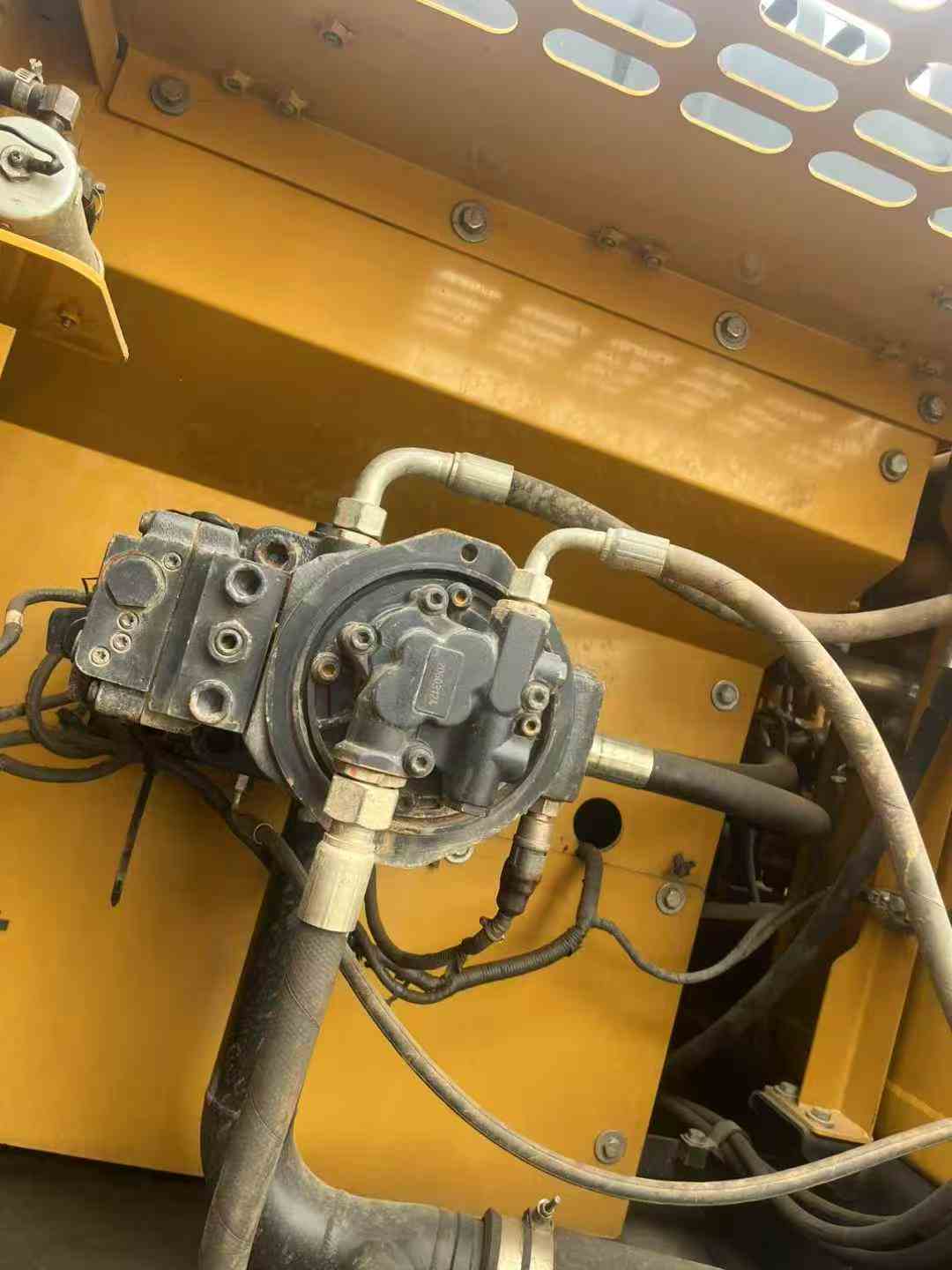

| Maximum flow of main pump (l/min) | 2 x 228 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9924 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3182 |
| Full cab height (mm) | 3068 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2940 |

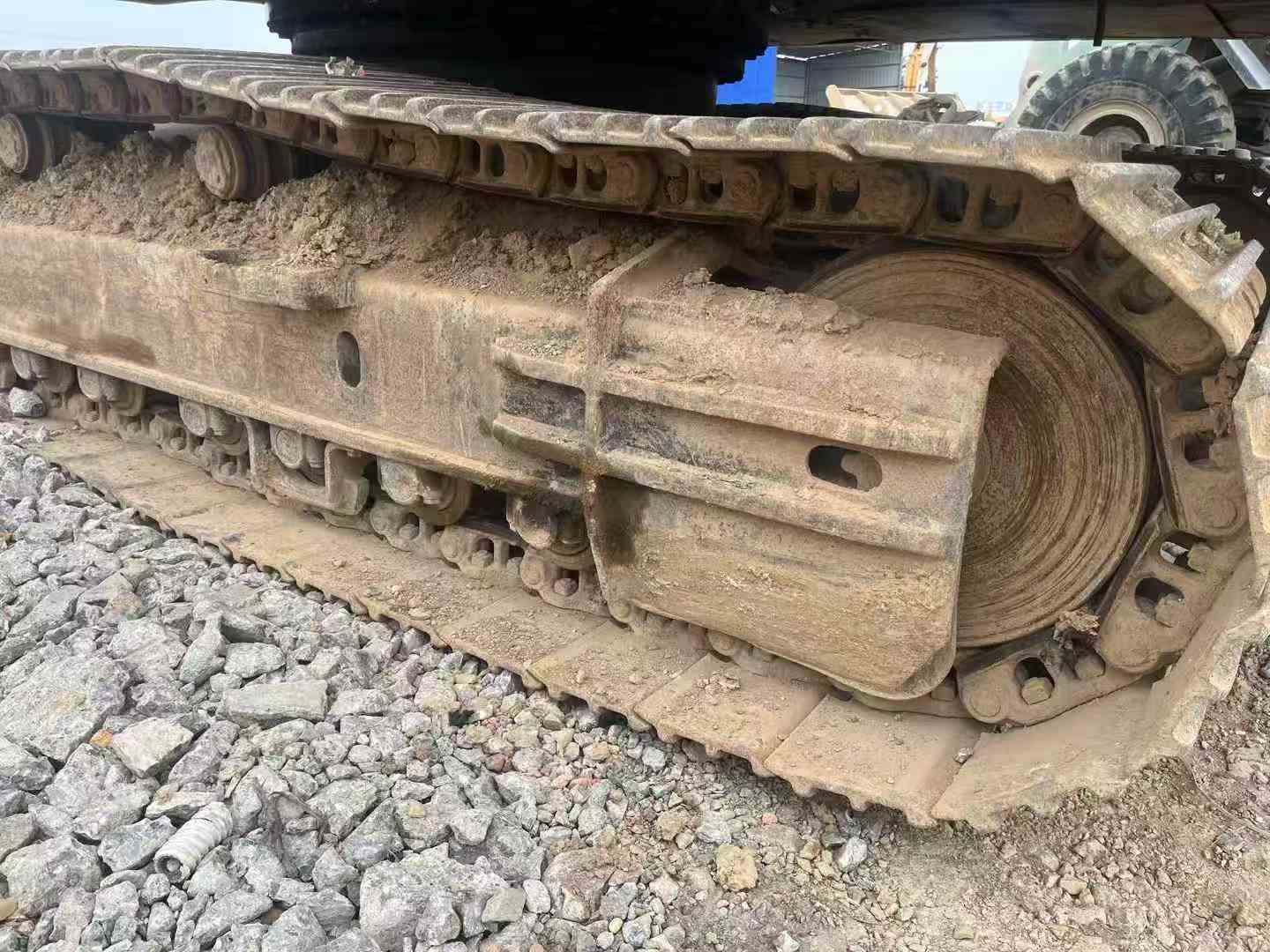

| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum digging radius (mm) | 9700 |
| Maximum digging depth (mm) | 6310 |
| Maximum excavation height (mm) | 9350 |
| Maximum unloading height (mm) | 6465 |
| Maximum vertical digging depth (mm) | 5350 |
| Bulldozer lift or depth (mm) | There is no |
