Product Description

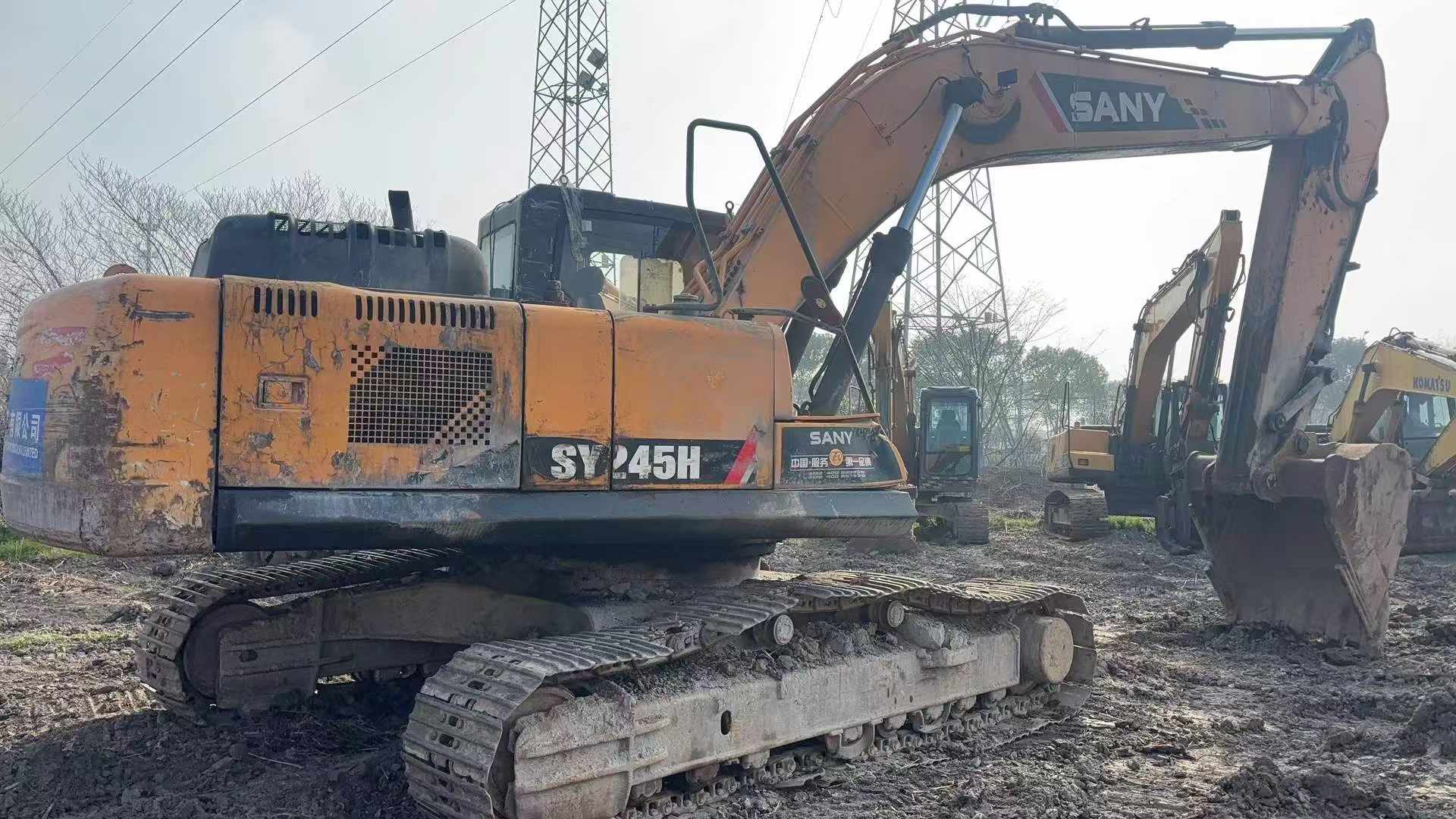

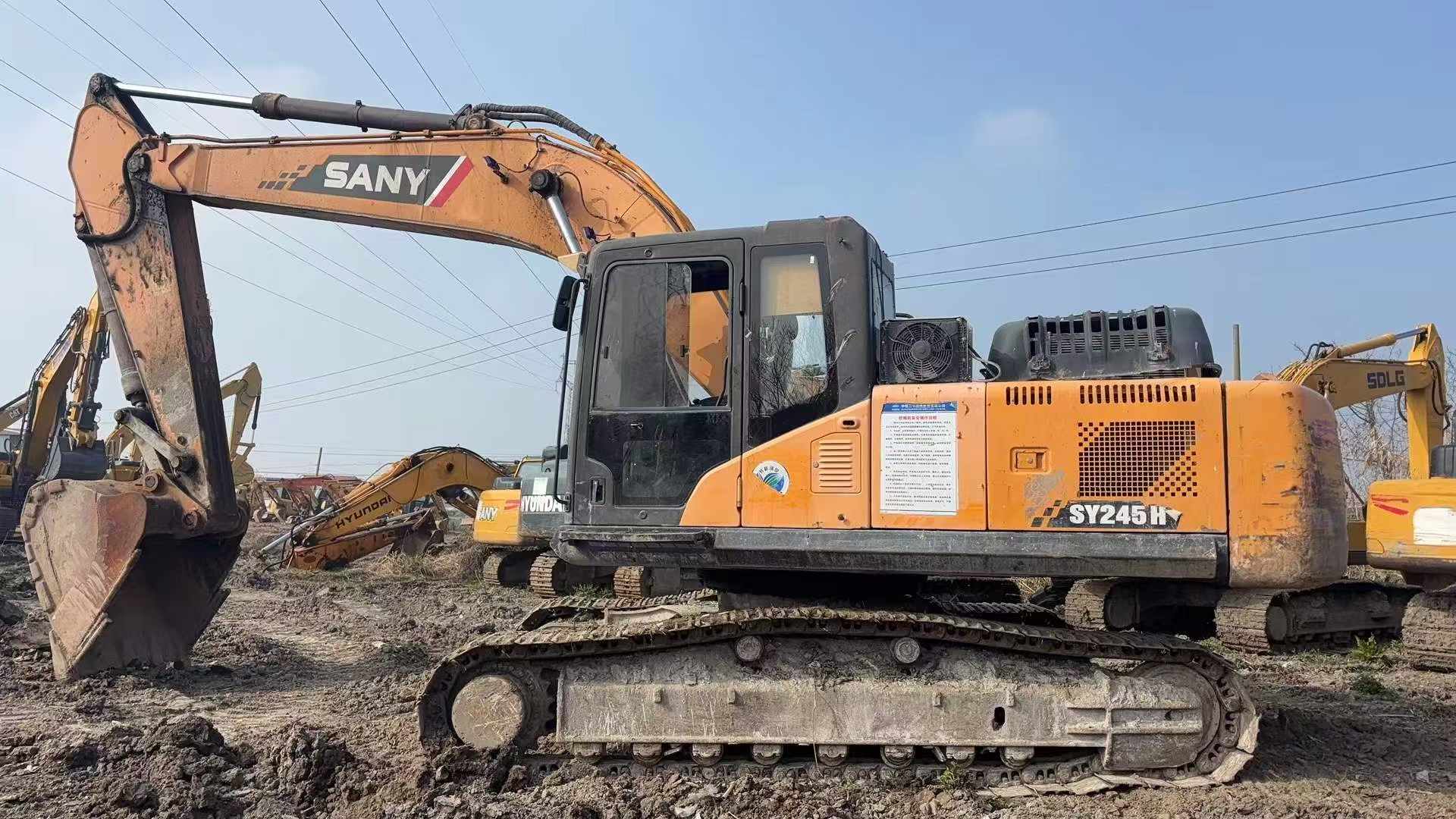

Proven in the field since 2014, this Sany SY245H excavator demonstrates the durability that made it a workhorse across construction sites worldwide. Operating at 24 tons with a robust 25,500 kg working weight, this machine delivers consistent performance through its water-cooled D06FRC engine generating 147 kW at 2100 rpm. With 175 kN bucket digging force and 120 kN arm digging force, it tackles demanding excavation tasks with authority.
Built to last, this model features a 1.3-1.5 m³ backhoe bucket capacity and reaches a maximum digging depth of 6,705 mm with a 10,225 mm working radius. Currently located in Lishui, Zhejiang, this Chinese-manufactured excavator combines proven engineering with practical specifications including 475L fuel capacity and a 70% climbing ability. After years of reliable operation, it remains ready for your next project.
- 24-ton class excavator with proven track record
- 147 kW D06FRC 6-cylinder engine
- Maximum digging depth: 6,705 mm
- Heavy-duty construction for long-term reliability
- Available in Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1030386 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
