Product Description

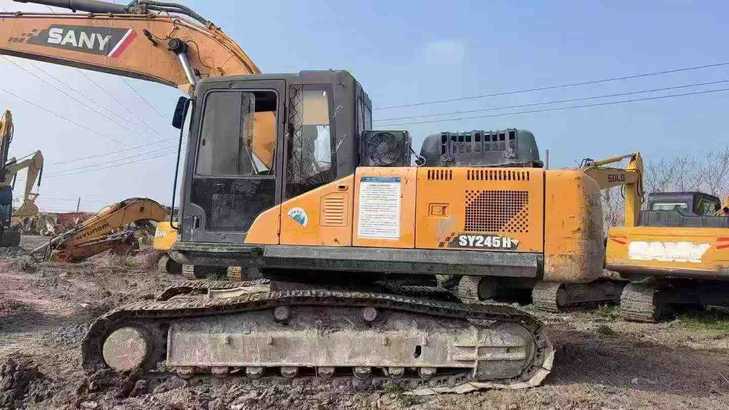

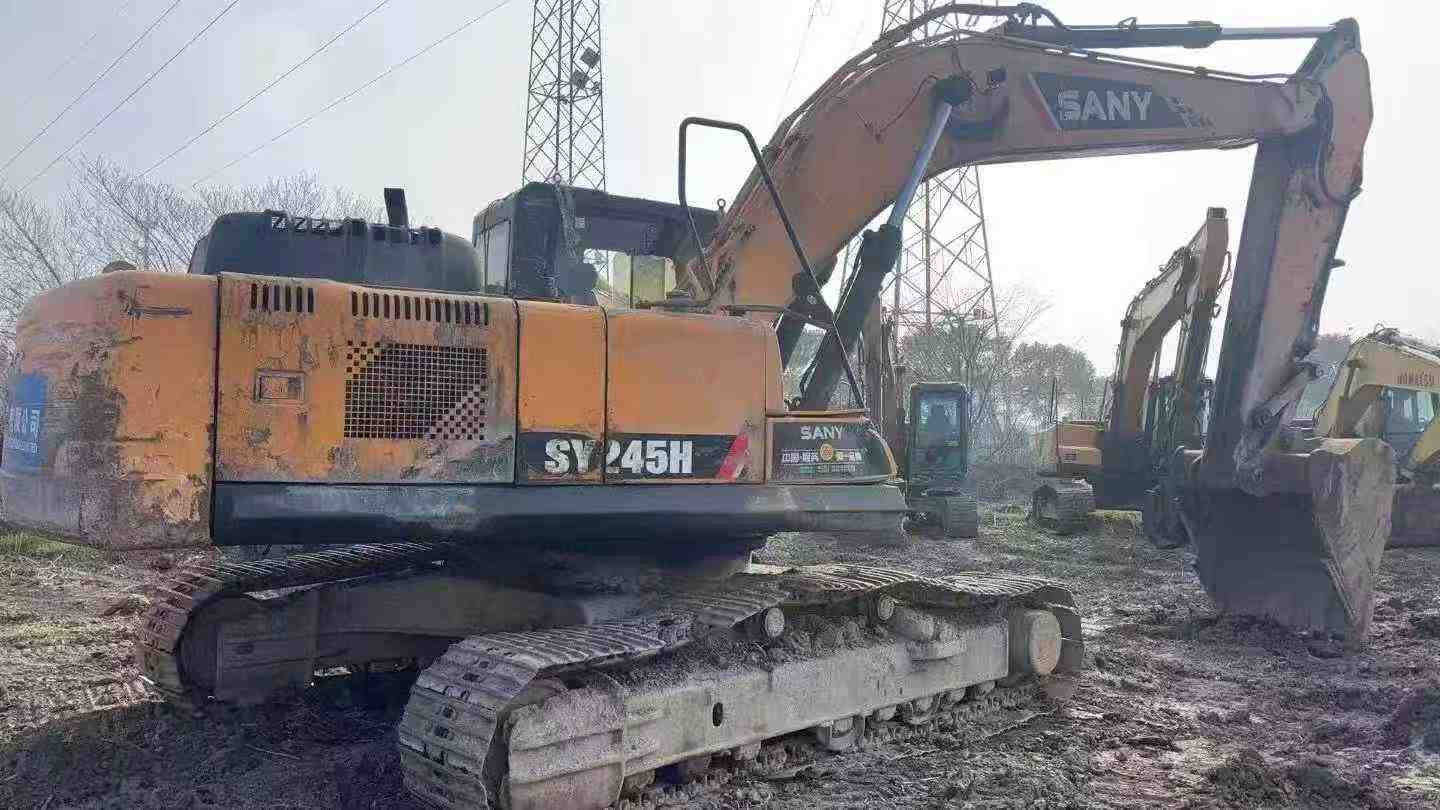

Built for high-demand jobsites, this 2014 Sany SY245H excavator delivers reliable 24-ton performance when your primary fleet is stretched thin. Powered by a robust D06FRC engine producing 147 kW at 2100 rpm, this Chinese-manufactured workhorse handles heavy excavation, trenching, and loading applications without missing a beat. The 1.5 m³ backhoe bucket generates 175 kN of digging force with a maximum reach of 10,225 mm and depth capacity of 6,705 mm—specifications that match machines twice its age.
Currently located in Shaoxing, Zhejiang, this unit offers strategic advantages for contractors managing multiple projects:
- 25,500 kg working weight provides stability on uneven terrain
- 475-liter fuel tank supports extended operating shifts
- Water-cooled system ensures consistent performance in demanding conditions
- 3,190 mm transport width allows standard trailer mobilization
- 70% grading ability tackles challenging slope work
Operators appreciate the 10.6 rpm rotation speed and dual travel speeds (5.4/3.4 km/h) for efficient cycle times. Whether supplementing your existing Sany fleet or adding capacity during peak season, this SY245H represents proven mid-size excavat
| Specifications | Value |
|---|---|
| No. | 1031458 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
