Product Description

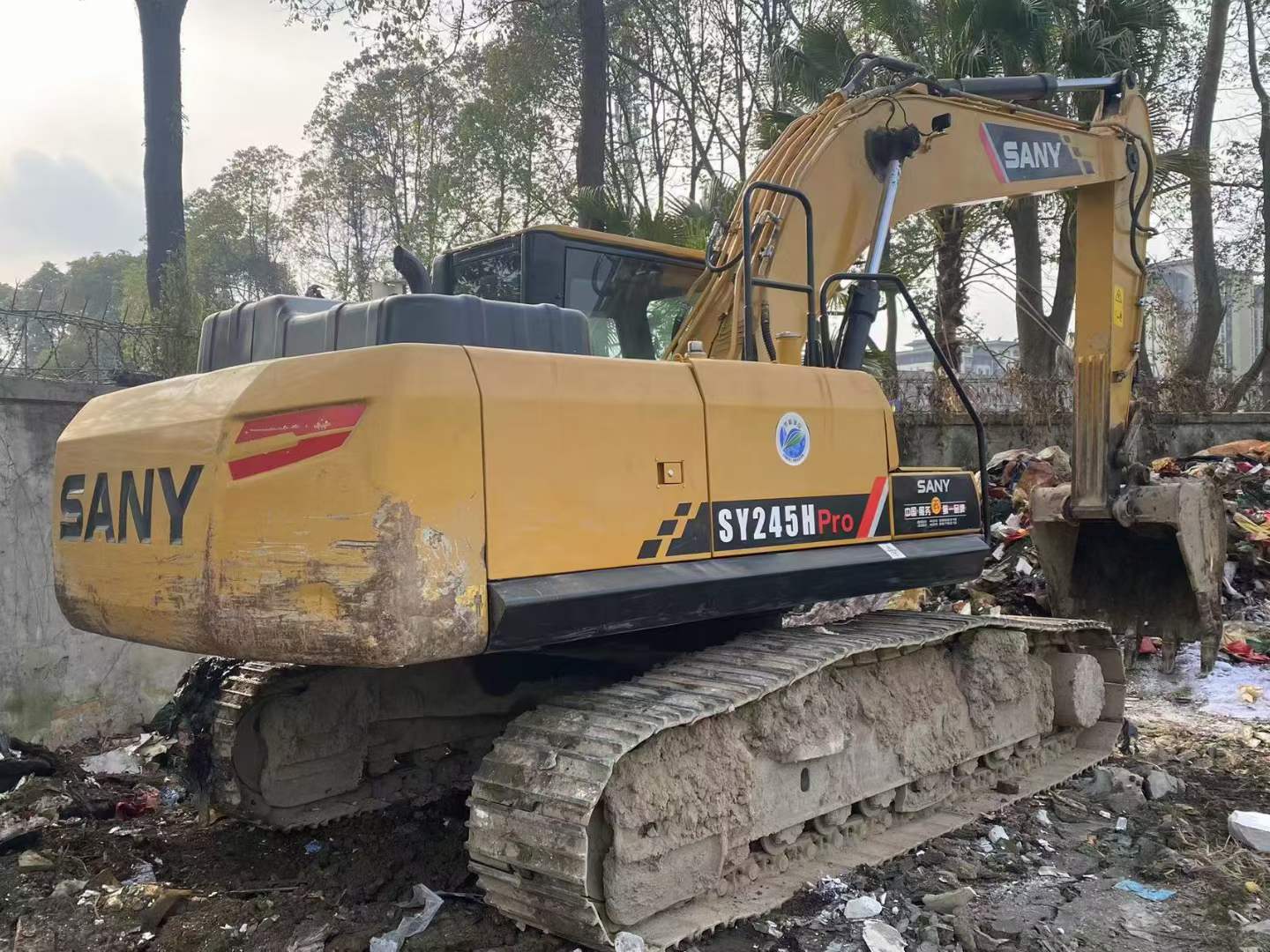

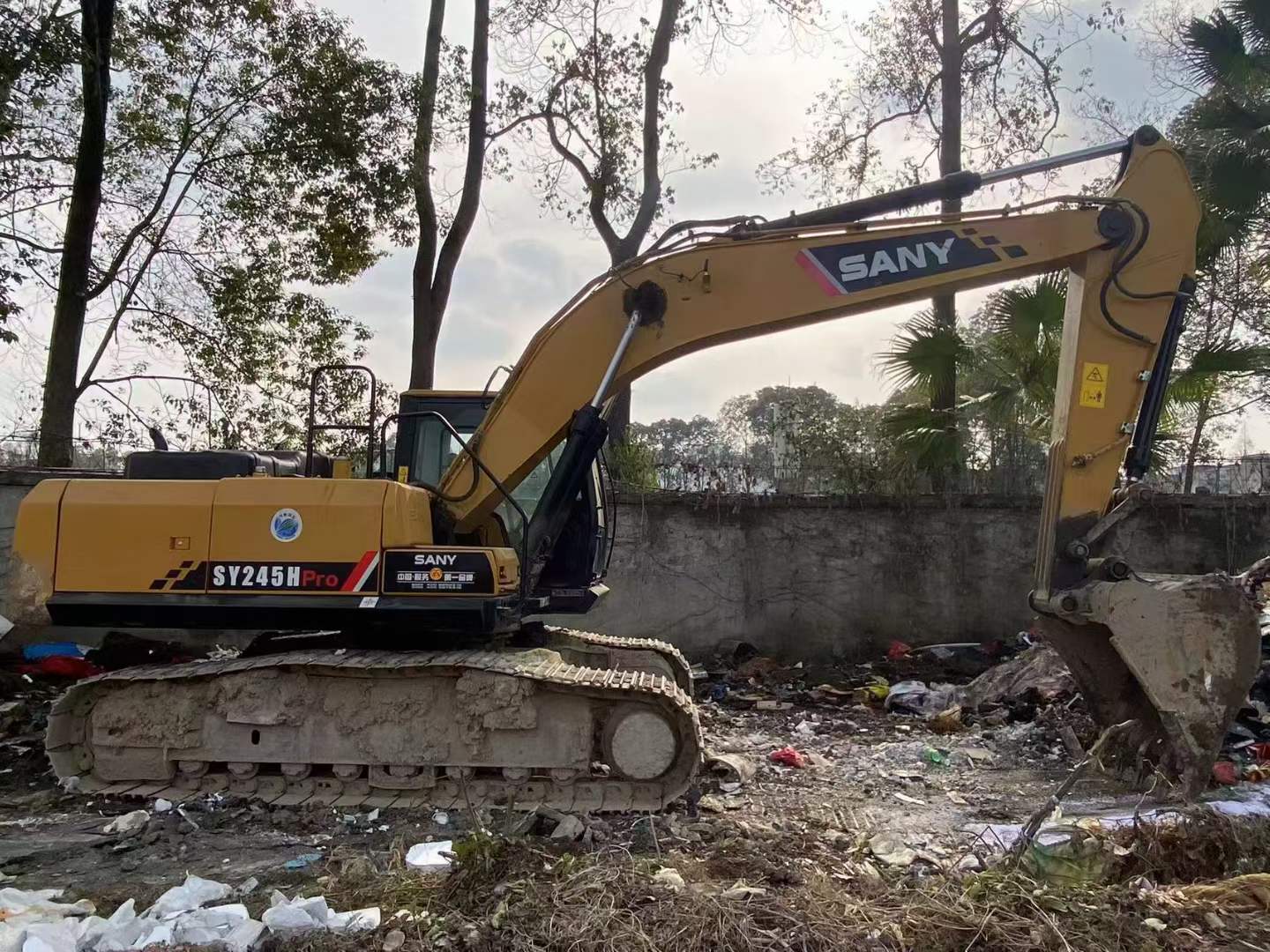

Featuring a robust 2016 Sany SY245H(国四) excavator, this machine is meticulously maintained and ready for immediate deployment in your next project. With its powerful digging capabilities and precise control, it excels in both grading and demolition tasks. Located in 四川, this excavator is equipped to handle the toughest jobs with ease. Its durable construction and reliable performance make it an indispensable asset for any construction site.
- Year: 2016
- Brand: Sany
- Model: SY245H(国四)
- Location: 四川
| Specifications | Value |
|---|---|
| No. | 1004381 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz |
| Rated power (kw/rpm) | 150/2100 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175(187) |
| Rod digging force (kN) | 120(129) |
| Travel speed (km/h) | 5.8/3.7 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 5675 |
