Product Description

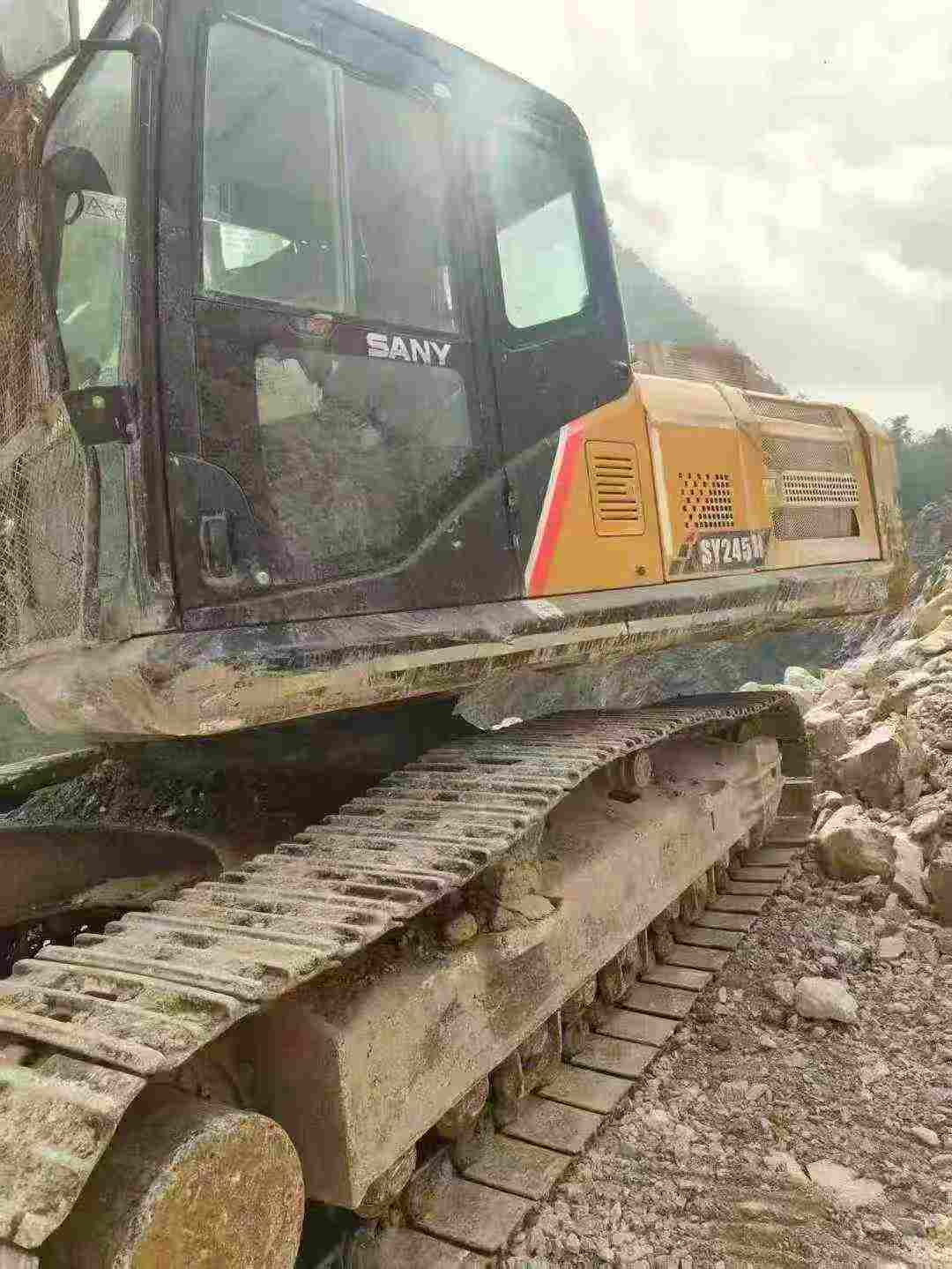

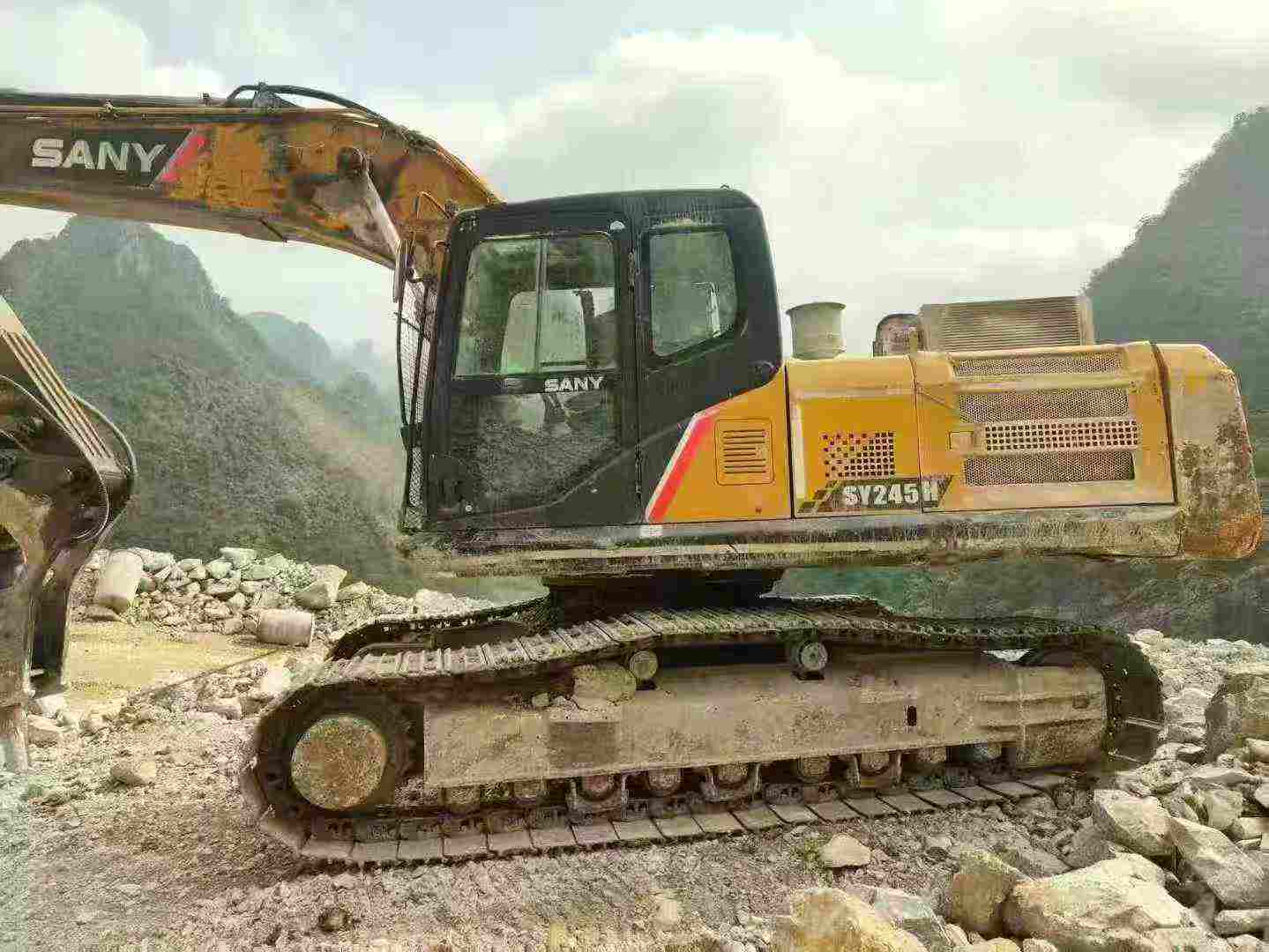

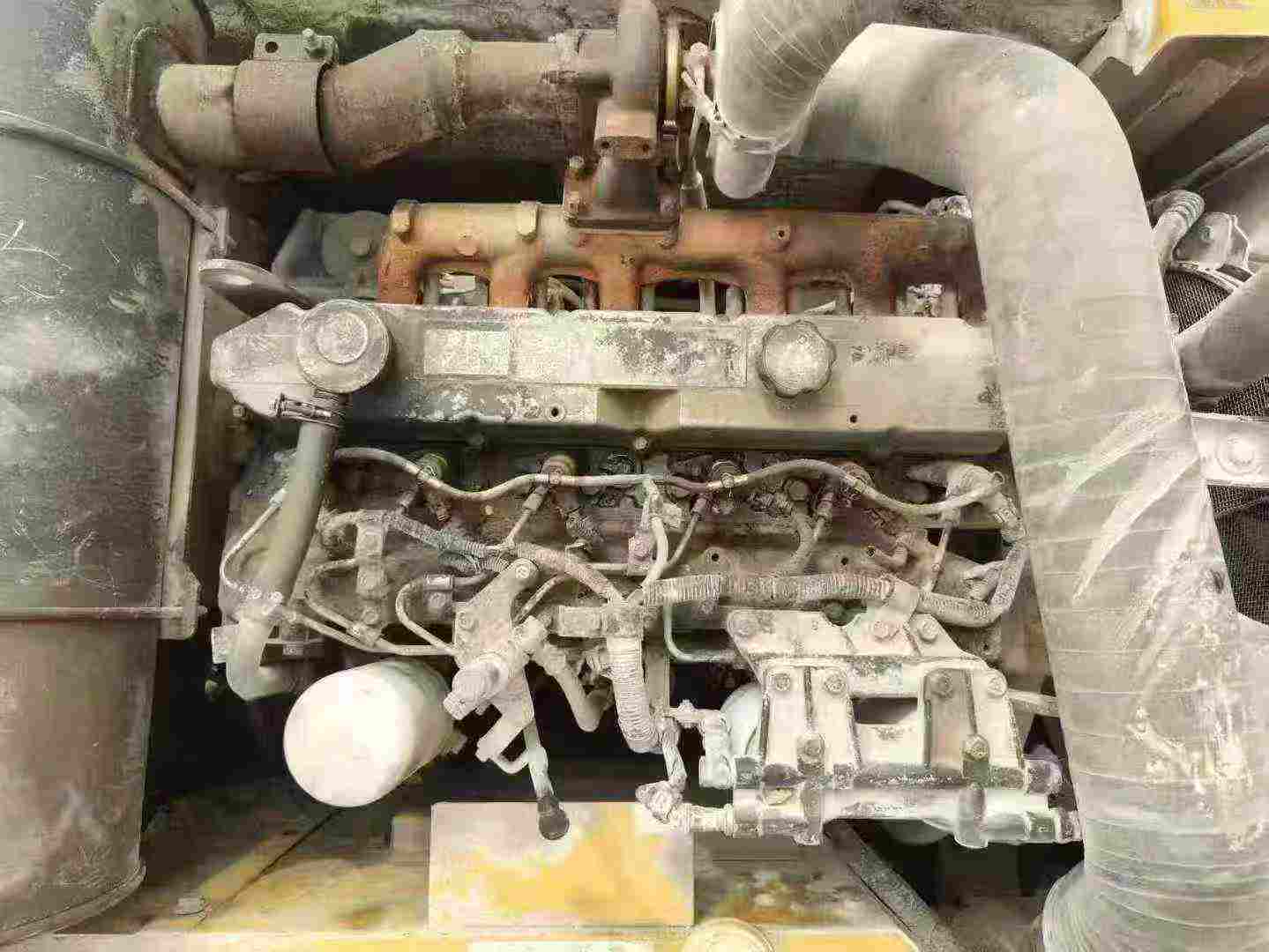

Built for demanding jobsites, this 2016 Sany SY245H excavator delivers reliable performance with operator-centered engineering. Powered by a robust D06FRC engine generating 147 kW at 2100 rpm, this 24-ton machine combines hydraulic precision with practical stability across challenging terrain. The water-cooled 6-cylinder powerplant produces 750 N.m of torque, ensuring consistent digging force through extended shifts.

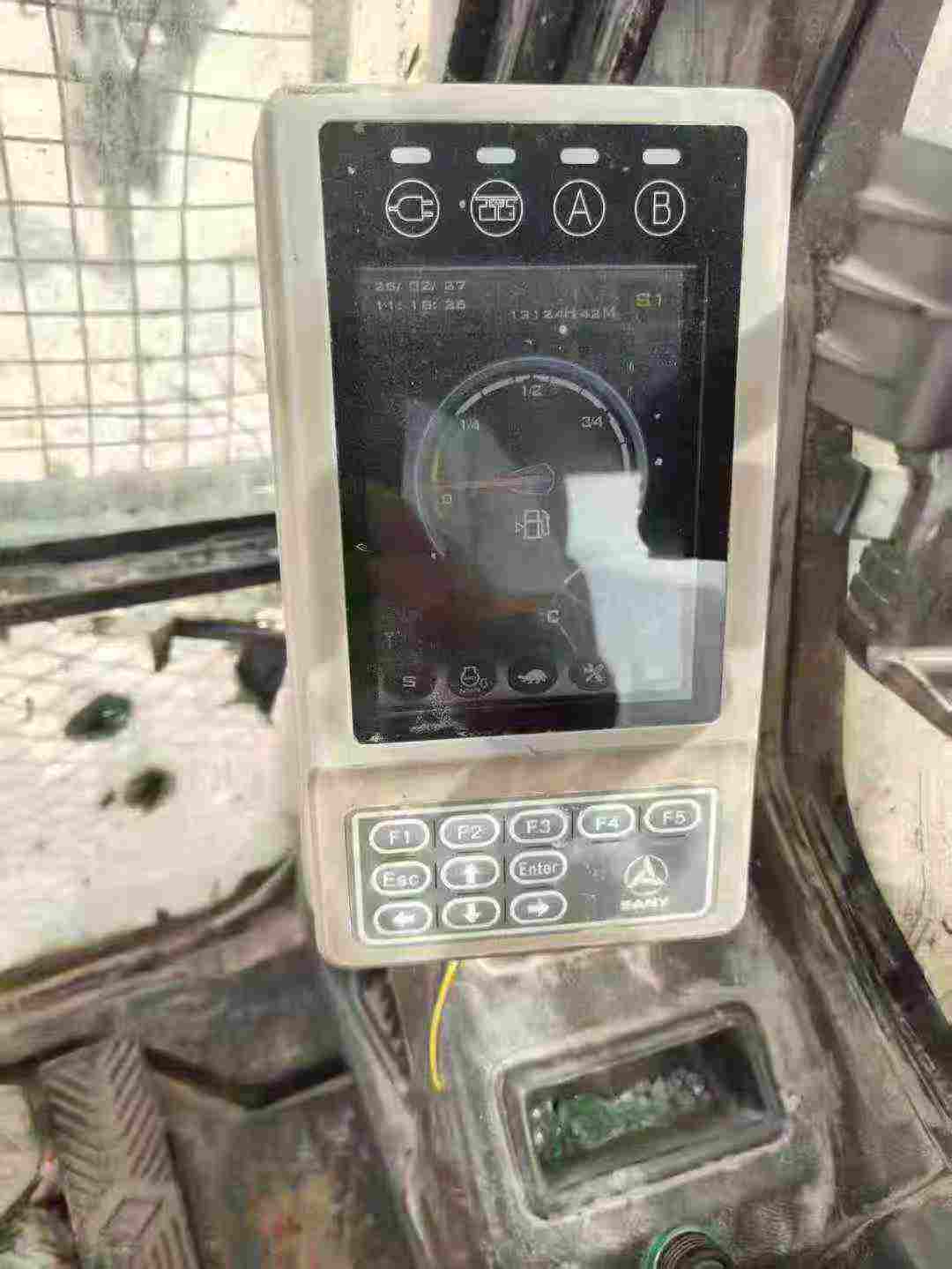

Operators benefit from excellent visibility and intuitive control positioning typical of Sany's mid-2010s cabin design. With a 470 mm ground clearance and 53.2 kPa ground pressure, the SY245H maintains stability on uneven surfaces while minimizing ground disturbance. The compact 3105 mm rear turning radius enables work in confined areas without sacrificing reach—maximum digging radius extends to 10,225 mm with a depth capability of 6,705 mm.
- Bucket capacity: 1.3–1.5 m³ (standard 1.5 m³)
- Bucket digging force: 175 kN; stick force: 120 kN
- Working weight: 25,500 kg
- Fuel capacity: 475 L for extended operation
- Currently located in Luzhou, Sichuan, China
| Specifications | Value |
|---|---|
| No. | 1018858 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
