Product Description

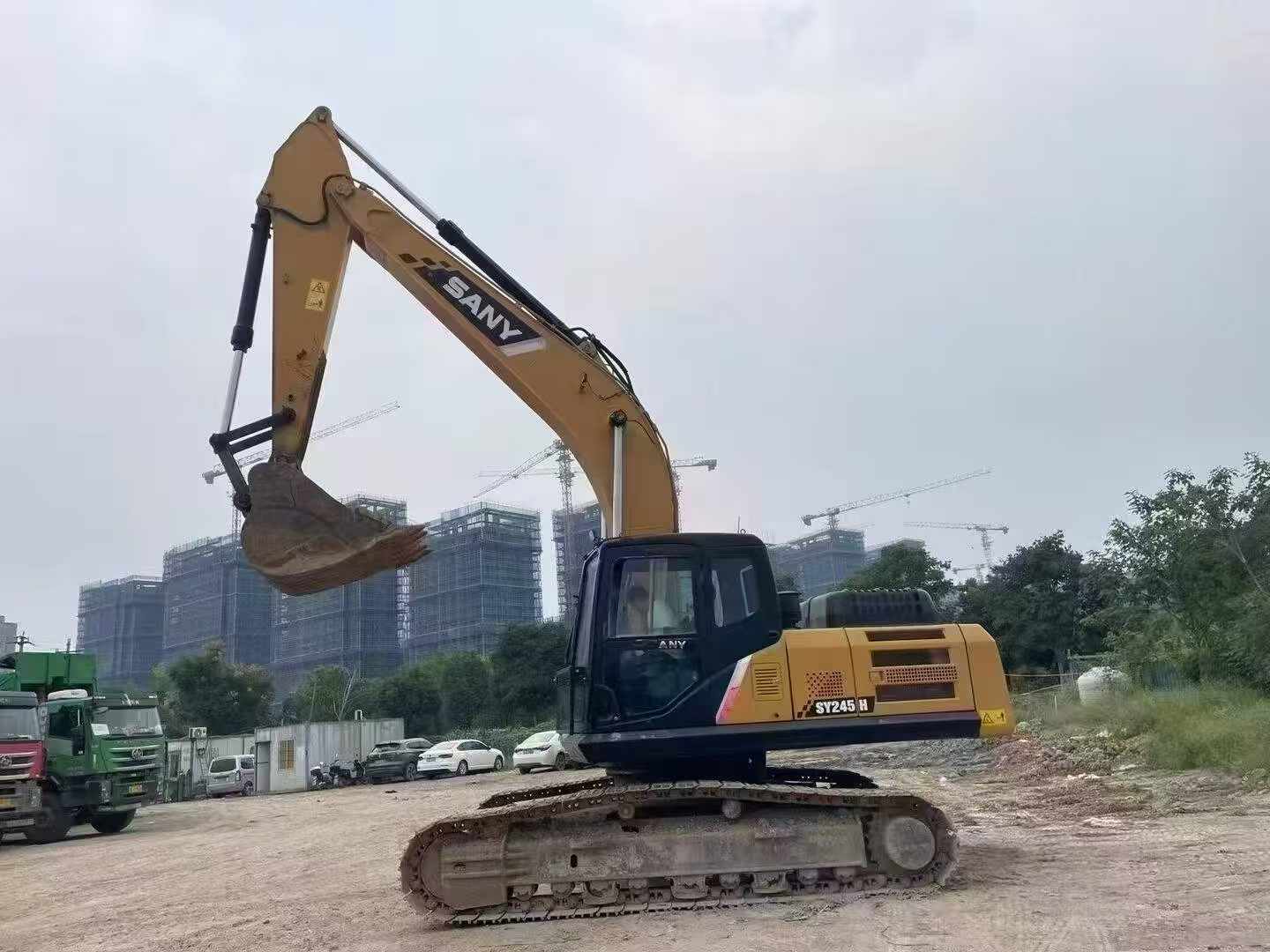

Expand your operational capacity with this 2016 Sany SY245H excavator, a proven 24-ton workhorse engineered for contractors running multiple jobsites simultaneously. Powered by a robust 147kW D06FRC engine delivering 750 N·m of torque, this machine provides reliable backup when your primary fleet is stretched thin. The 1.3-1.5m³ bucket capacity and 175kN digging force handle everything from utility trenching to foundation work, while the 10,225mm maximum reach covers wide working areas without repositioning.
Built in China to Sany's rigorous standards, this hydraulic excavator features water-cooled efficiency and a 475L fuel tank for extended shifts. Key fleet-integration benefits include:
- Consistent 25,500kg operating weight matches standard transport logistics
- Familiar cab layout minimizes operator training time across crews
- 6,705mm maximum dig depth tackles deep utility installations
- 70% gradeability maintains productivity on challenging terrain
- Currently located in Hangzhou, Zhejiang—ready for immediate deployment
Add redundancy to your heavy equipment roster without the new-machine premium. Contact Fair Trade Machinery for shipping quotes and technical ins
| Specifications | Value |
|---|---|
| No. | 1019721 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
