Product Description

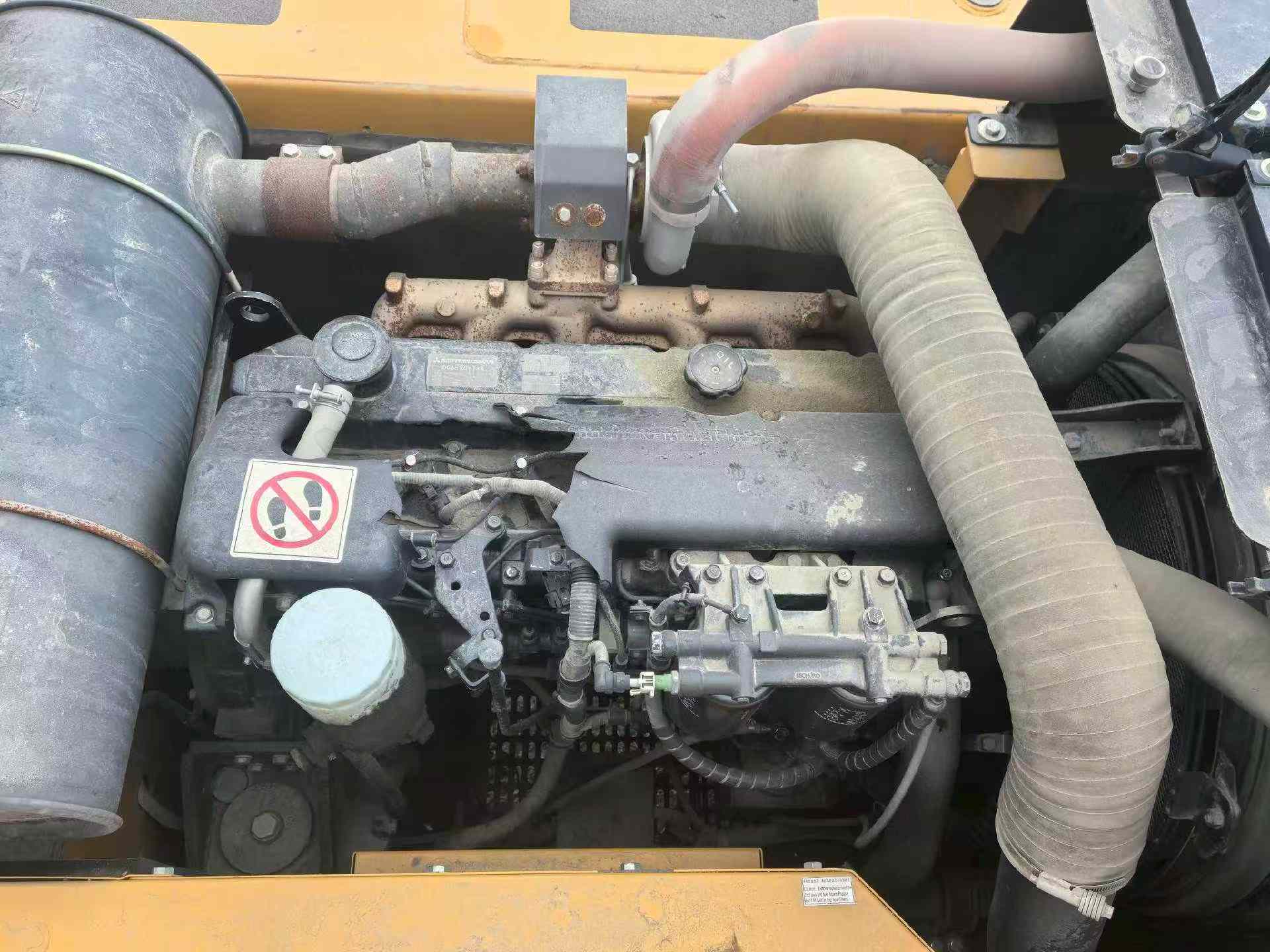

Equipped with a robust D06FRC engine, the 2016 Sany SY245H delivers 147 kW of power at 2100 rpm, ensuring reliable performance in demanding environments. This 24-ton excavator features a water-cooled system and a maximum torque of 750 N.m at 1350 rpm, enhancing its operational efficiency.
- Bucket capacity: 1.3~1.5 m³
- Working weight: 25,500 kg
- Hydraulic tank: 277 L
- Fuel tank: 475 L

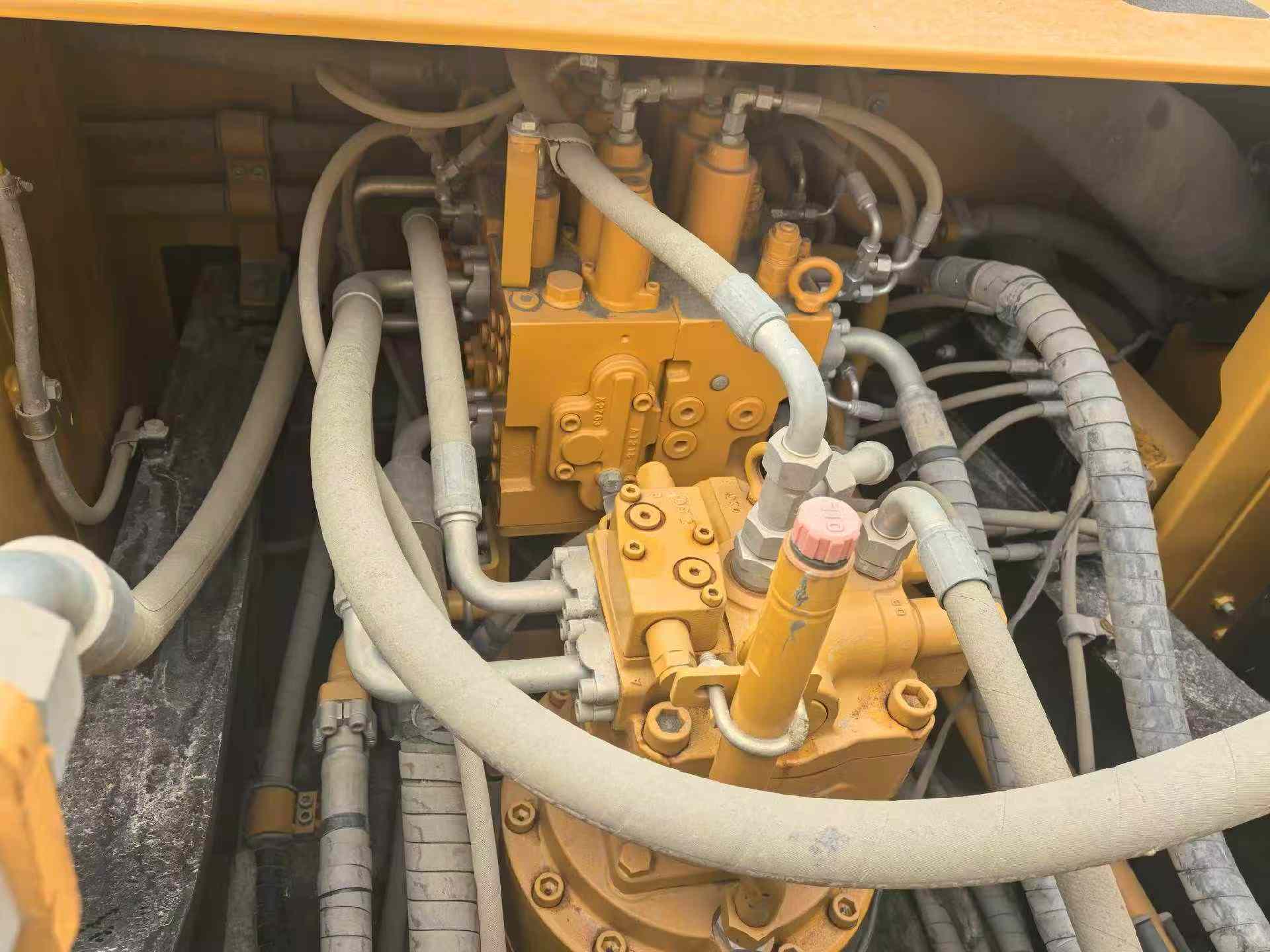

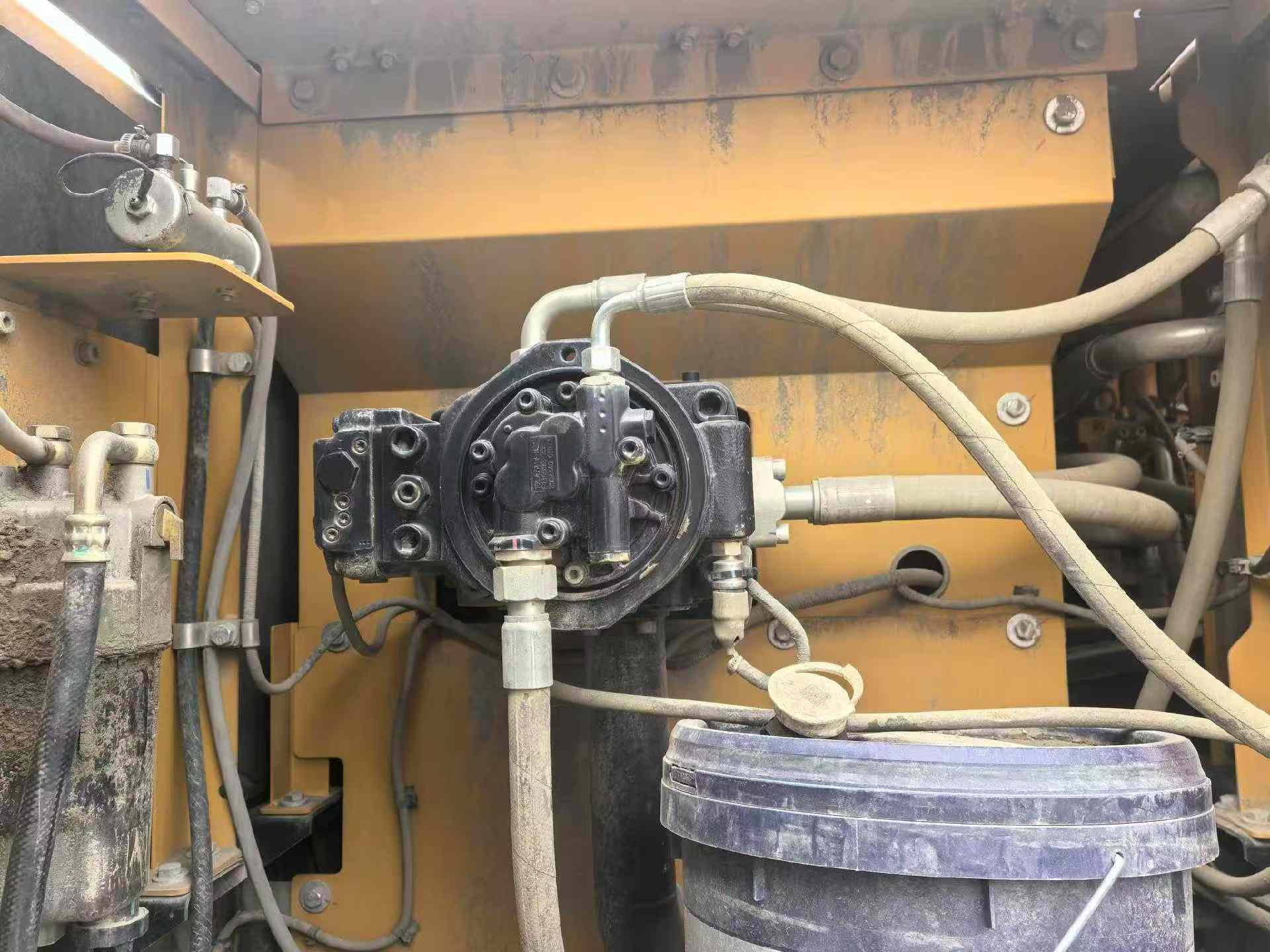

Engineered for precision and durability, the SY245H boasts a bucket digging force of 175 kN and a rod digging force of 120 kN, making it ideal for heavy-duty tasks. Its hydraulic system is designed for optimal control and responsiveness, supporting a travel speed of up to 5.4 km/h and a climbing ability of 70%.
- Maximum digging radius: 10,225 mm
- Maximum digging depth: 6,705 mm
- Maximum excavation height: 9,745 mm
- Maximum unloading height: 6,715 mm
With a total transport length of 10,290 mm and a ground specific pressure of 53.2 Kpa, this model ensures stability and maneuverability on various terrains. Made in China, the Sany SY245H is a testament to high-quality engineering and technical superiority.
| Specifications | Value |
|---|---|
| No. | 1033762 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |

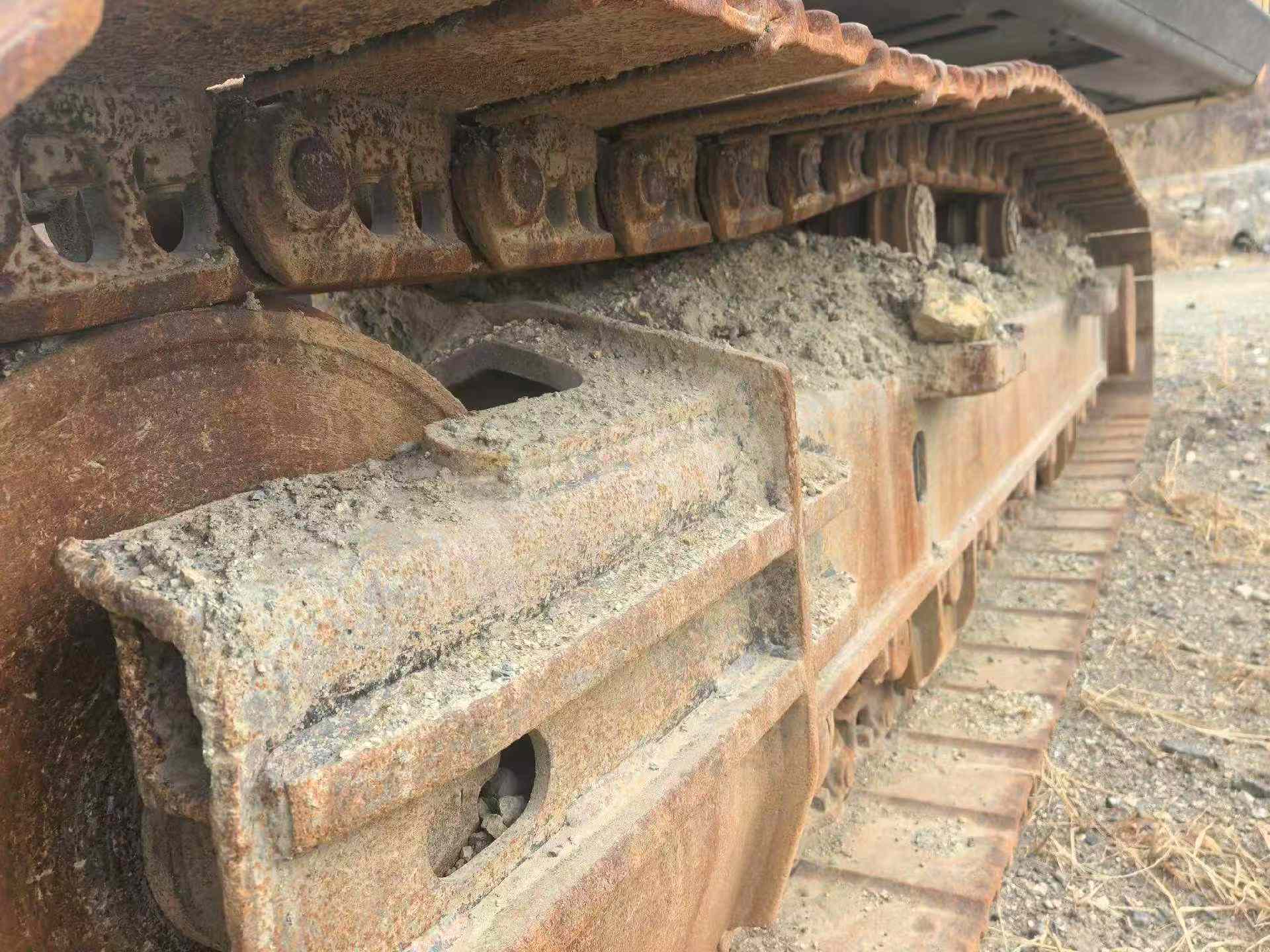

| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
