Product Description

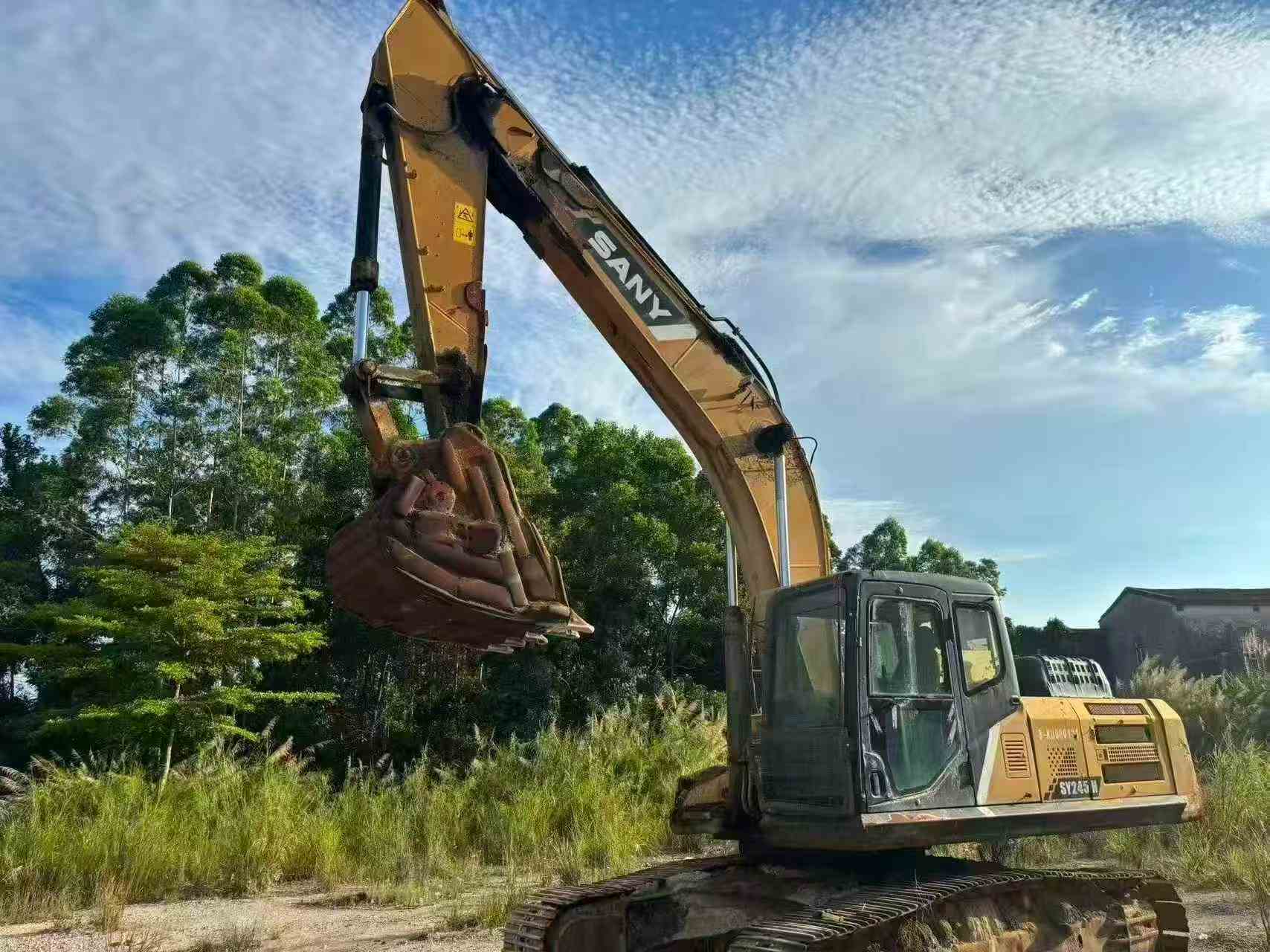

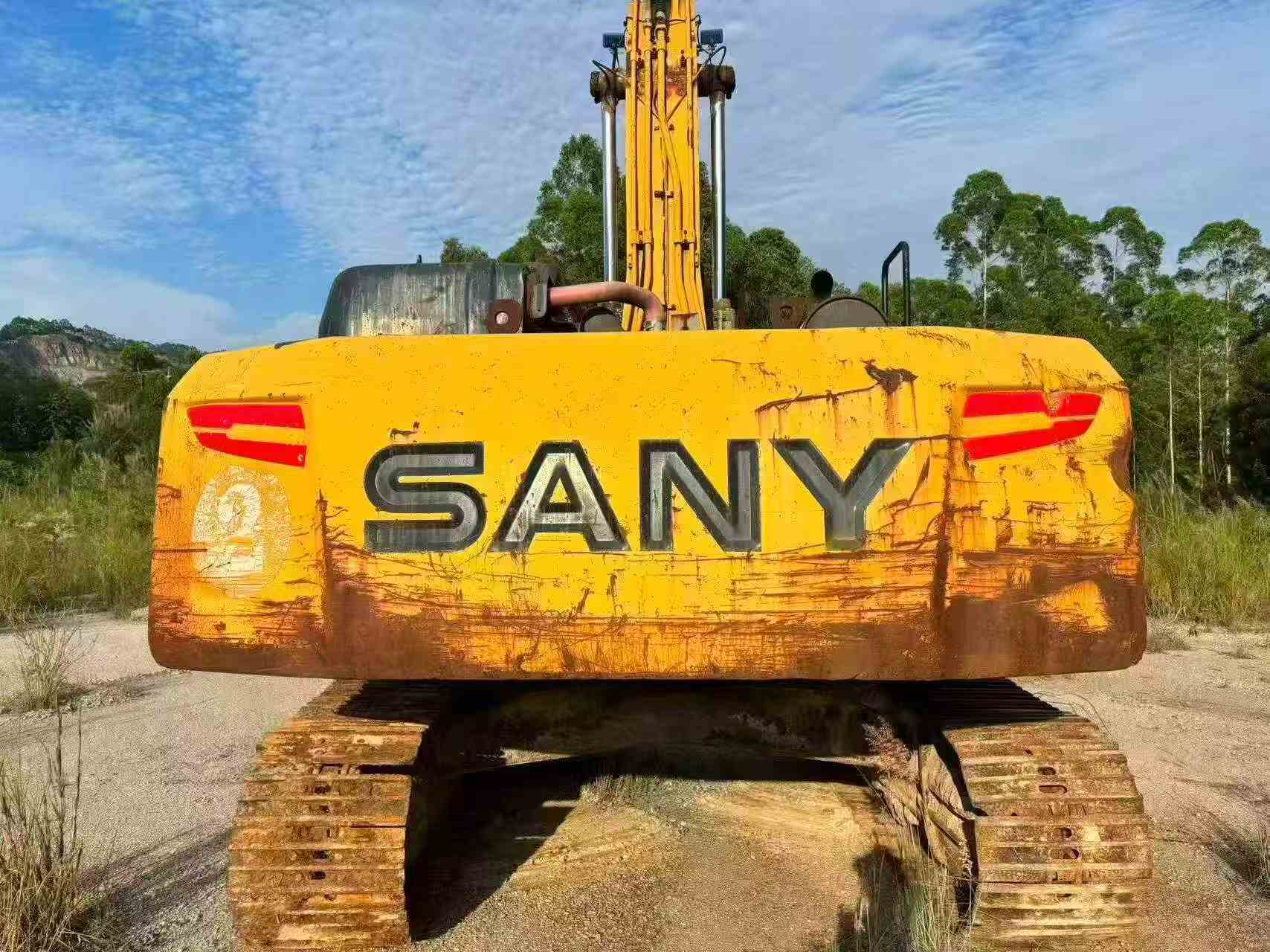

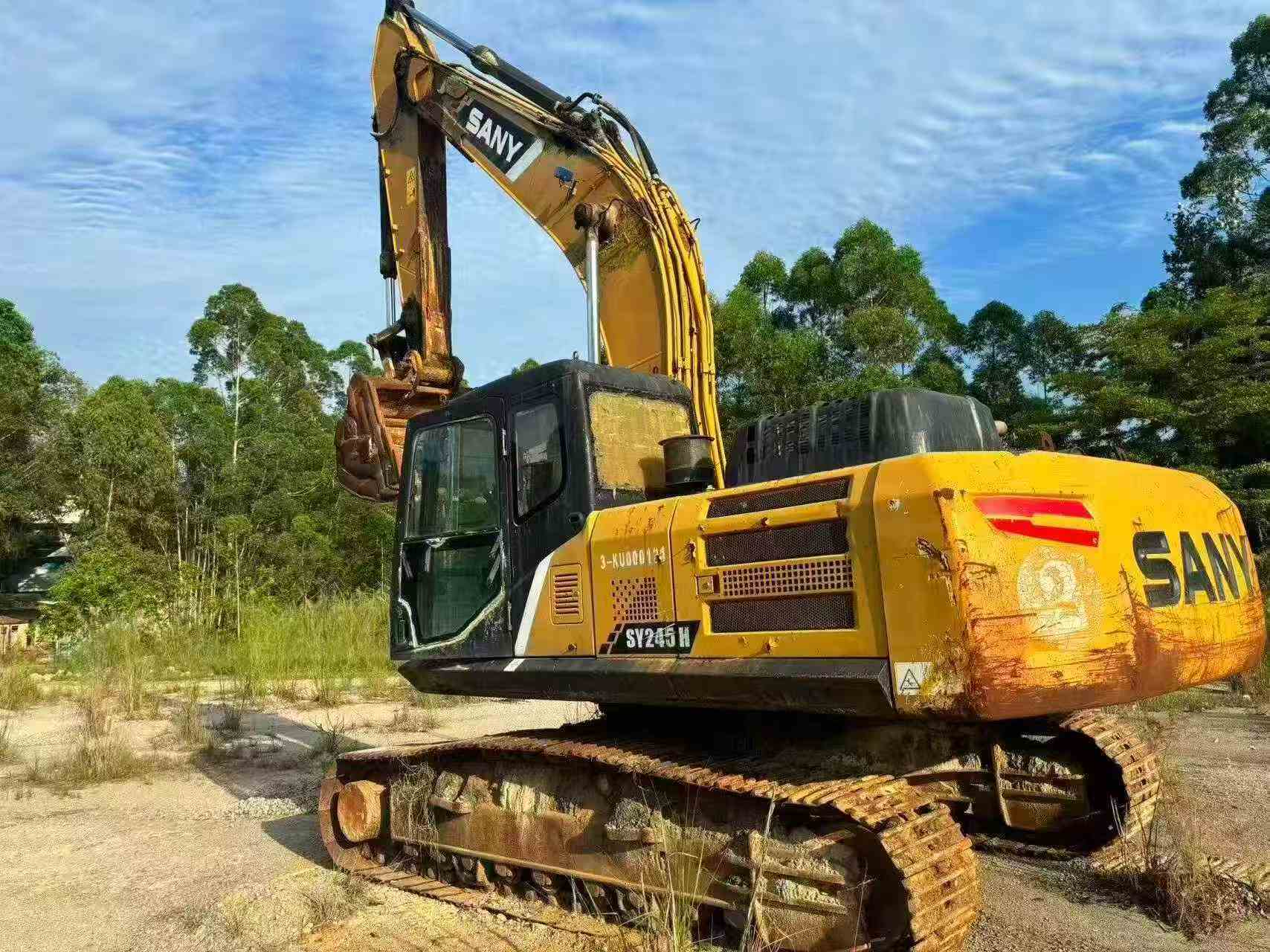

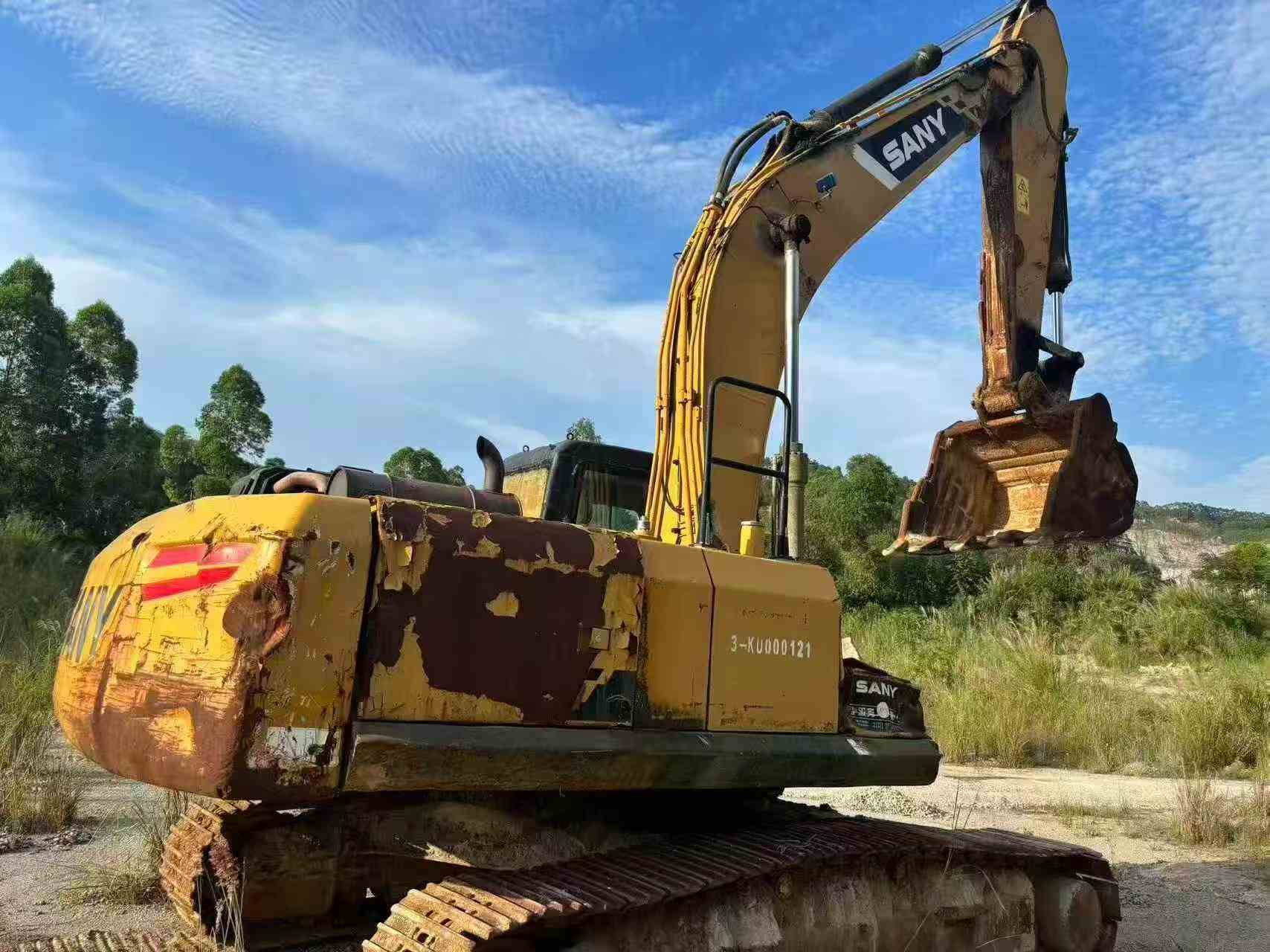

This 2016 Sany SY245H hydraulic excavator is currently available in Fujian, China. The SY245H is a reliable mid-size crawler excavator from Sany's proven H-series lineup, designed for general earthmoving, trenching, and site development applications. With approximately 8 years of service, this machine represents a cost-effective solution for contractors seeking dependable performance without the premium of new equipment.
Key features of the SY245H include:
- Operating weight class suitable for medium-duty construction and excavation work
- Sany's durable undercarriage and hydraulic system
- Fuel-efficient engine meeting emission standards
- Spacious operator cab with good visibility
Detailed photos and operational video are available upon request. This unit is priced competitively for the used equipment market and ready for immediate inspection and delivery. Contact us for complete specifications, service records, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1073820 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

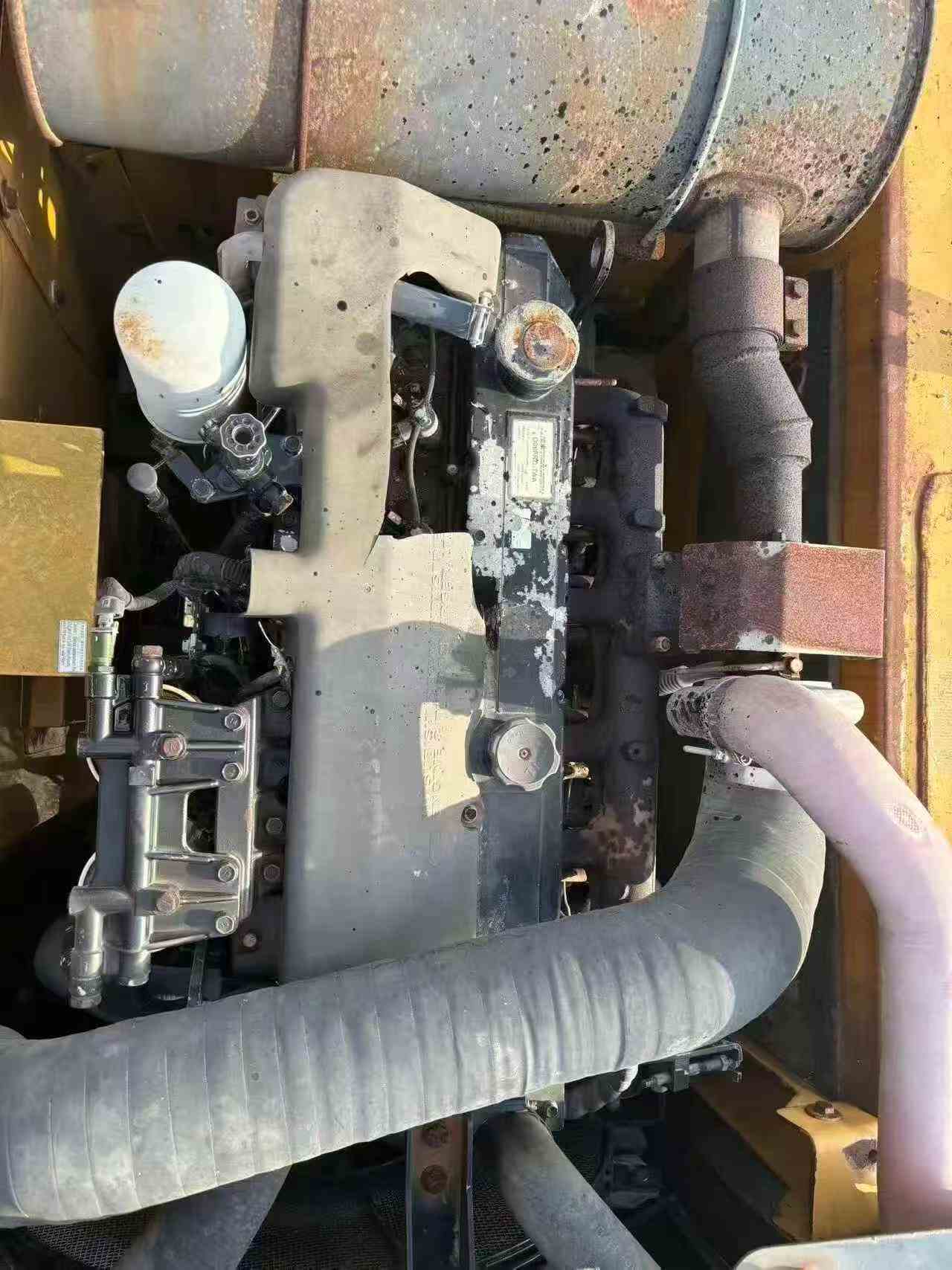

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
