Product Description

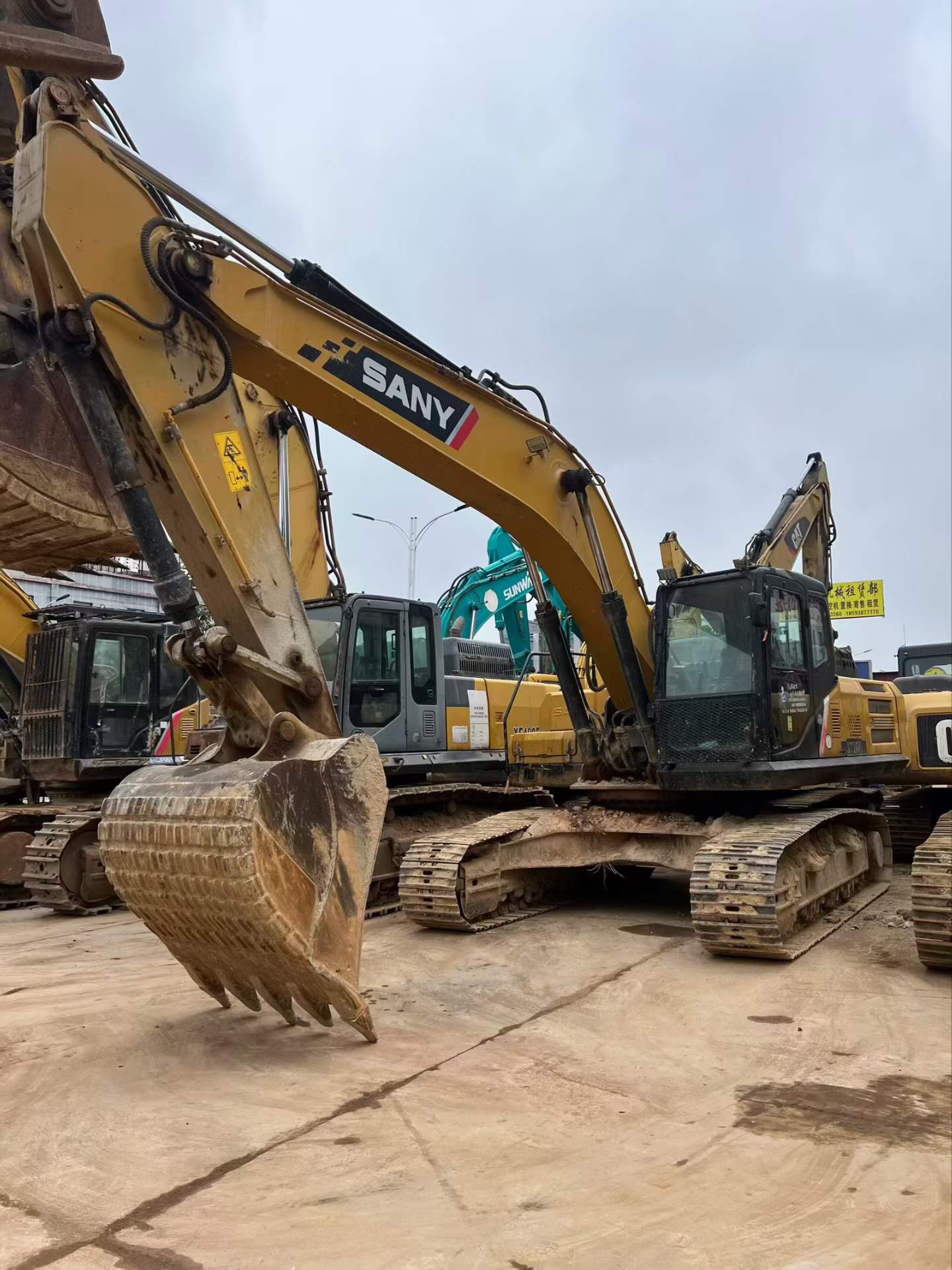

With 2017 Sany SY245H(国四) excavator, operators experience enhanced control and comfort. Designed for precision, this machine boasts a robust hydraulic system that ensures smooth and responsive handling. Located in 云南, it offers superior stability, even on challenging terrains, thanks to its well-balanced design and sturdy undercarriage.

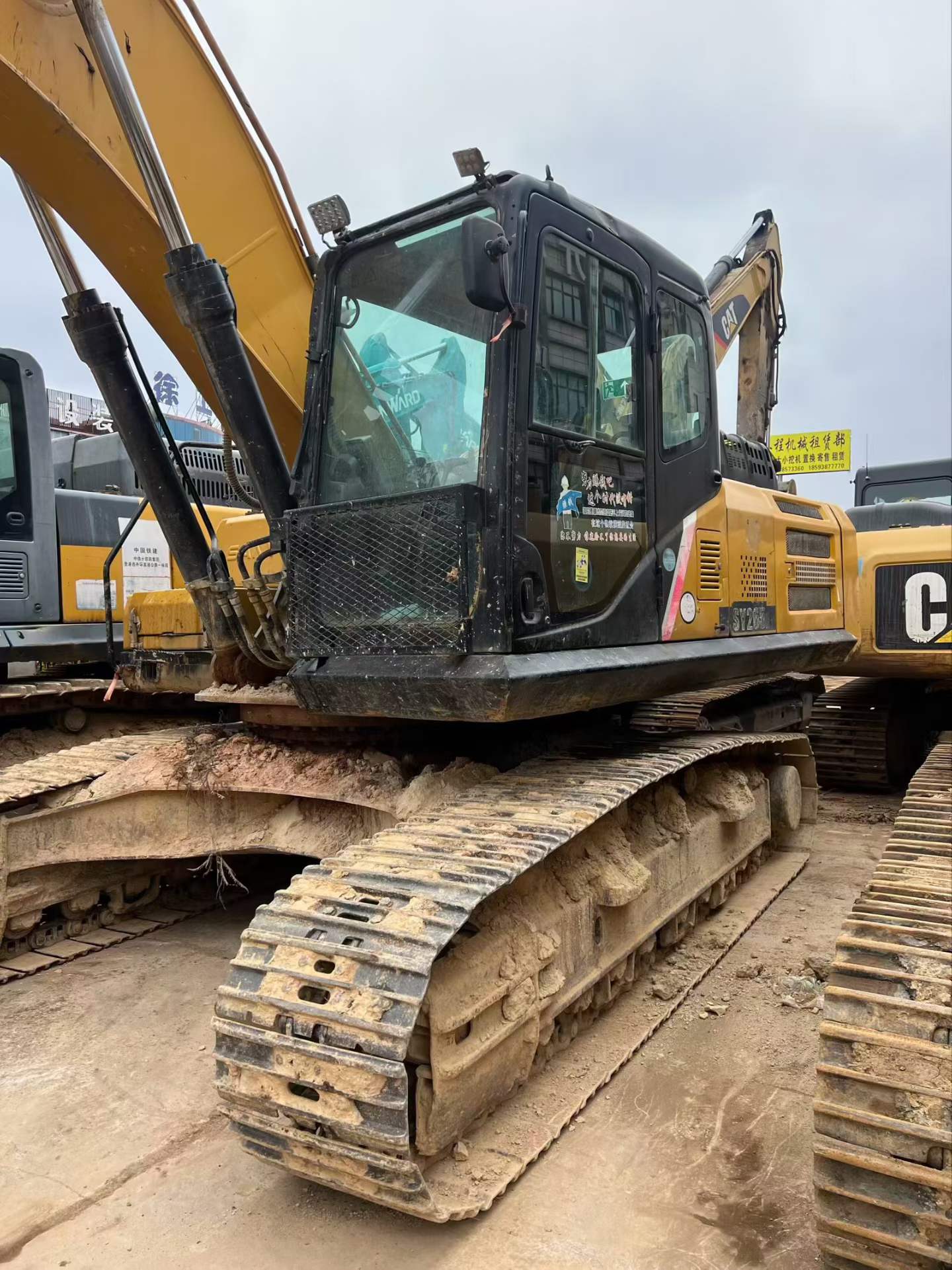

- Excellent cabin visibility provides a clear view of the work area, enhancing safety and efficiency.
- Spacious and ergonomically designed operator's cabin reduces fatigue during long hours of operation.

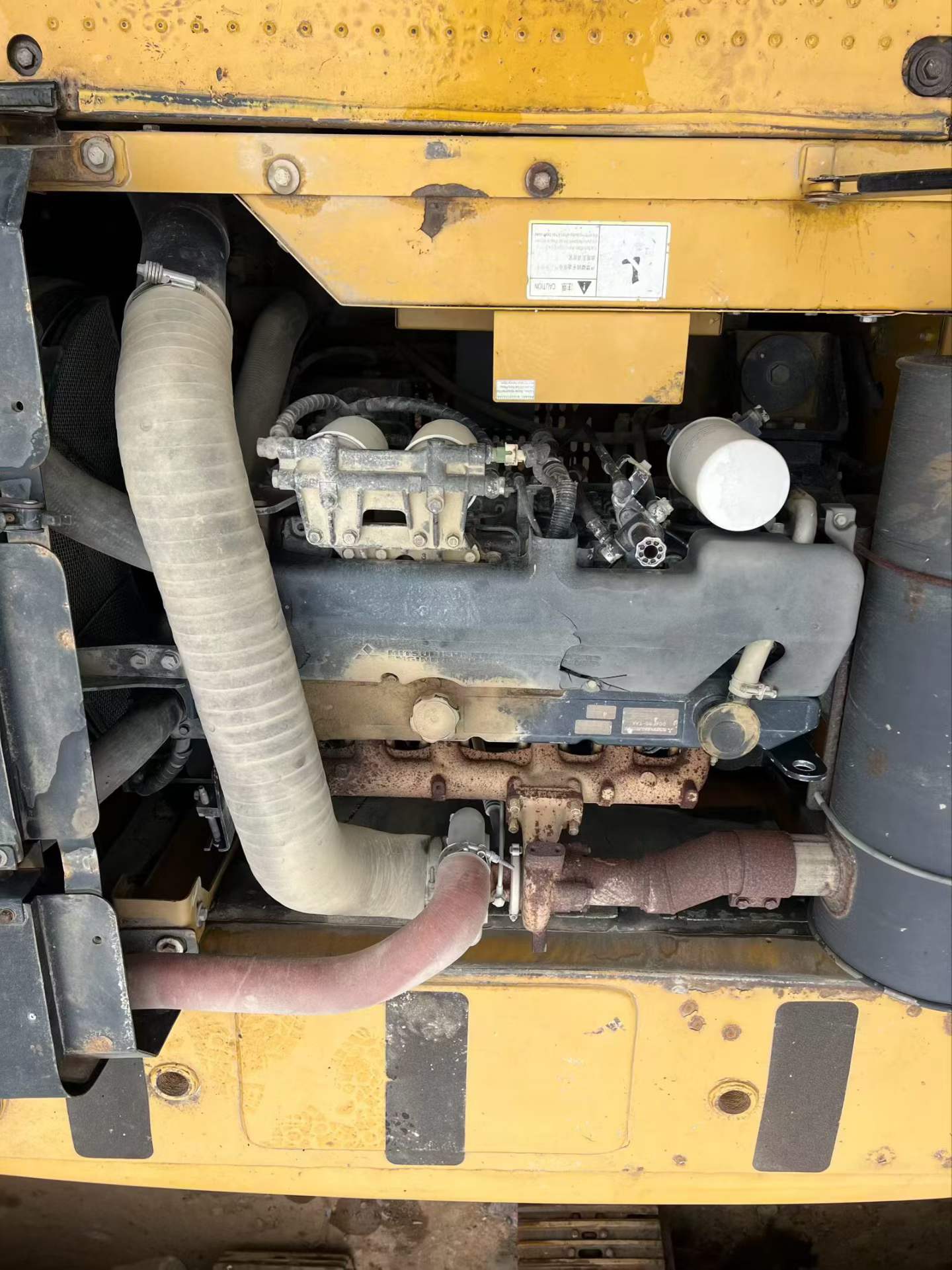

- Advanced filtration systems keep the engine running smoothly, minimizing downtime and maintenance costs.
| Specifications | Value |
|---|---|
| No. | 1001661 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz |
| Rated power (kw/rpm) | 150/2100 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175(187) |
| Rod digging force (kN) | 120(129) |
| Travel speed (km/h) | 5.8/3.7 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 5675 |
