Product Description

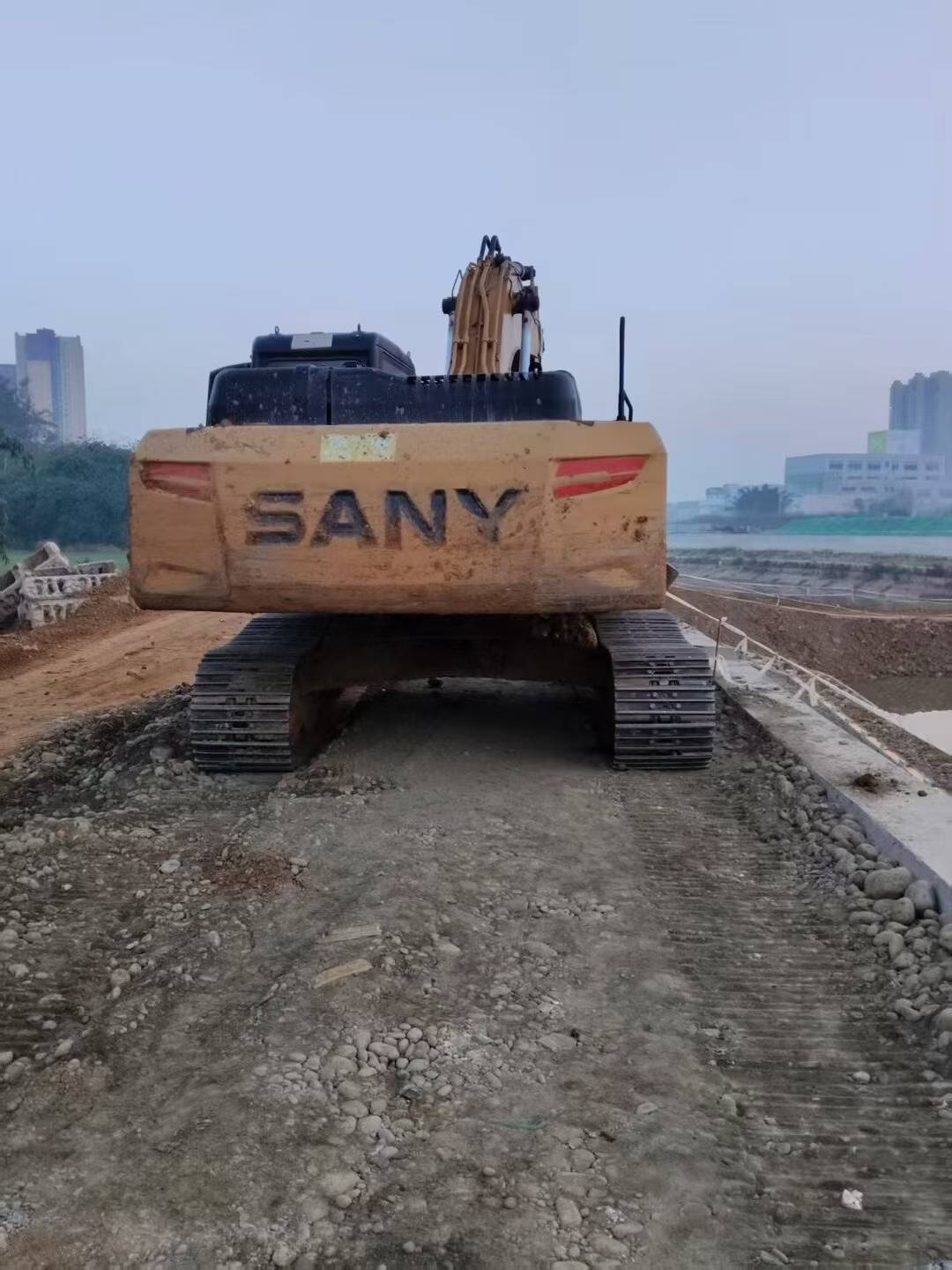

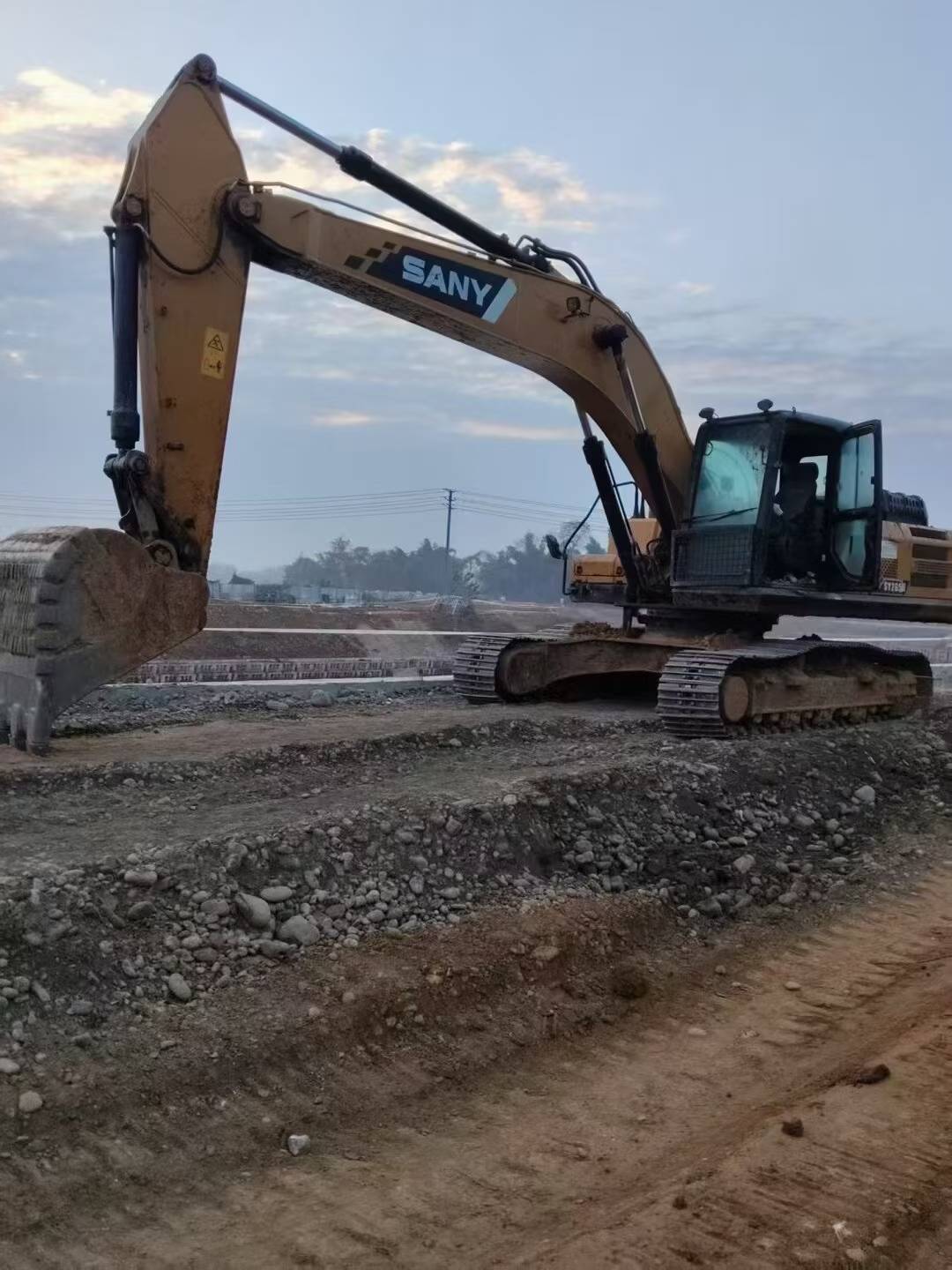

Proven performance meets industrial-grade reliability in this 2017 Sany SY245H excavator, now available from our Sichuan facility. With over six years of operational history, this machine demonstrates the exceptional build quality that has made Sany a trusted name in heavy construction. Engineered to withstand demanding jobsite conditions, the SY245H delivers consistent power and precision across earthmoving, trenching, and material handling applications.
Built on a robust chassis with reinforced components, this mid-size excavator has earned its reputation as a dependable workhorse. The China IV emission-compliant engine balances fuel efficiency with the hydraulic power needed for sustained productivity. Operators benefit from responsive controls and proven mechanical systems designed for extended service life.
- Year: 2017
- Model: Sany SY245H (China IV)
- Location: Sichuan, China
- Configuration: Mid-size crawler excavator
- Track Record: Years of field-proven durability
Contact Fair Trade Machinery today for detailed specifications, inspection reports, and competitive export pricing on this battle-tested excavator.
| Specifications | Value |
|---|---|
| No. | 1014881 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz |
| Rated power (kw/rpm) | 150/2100 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175(187) |
| Rod digging force (kN) | 120(129) |
| Travel speed (km/h) | 5.8/3.7 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 5675 |
